Simplicity 1694401 Setup guide

Attachment

Illustrated

Parts List

Rev. 01/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694401 Deluxe Hard Snow Cab

1731934

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Additive Parts Group ............................................................................................................................................ 4

Electrical Controls Group ..................................................................................................................................... 6

Frame Group ........................................................................................................................................................ 8

Front Windshield Group ....................................................................................................................................... 10

Glass Door Group ................................................................................................................................................ 12

Rear Windshield Group ........................................................................................................................................ 14

Roof Group ........................................................................................................................................................... 16

Additive Parts Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281apg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Additive Parts Group

Footnotes

Strut right1 1732678SM 1

Strut left2 1732677SM 1

Cross-stay below3 1732690SM 1

Hexagon head screw M10x304 1732639SM 8

Shim disk M105 1732657SM 16

Stop nut M106 1732649SM 8

Shim disk M87 1732656SM 8

Retainer ring M88 1732661SM 8

Hexagon head screw M8x259 1732638SM 8

Hexagon head screw M12x4510 1732631SM 6

Shim disk M1211 1732658SM 36

Stop nut M1212 1732650SM 18

Spoiler right13 1732680SM 1

Spoiler left14 1732679SM 1

Shim disk M615 1732655SM 4

Stop nut M616 1732647SM 2

Hexagon head screw M6x1617 1732635SM 2

Sticker18 1732682SM 1

Stop nut M519 1732646SM 8

Shim disk M520 1732654SM 16

Hexagon head screw M5x2021 1732634SM 8

Tube profile22 1721316SM 0.3m

Edge-protection small23 1732713SM 1m

Blind rivet 4x1224 1732663SM 4

Sheet metal screw 4.8x1625 1721415SM 2

Brake pedal cover26 1732692SM 1

Strip27 1732686SM 1

Screw-on plate28 1732685SM 1

Attachment bracket29 1732681SM 1

Spacer30 1732709SM 2

Hexagon head screw M12x4031 1732633SM 8

Hexagon head screw M12x10032 1732632SM 4

Bracket front left33 1732675SM 1

Bracket front right34 1732676SM 1

Mounting fuse box35 1732687SM 1

Fuse box36 1732707SM 1

Cable loom37 1732683SM 1

Safety belt fastening38 1732691SM 2

Mounting front-loader locking device39 1732688SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

Electrical Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281ecg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Electrical Controls Group

Footnotes

Frame cover panel front top1 1732684SM 1

Cable loom2 1732683SM 1

Switch wiper-washer system3 1732708SM 1

Blind cover4 1732715SM 2

Blind plug 12mm5 1721319SM 3

Sun blind6 1732599SM 1

Nipple with screw7 1721438SM 1

Cap nut M48 1721437SM 1

Oval countersunk head screw M4x159 1732641SM 2

Shim disk M410 1732653SM 2

Nut M411 1732645SM 2

Sheet metal screw 4.8x1612 1721415SM 10

Frame cover panel rear top13 1732666SM 1

Sheet metal screw 3.5x1614 1732643SM 2

Switch (13.350) 1-stage15 1732714SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

Frame Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281fg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Frame Group

Footnotes

Side frame left1 1732671SM 1

Side frame right2 1722672 1

Impact nipple H1 d=6mm3 1732662SM 4

Glass SH left4 1732703SM 1

Glass SH right5 1732689SM 1

Activator 30ml6* 1

Adhesive for panel (Sikadrive)7* 1

Locking pin 13mm8 1721434SM 2

Washer9 1732597SM 2

Slide-off strap10 1732696SM 2

Threaded plate11 1732695SM 2

Door push-out12 1721391SM 2

Countersunk head screw M8x2013 1732640SM 2

Stop nut M814 1732648SM 2

Cable loom15 1732683SM 1

Stop nut M616 1732647SM 8

Blind plug 18mm17 1732664SM 4

Coat hook18 1732700SM 1

Sheet metal screw 3.9x1319 1732642SM 1

Pneumatic spring sleeve l=22mm / 2x M820 1721313SM 2

Shim disk M821 1732656SM 25

Oval head screw M6x16 cross-recessed22 1732644SM 8

Locking device23 1732710SM 4

Cross-strut front above24 1732669SM 1

Cross-strut rear above25 1732670SM 1

Front panel26 1732673SM 1

Tube profile27 1721316SM 3.9m

Rear panel28 1732674SM 1

Hexagon head screw M8x2029 1732637SM 18

Retainer ring30 1732661SM 23

Mirror left complete 602001 (Includes Ref. No. 36)31 1732699SM 1

Mirror left complete 602001 (Includes Ref. No. 36)32 1732698SM 1

Hexagon head screw M6x1633 1732635SM 6

Shim disk M634 1732655SM 10

Cover cap d=6mm35 1732717SM 4

Mirror36 ** 1

Compriband A20/1537 1721323SM 3.4m

Hexagon head screw M8x1238 1732636SM 5

Expansion rivet39 1732712SM 1

Velour band40 1732665SM 0.3m

Distance plate hinge t=8mm41 1732711SM 8

NOTE* Not a serviceable part.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

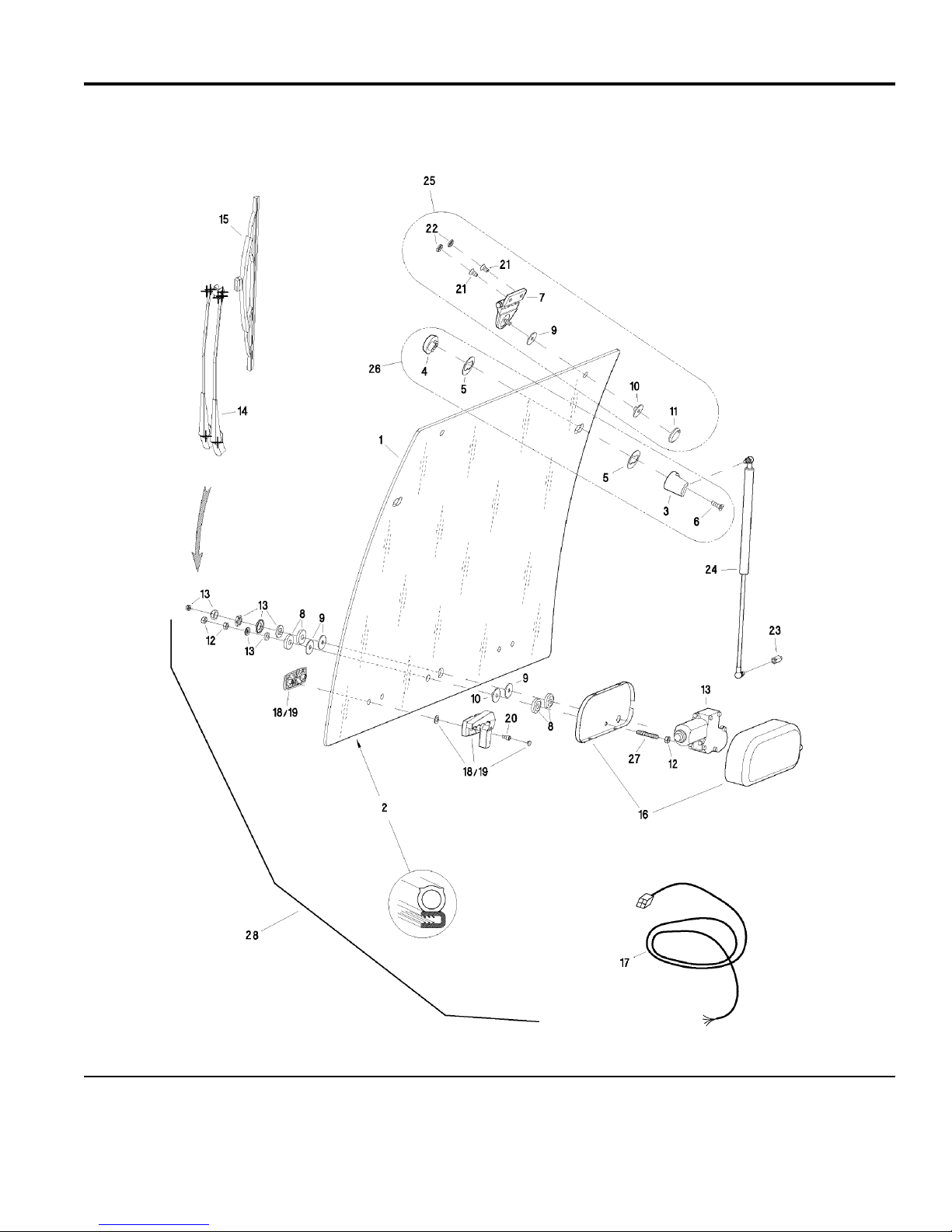

Front Windshield Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281fwg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA
