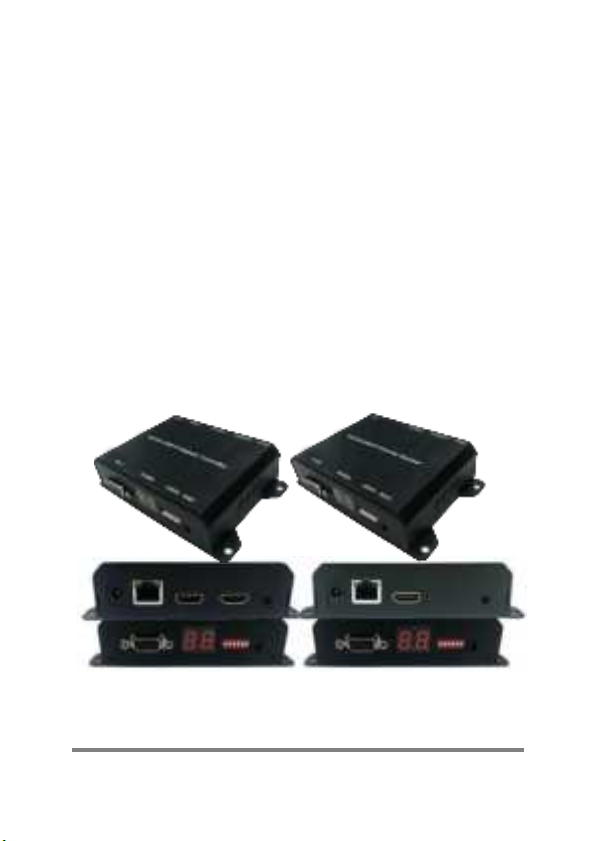

SIIG CE-H26411-S1 User manual
2
1.
Introduction
Full HD HDMI Extender over IP with POE, RS-
232 & IR for point to point, point to multi-point,
multi- point to multi-point and screen wall
broadcast including RS-232 and IR control
extension. Easy installation with networking
10/100 BASE-T switch hub and CAT-5 cable
for building up the extension or broadcast
system.
*** Full HD HDMI Extender over IP with POE, RS-232 & IR
3
2.
Features & Application
⚫
RS-232 bi-directional extension
⚫
6 bits switch for 64 stream channel selection
⚫
HDCP compliant and Blu-Ray ready
⚫
Support IR extension
⚫
Automatic or manual EDID configuration
⚫
Networking environment under 10/100 BASE-T
switch hub and CAT-5 cable
⚫
Point to point extension, unicast, multicast and
screen wall system
⚫
Point to point extension via CATx without
Ethernet switch up to 100M
⚫
Support PC tool Ethernet control
4
3.
Specifications
Transmitter
Receiver
VIDEO INPUT
HDMI Type-A female connector
None
VIDEO OUTPUT
HDMI Type-A female connector for
loop through
HDMI Type-A female connector
IR
3.5mm phone jack for IR emitter to
control video source device
3.5mm phone jack for IR receiver
cable to receive remote signal
COMPRESSION
H.264 compression video format Full HD encoder/ decoder
MP3 compression audio format stereo 192Kbps encoder/ decoder
Media stream up to 18Mbps
HDMI
INPUT RESOLUTION
1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50,
480i 60/50, 480p 60/50
HDMI
OUTPUT RESOLUTION
1080p 30/25, 1080i 60/50, 720p 60/50, 480i 60/50,
480p 60/50
AUDIO FORMAT
Stereo 192Kbps
IP PROTOCOL
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
LAN PORT
RJ-45 connector for 10/100 BASE-T CAT-5 extension
SERIAL
DB-9 female connector for RS-232
POWER INPUT
2.0mm power jack for DC5V/2A
RJ-45, Power over Ethernet 36V~57V / 7W in (PoE model only)
OPERATING
TEMPERATURE
0~55℃
OPERATING HUMIDITY
5%~90% RH
POWER ADAPTER
AC in 100~240V (50~60Hz), DC5V/2A out
ESD
ESD protection air gap discharge ±8KV, contact discharged ±4KV
DIMENSION (W x D x L)
130 x 82 x 30.25 mm ( L x W x H )
WEIGHT
290g per transmitter or receiver unit
** Product specifications are subject to change without notice.
5
4.
Hardware Description
■
Transmitter (TX)
1.
2.0 mm power jack for DC5V2A power input.
2.
LAN port, RJ-45 connector for 10/100 BASE-
T CAT5 extension.
3.
HDMI Type-A female connector for loop
through video output.
4.
HDMI Type-A female input connector.
5.
3.5mm phone jack for IR emitter to control
video source device.
6.
DB-9 female connector for RS-232 cable bi-
directional remote extension
6
7.
Display group indication.
8.
Group configuration, 6 bits switch for 64
stream channel selection.
9.
Reset button.
Channel
DIP SWITCH
00
000000
01
100000
~
~
63
111111

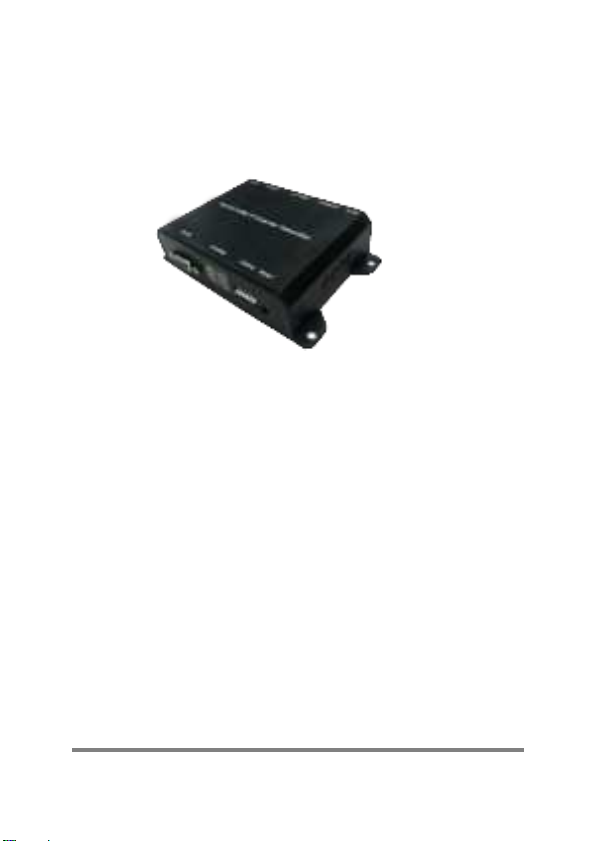

Dimension
Transmitter
CE-H26411-S1
Shell
Metal
Width
110mm/130mm
Height
30mm
7
Depth
86mm
Weight
290g
■
Receiver (RX)
1.
2.0 mm power jack for DC5V2A power input.
2.
LAN port, RJ-45 connector for 10/100 BASE-
T CAT5 extension.
3.
HDMI Type-A female connector for video
output.
4.
3.5mm phone jack for IR receiver cable to
receive signal from remote controller.
5.
DB-9 female connector for RS-232 bi-
directional remote extension.
6.
Display group indication.
7.
Group configuration, 6 bits switch for 64
8
stream channel selection.
8.
Reset button.
Channel
DIP SWITCH
00
000000
01
100000
~
~
63
111111
9.
Dimension
Receiver
CE-H26511-S1
Shell
Metal
Width
110mm/130mm
Height
30mm
Depth
86mm
Weight
290g
9
5.
Installation

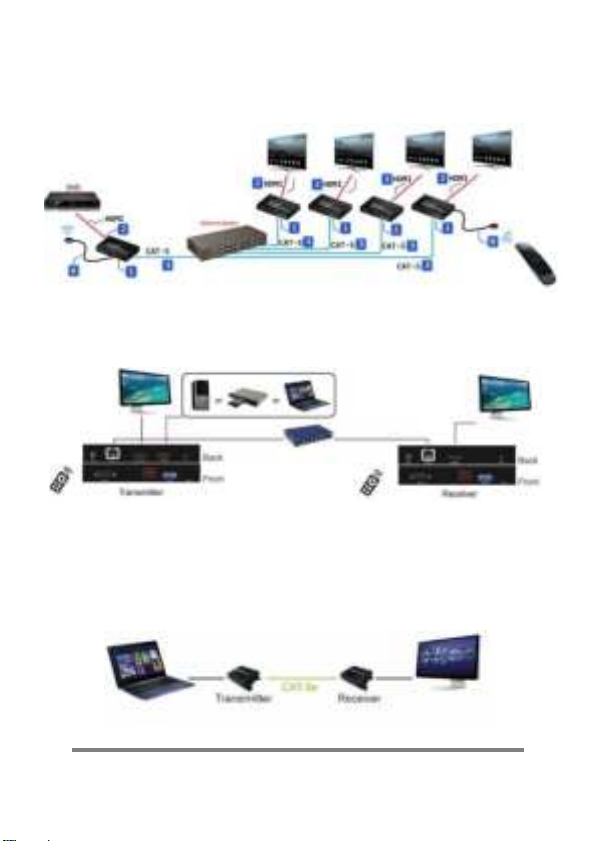

5.1
Device Connection
1.
Set up the group of the transmitter with the
correspondent receiver for signal extension
and display.
2.
Connect the HDMI cables between the source
and transmitter for input, and the display and
receiver for output.
3.
Connect CAT5 cable among the
transmitter, Ethernet switch and receiver.
4.
Connect the DC5V power adapter with the
transmitter and receiver for power supply.
5.
Turn on and play source.
6.
Connect the IR emitter cable with the
transmitter and the IR receiver cable with the
receiver to control the source remotely.
10
5.2
Configuration
5.3
Application Pattern
■
Unicast
