SIIG CE-D20012-S1 User manual
1
Introducing the DVI to HDMI Mini-Extender
TheDVI to HDMI over CAT5e Mini-Extender extendsvideo
transmission from a DVI source to an HDMI display over
one economical CAT5e/6 cable. This cost effective
solution provides the means to transmit high quality
digital video over long distances at minimal cost.
FeaturesandBenefits
• DVI v1.1 compliant, single-link DVI
• Programmable EDID feature on the DVI-D to RJ-45
(Transmitter) unit
• Video bandwidth: 1.65 Gbps
• Lowpowerconsumption -nopoweradapter needed
• Transmission distances: up to 40m/130 ft @ 720p/
1080i or 25m/80 ft @ 1080p
PackageContents
• DVI Mini-transmitter (TX)
• HDMI Mini-receiver (RX)
• Quick Installation Guide
SerialNumberSticker
For future product return or exchange, this serial number
is required. Please keep it for your reference.
04-0511A
DVI to HDMI over CAT5e
Mini-Extender
Quick Installation Guide
2

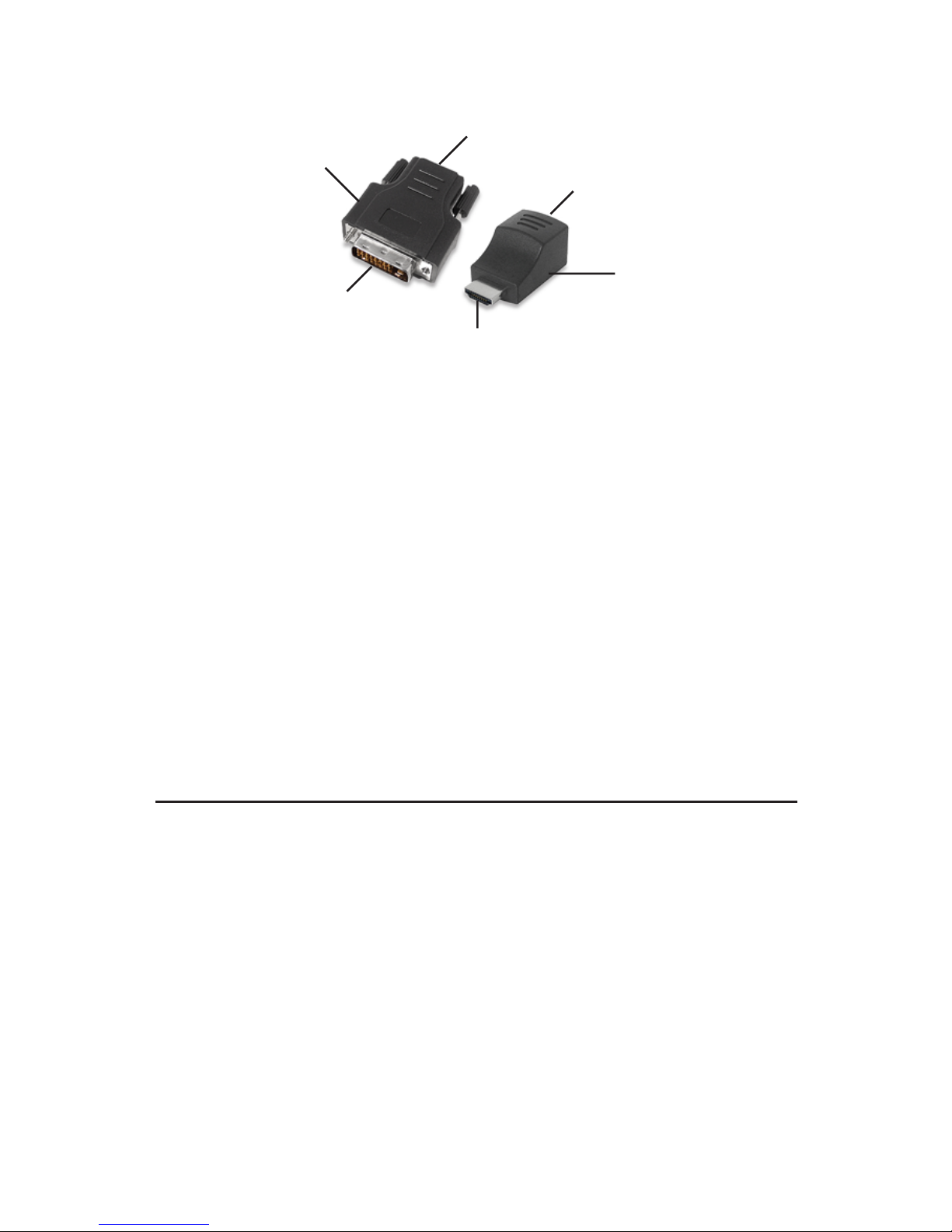

Layout
Figure 1: Layout
• DVI In: plug into the DVI video card of your
computer
• RJ-45 Out: plug in your CAT5e/6 cable, to be linked
to the RJ-45 In connector of the receiver (cable not
included)
• RJ-45 In: plug in your CAT5e/6 cable, to be linked
to the RJ-45 Out of the transmitter (cable not
included)
• HDMI Out: connects to your HDMI display
Hardware Installation
1. Connect your DVI source to the transmitter.
2. Connect your HDMI display to the receiver.
3. Connect your CAT5e/6 cable between the
transmitter and receiver. Make sure the cable is
securely connected and not lose.
4. Power on all devices and enjoy.
DVI In
RJ-45 In
RJ-45 Out
HDMI Out
Transmitter
Receiver
3
Technical Support and Warranty
QUESTIONS? SIIG’sOnlineSupport hasanswers! Simply visitour
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyour questionscould bejust afew clicksaway. Youcanalsosubmit
questions online and a technical support analysts will promptly
respond.
SIIGoffers a2-yearmanufacturerwarrantywith thisproduct. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyour purchasehas passedthe store'sreturn policyperiod, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIGwillrefuse toacceptany shipping package,and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.
DVI to HDMI over CAT5e Mini-Extender is a trademark of SIIG, Inc. SIIG and the SIIG logo are
registeredtrademarksofSIIG,Inc. Othernamesusedinthispublicationareforidentificationonlyand
maybe trademarksof their respectivecompanies.
October, 2008 Copyright © 2008 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCIe, PCI & ISA serial and
parallel ports, USB, Serial ATA & UltraATA controllers, FireWire
(1394a/b),networking, soundcards, andother accessories. SIIGis the
premier one-stop source of upgrades.
SIIGproducts offercomprehensive usermanuals,manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
PRODUCT NAME
DVI to HDMI over CAT5e Mini-Extender
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
Ph: 510-657-8688
