SIIG CE-H20211-S1 User manual
1
IntroducingtheHDMIoverCAT5eMini-Receiver
The HDMI over CAT5e Mini-Receiver provides a cost
effective solution by which high definition video and
highqualityaudiocanbetransmittedtodifferentlocations
over long distances using an inexpensive CAT5e/6 cable.
FeaturesandBenefits
• HDMI 1.2a compliant & HDCP compatible
• Receives HDMI signals from a transmitter or
transceiver, then connects to an HDMI display
• Low power consumption - no power adapter
required
• Works with transmitters & transceivers
TechnicalSpecifications
• Input: 1 RJ45
• Output: 1 HDMI (19-pin male)
• Distance:
- 720p / 1080i: 25m / 80ft
- 1080p: 15m / 50ft
PackageContents
•HDMI over CAT5e Mini-Receiver
• Quick Installation Guide
04-0504A
HDMIoverCAT5eMini-Receiver
Quick Installation Guide
2

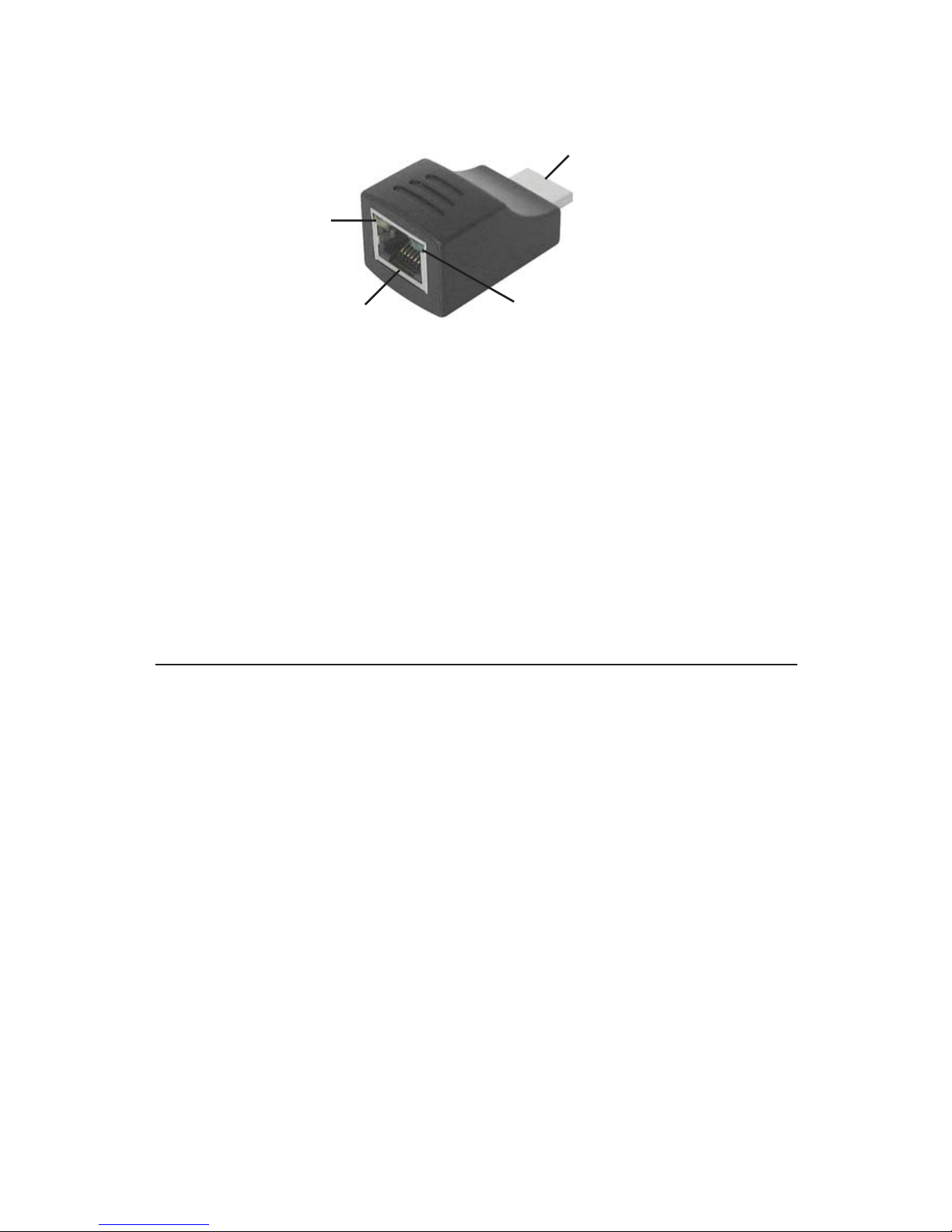

Figure 1: Layout
• RJ45 In: connects to your transmitter/transceiver
via CAT5e cable
• HDMI out: connects to you HDMI enabled display
• LED: both LEDs will light up when connected to a
powered up HDMI display
Hardware Installation
1. Turn the power off to your HDMI display.
2. Connectyour HDMI displayto theHDMI Out of the
HDMI over CAT5e Mini-Receiver.
3. Connect your CAT5e cable from a transmitter/
transceiver to the RJ45 In.
4. Power on your HDMI display.
Layout
RJ45 In
HDMI Out
LED
LED
3
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support has answers! Simplyvisit our
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyour questionscould bejust a fewclicks away. Youcan also submit
questions online and a technical support analysts will promptly
respond.
SIIGoffers a 2-year manufacturer warranty with this product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyour purchasehas passedthe store'sreturn policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.
HDMI over CAT5e Mini-Receiver is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered
trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be
trademarksoftheirrespectivecompanies.
September, 2008 Copyright © 2008 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCIe, PCI & ISA serial and
parallel ports, USB, Serial ATA & UltraATA controllers, FireWire
(1394a/b),networking,sound cards,andother accessories. SIIG isthe
premier one-stop source of upgrades.
SIIGproductsoffer comprehensive usermanuals,manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
PRODUCT NAME
HDMI over CAT5e Mini-Receiver
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
Ph: 510-657-8688
