Properties 1
1.1 Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A
(6ES7132-4HB01-0AB0)
Properties
● Digital electronic module with two relay outputs
● Output current 5 A per output
● Rated load voltage DC up to 120 V / AC to 230 V
● Suitable for solenoid valves, DC contactors, and indicator lights
● Isolated from the supply voltage
● Extended temperature range from 0 to 55 °C with vertical installation
CAUTION
The rated power supply voltage of the 2RO NO DC24..120V/5A, AC24..230V/5A is
24 VDC. The 2RO NO DC24..120V/5A, AC24..230 V/5A must be in a 24 VDC potential
group only (from the power module).
General terminal assignment
Note
Terminals 4, 8, A4, A8, A3 and A7 are only available at specified terminal modules.
Terminal assignment for 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
Terminal Assignment Terminal Assignment Notes
1 13 5 23
2 14 6 24
3 14 7 24
4 n.c. 8 n.c.
A4 AUX1 A8 AUX1
A3 AUX1 A7 AUX1
•13, 14: Normally open contact, Channel 0
•23, 24: Normally open contact, Channel 1
•n.c.: Not connected (max. 30 V DC can be connected)
•AUX1: Protective-conductor terminal or potential bus (freely usable
up to 230 VAC)
Properties
1.1 Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
8 Manual, 04/2007, A5E01077282-01
Usable terminal modules
Usable terminal modules for 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
TM-E15C26-A1
(6ES7193-4CA50-
0AA0)
TM-E15C24-A1
(6ES7193-4CA30-
0AA0)
TM-E15C24-01
(6ES7193-4CB30-
0AA0)
TM-E15C23-01
(6ES7193-4CB10-
0AA0)
Spring terminal
TM-E15S26-A1
(6ES7193-4CA40-
0AA0)
TM-E15S24-A1
(6ES7193-4CA20-
0AA0)
TM-E15S24-01
(6ES7193-4CB20-
0AA0)
TM-E15S23-01
(6ES7193-4CB00-
0AA0)
Screw-type terminal
TM-E15N26-A1
(6ES7193-4CA80-
0AA0)
TM-E15N24-A1
(6ES7193-4CA70-
0AA0)
TM-E15N24-01
(6ES7193-4CB70-
0AA0)
TM-E15N23-01
(6ES7193-4CB60-
0AA0)
Fast Connect
$
$8;
$
$
$
$8;
$$
3($8;
12 12
1212

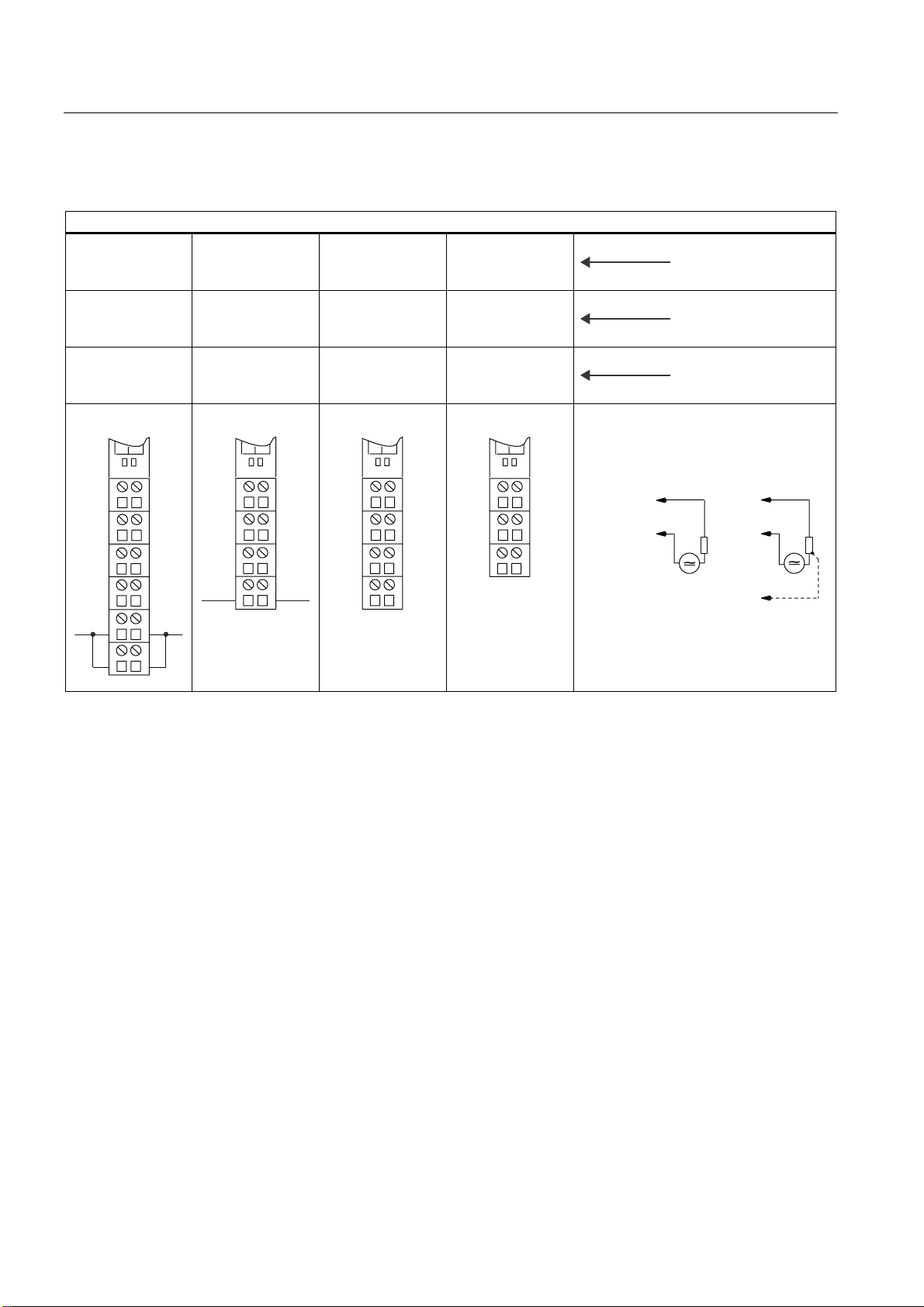

:LULQJH[DPSOHV
Properties
1.1 Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
Manual, 04/2007, A5E01077282-01 9
Block diagram
/
0
3
3
)URPSURGXFWOHYHORIWKH52129'&9$&$WKHLQWHUQDO
EULGJHEHWZHHQWHUPLQDOVDQGLVQRWLQVWDOOHG,I\RXUHTXLUHWKLVEULGJHLWFDQEH
UHSODFHGE\DQH[WHUQDOEULGJHEHWZHHQWHUPLQDOVDQG
(76
EDFNSODQH
EXV
FLUFXLW
%DFNSODQHEXV
3RODULW\UHYHUVDO
SURWHFWLRQ
Figure 1-1 Block diagram of the 2RO NO DC24..120V/5A, AC230V/5A
Technical data 2RO NO DC24..120V/5A, AC230V/5A (6ES7132-4HB01-0AB0)
Dimensions and weight
Width (mm) 15
Weight Approx. 50 g
Module-specific data
Supports isochronous operation No
Number of outputs 2
Length of cable
•Unshielded Max. 600 m
•Shielded Max. 1,000 m
Parameter length 3 bytes
Address space 1 byte
Address space (packed) 2 bits
Properties
1.1 Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
10 Manual, 04/2007, A5E01077282-01
Voltages, currents, potentials
Rated supply voltage L+
(from the power module)
24 VDC
Reverse polarity protection Current per channel Yes
•Up to 50°C Max. 5 A
•Up to 60°C Max. 4 A
Electrical isolation
•Between the channels Yes
•Between the channels and backplane bus Yes
•Between the channels and supply voltage Yes
•Between the supply voltage and backplane
bus Yes
Permissible potential difference
•Between the supply voltage and backplane
bus 75 VDC / 60 VAC
•Between channels and backplane bus 240 VAC
•Between channels and supply voltage 240 VAC
Insulation tested Yes
•Between the supply voltage and backplane
bus 500 VDC
•Between channels and backplane bus 1500 VAC
•Between channels and supply voltage 1500 VAC
Current consumption
•From the power supply L+ Max. 30 mA
Power dissipation of the module Typically 0.6 W
Status, interrupts, diagnostics
Status display Green LED per channel
Diagnostics function No
Data for selecting an actuator
Output current
•Continuous thermal current Max. 5 A
•Minimum load current 8 mA
•Minimum voltage 17 V
Connecting two outputs in parallel
•For redundant triggering of a load No
•To increase performance No
Control of a digital input Yes
Switch rate
•For resistive load 2 Hz
•On inductive load 0.5 Hz
•For lamp load 2 Hz
Limitation (internal) of the voltage induced on
circuit interruption
No
Short-circuit protection of the output 1 No
1 The relay outputs must be fused externally with 6 A.
Table of contents
Other Siemens Control Unit manuals
Siemens
Siemens Synco RMZ792 Operator's manual
Siemens
Siemens SIRIUS 3RV2.2 User manual
Siemens
Siemens FN2006-U1 Guide
Siemens
Siemens SCALANCE W788C-2 User manual
Siemens
Siemens SINUMERIK 840D sl Quick start guide
Siemens
Siemens MJ-XL User manual
Siemens
Siemens FDCI223 User manual
Siemens
Siemens SINAMICS G130 User manual
Siemens
Siemens SINAMICS V90 User guide
Siemens
Siemens SIMOTION D410 User manual
Siemens
Siemens SINAMICS G120 User manual
Siemens
Siemens AP 118 Service manual
Siemens
Siemens SIMOTION TM15 Quick start guide
Siemens
Siemens SIMATIC ET 200S User manual
Siemens
Siemens RWF50 User guide
Siemens
Siemens Simatic S7-1500 User manual
Siemens
Siemens SIMATIC 6ES7135-4MB02-0AB0 User manual
Siemens
Siemens FN2013-U1 User manual
Siemens
Siemens SINAMICS G120 User manual
Siemens
Siemens VAG60 Series User manual
Popular Control Unit manuals by other brands
Festo
Festo Compact Performance CP-FB6-E Brief description
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Quick installation guide
JS Automation
JS Automation MPC3034A user manual
JAUDT
JAUDT SW GII 6406 Series Translation of the original operating instructions
Spektrum
Spektrum Air Module System manual
BOC Edwards
BOC Edwards Q Series instruction manual
KHADAS
KHADAS BT Magic quick start
Etherma
Etherma eNEXHO-IL Assembly and operating instructions
PMFoundations
PMFoundations Attenuverter Assembly guide
GEA
GEA VARIVENT Operating instruction
Walther Systemtechnik
Walther Systemtechnik VMS-05 Assembly instructions
Altronix
Altronix LINQ8PD Installation and programming manual
