Siemens SIMATIC 500 Series Manual

GTB Page 1 12/17/99

Series 500/6MT Product Families NO. SEA-035-99

DATE 12/17/99 PAGE 1 of 3

SUBJECT: Manufacturing Discontinuation Notice for

SIMATIC Series 500 and 5TI/6MT Product Families

The SIMATIC Series 500 Product Family has had a long and successful life. Born in the early

1980's, the Series 500 Product Family was matured in the late 1980’s and is still being manufactured

10 years later in order to meet our customers needs. Siemens recognizes the need for this long-term

commitment for the products it provides for the industrial marketplace. Siemens also recognizes the

need to keep customers aware of the status of its older product lines.

Therefore, in keeping with the terms of the Classification Change Notice of October 1996 for

these products, Siemens Energy & Automation, Inc. is announcing the Discontinuation of

Manufacture of the SIMATIC Series 500 and 6MT Product Families as follows:

Family Date of last Manufacture Begin "Service Only" Minimum Repair Service

6MT Products June 2000 December 2000 December 2003

Series 500 Family December 2000 December 2001 December 2003

.This early notification is being given in order to give our customers ample opportunity to

purchase adequate spares or make other adjustments in order to sustain their process for the

duration. This move is necessitated by the fast moving nature of the electronics industry with its

relentless elimination of older electronic component parts, combined with a substantial decline in

customer demand for these products, making continued production impractical. Fortunately, the

SIMATIC 505 line as the successor product line provides a viable alternative solution in most cases.

The SIMATIC Series 505 Product Family, the next generation to the Series 500, was

developed to simplify the automation control task and give our customers a competitive edge with

state-of-the-art performance at an affordable price. The transition of our customers from the Series

500 to Simatic 505 has been highly successful due to high compatibility and easy transferability of

the user programs via Tisoft or SoftShopfor Windows, as well as universal I/O connectivity.

In addition, the new Series 500 PROFIBUS-DP RBC has been designed to preserve our

customer's investment in Series 500 I/O and associated field wiring by allowing easy re-connection of

Series 500 I/O bases to all Siemens PLC lines now and into the future via PROFIBUS-DP.

GTB Page 2 12/17/99

The following points will be of interest to our Series 500 customers:

1. Siemens will take new orders for the Series 500 and 6MT products listed on the attachment up

until the "Service Only" date as long as stocks are available. These orders are subject to

standard customer service policies.

2. For this announcement, the list price and terms will remain as stated on the latest price list.

However, these prices are subject to change due to future market conditions.

3. Product lead-times may vary, but all effort will be made to satisfy customer demands.

4. Siemens Energy & Automation, Inc. Standard Policy for phased-out product: Siemens

Energy & Automation, Inc. remains committed to provide at least seven years of service and

support for those SIMATIC products transferred from Texas Instruments, Inc., including upgrades

and additions to that product line made by Siemens. The seven-year support period for the Series

500 and 6MT product families began with the effective announcement in October 1996. However,

Siemens will continue to provide repair services on these products for as long as practical beyond

the seven-year period, just as is being done today with many other obsolete products.

5. The following products are exempted from this announcement and will be sustained for 5 years or

so in order to assist customers in connecting their existing Series 500 I/O bases to newer Siemens

PLC systems via PROFIBUS-DP when desired:

PART NUMBER DESCRIPTION

500-6870 PROFIBUS-DP REMOTE BASE CONTROLLER

500-5840 BASE ADAPTER TO REPLACE OLDER 530 CPUs WITH RBC

500-2151-A 110/220 VAC POWER SUPPLY

6. THERE ARE NO PLANS TO PHASE OUT THE 505 PRODUCT LINE. SIEMENS ENERGY &

AUTOMATION, INC. IS CONTINUING TO ACTIVELY MARKET AND MAKE SUBSTANTIAL

R & D INVESTMENTS IN THE 505 PRODUCT LINE. RECENT INTRODUCTIONS OF ALL NEW

CPUs (545-1105, 545-1106, 555-1105, 555-1106, 575-2105, 575-2106), ALONG WITH NEW

PowerMath



& SmarTune



FUNCTIONS, AS WELL AS PROFIBUS FMS, ETHERNET TCP/IP,

AND MANY NEW I/O MODULES DEMONSTRATES SIEMENS' CONTINUED COMMITMENT TO

THE SIMATIC 505 PRODUCT FAMILY.

The Siemens network of Companies & Distributors, the Customer Service Center, Technical

Services, and Application Engineering Services stand ready to assist you making the transition, at

your convenience, to our powerful SIMATIC Series 505 Product Family and the newer line of

SIMATIC S7 products. We trust that you will understand the reasons for this notice and special

circumstances affecting these products. If you have any further questions regarding this

announcement, please contact your Siemens office or Distributor, Siemens Customer Service in the

USA at 423-461-2510 or FAX 423-461-2337. For technical issues contact the Siemens Technical

Services Group in the USA (NAFTA) at 1-800-333-7421, outside the USA at 49-911-895-7000, or via

Email at simatic.hotl[email protected]. Thank you.

Regards,

Tom Barrick, Product Manager, Siemens Energy & Automation, Inc.

Tom.barrick@sea.siemens.com (423) 461-2735 Fax (423) 461-2016

GTB Page 3 12/17/99

THE FOLLOWING PRODUCTS MAKE UP THE SIMATIC SERIES 500

AND 5TI/6MT FAMILIES AFFECTED BY THIS ANNOUNCEMENT:

PRODUCT

NUMBER DESCRIPTION PRODUCT

NUMBER DESCRIPTION

2492144-8001 CONN KIT, 500-5009 500-5054 500-5054 / PEER LINK, DUAL L/L

2492144-8008 CONN KIT, 500-5047 500-5055 32 PT 110 VAC INPUT MODULE,500

2492144-8012 CONN KIT, HI DENSITY 500-5030 500-5056 32 PT 110 VAC OUT MODULE,500-5

2493625-8003 530C BATTERY DOOR 500-5061 HI CURR RELAY OUT MODULE,500-5

25806-48** 5TI 48" EXTENSION CABLE 500-5114-A TURBO RBC,500-5114A,W/485

2587679-8006 FUSE,3A FOR 500-5023 500-5848 500-5848 / 14 SLOT BASE

2587679-8007 FUSE,1/5 A FOR 500-5009 500-5892 500-5892 / 6 MODULE BASE

2587679-8012 3 AMP 125V FUSE 500-6262 SIMATIC S5 PIM MODULE (TIWAY)

2587679-8013 5A 250V FUSE FOR 500-5061 500-6920 VAX DRIVER TK50 SNGL USR LICEN

2587679-8014 3.15A 125V FUSE 500-8111 500-8111 / MAN P/S USER'S 500-

2587679-8015 FUSE 3A 250V SLO FOR 500-5010 500-8113 500-8113 / MAN, 500-5030,500-5

2587681-8001 EPROM 2K X 8 FOR 500 CPUs 500-8114 500-8114 / MAN,USER'S HSPI 500

2587681-8007 EPROMS,2K X 8, 5TI 500-8115 500-8115 / MAN,TW PEERLINK USE

2587681-8012 EPROM,32K X 8,530C 500-8116 500-8116 / MAN, USER'S 500-505

2587681-8015 EPROM, 2732A 500-8117 500-8117 / MAN USER'S / 500-50

2587681-8020 EEPROM 32K X 8525 500-8126 500-8126 / MAN, RTD USER'S / 5

2587693-8006 REPLACE 530 KEY STD 500-8140 500-8140 / MANUAL, I/O BASE US

2587871-0059 MANUAL,TIWAY DE 500-8143 500-8143 / 500/505 IOCC/DBC US

2703770-8001 TIWAY BLOCK TAP 500-8144 500-8144/MANUAL, 500-5051 USER

500-2108 500-2108 / I/O CHANNEL CONTROL 500-8145 500-8145/MANUAL, 500-5047-A US

500-2109 500-2109 / DIST BASE CONTROLLE 500-8146 500-8146/MANUAL, 500-5037-A US

500-2114-A TURBO RBC,500-2114-A,W/MODEM 500-8148 500-8148/MANUAL, 500 SERIES RE

500-5001 110V INPUT MODULE,500-5001 530-8117 530-8117 / MANUAL, 520C/530C/5

500-5002 220V AC IN MODULE, 500-5002 530T-1112 530T-1112 / 530 TURBO 12K

500-5005 24V AC/DC INPUT,500-5005 6MT-31** 6MT-31 / LOGIC INTERFACE

500-5008 12/24 VDC INPUT MODULE,500-500 6MT-32** 6MT-32 / LOGIC INTERFACE

500-5009 HS ANALOG IN MODULE,500-5009 6MT-33** 6MT-33 / LOGIC INTERFACE

500-5011 110V AC OUT MODULE,500-5011 6MT11-AO5L** 6MT11-AO5L / INPUT MODULE

500-5012 220V AC OUT MODULE,500-5012 6MT12-4OAL** 6MT12-4OAL / OUTPUT MODULE

500-5013 12/24 VDC OUT MODULE,500-5013 6MT12-4OBL** 6MT12-4OBL / OUTPUT MODULE

500-5016 HS ANALOG OUT MODULE,500-5016 6MT12-4OEL** 6MT12-4OEL / OUTPUT MODULE

500-5019 WORD OUTPUT MODULE,500-5019 6MT13-DO5L** 6MT13-DO5L / INPUT MODULE

500-5023 HI SPEED PULSE INPUT MODULE,50 6MT14-4OCL** 6MT14-4OCL / OUTPUT MODULE

500-5030 32PT LVDC INPUT MODULE,500-503 6MT14-4ODL** 6MT14-4ODL / OUTPUT MODULE

500-5031 32 PT LVDC OUTPUT MODULE,500-5 6MT50-2** 6MT50-2 / 6MT MOUNTING BASE

500-5035 BASIC MODULE,500-5035 TIWAY-8106 TIWAY-8106 / MAN, UNILINK

500-5037-A 8 CHAN ANALOG IN MODULE,500-50 TIWAY-8108 TIWAY-8108 / MAN,HOST S/W, TI/

500-5039 500-5039 / NIM,LL & LL CONFIGU TIWAY-8110 TIWAY-8110 / MAN, 500 NIM

500-5047-A 8 CHAN ANALOG OUT MODULE,500-5 TIWAY-8119 TIWAY-8119 / SERIES 500 NIM RE

500-5052 RTD MODULE,500-5052 TIWAY-8121 TIWAY-8121 / TW UNILINK HA USE

500-5053 500-5053 / PEER LINK,SINGLE L/ VPU200-3605 VPU200-3605 / CABLE,VPU200/520

** Denotes 5TI / 6MT products referred to on page 1

3-22 Installing 505 System Hardware SIMATIC 545/555/575 System Manual

3.10 Setting the CPU Dipswitches

Dipswitches

are used to set 545/555 CPU operating parameters. The

dipswitches are located near the front of the CPU, behind the bezel or

battery door

. See Figure 3-12. T

o gain access, lower the access door

. W

ith the

CPU in its (normal) vertical position, dipswitches pushed to the left are On;

dipswitches pushed to the right are Off.

Dipswitch

Port

2 = RS-485* Port 2 = RS-232/422

Port 1 = Programming port

Port 1 = Printer port

Port 1

Baud rate

Port 2

Baud rate

Battery Of

Battery On

Not used

(Of

f)1

For the 545–1

103, port 2 is an RS-232 port only

(On)

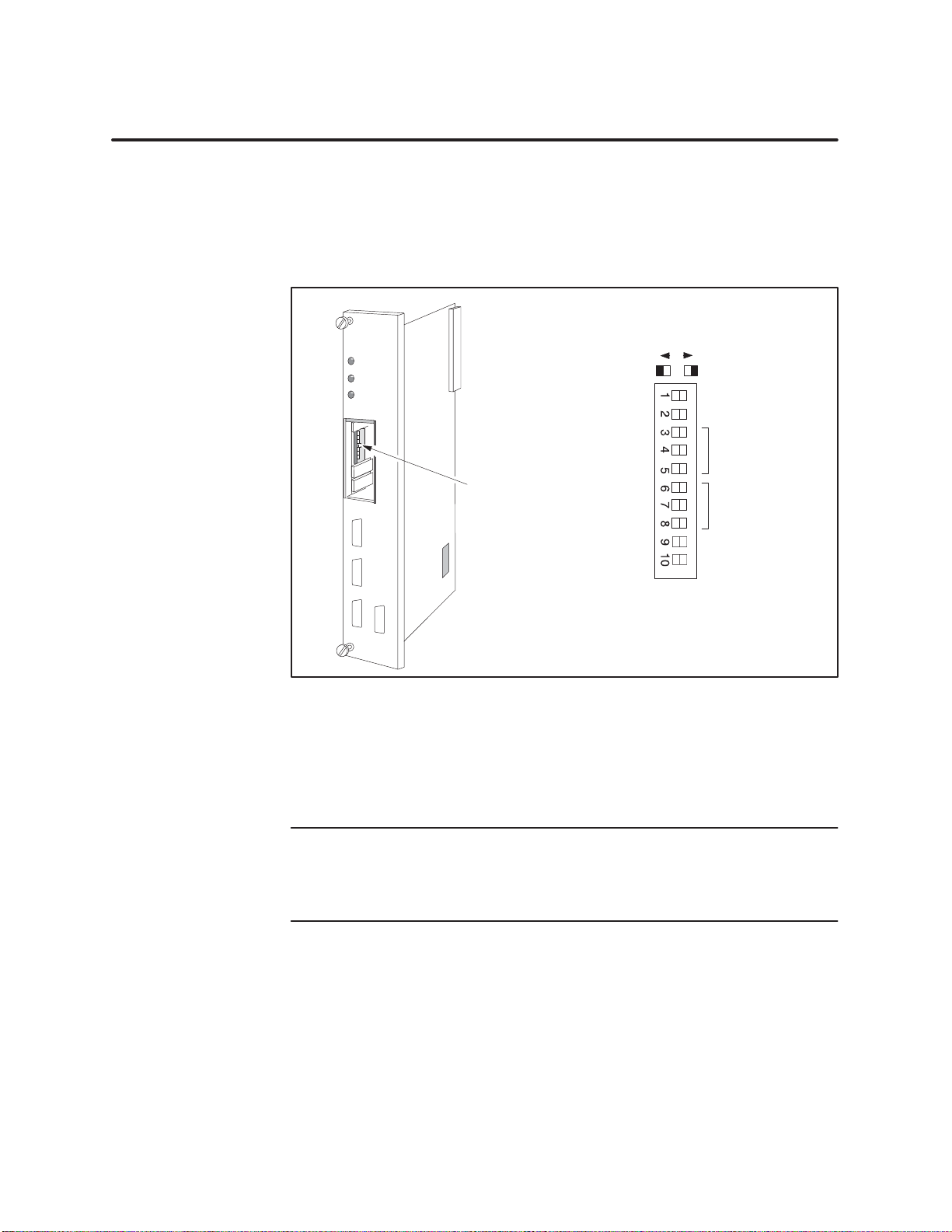

Figure 3-12 545/555

CPU Dipswitch Location

SW9 is used to set the back-up battery On or Off. As Figure 3-12 indicates,

moving the switch to the left enables the back-up battery; setting the switch

to the right disables the back-up battery

NOTE:

When SW9 is set to the On position, the battery LED indicates the

state of the battery back-up circuit. If the battery LED is illuminated,

memory contents should be maintained; if the LED is not illuminated,

memory contents will not be maintained.

Dipswitch Location

and Settings

Enabling Battery

Backup

3-23

SIMATIC 545/555/575 System Manual Installing 505 System Hardware

Switches

3 through 8 are used to set baud rates for Ports 1 and 2. Switches

3, 4, and 5 set Port 1 baud rates. See T

able 3-3. Switches 6, 7, and 8 set Port

2 baud rates. See T

able 3-4.

able 3-3

Port 1 Baud Rate Settings

Baud Rate SW3 SW4 SW5

11520011 (On) 1 (On) 0 (Off)

5760011 (On) 0 (Off) 1 (On)

38400 1 (On) 0 (Off) 0 (Off)

19200 1 (On) 1 (On) 1 (On)

9600 0 (Off) 1 (On) 1 (On)

2400 0 (Off) 0 (Off) 1 (On)

1200 0 (Off) 1 (On) 0 (Off)

300 0 (Off) 0 (Off) 0 (Off)

1These

baud rates are available only on the 555–1

105 and 555–1

106 CPUs.

able 3-4

Port

2 Baud Rate Settings

Baud Rate SW6 SW7 SW8

11520011 (On) 1 (On) 0 (Off)

5760011 (On) 0 (Off) 1 (On)

38400 1 (On) 0 (Off) 0 (Off)

19200 1 (On) 1 (On) 1 (On)

9600 0 (Off) 1 (On) 1 (On)

2400 0 (Off) 0 (Off) 1 (On)

1200 0 (Off) 1 (On) 0 (Off)

300 0 (Off) 0 (Off) 0 (Off)

1These

baud rates are available only on the 555–1

105 and 555–1

106 CPUs.

NOTE:

The baud rates 1

15,200 and 57,600 are available only on the

555–1

105 and 555–1

106 CPUs.

Setting Baud Rates

3-24 Installing 505 System Hardware SIMATIC 545/555/575 System Manual

Setting the CPU Dipswitches (continued)

The

545 and 555 CPUs have two communications ports. Both ports are

configured as Data T

erminal Equipment (DTE).

SW2 selects Port 1 as either a programming port or a printer port on a

545/555 CPU. Port 1 uses an RS-232/RS-423 signaling protocol and an

RS-232 pinout arrangement with an RS-423 (+5 V) signal level extending

up to 50 feet (15 m). Y

ou can use a modem to extend this distance.

•

Setting SW2 to the left selects Port 1 as a programming port.

•

Setting SW2 to the right selects Port 1 as a printer port.

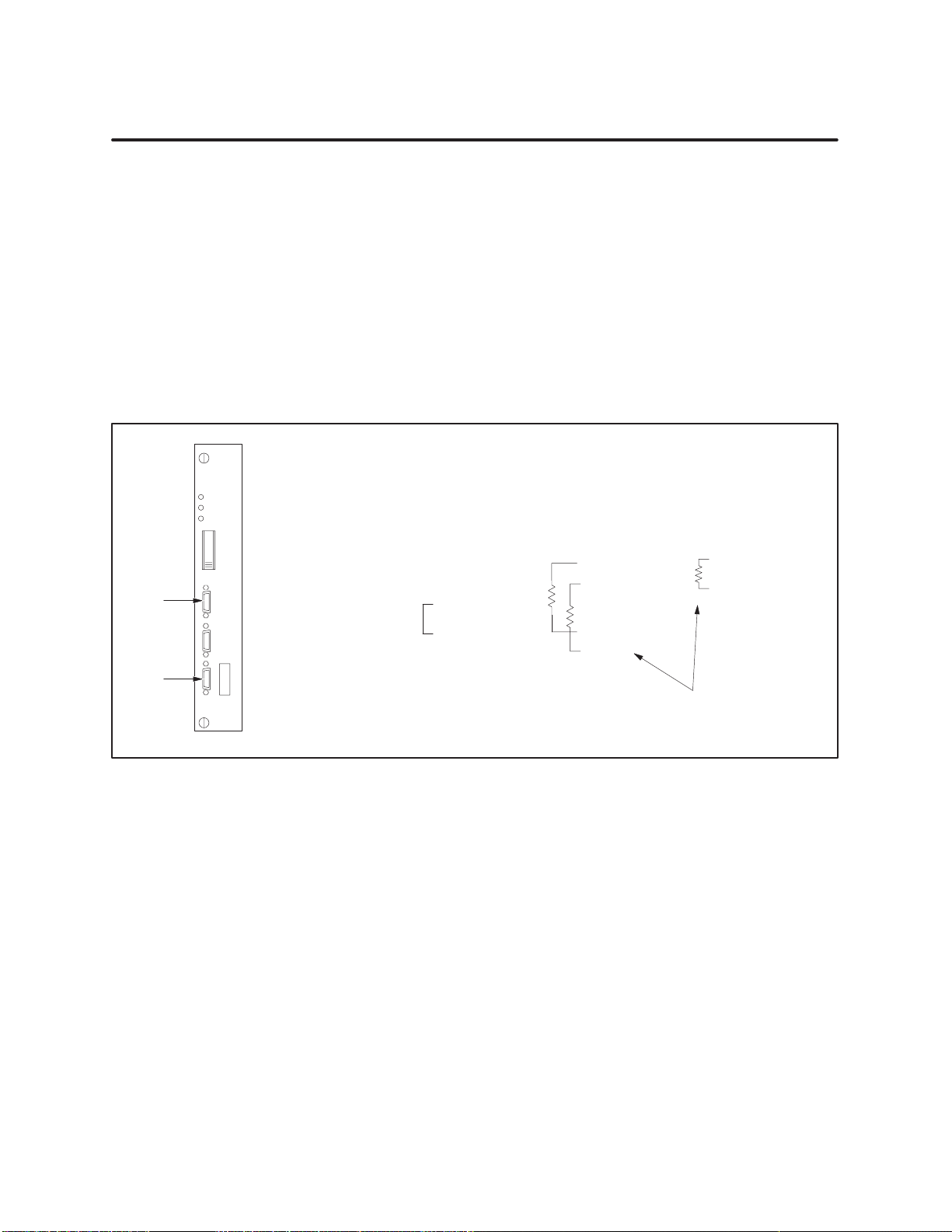

Figure 3-13 shows the locations of Port 1 and Port 2 on the front of the CPU.

Port

Port 2

Pin Signal

DO+

DI+

GND

DO–

DI–

Controller

Male 9-Pin D

Type

Port 2

(1)

RS-422 Port Pinouts

Pin Signal

TX/RX+

TX/RX–

GND

Controller

Male 9-Pin D

Type

Pin Signal

RSD

RCV

XMT

DTR

GND

Controller

Male 9-Pin D

Type

Port 1

RS-232 Port Pinouts

6 DSR

7RTS

8 CTS

Pin Signal

RCV

XMT

GND

Controller

Port 2

(1)

RS-232 Port Pinouts

Male 9-Pin D

Type

Port 2

(2)

RS-485 Port Pinouts

(1)

Dipswitch 1 is On.

(2) Dipswitch 1 is Of

(3) User connection to select RS-232 operation.

120

termination resistors

can be used for higher noise

immunity and more reliable

long-distance communication.

6 SEL232* 6 SEL232*

6 SEL232*

(3)

Figure 3-13 545/555

CPU Port Locations

ith the 545 and 555 CPUs, your choice of cabling determines whether

Port 2 functions as an RS-232/RS-423 port or as an RS-422/RS-485 port.

Figure 3-13 describes the pinouts required for the various Port 2 options.

If you use RS-422/RS-485 cabling, SW1 on the dipswitch allows you to select

between RS-422 and RS-485. Use SW1 as follows:

•

Set SW1 to the left when you use RS-232 or RS-422 cabling.

•

Set SW1 to to the right when you use RS-485 cabling. RS-485 uses a

single twisted pair to transmit and receive data between the

programming device and the 545/555 CPU. Multiple CPUs or multiple

programming devices (on this RS-485 link) are not supported and must

not be used.

Communications

Port 1

Communications

Port 2

3-25

SIMATIC 545/555/575 System Manual Installing 505 System Hardware

For

Communication Port 2, the maximum permissible cable length depends

on the type of connection used:

•

The RS-232/RS-423 connection can extend a maximum of 50 feet

(15 m).

•

The RS-422/RS-485 connection can extend a maximum of 3300 feet

(1 km).

The cable installation for RS-485 or RS-422 can include a 120-ohm

termination resistor across the signal conductors at each end of the cable.

The resistor provides a higher noise immunity and better long-distance

communication.

The 545–1

104/–1

106 and 555 CPUs have two remote I/O ports.

•

The I/O port is a 9-pin female port used to communicate directly with

Series 505 RBCs by means of a shielded, twisted-pair RS-485 cable.

•

The PROFIBUS-DP port is a 9-pin female port used to communicate to

a variety of PROFIBUS-DP slaves and field devices in daisy-chain

fashion across a shielded, twisted-pair RS-485 cable that meets

PROFIBUS standards.

The 545–1

103 CPU has the option of a PROFIBUS-DP port if you install the

PPX:505–CP5434–DP annex card.

I/O Ports

Description and Operating Instructions

SIMATIC NET PROFIBUS

Optical Link Modules

OLM/P11

OLM/P12

OLM/G11

OLM/G12

OLM/G12-EEC

OLM/G11-1300

OLM/G12-1300

Safety Instructions

This manual contains instructions which must be observed to ensure your own personal safety and to avoid

damage to devices and machinery. The instructions are highlighted with a warning triangle and are shown as

follows according to the degree of endangerment:

Danger

means that death, serious injury or considerable damage to property will result if the appropriate

safety measures are not taken.

Warning

means that death, serious injury or considerable damage to property can result if the appropriate

safety measures are not taken.

Caution

means that light injury or damage to property can result if the appropriate safety measures are not

taken.

Note

is an important piece of information about the product, how to use the product, or the relevant

section of the documentation to which particular attention is to be drawn.

Qualified personnel

A device may only be put into operation and operated by qualified personnel.

Qualified personnel in the sense of the safety instructions detailed in this manual are persons who are authorized to

operate, ground and label devices, systems and electrical circuits in accordance with the standards of the safety

systems employed in the plant.

Certified usage

Please observe the following:

Warning

The device may only be employed for the purposes described in the catalog and technical

description, and only in conjunction with external devices and components recommended

or approved by Siemens.

The product can only be operated correctly and safely if it is transported, stored, installed and

assembled properly and correctly. Furthermore, it must be operated and serviced carefully.

Trademarks

SIMATIC ®and SIMATIC NET ®are registered trademarks of Siemens AG.

Other designations in this manual may be registered trademarks, the use of which by third parties for their own

purposes may violate the rights of the owner.

Transmission or duplication of this document, evaluation and providing

information about its contents are not permitted unless expressly

authorized. Non-compliance with these instructions will result in claims

being awarded or a GM entry.

Siemens AG

A&D

Industrial Automation Systems SIMATIC NET

Postfach 4848, D-90327 Nürnberg

Disclaimer of liability

We have checked this manual to ensure that the contents comply with

the described hardware and software. However, deviations cannot

be excluded. We can therefore assume no responsibility for the total

compliance of these contents.

The details and information in this manual are regularly controlled, and

any corrections and amendments which may prove to be necessary are

included in subsequent editions. We welcome any suggestions for

improvement.

Subject to technical alterations

Siemens Aktiengesellschaft Printed in the Federal Republic of Germany

Contents

Version 2.1 10/01

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 General Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Non operating mode related functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 Operating mode related functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1 Line topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1.1 Line topology with optical fiber link monitoring and segmentation . . . . . . . . . . . . . . . . . . 10

3.1.2 Line topology without optical fiber link monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.2 Star topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.3 Redundant optical ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4 Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1 Safety notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2 General information about setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.3 Setting compatibility, operating mode and transmitting power . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.3.1 Setting the compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.3.2 Setting the operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.3.3 Reducing the optical transmitting power on the OLM/P11 and OLM/P12 . . . . . . . . . . . . 19

4.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4.1 Installation guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4.2 Connecting the optical lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

4.4.3 Mounting the modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

4.4.4 Connecting the electric RS 485 bus lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.4.5 Connecting the power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.4.6 Connecting the signaling contact lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.4.7 Defining the receiving level of the optical ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5 LED Indicators and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.1 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6.1 Configuration of optical line and star topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

6.2 Configuration of redundant optical rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

8.1 CE designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

8.2 c-tick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.3 FM approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.4 Ex approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.5 UL/CSA approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.6 Literature notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

8.7 List of abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

8.8 Measuring sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

8.9 SIMATIC NET - Support and Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Contents

This manual suits for next models

Table of contents

Other Siemens Control Unit manuals

Siemens

Siemens 3SB5 Instruction Manual

Siemens

Siemens XDACT-ASSY User manual

Siemens

Siemens SIRIUS ACT 3SU1400-1EK10-6AA0 User manual

Siemens

Siemens SINAMICS S120 Technical Document

Siemens

Siemens IP-Module User manual

Siemens

Siemens SIMATIC NET SCALANCE W760 Series Instruction sheet

Siemens

Siemens SIMATIC C7 User manual

Siemens

Siemens CU240S DP-F User manual

Siemens

Siemens SIRIUS 3RA2711-DB0 Series User manual

Siemens

Siemens SINAMICS G130 Datasheet

Siemens

Siemens SIRIUS User manual

Siemens

Siemens Sinamics G120 CU240E User manual

Siemens

Siemens SIRIUS ACT 3SU1401-2EE20-6AA0 User manual

Siemens

Siemens SIMATIC ET 200S User manual

Siemens

Siemens Simatic S7-300 User manual

Siemens

Siemens simatic ET 200MP User manual

Siemens

Siemens Flowrite 599 Series Owner's manual

Siemens

Siemens SIMATIC ET 200SP User manual

Siemens

Siemens SIMATIC ET 200SP User manual

Siemens

Siemens SIMATIC EP200SP User manual

Siemens

Siemens Cerberus Pyrotronics LP-30 User manual

Siemens

Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF... User manual

Siemens

Siemens SITOP modular 6EP1961-3BA20 User manual

Siemens

Siemens SINUMERIK 840D sl Owner's manual

Popular Control Unit manuals by other brands

Festo

Festo Compact Performance CP-FB6-E Brief description

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

JS Automation

JS Automation MPC3034A user manual

JAUDT

JAUDT SW GII 6406 Series Translation of the original operating instructions

Spektrum

Spektrum Air Module System manual

BOC Edwards

BOC Edwards Q Series instruction manual

KHADAS

KHADAS BT Magic quick start

Etherma

Etherma eNEXHO-IL Assembly and operating instructions

PMFoundations

PMFoundations Attenuverter Assembly guide

GEA

GEA VARIVENT Operating instruction

Walther Systemtechnik

Walther Systemtechnik VMS-05 Assembly instructions

Altronix

Altronix LINQ8PD Installation and programming manual

Eaton

Eaton Powerware Series user guide

WAGO

WAGO 750-407/040-000 manual

Sony

Sony CCU-590 Operation manual

Graco

Graco 25D614 instructions

Task Force Tips

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Shini

Shini SPV-U Series manual
