Siemens TA1Q300 User manual

Siemens Energy & Automation, Inc.

Bellefontaine,Ohio43311U.S.A.

© Siemens Energy & Automation, Inc. 1988

InstallationInstructions

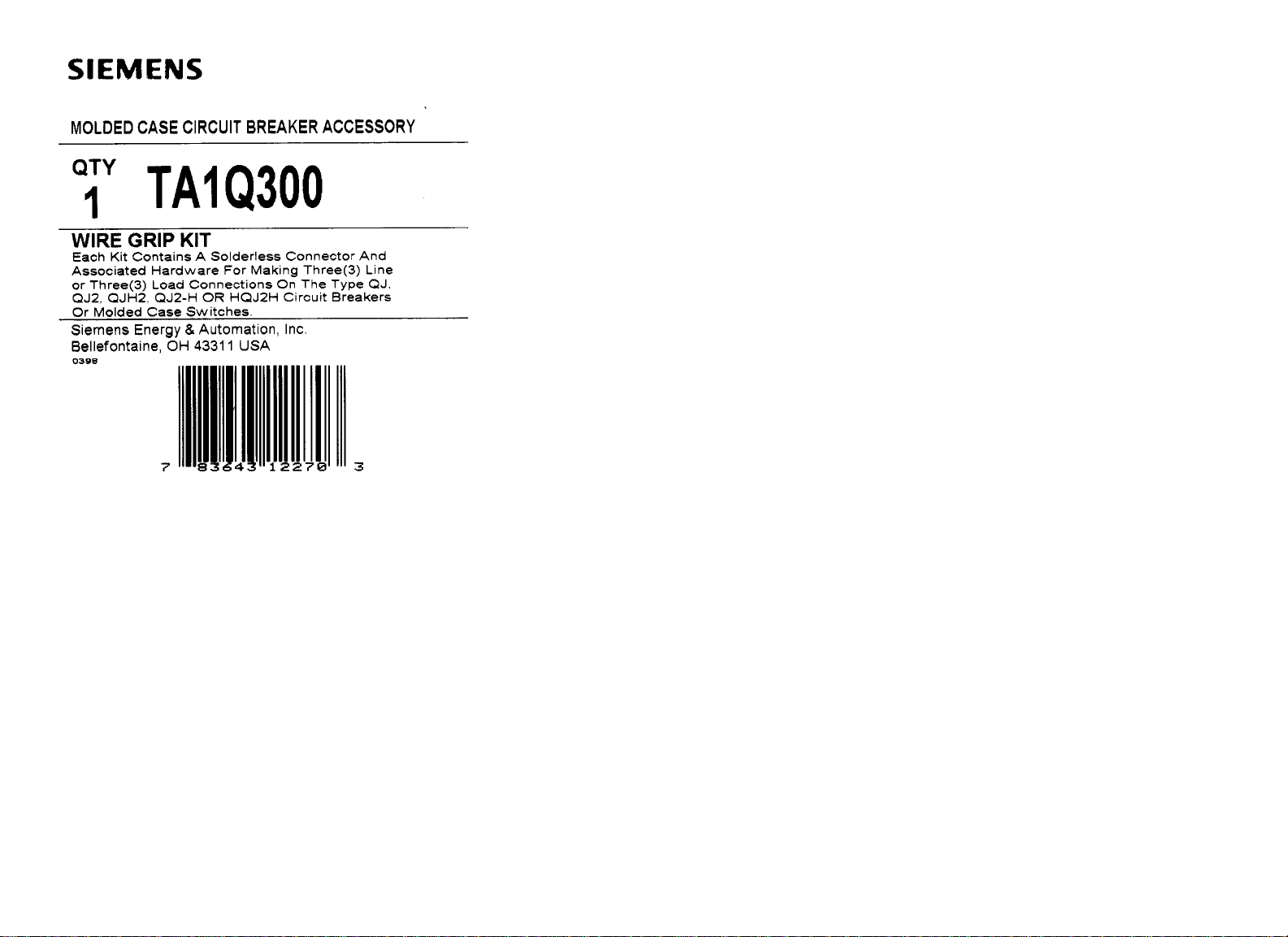

Cat. No. TA1Q300

For Use with: Type QJ, QJ2, QJH2,

QJ2-H or HQJ2-H Circuit Breakers

and Molded Case Switches.

Pc. No. 61936A01

Page 1 of 1

HazardousVoltage.

Willcausedeathorsevere

injury.

Turn off and lock out all power

supplying circuit breaker or

frame before removing cover(s)

or device and while cover(s) are

removed. Replace all covers

and shields before power

supplying this device is turned

on.

SAFETY INSTRUCTIONS

Wire Cable Set ScrewTightening

Material Wire Size Torque

6 – 2 AWG. 60 in-lbs [6.8 N-m]

Cu. 1 – 1/0 AWG. 200 in-lbs [22.6 N-m]

2/0 AWG. – 300 MCM. 250 in-lbs [28.2 N-m]

4 – 1 AWG. 60 in-lbs [6.8 N-m]

Al. 1/0 AWG. 200 in-lbs [22.6 N-m]

2/0 AWG. – 300 MCM. 250 in-lbs [28.2 N-m]

Note: This instruction outlines the recom-

mendedinstallation. The terminalshave been

testedper UL –486B withstandardstranded

cable.

1 Turn off and lock out power feeding this

circuit breaker before working on circuit

breaker.

2 Placeconnectionon circuit breaker termi-

nal. Position so slots on the connector

engages terminal tabs. (See illustration)

3 Pass mounting screw through connector

(see illustration) and thread screw into

circuitbreaker terminal. Tighten mounting

screw to 150 in-lbs[16.9 N-m] (7/32 inter-

nal hex).

4 Carefully remove 13/16 of wire insulation

from end of wire and fully insert bare end

of wire into connector.

5 Insert and tighten cable set screw (5/16

internal hex.) Tighten to the appropriate

value from table below.

CONNECTOR

WIRE

MOUNTING

SCREW

CIRCUIT

BREAKER

TERMINAL

CABLE SET

SCREW

CONNEC-

TOR

SLOT

TERMINAL

TAB
