SERVICE MANUAL

VL-H860S/H

VL-H870S

VL-H890S

VL-H94E

VL-H96E

VL-H960E

LIQUID CRYSTAL CAMCORDER Hi 8 PAL

In the interests of user-safety (Required by safety regula-

tions in some countries) the set should be restored to its

originalconditionandonlypartsidenticaltothosespecified

be used.

MODELS

SHARP CORPORATION

SERVICE MANUAL LIQUID CRYSTAL CAMCORDER Hi PAL

MODELS VL-H860S/H/H870S/H890S/H94E/H96E/H960E

Page

1. SPECIFICATIONS ...........................................................................................................................1-1

2. PART NAMES AND FUNCTION ......................................................................................................2-1

3. DISASSEMBLY OF THE SET..........................................................................................................3-1

4. MECHANISM ADJUSTMENT ..........................................................................................................4-1

5. ADJUSTMENT OF VCR AND CAMERA..........................................................................................5-1

6. SYSTEM BLOCK DIAGRAMS ........................................................................................................ 6-1

7. SCHEMATIC DIAGRAMS ............................................................................................................... 7-1

8. SEMICONDUCTOR LEAD IDENTIFICATION ................................................................................ 8-1

9. PRINTED WIRING BOARD ASSEMBLIES..................................................................................... 9-1

10.REPLACEMENT PARTS LIST...................................................................................................... 10-1

11.PACKING OF THE SET ................................................................................................................ 11-1

CONTENTS

VL-H870S/H890S/H96E/H960E

VL-H860S/H/H94E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

1-1

1. SPECIFICATIONS

Signal System: PAL standard

Recording System: 2 rotary heads, helical scanning system

Cassette: 8 mm video tape, MP type or Hi8 MP, ME type

Recording/Playback Time: 90 minutes (P5-90)

Tape Speed: 20.051 mm/second

Pickup Device: 1/4" (6.4mm, effective size: 4.5 mm) CCD image sensor (with approx.

470,000 pixels including optical black)

Lens: 22 ×power zoom lens (F1.6, f=4.0-88.0 mm) and full-range auto focus

Lens Filter Diameter: 46 mm

Monitor: 3" (7.5 cm) (VL-H860S/H/H870S/H94E/H96E)

3.5" (8.8 cm) (VL-H890S/H960E)

full-color LCD screen (TFT active matrix)

Microphone: Electret stereo microphone

Color Temperature Compensation: Auto white balance with white balance lock

Minimum Illumination: 5 lux* (with gain-up, F1.6)

Video Output Level: 1.0 Vp-p 75-ohm unbalanced

Audio Output Level: –8 dBs, impedance less than 2.2 kohms

Speaker Output: 200 mW

External Microphone Input: 3.5 mm diameter mini-plug, –66 dBs, output impedance 6.8kohms, DC

4 V, for plug-in-power microphone use

Power Requirement: DC 7.4V

Power Consumption:

4.95W (VL-H860S/H/H870S/H94E/H96E)

5.3W (VL-H890S/H960E)

(during camera recording in full auto mode with zoom motor off, Extend

Zoom, DIS and Snapshot functions off, and backlight in normal mode)

Operating Temperature: 0°C to + 40°C

Operating Humidity: 30% to 80%

Storage Temperature: –20°C to +60°C

Dimensions (approx.): 180 mm (W) ×112 mm (H) ×107 mm (D)

Weight (approx.): 740g (VL-H860S/H/H94E)

760g (VL-H870S/H96E)

765g (VL-H890S/H960E)

(without battery pack, lithium battery, video cassette, and lens cap)

Specifications are subject to change without notice.

* Minimum illumination: Since there is no widely accepted testing procedure for determining minimum

illumination capability, lux ratings are comparable only between models from the

same manufacturer

AC Adapter UADP-0304TAZZ

Power Requirement: AC 110-240 V, 50/60 Hz

DC Output: 9.0 V

Power Consumption: 15 W

Dimensions (approx.): 68 mm (W) ×37 mm (H) ×

130 mm (D)

Weight (approx.): 230 g

Battery Pack BT-L241

DC Output: 7.4 V

Dimensions (approx.): 40 mm (W) ×43 mm (H) ×

54 mm (D)

Weight (approx.): 97 g

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

2-1

For details on the use of each control.

2. PART NAMES AND FUNCTION

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

3-1

3. DISASSEMBLY OF THE SET

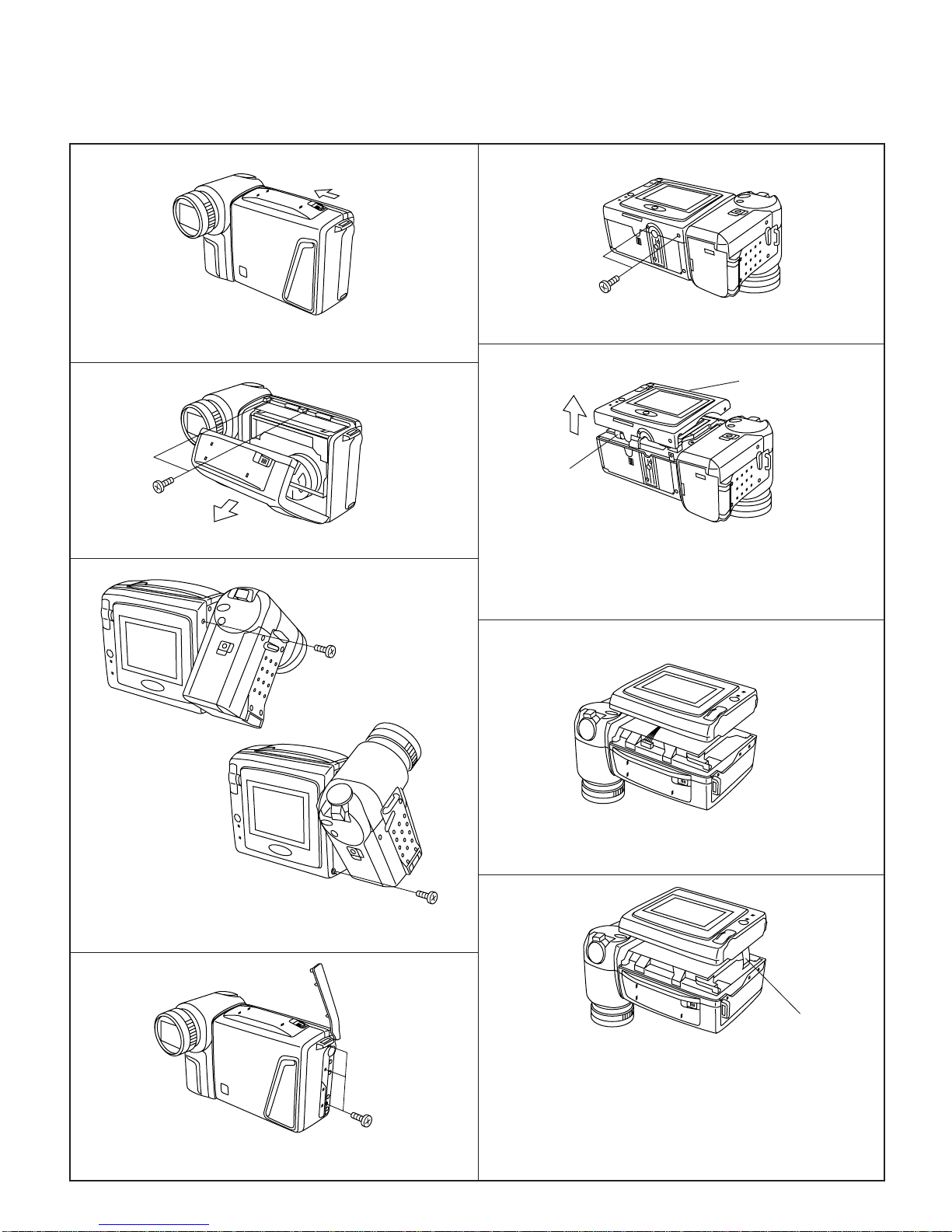

3-1. DISASSEMBLY OF THE VCR PARTS

Note:

Before removing the cabinet, turn off the power supply, and ascertain that the battery has been removed.

(4) Remove the A.V.terminal cover and the screws

(i)XiPSN20P04000(3pcs.).

<1. Removal of the Cabinet L>

A.V.terminal FPC

(9) Remove the A.V.terminal FPC.

Note:

TheFPCsandthewiresofprocess(7),(8),and(9)are connect-

ing with the L.Cabinet, and remove the L.Cabinet while it is

floating from the main body.

If the L.Cabinet is drawed violently, they have some apprehen-

sions of snap off the wires.

(8) Remove the outside charging battery connector.

(6) Close the VCR lid.

(7) Lift about half of the L.Cabinet parts in the arrow direction,

remove the FPC connector.

L.Cabinet

FPC connector

(5) Remove the screws (i)XiPSN20P04000(2pcs.).

(1) Slide the VCR lid knob in the arrow direction, open the VCR

lid.

(b)

(2) Remove the screws (b)LX-HZ0018TAFF(2pcs.).

(i)

(d)

(3) Turn the Camera section, and remove the screws

(i)XiPSN20P04000(1pc.), (d)XiPSF20P04000(1pc.).

(i)

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

3-2

<2. Remove the Tripod Angle.> (d)

(d)

(1) Remove the screws (d)XiPSF20P04000(3pcs.), pull the Tri-

pod Angle.

Tripod Angle

<3. Removal of the LCD unit>

<4. Removal of the V.Cabinet>

(2) Turn the Camera section to right angle, remove the Tilt side

fixing screws (g)LX-HZ0045TAFF(2pcs.), the bottom side

screw (b)LX-HZ0018TAFF(1pc.), open the VCR lid, and

remove the slant wise screw (d)XiPSF20P04000(1pc.).

Note:

The Tilt section is setting with the parts of the Camera section .

(Never remove the parts of Camera section only.)

(1) • Firstly, remove the Lithium Holder.

•Turn to upside the surface of V.lid, remove the

V.Cabinet fixing screw (b)LX-HZ0018TAFF(1pc.).

Remove the Lithium

Holder

(f)

Microphone connector

(f)

Main PWB

(f)

(3) Remove the Microphone connector.

RemovethemainPWBfixingscrews(f)XiPSD20P03000(3pcs.).

Lift the main PWB in the arrow direction and remove the

connection "B to B".

<5. Removal of the main P.W.B>

Camera FPC

Lithium connector

(1) Remove the Camera FPCs(2pcs.) are connected with main

PWB and the Camera section, and remove the Lithium

connector.

Remove the battery

connector

(2) Thesameas process 4., remove thebatteryconnectorinthe

reversesideofPWBandEJECT TURN S.W. connector,and

disconnect the Tilt section and main PWB.

<6. Removal of the Cabinet and Mechanism>

(b) (e)

(e)

(d)

(1) Remove the screws (b)LX-HZ0018TAFF(1pc.), (d)

XiPSF20P04000(3pcs.) and (e)LX-BZ0191TAFD(2pcs.).

(2) Pull the Mechanism from K.S.V.Cabinet, remove the screw

(e)LX-BZ0191TAFD(1pc.) and the side angle.

(e)

Side angle

(b)

V.Cabinet

(d)

(b)

(g)

(1) Remove the FPCs from connectors A, B and C.

("C" isn't used with VL-H860S/H94E/EX.)

(2) Remove the screws (d)XiPSF20P04000(1pc.) and (b)LX-

HZ0018TAFF(1pc.).

(b)

(d) Inverter transformer

LCD unit

Remove EJECT TURN

S.W. connector

Main PWB

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

<7. Removal of the cassette compartment lid>

3-3

Claw C

Claw A

Claw B

Claw D

View E

View F

Note:

When fixing the cassette compartment lid, first engage the

clawsA and B,and thenengage the clawsC andD, verify that

the four claws (A, B, C and D) of the cassette compartment lid

are securely engaged as shown in the view below.

(1) Usingtheslotted precision screwdriver,pushandturnthetwoclaws(C and D)whichfastenthecassettecompartmentlid,and

the cassette compartment lid will be removed from the hook area of the cassette component.

(2) Turning the cassette compartment lid in the arrow direction, lift it, and the claws A and B will be disengaged to remove the

cassette compartment lid.

Note:

Take care to prevent breaking the claws of the cassette compartment lid.

<8. Removal of LCD Unit>

(B)

(L)

(A)

(I)

(3)

(a)

(D) (J)

(1)

(K)

(C)

(4)

(2)

(E)

(F)(G) (H)

(A) Touch Panel Fitting A

(B) Touch Panel

(C)LCD Panel

(D)LCD Holder A

(E) DBEF Sheet

(F) Prism Sheet

(G)Diffusion Sheet

(H)Light Guide Plate

(I) Reflection Polarizing Sheet

(J) Lamp Inverter

(K) LCD Holding Sheet

(L) Touch Panel Sheet

•At the time of removing from the LCD Holder A(D), and take off the hooks(1)(2pcs.).

•At the time of removing from the LCD Holder A(D), take off (K), remove the FPC from

the hooks(3)(2pcs.), disengage the claw(2), and slide the LCD Panel(C) in the (a)

direction to remove the LCD Holder A(D).

•At the time of removing from the LCD Holder A(D), remove the claws(4)(2pcs.).

•As for VL-H860S/H/H94E (A) (B) (L) (E) isn't used.

`Refer to the item CABINET EXPLODED VIEW about other parts.

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

3-4

3-2. REMOVAL OF THE CAMERA PARTS

Note:

Before removing the Cabinet, turn off the power supply,and ascertain that the battery has been removed.

1. Remove the screws (b)LX-HZ0018TAFF(1pc.), (a)LX-HZ

0018TAFN(1pc.),(c)LX-HZ0045TAFN(1pc.)and

(d)XiPSF20P04000(1pc.), pull out the Front cabinet.

(g)

Camera rear grip cover

3. Remove the connector.

2. Removethescrews(g)LX-HZ0045TAFF(2pcs.)andtheCam-

era rear grip cover .

(b) (d)

4. Remove the screws(b)LX-HZ0018TAFF(1pc.),(c)LX-

HZ0045TAFN(2pcs.)and(d)XiPSF20P04000(1pc.),pullingout

the Camera rear Cabinet, and remove the Speaker connec-

tor.

Speaker connector

(c)

Tilt Frame C

Battery catcher connector

Claw

Pull out

5. Remove the screw (c)LX-HZ0045TAFN(1pc.) and pull out

the Tilt Frame C.

PullouttheTiltFrameC.atrightangle,becauseofclosingthe

claw.

Then, pull out the battery catcher connector from the Tilt

Frame C.

(a)

(c)

Camera front cabinet

(b)

(d)

Pull out

Remove

Connector

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

3-5

Open

Remove

(c)

Remove

6. Remove the Tilt connectors(2pcs.) as the Tilt Frame C. are

floating in the air.

Note:

Take care to prevent breaking the FPC when the Tilt Frame C.

is removing from them.

7. Remove the screws (g)LX-HZ0045TAFF(1pc.) and (c)LX-

HZ0045TAFN(1pc.), opening the claws(2pcs.) to outward,

remove the Lens unit with Camera P.W.B.

Screws

a LX-HZ0018TAFN M2x6 Tapping Screw, Silver

b LX-HZ0018TAFF M2x6 Tapping Screw, Black

c LX-HZ0045TAFN M2x4 Tapping Screw, Silver

d XiPSF20P04000 M2x4 Small Screw, Black Zinc Plating

e LX-BZ0191TAFD M2 Special Screw

f XiPSD20P03000 M2x3 Screw

g LX-HZ0045TAFF M2x4 Tapping Screw, Black

h LX-HZ0013TAFF M1.7x6 Tapping Screw, Black

i XiPSN20P04000 M2x4 Small Screw, Silver

j LX-HZ0050TAFN M1.7x4 Tapping Screw, Silver

k LX-BZ0236TAFD M2x8 Screw

l XiPSF20P03000 M2x3 Screw, Black

(g)

Tilt connector

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

3-6

3-3. REPLACEMENT OF CCD SENSOR

3-3-1. Before replacement

1) The CCD image sensor is more sensitive to electrostatic breakage than C-MOS LSI. Therefore sufficient means to prevent

electrostatic damage must be taken when it is replaced.

•Ground the soldering iron.

•Ground also the human body, using the wrist strap(through an 1 Mohm resistor).

•Until the CCDsensor is mounted on the PWB, fit it to the conductive sponge, and short-circuit the foot lead.

2) TakeutmostcaresothatthesurfaceglassofCCDsensorandopticalfilterarenotcontaminatedanddamaged.Ifanycontamination

is found, for example fingerprint, wipe it off with silicon paper or clean chamois skin.

3) When replacing the CCD sensor, use the antistaic grounded soldring iron, and perform quickly soldering.

3-3-2. Removal of CCD

1) Unsolder the CCD sensor leads from the sensor PWB.

2) Take out the sensor PWB.

3) Remove the two screws (b), and remove the sensor holder and CCD sensor.

3-3-3. Mounting of CCD

1) Place the lens unit upright (since the CCD sensor mount ID faces upward, care must be taken so as not to damage the front lens of

unit),putthecrystal filter firstandthenthe dust protection rubberintothe CCD holder oflensunit. Set the crystalunitwithits thin side

toward the lens unit.

2) Place the CCD sensor so that the its No. 1 pin is at the right lower (Positioning hole to be at right), and put the CCD sensor into the

CCD holder. For smooth and tight fitting, press the right lower part of back of CCD sensor, and then press the left upper part.

Note: Pay attention to the direction of CCD sensor.

3) Placethesensorholdersothatitstworoundmarkingsbevisible,andfixthesensorholderwiththetwoscrews((b)LX-HZ0013TAFF).

4) Mount the sensor PWB so that the CCD sensor leads go thorough the PWB holes.

5) Solder the CCD sensor lead to the sensor PWB.

Note: Take care not to apply excessive heat.

Mark

The THIN SIDE

faces the lens

Sensor Holder

CCD Sensor

Crystal

Rubber

(b)

Lens

Side CCD

Side

The mark must be on

this face.

I C X 2 0 9

A K

14 8

Lot No. (Max 7)

Control No.

Week manufactured

Year manufactured

4-1

VL-H870U

VL-H875U

VL-H890U

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

VL-H860S/H/VL-H870S

VL-H890S/VL-H94E

VL-H96E/VL-H960E

1. Cassette torquemeter

for PB

2. JiG8T-012

3. CV

* (10 g·cm/25 g·cm)

1. Cassette torquemeter

for VS-REW

2. JiG8T-032

3. CV

* (50 g·cm/25 g·cm)

1. Torque gauge

2. JiGTG0045

3. CN

* For measurement of

loading brake torque

1. Torque gauge head

2. JiGTH-MX7U

3. BS

* For torque gauge listed

left

1. Torque driver

(1.5 kg·cm)

2. JiGTD1500RT0H

3. CB

1. Height adjusting jig

2. 9DAGH-E31S

3. BM

* For adjustment of Tu

guide height and Si

roller height

1. Tu guide height

adjusting driver

2. 9EQDRiVER-V712

3. BL

1. Guide roller height adjusting driver

2. JiGDRiVERHMX7U

3. BU

* Bit shape (See the figure above.)

1. Master plane

2. JiGMP-MX7U

3. CG

* For adjustment of Tu guide

height, Si roller height and

checking of reel disk height

1.8

(1) Slide calipers

(2) High-precisionscrew-

drivers(Phillipshead,

slotted head)

(3)Radiopliers(withthin

jaws)

(4) A pair of tweezers

4. MECHANISM ADJUSTMENT

4-1. MECHANISM CHECKING/ADJUSTING JIGS, TOOLS AND PARTS

4-1-1. Mechanism checking/adjusting jigs and tools <Note: The entries of list>

Configuration

1. Name

2. Part No.

3. Code

* Model, Uses Remarks

Tolerance±0.1

Edge

thickness 0.5

1. Hex wrench

3. —

For loosening or tight-

ening of Motor stator

(1.3mm)

1.TensionBandandPlate

Adjusting Jig

2. JiGDRiVERMX7U2

3. BN

1. Alignment tape

2. VR2DBOPS

3. BT

TAPE CONTENTS

VIDEO IMAGE AUDIO TIME

MONOSCOPE L-CH 400Hz 30MIN

R-CH 1,000Hz

<Note: The entries of list>

Configuration

1. Name

2. Part No.

3. Code

* Model, Uses Remarks

1. Screw locking agent

(1401B)

* Three Bond

1. Cleaning liquid

(Industrial-useethylalcohol)

1. Oil

COSMOHYDRO HV100

* Cosmo Oil Co., Ltd.

1. Greases

Morycoat YM-103/X5-6020

* Dow Coaning

4-1-2. Parts for periodic inspection and maintenance.

1. Superfine swab

* Commercially available

item

1. Cleaning paper

2. JiGDUSPER

3. AP

* Dusper ∑(Sigma) (Ozu Co., Ltd.)

This manual suits for next models

Table of contents

Other Sharp Camcorder manuals

Sharp

Sharp VN-EZ1U User manual

Sharp

Sharp ViewCam Slim VL-PD6S User manual

Sharp

Sharp ViewCam VL-E610S User manual

Sharp

Sharp ViewCam VL-DX10U User manual

Sharp

Sharp ViewCam VL-NZ50S User manual

Sharp

Sharp VL-E78E User manual

Sharp

Sharp VL-C73SA User manual

Sharp

Sharp ViewCam VL-NZ150U User manual

Sharp

Sharp VL-SD20H User manual

Sharp

Sharp VL-NZ50U - MiniDV Compact Digital Viewcam User manual

Sharp

Sharp ViewCam VL-AH131S User manual

Sharp

Sharp VN-EZ1U User manual

Sharp

Sharp ViewCam VL-NZ50S User manual

Sharp

Sharp ViewCam VL-E79E User manual

Sharp

Sharp VIEWCAM VL-A110U User manual

Sharp

Sharp VIEWCAM VL-WD650U User manual

Sharp

Sharp Viewcam VL-NZ10S User manual

Sharp

Sharp VIEWCAM VL-A110U User manual

Sharp

Sharp VIEWCAMZ VL-Z5E User manual

Sharp

Sharp VL-PD3AS User manual

Sharp

Sharp ViewCam Slim VL-AX1S User manual

Sharp

Sharp ViewCam VL-H850S User manual

Sharp

Sharp VL-Z500E S User manual

Sharp

Sharp VL-E71E User manual

Popular Camcorder manuals by other brands

Toshiba

Toshiba CAMILEO Z100 user guide

Panasonic

Panasonic NV-VS40B operating instructions

Canon

Canon RC 260 instructions

Sony

Sony Handycam DCR-DVD7E operating guide

Brinno

Brinno TimeLapse TLC200 user manual

JVC

JVC GR-SXM68AC Schematic diagram

Panasonic

Panasonic AG-HMC152EN operating instructions

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p user guide

MYDLINK

MYDLINK DCS-6100LH Quick installation guide

Sony

Sony video Hi8 Handycam CCD-TR555 operating instructions

SECURECOM

SECURECOM V-5014B installation guide

Panasonic

Panasonic HDC-SD100 operating instructions

Sharper Image

Sharper Image U-VIDEO instruction manual

JVC

JVC AA-V15EG instruction manual

Canon

Canon LEGRIA HV40 instruction manual

Sony

Sony Handycam DCR-VX2000 Service manual

RCA

RCA CC616 user guide

Panasonic

Panasonic NVM40 Service manual
