Sharp VN-EZ1U User manual

Basic Operations

Deleting All the Movies

Use this function if you no longer need any of the movies, for

example, after transfering them to your computer.

Precautions:

• Please protect your important movies against accidental

deletion. To delete protected movies, unprotect them before

the deletion (see pages 37 and 38).

• Do not open the battery compartment cover while the Digital

Recorder deletes movies.

1Set the Movie Playback mode (see page 29), then

press the MENU button to display <MENU 1/2>.

<MENU1/2>

C-PLAY OFF

SLOW PLAY OFF

DISPLAY ON

BACKLIGHT NORMAL

EXIT [MENU]



2Press 'or "on the Operation button to move the

pointer to “EDIT” in <MENU 2/2> (1) and then

press | (2).

•The EDIT mode screen appears.

<MENU2/2>

EDIT

PROTECT

FORMAT

BEEP ON

EXIT [MENU]



EDIT

DELETE

DIVIDE

DELETE ALL



EXIT [MENU]



Basic Operations

3Press 'or "to select “DELETE ALL” (1) and

press |(2).

EDIT

DELETE

DIVIDE

DELETE ALL



EXIT [MENU]



DELETE ALL

MOTION PICTURES?



YES [SHUTTER]

NO [ MENU ]



4Press the Shutter button to delete all recorded

movies.

•The Movie Index Playback mode screen appears.



NO FILE



Notes:

• Protected movies cannot be deleted. See pages 37 and 38 for

the details on protecting and unprotecting images.

• To cancel the deletion, press the MENU button in step 3.

Basic Operations

Protecting Important Movie and

Images from Deletion

This function protects your important movies or still images

against accidental deletion.

Note:

• You can perform this procedure in the Playback mode.

Example:

• Protecting an important movie.

1Slide the POWER switch (1), set the Mode select

switch to MOVIE (2) and then rotate the lens body

to PLAY (3).

PLAY

CAMERA

POWER

MOVIE STILL

2Press the MENU button to display <MENU 1/2>.

<MENU1/2>

C-PLAY OFF

SLOW PLAY OFF

DISPLAY ON

BACKLIGHT NORMAL

EXIT [MENU]



3Press 'or "on the Operation button to move the

pointer to “PROTECT” in <MENU 2/2> (1) and then

press | (2).

•The Movie Index Playback mode screen appears with

the protect indicator “ ”.

<MENU2/2>

EDIT

PROTECT

FORMAT

BEEP ON

EXIT [MENU]



OK[SHUTTER] ‰‰2



Protect indicator

Basic Operations

4Press \or |to move the frame to the desired movie.



OK[SHUTTER] ‰‰1



Note:

• If you have recorded more than nine movies or still images,

there are other pages before and after the current page.

To go to the previous page, press '.

To go to the next page, press ".

5Press the Shutter button.

•The protect indicator “ ” is lit on the desired movie.



OK[SHUTTER] ‰‰1



6Press the MENU button twice to end the protect

setting procedure.

•The Movie Index Playback mode screen appears.

Notes:

• If you protect a still image, perform steps 2 through 6 in the

Still Playback mode.

• To protect another movie, repeat the procedure in steps 4 and

• Formatting a SmartMedia card (see page 64) deletes all

images on it, regardless of whether the images are protected

or not.

To Cancel the Protect Setting

Perform steps 2 through 4, and then press the Shutter

button. When the “ ” indicator flashes, press the MENU

button.

•If you want to cancel another protection, press \or |to

select the protected image and press the Shutter button.

Basic Operations

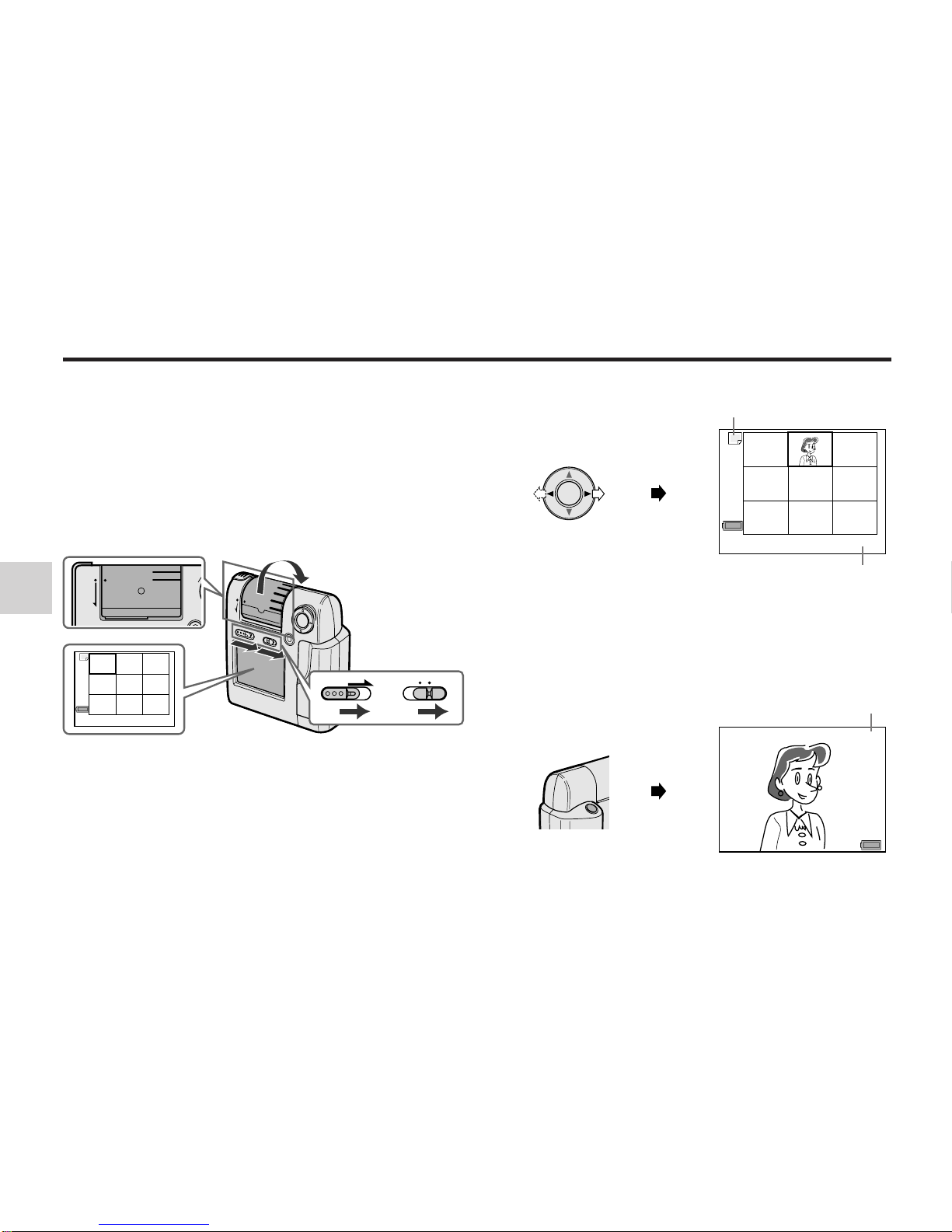

Still Playback

Using the LCD monitor, you can see the still images as soon

as you have finished the shooting.

1Slide the Power switch (1), set the Mode select

switch to STILL (2) and then rotate the lens body to

PLAY (3).

•The still images will displayed in a thumbnail format

(reduced size images) by the Still Index Playback

mode.

2Press \or |on the Operation button to move the

frame to the desired image.



OK[SHUTTER] 1‰‰-‰‰‰2



Note:

• If you have recorded more than nine still images, there are

other pages before and after the current page.

To go to the previous page, press '.

To go to the next page, press ".

3Press the Shutter button to playback the selected still

image in the full size.

NORMAL 1‰‰-‰‰‰1



OCT.27.2‰‰‰

1‰:31 AM

NORMAL 1‰‰-‰‰‰2



OCT.27.2‰‰‰

1‰:31 AM



Notes:

• Pressing \plays the previous image.

• Pressing |plays the next image.

PLAY

CAMERA



OK[SHUTTER] 1‰‰-‰‰‰1OK[SHUTTER] 1‰‰-‰‰‰1



POWER

MOVIE STILL

CAMERA

PLAY

MEN

The number of a still image

STILL mode indicator

Basic Operations

To Return to the Still Index Playback Mode

Press the MENU button and hold it until the Still Index

Playback mode screen appears.

Basic Operations

Deleting Unwanted Still Image One by

One

This function allows you to delete unwanted still image one

by one.

Precautions:

• Please protect your important still image against accidental

deletion. To delete a protected still image, unprotect it before

the deletion (see pages 37 and 38).

• Do not open the battery compartment cover while the Digital

Recorder deletes a still image.

1Slide the POWER switch (1), set the Mode select

switch to STILL (2) and then rotate the lens body to

PLAY (3).

PLAY

CAMERA

POWER

MOVIE STILL

2Press the MENU button to display <MENU 1/2>.

<MENU1/2>

AUTO PLAY

DISPLAY ON

BACKLIGHT NORMAL

DELETE

EXIT [MENU]



3Press 'or "on the Operation button to move the

pointer to “DELETE” (1) and then press |(2).

•The Still Index Playback mode screen appears with a

“DELETE” frame.

<MENU1/2>

AUTO PLAY

DISPLAY ON

BACKLIGHT NORMAL

DELETE

EXIT [MENU]



OK[SHUTTER] 1‰‰-‰‰‰2

DELETE



Basic Operations

4Press \or |to move the frame to the unwanted still

image.



OK[SHUTTER] 1‰‰-‰‰‰1

DELETE 



Note:

• If you have recorded more than nine still images, there are

other pages before and after the current page.

To go to the previous page, press '.

To go to the next page, press ".

5Press the Shutter button.



DELETE?



YES [SHUTTER]

NO [ MENU ]



6Press the Shutter button again to delete the selected

still image.

•The screen returns to the Still Index Playback mode

with a “DELETE” frame. If you want to delete another

still image, repeat the procedure from step 4 to 6.



OK[SHUTTER] 1‰‰-‰‰‰2

DELETE 



7Press the MENU button twice to display the Still

Index Playback mode screen.

Note:

• To cancel the deletion, press the MENU button in step 4.

Basic Operations

Deleting All the Still Images

Use this function if you no longer need any of the still

images, for example, after transfering them to your

computer.

Precautions:

• Please protect your important still images against accidental

deletion. To delete protected still images, unprotect them

before the deletion (see pages 37 and 38).

• Do not open the battery compartment cover while the Digital

Recorder deletes still images.

1Set the Still Playback mode (see page 39), then

press the MENU button to display <MENU 1/2>.

<MENU1/2>

AUTO PLAY

DISPLAY ON

BACKLIGHT NORMAL

DELETE

EXIT [MENU]



2Press 'or "on the Operation button to select

“DELETE ALL” in <MENU 2/2> (1) and then press

|(2).

<MENU2/2>

DELETE ALL

PROTECT

FORMAT

BEEP ON

EXIT [MENU]



DELETE ALL

STILL IMAGES?



YES [SHUTTER]

NO [ MENU ]



Basic Operations

3Press the Shutter button to delete all recorded still

images.

•The Still Index Playback mode screen appears.



NO FILE



Notes:

• Protected still images cannot be deleted. See pages 37 and

38 for the details on protecting and unprotecting images.

• To cancel the deletion, press the MENU button in step 2.
