Sharp ViewCam Slim VL-AX1S User manual

VIDEOKAMERA MED FLYTANDE KRISTALLSKÄRM

CAMCORDER COM VISOR DE CRISTAL LÍQUIDO

LIQUID CRYSTAL DISPLAY CAMCORDER

MANUAL DE OPERAÇÃO

BRUKSANVISNING

OPERATION MANUAL

VL-AX1S/hyou3; 02/1/10/18:00

BRUKSANVISNING MANUAL DE OPERAÇÃOOPERATION MANUAL

Tryckt i Japan

Impresso no Japão

Printed in Japan

TINSL0307TAZZ

01P12-JKG

SHARP CORPORATION

VL-AX1S

;;;

;;

SVENSKA ENGLISH

VL-AX1S

PORTUGUÊS

VL-AX1S-CE3; 01/10/30/18:00

This equipment complies with the requirements of Directives 89/336/

EEC and 73/23/EEC as amended by 93/68/EEC.

Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/

EWG und 73/23/EWG mit Änderung 93/68/EWG.

Ce matériel répond aux exigences contenues dans les directives 89/336/

CEE et 73/23/CEE modifiées par la directive 93/68/CEE.

Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/

23/EEG, gewijzigd door 93/68/EEG.

Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC

med tillæg nr. 93/68/EEC.

Quest’ apparecchio è conforme ai requisiti delle direttive 89/336/EEC e

73/23/EEC, come emendata dalla direttiva 93/68/EEC.

« Â„Í·Ù‹ÛÙ·ÛÁ ·ıÙﬁ ·ÌÙ·ÔÍÒﬂÌÂÙ·È ÛÙÈÚ ··ÈÙﬁÛÂÈÚ Ù˘Ì Ô‰Á„È˛Ì ÙÁÚ

EıÒ˘·˙ÍﬁÚ EÌ˘ÛÁÚ 89/336/EOK Í·È 3/23/EOK, ¸˘Ú ÔÈ Í·ÌÔÌÈÛÏÔﬂ

·ıÙÔﬂ ÛıÏÎÁÒ˛ËÁÍ·Ì ·¸ ÙÁÌ Ô‰Á„ﬂ· 93/68/EOK.

Este equipamento obedece às exigências das directivas 89/336/CEE e

73/23/CEE, na sua versão corrigida pela directiva 93/68/CEE.

Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/

23/CEE, modificadas por medio de la 93/68/CEE.

Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/

23/EEC så som kompletteras av 93/68/EEC.

Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/

23/EEC i endringen 93/68/EEC.

Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset,

joita on muutettu direktiivillä 93/68/EEC.

POZOR! P¿ED SEJMUTÍM KRYTU NUTNO VYJMOUT SÍﬁOVOU

VIDLICI ZE SÍﬁOVÉ ZÁSUVKY.

UPOZORNÊNÍ: OPRAVU SMÍ PROVÁDÊT POUZE ODBORN„ SERVIS.

ENGLISH

Before using the camcorder, please read this operation manual carefully,

especially page ix.

ENGLISH

OPERATION MANUAL

WARNING

TO PREVENT SHOCK

HAZARD, DO NOT EXPOSE

THIS APPLIANCE TO RAIN

OR MOISTURE.

This equipment should be used with

the recommended AC adapter/battery

charger or battery pack.

CAUTION

To prevent electric shocks and fire

hazards, do NOT use any other power

source.

CAUTION

To prevent shock, do not open the

cabinet. No user serviceable parts

inside. Refer servicing to qualified

dealer or service centre.

Important:

Audio-visual material may consist of

copyrighted works which must not be

recorded without the authority of the

owner of the copyright. Please refer to

relevant laws in your country.

Power supply:

This unit can be operated by

connecting it to either the AC adapter/

battery charger or battery pack. The

AC adapter/battery charger

incorporates the AUTO VOLTAGE (AC

110–240 V, 50/60 Hz) function.

NOTE

The LCD panel of this camcorder is a very high technology product with more than

120,000 thin-film transistors*, giving you fine picture detail. Occasionally, a pixel may

appear on the screen as a fixed point of blue, green, red, or black. Please note that

this does not affect the performance of your camcorder.

Trademarks

• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

• Adobe Acrobat Reader is a trademark of Adobe Systems Incorporated.

• DPOF is a trademark of CANON INC., Eastman Kodak Company, Fuji Photo Film Co., Ltd. and

Matsushita Electric Industrial Co., Ltd.

• All other brand or product names are registered trademarks or trademarks of their respective

holders.

*Specifications are subject to change without notice.

Please consult this operation manual

further for details on these and other

functions of your camcorder.

Quick Operation Guide

Attaching the Battery

Pack

1Make sure that the POWER switch is set

to OFF.

2Pull out the viewfinder completely (1),

then lift it up (2).

3Align the =mark on the side of the

battery pack with the =mark on the

camcorder (1). Press the battery pack

and slide it down completely until it locks

into place (2).

Charging the Battery

Pack

1Connect the supplied power cord to the

AC power socket on the AC adapter/

battery charger, and insert the AC plug

into a power outlet.

• The POWER indicator lights up.

2Align the smark on the battery pack

with the amark on the charger (1) and

guide the battery into the groove.

Pressing the battery (2), slide it in the

direction of the arrow (3) until it locks

into place.

• The CHARGE indicator lights up.

• The CHARGE indicator turns off when

the battery is fully charged.

3Slide the battery pack in the direction of

the arrow (1), and remove it (2). Then

remove the AC plug of the power cord

from the power outlet.

60˚

To power

outletPOWER indicator

AC power socket

CHARGE indicator

SAVE

REC

SAVE

REC

mark

Inserting a Card

1Make sure that the POWER switch is set

to OFF.

2Press the LCD monitor PUSH OPEN

release and open the LCD monitor.

3Slide the card slot cover and open it in

the direction of the arrow.

4Insert a card into the slot as shown

below, and push it in as far as it will go.

5Close the card slot cover in the direction

of the arrow.

Note:

•You can use an SD Memory Card (supplied)

and a MultiMediaCard (commercially avail-

able) for storing still images with this

camcorder, not a SmartMediaEcard or

Memory StickEmedia. In this operation

manual, “card” refers to the SD Memory Card

or the MultiMediaCard.

Inserting a Cassette

1Attach the power source to the

camcorder.

2Slide the cassette compartment door

release (1) and open the cassette

compartment door completely (2).

3Insert a commercially available cassette

fully with the window facing upwards,

and with the erasure protect tab facing

outwards.

4Press the Wmark gently until the

cassette holder clicks into place.

5Wait for the cassette holder to fully

retract. Close the compartment door by

pressing the centre until it clicks into

place.

Cassette

compartment

door release

Erasure

protect tab

Card slot cover

Clipped corner

Label

LCD monitor PUSH

OPEN release

iii

Using the Viewfinder

1Pull out the viewfinder completely.

2Raise the viewfinder to aim the

camcorder better depending on your

position.

60˚

Using the LCD Monitor

1Press the LCD monitor PUSH OPEN

release, and open the LCD monitor to a

90°angle to a camcorder body.

2Adjust the LCD monitor to an angle that

allows easy viewing of the on-screen

picture.

90˚

180

Quick Operation Guide

Zooming

Push the Power Zoom control to T (1) (tele-

photo) or W (2) (wide angle) side.

Tape Playback

1Set the Media Selection

switch to TAPE.

2Hold down the Lock button

and set the POWER

switch to VCR.

3Press e(or r) on the Operation

button to rewind (or fast forward) the

tape to the desired point.

4Press yto begin playback.

To stop playback

Press d.

Easy Camera Recording

on Tape

1Insert a cassette into the camcorder.

2Set the Media Selection

switch to TAPE.

3Hold down the Lock button and set the

POWER switch to CAMERA.

• The picture from the lens now displays.

4Adjust the Power Zoom control to frame

the subject as you desire.

5Press the REC START/STOP button to

begin recording.

To pause recording

Press the REC START/STOP button again.

AUTO

REC

Volume Control

Push the Volume control to the Lor +side to

increase (1) or decrease (2) the volume.

POWER switch

Media Selection switch

REC START/

STOP button

Power Zoom control/

Volume control

STILL button

Lock button

REC START/

STOP button

Auto mode indicator

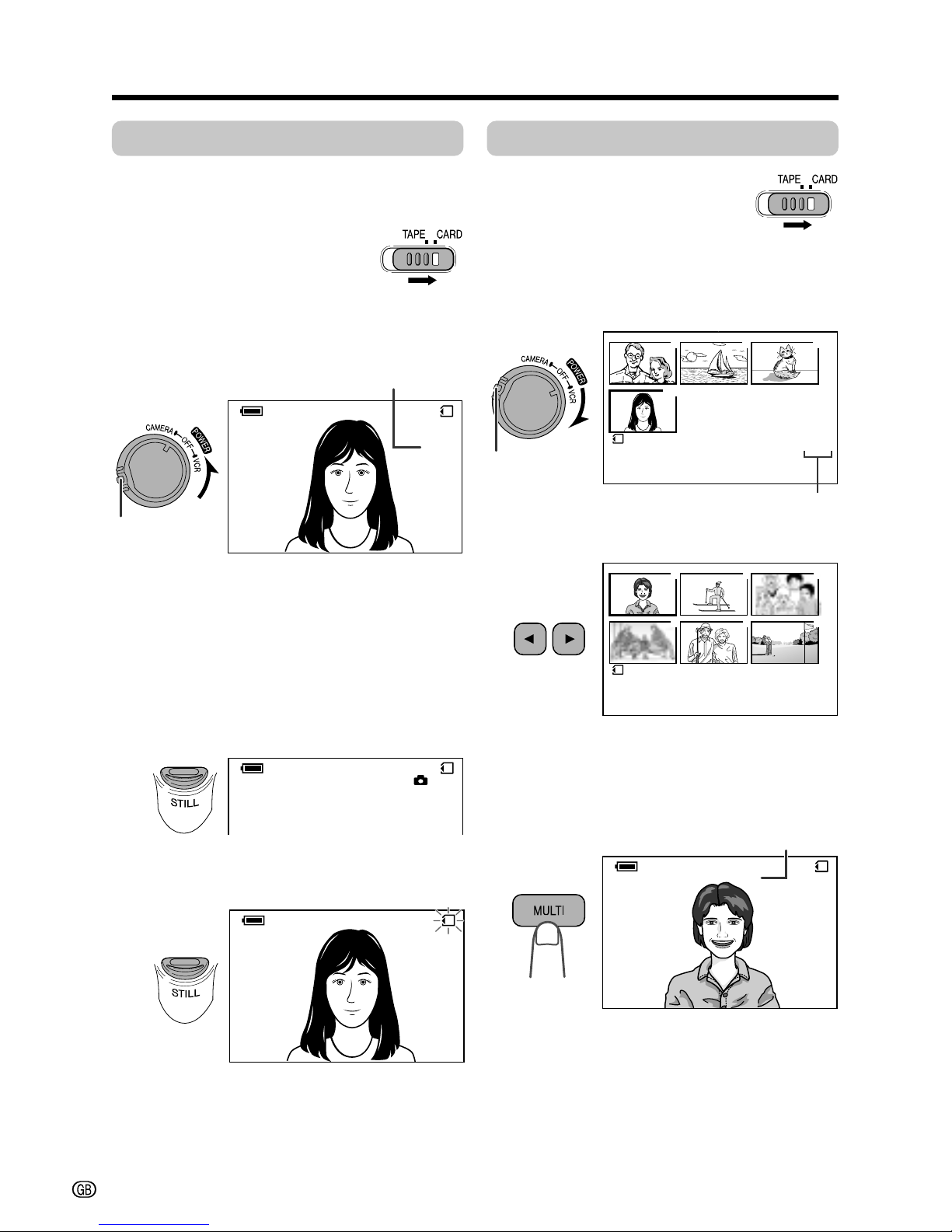

Card Recording

1Insert a card into the camcorder.

2Set the Media Selection

switch to CARD.

3Hold down the Lock button and set the

POWER switch to CAMERA.

• The picture from the lens now displays.

4Adjust the Power Zoom control to frame

the subject as you desire.

5Press the STILL button halfway down to

focus on the subject.

• The camcorder automatically focuses on

the subject. When it is set, you will hear

a sound and see Tmark, then the

camcorder locks the focus.

6Press the STILL button fully to begin

recording.

• The Sindicator flashes red while data

is being recorded on the card, and

returns to white when recording

completes.

Card Playback

1Set the Media Selection

switch to CARD.

2Hold down the Lock button and set the

POWER switch to VCR.

• The images recorded on the card

displays in a thumbnail format.

3Press qor wto move the selection

frame to the desired image.

• You can also turn the CONTROL dial to

move the selection frame.

4Press the MULTI button.

• The selected image displays in full-

screen.

E CONOMY

][ 1152

AUTO

CARD

/931

E CONOMY

][ 1152

AUTO

CARD

/931

0100

00 2/2PAGE

NORMAL

PLAYBACK

3000

001

NORMA L

01/3

1000

001

NORMAL

011/

][ 1152

CARD

E CONOMY

][ 1152

CARD

/931

1000

00 2/1PAGE

NORMAL

PLAYBACK

Quick Operation Guide

Number of shots taken/remaining

Lock button

Image file name

Page number/total thumbnail pages

Lock button

DV Technology

Digital video (DV) is a revolutionary technology

that enables recording and playback of high

quality images with the use of special digital

features previously unavailable with conven-

tional analog formats.

DV and conventional video cassette

tapes

There are two kinds of DV-format video

cassette tapes: the Mini DV cassette and the

larger DV cassette used for extended playback

and recording. This camcorder only operates

with Mini DV cassettes. DV cassettes cannot

be used. Be sure to use Mini DV cassettes with

the imark.

This product incorporates copyright

protection technology that is protected by

method claims of certain U.S. patents and

other intellectual property rights owned by

Macrovision Corporation and other rights

owners. Use of this copyright protection

technology must be authorized by

Macrovision Corporation, and is intended

for home and other limited viewing uses

only unless otherwise authorized by

Macrovision Corporation. Reverse engineer-

ing or disassembly is prohibited.

Mini DV cassette DV cassette

8 mm cassette VHS cassette Beta cassette

Note:

• This camcorder reproduces the highest picture

quality when used with an ME tape. It is

recommended you use an ME tape for high-

quality recording and playback.

8 mm, VHS, and Beta cassettes cannot be

used for playback or recording with this

camcorder.

SD Memory Card and

MultiMediaCard

SD Memory card and MultiMediaCard are

compact recording media just 32 mm long and

24 mm wide which support the needs of the

digital network society where music, images,

games and various other provider services are

offered.

• You can use an SD Memory Card (supplied)

and a MultiMediaCard (commercially

available) for storing still images with this

camcorder, not a SmartMedia\card or

Memory Stick\media.

• An SD Memory Card is superior to a

MultiMediaCard in terms of copyright

protection functions and high speed transfer.

• The SD Memory Card is compatible with

MultiMediaCard, and data stored on

MultiMediaCard can be used with the SD

Memory Card.

Note:

• This camcorder is verified to work with the

following card types and capacities.

CSD Memory Card: 128 MB or less

CMultiMediaCard: 64 MB or less

Memory Stick\media

SD Memory Card MultiMediaCard

SmartMedia\card

About Your Camcorder

vii

Supplied Accessories

Battery pack

BT-L221

AC adapter/

battery charger Power cord DC cable

Remote control

CR2025 type

lithium batteryK2Audio/video cable

Shoulder strap Lens cap Lens hood

PixLab Video Capture

Software (Lite Version)

8 MB SD Memory Card

PC connecting cable

Zoom microphone

;;

;

Table of contents

Other Sharp Camcorder manuals

Sharp

Sharp VL-H400S User manual

Sharp

Sharp VL-NZ50U - MiniDV Compact Digital Viewcam User manual

Sharp

Sharp VL-Z400S User manual

Sharp

Sharp ViewCam VL-E79E User manual

Sharp

Sharp VIEWCAMZ VL-Z5E User manual

Sharp

Sharp VIEWCAM VL-A110U User manual

Sharp

Sharp VL-SX80 User manual

Sharp

Sharp VL-C780S User manual

Sharp

Sharp VL-E30S User manual

Sharp

Sharp VL-C8000S User manual

Sharp

Sharp VL-PD3U User manual

Sharp

Sharp VL-Z500S User manual

Sharp

Sharp ViewCam Slim VL-AX1H User manual

Sharp

Sharp VL-Z800S User manual

Sharp

Sharp VL-PD1U User manual

Sharp

Sharp ViewCam VL-WD255U User manual

Sharp

Sharp VL-Z100H User manual

Sharp

Sharp ViewCam-Slim VL-ME10S User manual

Sharp

Sharp ViewCam VL-WD250U User manual

Sharp

Sharp ViewaCam VL-H29E User manual

Sharp

Sharp VN-EZ1U User manual

Sharp

Sharp VL-NZ8U User manual

Sharp

Sharp ViewCam VL-NZ150U User manual

Sharp

Sharp ViewCam Slim VL-ME100S User manual

Popular Camcorder manuals by other brands

Toshiba

Toshiba CAMILEO Z100 user guide

Panasonic

Panasonic NV-VS40B operating instructions

Canon

Canon RC 260 instructions

Sony

Sony Handycam DCR-DVD7E operating guide

Brinno

Brinno TimeLapse TLC200 user manual

JVC

JVC GR-SXM68AC Schematic diagram

Panasonic

Panasonic AG-HMC152EN operating instructions

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p user guide

MYDLINK

MYDLINK DCS-6100LH Quick installation guide

Sony

Sony video Hi8 Handycam CCD-TR555 operating instructions

SECURECOM

SECURECOM V-5014B installation guide

Panasonic

Panasonic HDC-SD100 operating instructions

Sharper Image

Sharper Image U-VIDEO instruction manual

JVC

JVC AA-V15EG instruction manual

Canon

Canon LEGRIA HV40 instruction manual

Sony

Sony Handycam DCR-VX2000 Service manual

RCA

RCA CC616 user guide

Panasonic

Panasonic NVM40 Service manual
