Sharp AE-X24LCJ User manual

OPERATION MANUAL

Thank you for choosing a SHARP air conditioner. Please read this manual

reference.

thoroughly before using your air conditioner and keep it for future

Split Type Inverter Room Air Conditioner

MODELS AY-X24LCJ AE-X24LCJ

Collection of such waste should be separated for special

treatment as required by local regulations.

and cleaning

ing

that should be prevented. that

NOTE: The figures in this manual may be different to the actual product.

Specifications

,please refer the matter to

a qualified air conditioner contractor.

To change the airflow direction,

adjust the vertical and lateral

air flow direction by using the

remote control.

objects

Don’t expose animals and

plants directly to the output

air flow as it may have a

detrimental effect on them.

Don ’t exp ose you rsel f to col d ou tpu t

air for prol onged pe riods as it may

aff ect you r physi cal con di tion .

This air conditioner is designed

for norm al re sidential use. Do not

use for any other purp ose such as

food pre servation or dry ing clothes.

Don't place a space heater or

cooking appliances near the

air conditioner.

Air conditioners absorb heat in the room and transmits it to the outdoor unit, so that

indoor ambient temperatures are decreased. Its cooling capacity will increase or

decrease according to outdoor ambient temperature.

If the unit is running in COOL mode and in low ambient temperature, frost may be

formed on the heat exchanger. When indoor heater exchanger temperature

decreases below zero, the indoor unit microcomputer will stop the compressor

running to protect the unit.

Air conditioners absorb heat from outdoors and transmit it to the indoor unit,

increasing room temperature. Heating capacity will decrease in lower ambient

temperatures.

When outdoor temperature is low but high humi dity, frost may form on the outdoor

unit during extended operation, affecting heating efficiency. The air conditioner

operation may stop for 8-10mi ns during auto defrosting function.

During auto defrosting, the indoor indicator flashes and the outdoor unit may

emit vapour. This is not a malfunction.

After defrosting has finished, the heating operation will recover automatically.

In "HEAT" mode, if in the following situations, the operation of indoor unit maybe

delayed until the heat exchanger has achieved a certain temperature.

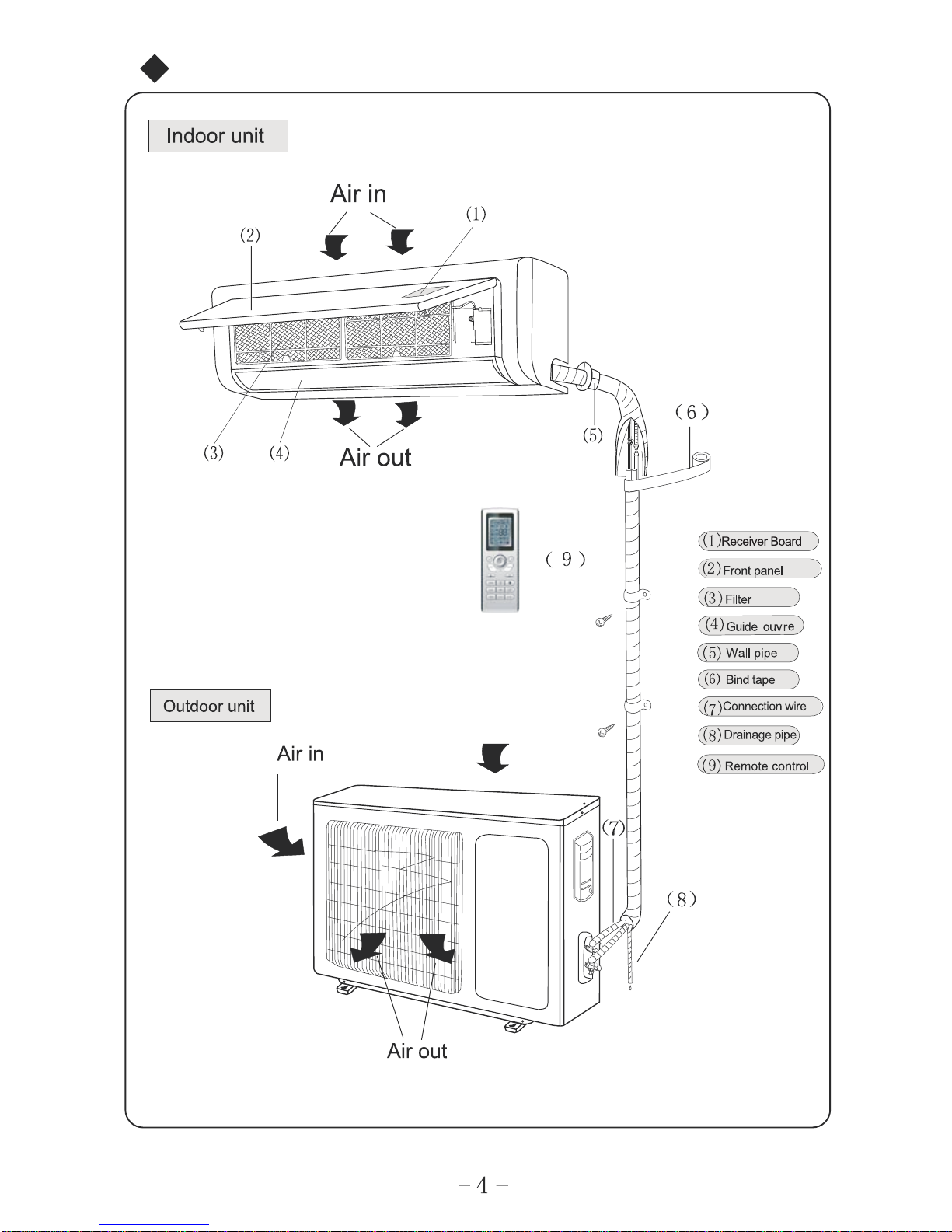

Name and function of each part

Note: Be sure that there are no obstructions between receiver and remote control;

Don't drop or throw the remote control; Don't spill any liquid on the remote

control; Don't leave remote control directly in sunlight or hot environments.

Pres s this button to turn Slee p mode on or

off. Slee p mode "off" is defau lt when

switch ed on. Slee p functi on is ca nce lled

when unit is switch ed off. Sleep mode

durati on ca n be ad justed . Sleep mode is

not av ail ab le under Fan and Auto modes .

Press this button to select between Auto,

Low, Middle and High speed fan settings.

Auto fan speed is default when unit

switched on.

AUTO

Press this button to set clock function.

the clock symbol will blink and display.

Within 5 seconds, the time can be adjusted

by pressing + or - button. Press button

continuously for rapid time change.

During blinking, press confirm button or

clock button again to complete time setting.

Press this button to select between:

setting desired temperature, display

indoor ambient temperature, display

outdoor ambient temperature.

Press this button to select between Auto,

Cool, Dry, Fan and Heat modes. Auto

mode is the default when switched on.

Press this button to turn unit on or off.

Sleep function will be cancelled if unit

is turned off.

Name and function of wireless remote control

buttons on this control are not applicable to this unit.

Preset temperature is increased by

pressing this button. Continuously

pressing and holding for 2 seconds

changes the temperature rapidly.

Preset temperature is decreased by

pressing this button. Continuously

pressing and holding for 2 seconds

changes the temperature rapidly. The

temperature adjustment is unavailable

under the Auto Mode.

Pres s this button to turn light On or Off.

Light On is defau lt when unit is sw itched on.

Press this button to select or cancel Blow

mode. Blow 'off' is default wh en unit is

swi tched on.

Under Co ol or He at mo de, pressing this

button turns on or off the Turbo function.

After the turbo function is turned on, the

Turbo signal is displayed.

Some

buttons on this control are not applicable to this unit.

Press this button to select Timer On

setting. Pressing the + or - button

during the first 5 seconds adjusts the

time value by one minute each time

pressed. Holding the + or - button down

for more than 2 seconds changes the

time rapidly. While time is blinking,

press Timer On button to confirm

setting. After setting, repressing the

Timer On button cancels the operation.

symbol is displayed the remote control

will send a temperature reading to the

wall unit every 10 mi nutes. Press the

“I FEEL" button again to cancel operation.

When the "I FEEL"

sel ect

The functions below are not applicable

to this model.

direct ions

Some
