Seifert 43101081 User manual
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 1 / 17
Table of Content 43101081
1. User manual 2 ..................................................................................................................................
2. Legal regulations 2 .........................................................................................................................
3. Safety instructions 3 ......................................................................................................................
4. Settings 4 .........................................................................................................................................
5. Functional principle 5 .....................................................................................................................
6. Technical data 6 ..............................................................................................................................
7. Performance graph 7 ......................................................................................................................
8. Mounting 8 .......................................................................................................................................
9. Mounting Principle 9 .......................................................................................................................
10. Cut out dimensions 10 ..................................................................................................................
11. Dimensions (H x W x D) 11 ..........................................................................................................
12. Electrical connection 12 ...............................................................................................................
13. Controller 13 ..................................................................................................................................
14. Wiring diagram 14 .........................................................................................................................
15. Taking into operation 15 ..............................................................................................................
16. Trouble shooting 15 ......................................................................................................................
17. Maintenance & Cleaning 15 .........................................................................................................
18. Transport & Storage 16 ................................................................................................................
19. Parts supplied / Spare parts / Accessories 17 ..........................................................................
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 2 / 17
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures in order to
protect temperature sensitive components in an industrial enviorment. To meet the conditions of use, all the
information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 3 / 17
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified personnel,
using only supplied material according to the supplied instructions.
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 4 / 17
4. Settings
The cooling unit is intended to be used as a complementary accessory to larger industrial equipment. The unit
is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to
protect heat sensitive components. It is not intended for household use.
The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into
contact with the ambient air which may well be dirty or polluted.
Enclosure cooling units can dissipate large quantities of heat from sealed enclosures such as electrical
enclosures into the ambient air and at the same time reduce the cabinet internal temperature to below that of
the ambient air.
The unit can function without problems in extreme ambient conditions (e.g. dusty and oily air) with a standard
operating temperature ranging between 50°F and 131°F. Units can be ordered with an additional electrical
cabinet heater. For the cooling capacities and evironmental ratings please refer to the type plate data.
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 5 / 17
5. Functional principle
The cooling unit for enclosures works on the basis of a refrigeration circuit consisting of four main
components: compressor (1), evaporator (2), condenser (3) and expansion device (4).
The circuit is hermetically sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an
Ozone Destruction Potential [ODP] of 0 and a Global Warming Potential [GWP] of 1430). The compressor
compresses the refrigerant (thus taking it to high pressure and high temperature), and pushes it through the
condenser, where it is cooled by ambient air thus passing from the gas to the liquid state. At the liquid state it
then passes through the capillary pipe being a much lower pressure the refrigerant arrived to the evaporator
where it absorbs the necessary heat to change from liquid to gas state. The gas is then drawn back into the
compressor completing the cycle.
Gestion de la condensation
Dans des environnements humides et de basses températures internes d'enceintes, une condensation peut se
former sur le serpentin de l'évaporateur. Les unités de refroidissement standard 43XXX0XXX ont une purge
d'évacuation vers le fond de l'unité pour le raccordement au tuyau d'évacuation.
Les unités de refroidissement 43XXX1XX incluent un évaporateur condenseur interne basé sur des cartouches
autorégulatrices CTP. Le condensat est égoutté vers un récipient interne où il s'évapore quand il est en contact
avec la surface de la cartouche. La vapeur en résultant est dirigée vers le condenseur. La cartouche de
chauffage CTP est raccordée en permanence. Le récipient a une purge pour le trop-plein en bas de l'unité. Un
tuyau d'évacuation est fourni pour se brancher sur la purge de trop-plein.
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 6 / 17
6. Technical data
Order Number 43101081
Cooling capacity 95F/95F 3,690 BTU
Cooling capacity 95F/122F 2,540 BTU
Compressor type Reciprocating compressor
Refrigerant / GWP R134a / 1430
Refrigerant charge 180 g / 6.3 oz
High / low pressure 29.5 / 6 bar
425 / 88 psig
Operating temperature range 50°F - 131°F
Air volume flow (system / unimpeded) Ambient air circuit: 240 / 500 cfm
Cabinet air circuit: 175 / 324 cfm
Mounting Recessed
Housing Material Mild steel, powder coated
Dimension H x W x D 28 x 14.6 x 10.2 inch
Weight 79 lbs.
Cut out dimensions 12.4 x 25.7 inch
Voltage / Frequency 120 V ~ 60 Hz
UL Voltage / Frequency 115 V ~ 60 Hz
Current 95F95F 6.7 A
Starting current 30.2 A
Max. current 8.6 A
Nominal power 95F95F 700 W
Max. power 900 W
Fuse 16 A (T)
Short-circuit current rating 5 kA
Connection Connection terminal block
Ingress protection TYPE 12
Approvals CE, cURus, cULus
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 7 / 17
7. Performance graph
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 8 / 17
8. Mounting
The power supply rating on unit rating plate must comply with mains rating.
Always disconnect the power supply before opening the unit.
The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any
condition. At cooling unit selection always cater for a safety margin of at least 15% extra cooling output in the
worst conditions.
Ensure that flows of air leaving and entering the cooling unit, internal and external, are not obstructed. It must
also be ensured in accordance with UL, that the air outlet is not blowing air directly at an equipment
operator. Should this be the case a barrier or duct shall be provided to redirect the airflow.
Cooling unit enclosure air suction hole must be installed in the highest possible point. When installing the unit
on a door ensure it can take the weight.
Before drilling the enclosure ensure the fixing elements and couplings will not interfere with the equipment
inside the enclosure itself. Disconnect power before starting any work inside the enclosure. Following this 1:1
Scale Drilling Template drill the holes and make the required cuts on the enclosure. This template may have
been affected by storage conditions, please check this template by verifying values of the largest dimensions
before drilling. Fit the sealing strip on the cooling unit on the side connected to the enclosure and follow the
installation diagram.
Note: In case of 19" rack mounted units please ignore the above mounting instructions.
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 9 / 17
9. Mounting Principle
Do not use within the first 15 minutes after installation!
1 M6 screws
2 M6 flat washers
3 M6 toothed washers
4 Cabinet
5 Sealing tape
6 Cooling unit
7 Lifting hook
Fig. 1 Recessed
Fig. 2 External
Version Nr. 1-10 - 31.07.2022 Doc. No. 9943101081 10 / 17

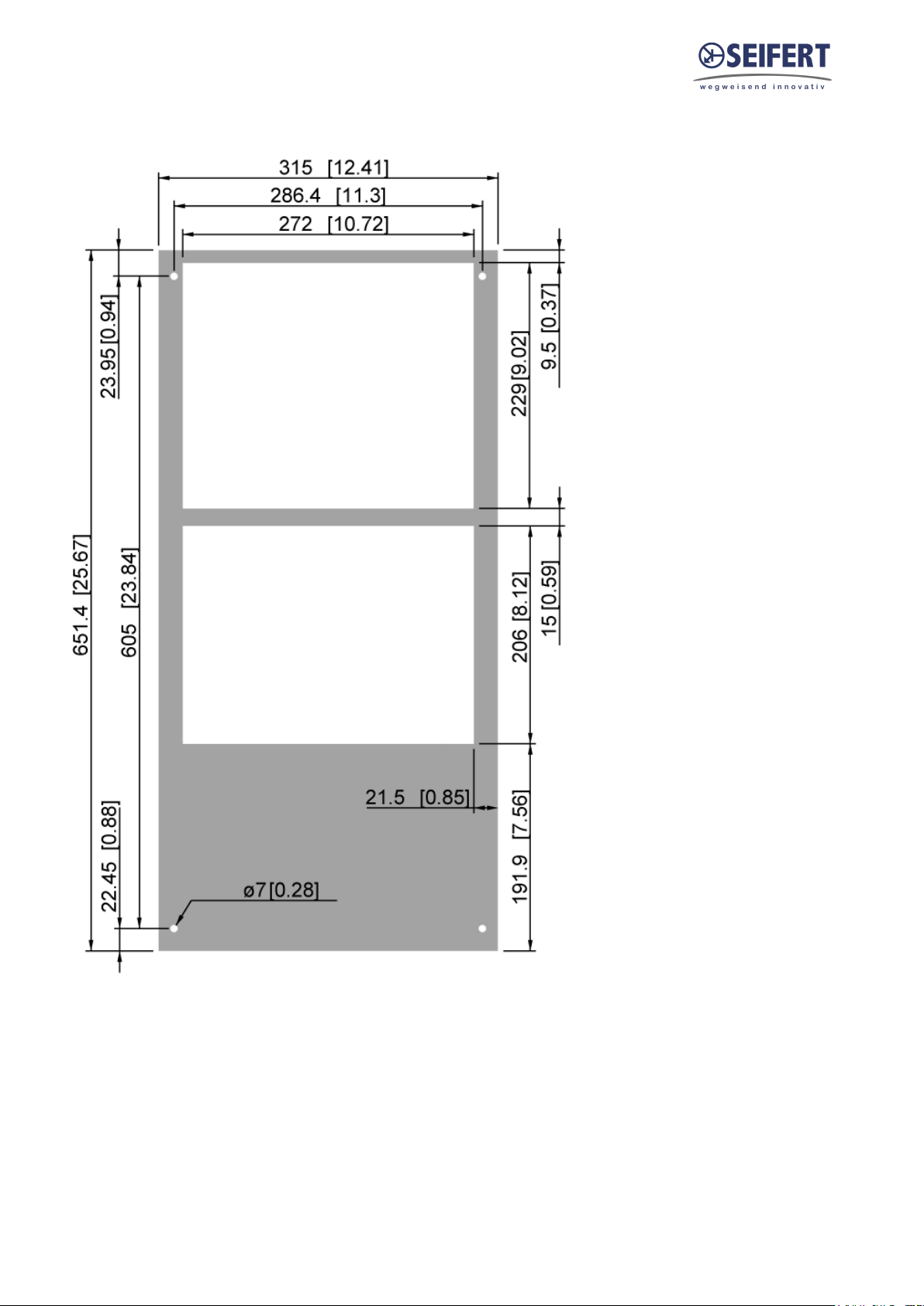

10. Cut out dimensions
