Seagate Medalist Pro 6451 User manual
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist Pro 6450 (ST36450A)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist Pro 6451 (ST36451A)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
for ATA (IDE)-Compatible PCs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-2 Medalist Pro 6450, Medalist Pro 6451, Rev. C
© 1997–1999 Seagate Technology, Inc. All rights reserved.
Publication Number: 32656-001, Rev. C, July 1999
Seagate, Seagate Technology and the Seagate logo are regis-
tered trademarks of Seagate Technology, Inc. Medalist, DiscWiz-
ard, SeaFAX, SeaFONE, SeaBOARD and SeaTDD are either
trademarks or registered trademarks of Seagate Technology,
Inc. or one of its subsidiaries. All other trademarks or registered
trademarks are the property of their respective owners.
Medalist Pro 6450, Medalist Pro 6451, Rev. C -1
Contents
The easiest way to install your drive.................................... 1
What you need........................................................................ 2
Before you begin .................................................................... 2
Handling precautions............................................................. 3
Master/slave jumpers............................................................. 4
Attaching cables and mounting the drive............................ 6
Configuring your computer................................................... 9
Addressing drive capacity limitations................................ 11
Partitioning and formatting your drive............................... 13
Installation using Disk Manager........................................ 14
Windows 95 or Windows 98 installation ........................... 15
Standard DOS installation ................................................ 16
Additional installation options............................................ 18
Remote LED connection...................................................... 18
Cable select jumper ............................................................. 19
Advanced Disk Manager options........................................ 20
Troubleshooting ................................................................... 23
Alternate capacity jumper................................................. 25
Seagate Technology support services............................... 31
Storing and shipping your drive......................................... 37
iii
0 Medalist Pro 6450, Medalist Pro 6451, Rev. C
iv
Medalist Pro 6450, Medalist Pro 6451, Rev. C 1
The easiest way to install your drive
DiscWizardis Seagate’s exclusive Windows program, provided
on a diskette, that makes it easy to install your Medalistdrive.
DiscWizard helps you configure your new drive and your com-
puter. It analyzes your system, lets you select various installation
options and creates customized step-by-step instructions. It also
allows older computers to access the full capacity of high-capac-
ity hard drives.
You can run DiscWizard to install your new hard drive if:
•You already have an existing, bootable hard drive in your com-
puter with at least 3 Mbytes of available disc space,
and
•You are running Windows 95 or Windows 98.
If you can run DiscWizard, follow the instructions on the
DiscWizard diskette to install your drive. If you need additional
information, refer to this installation guide.
If you cannot run DiscWizard, follow the instructions in this
installation guide to install and configure your new drive.
2 Medalist Pro 6450, Medalist Pro 6451, Rev. C
What you need
•Straight-edge and Phillips screwdrivers
•Four 6-32 UNC drive mounting screws
•An ATA host adapter and interface cable (max length: 18
inches) with enough connectors for all your drives
•An unused drive power cable for your new drive
•A bootable DOS system diskette (Seagate recommends using
DOS Version 5.0 or later).
•If you are mounting this 3.5-inch drive in a 5.25-inch drive bay,
you need a mounting adapter or frame kit. Also, you may need
drive mounting rails if your drive bay is not designed for direct
mounting.
Before you begin
•Make sure your computer is turned off before you open the
case.
•Read the handling precautions following and inspect the drive
to make sure that it is not damaged.
•Save your foam-lined Seagatedisc drive box. This box has
been approved by Seagate for shipping a Seagate disc drive.
Using any other container or packing material voids your drive
warranty.
Medalist Pro 6450, Medalist Pro 6451, Rev. C 3

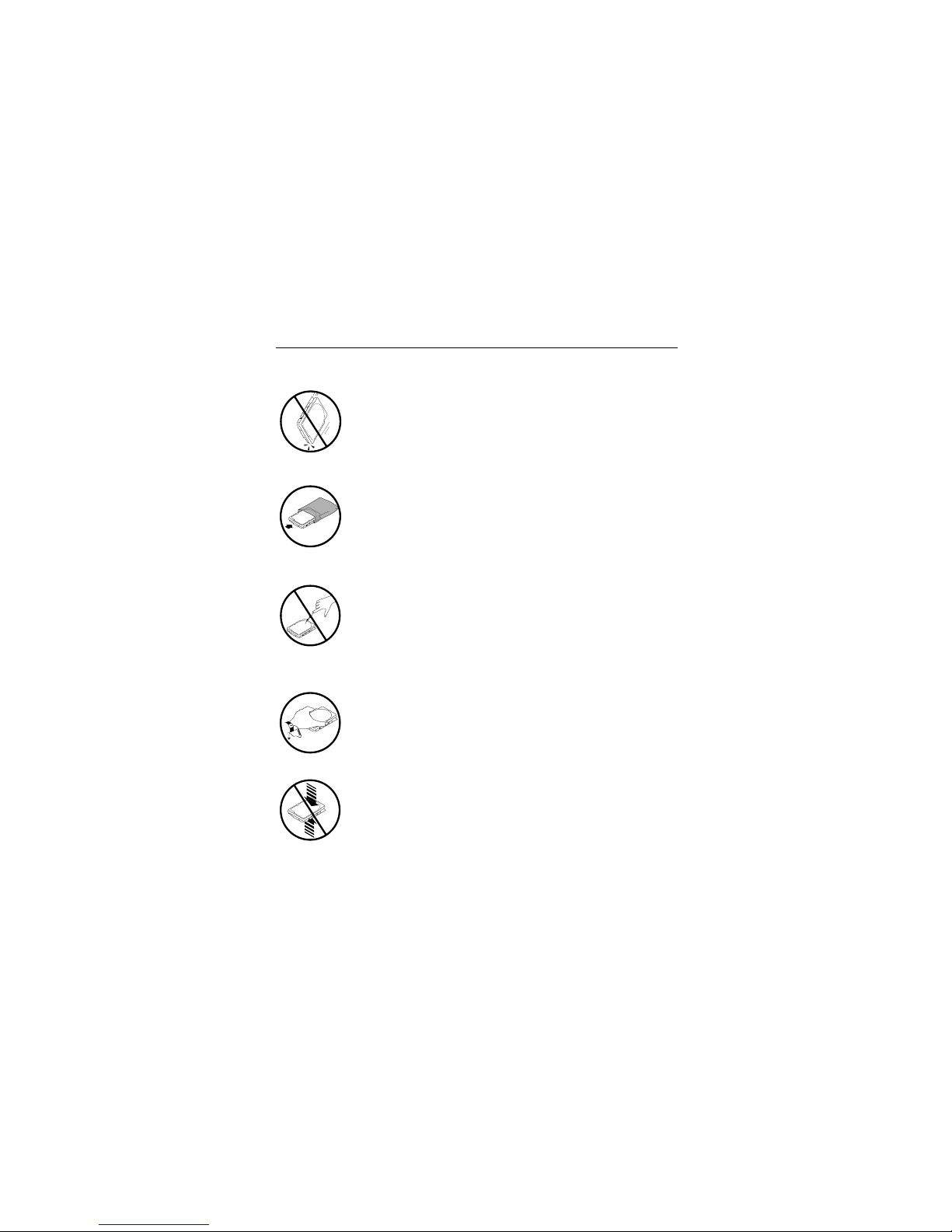

Handling precautions
Disc drives are extremely fragile. Do not drop or jar
your drive.
Keep the drive in its antistatic bag until you are
ready to install it.
Protect your drive from static discharge by making
sure you are well grounded before touching the
drive. We recommend wearing a grounded wrist
strap throughout the installation process. Do not
touch the connectors or any part of the printed cir-
cuit board.
Always handle the drive by its edges or frame.
Do not apply pressure or attach labels to the circuit
board or the top of the drive.
4 Medalist Pro 6450, Medalist Pro 6451, Rev. C
Master/slave jumpers
If your new Seagatedrive will be the only drive in your computer,
you do not have to change any jumper settings. In this case, skip
ahead to “Attaching cables and mounting the drive,” on page 6.
If you already have one hard drive in your computer and you are
installing a second drive, you must configure one drive as a mas-
ter and the other as a slave.
The jumper on pins 6 and 8 is a spare and does not affect drive
operation.
To configure the drive as a master or one drive only:
•Place a jumper on pins 7 and 8 (see Figure 1 on page 5).
The master drive usually defaults to being the “boot” drive
(drive C), from which the computer loads system software
when it first starts up.
•If there is only one drive in your system, remove all jumpers.
To configure the drive as a slave:
•Place a jumper on pins 5 and 6 (see Figure 1 on page 5).
•If you need to change the jumpers on your existing hard drive,
see the Disk Manager online manual, look on the drive label,
or contact the drive manufacturer.
Medalist Pro 6450, Medalist Pro 6451, Rev. C 5

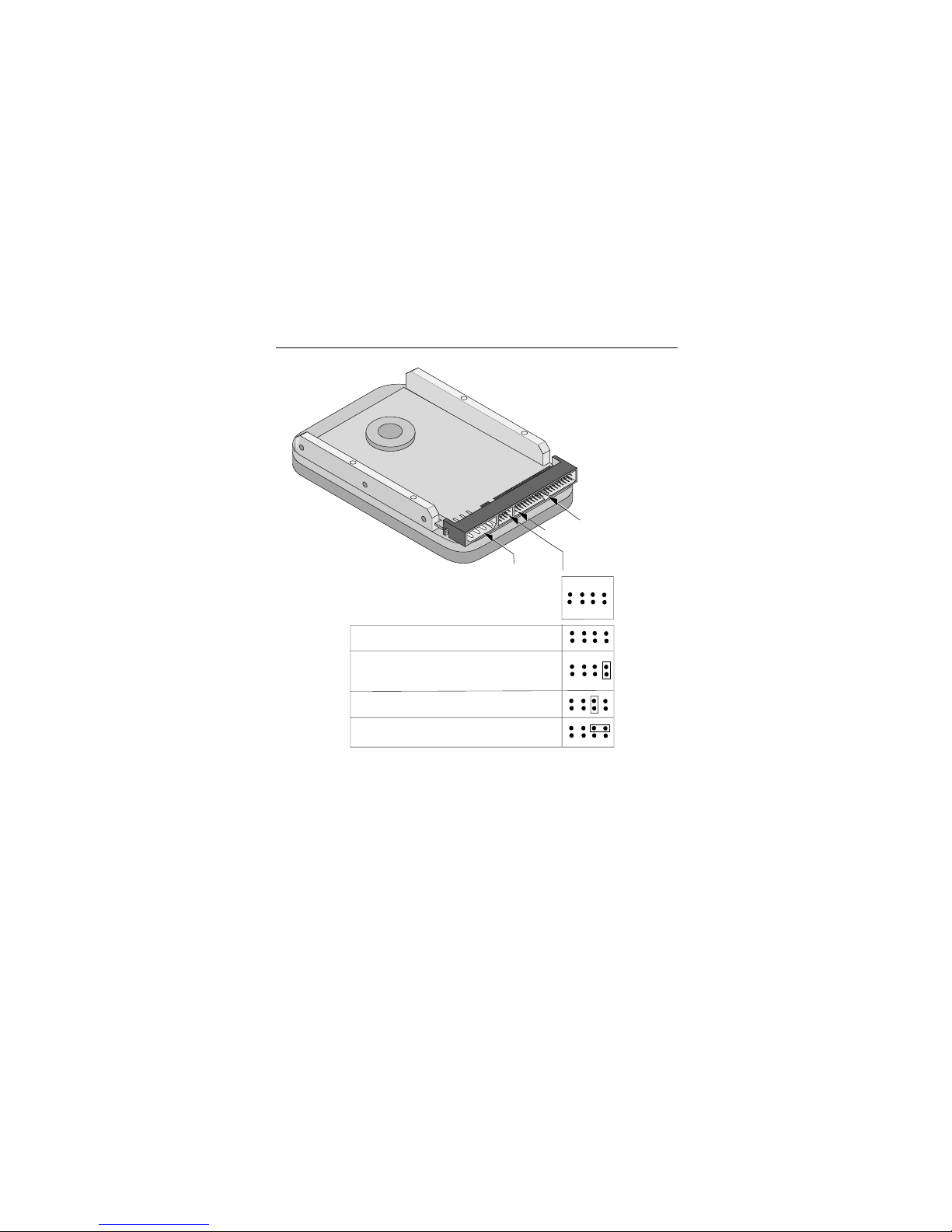

Figure 1. Master and slave jumper settings
135
2468
7
Drive is slave
pin 1
4-pin power
connector
40-pin ATA
interface
connector
Spare jumper
Drive is master with an ATA-
compatible slave
One drive only
6 Medalist Pro 6450, Medalist Pro 6451, Rev. C
Attaching cables and mounting the drive
1. If you are attaching a new ATA interface cable to a single
drive, attach one end of the cable to the interface connector
on your host adapter or motherboard. Motherboard connec-
tors can be identified by the IDE or HDD 40-pin connector.
The ATA cable must be no more than 18 inches (457 mm)
long.
2. Thread the interface cable through the drive bay and attach
the connector at the end of the interface cable to your new
drive.
Note. If you have two drives, attach the second drive to the sec-
ond connector.

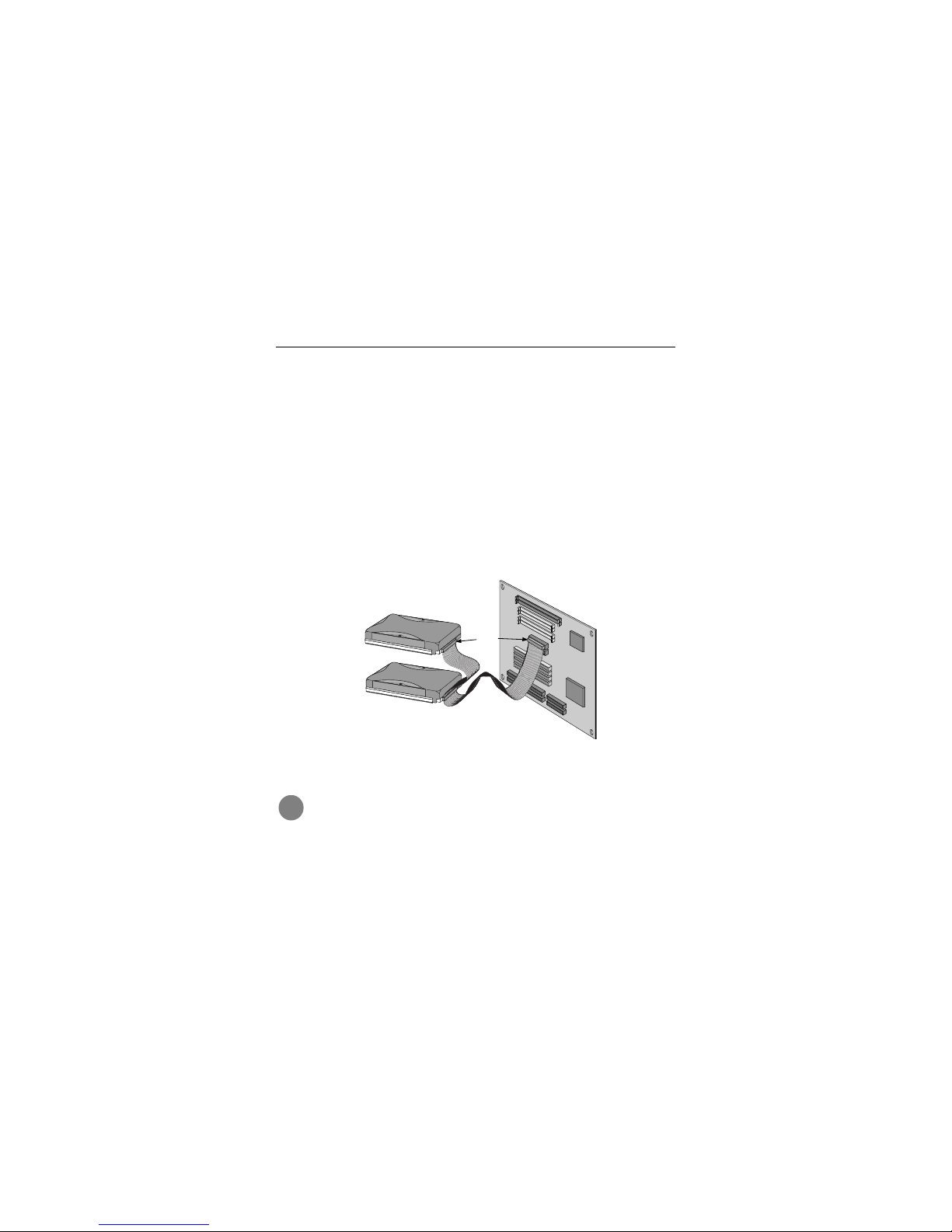

Figure 2. Attaching the cables
Caution. To avoid possible damage to your system,
make sure to align pin 1 on the host adapter or mother-
board with pin 1 on your drive or drives. Pin 1 on the
interface cable is usually indicated by a stripe along the
edge of the cable.
Computer
Motherboard
Pin 1
!
