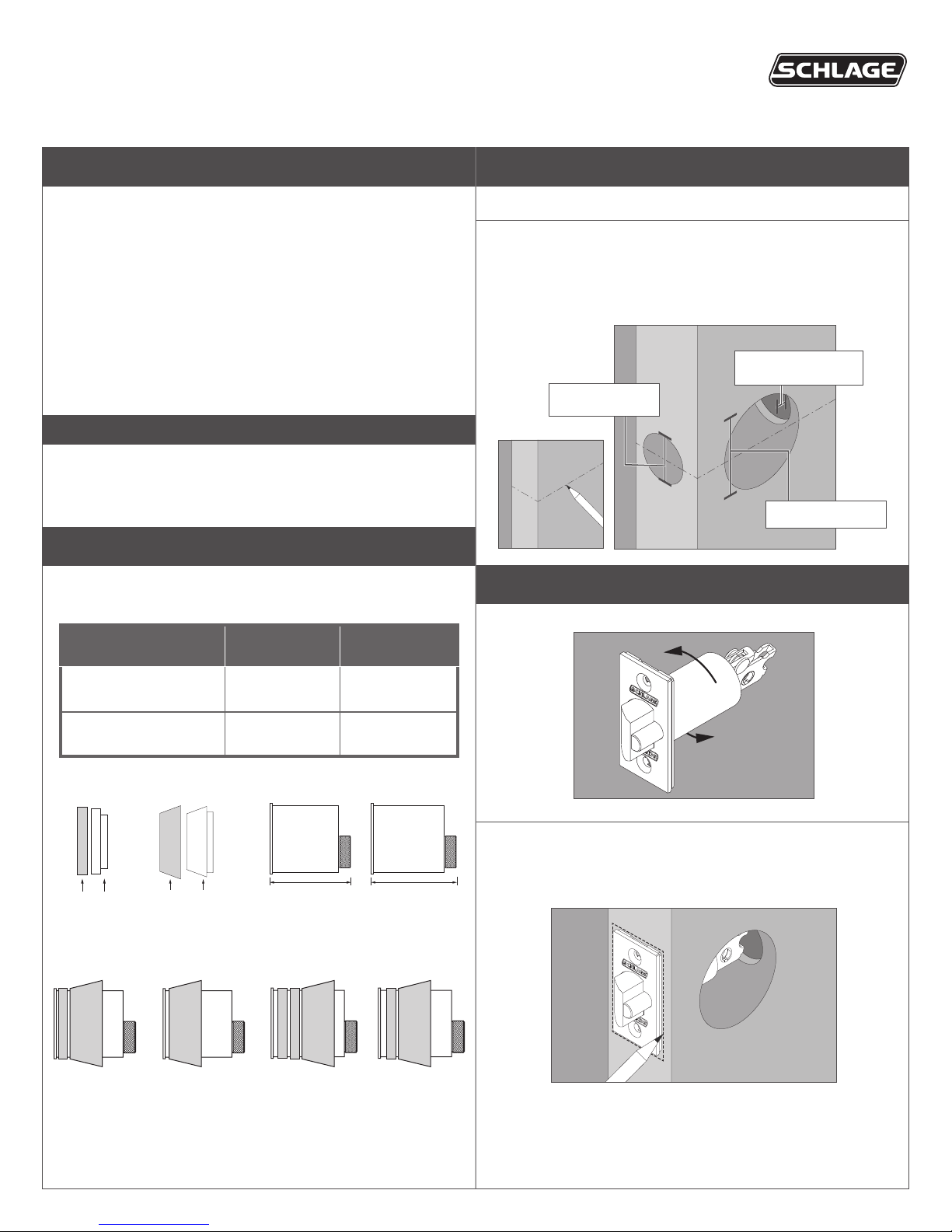

Schlage B250PD User manual

*P513-174*

P513-174

B-Series Single Cylinder

Lock

Parts Included

• (2) Keys

• (1) Cylinder

• (1) M\zn”(11 mm) ring &

hardened steel insert

• (1) Z\,”(3 mm) ring &

hardened steel insert

• (1) Driver bar

• (1) Latch

• (2) Mounting screws,

cylinders

• (1) Strike

• (1) Strike dust box

• (1) Strike reinforcer

• (2) 3” (76 mm) mounting

screws, reinforcer

• (4) Mounting screws, latch

and strike

• (1) Thumbturn

Depending on size ordered, may include (2) Z\,”(3 mm) rings and

hardened steel inserts.

NOTE:

Hollow metal doors must be properly reinforced for latch

support. If door reinforcement is not furnished, contact door

manufacturer, or use Schlage reinforcer #37-001 (specify door

thickness)

1 Select rings and inserts.

Use chart to choose rings and inserts for door thickness

adjustment.

Door Thickness 5 Pin Cylinder 6 Pin Cylinder

1C\,”(35 mm) B and A B and (2) A

1C\v”(44 mm) BB and A

A B 5 Pin 6 Pin

Ring Insert Ring Insert 1C\zn”(30 mm) 1B\zn”(33 mm)

5 Pin 6 Pin

1C\,”(35 mm)

door

1C\v”(44 mm)

door

1C\,”(35 mm)

door

1C\v”(44 mm)

door

2 Prepare the door.

2a Mark centerline on door face and edge.

2b Place template on door and drill a 1Z\x”(38 mm)

hole through the door face (from both sides to avoid

damaging wood).

Drill a 1” (25 mm) hole in door edge. Drill C\,” (10 mm) deeper

as illustrated.

C\,”(10 mm) deeper

1” (25 mm) Hole

1Z\x”(38 mm) Hole

3 Install latch.

3a Rotate to adjust latch so that bolt faces door jamb.

3b Insert latch into hole. Line up and trace around

faceplate.

Use chisel to remove wood until the faceplate ts ush when latch

is fully inserted.

Installation InstructionsModel B250PD

Printed in U.S.A.

P513-174 Rev. 01/14-e

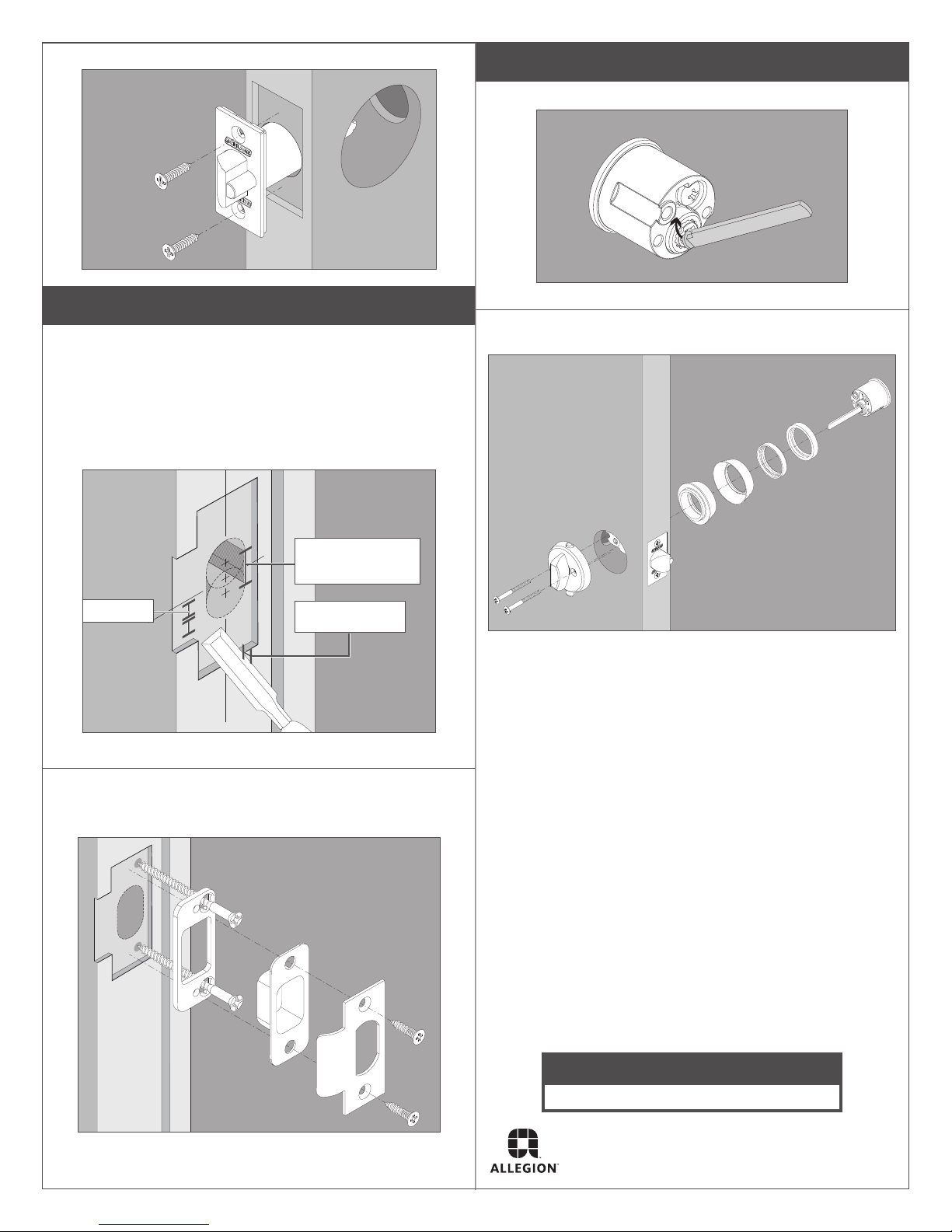

3c Install latch with provided screws.

4 Prepare door jamb.

4a Locate exact centerline of latch and mark centerline on

door jamb.

Mark drill points Z\v”(6 mm) above and below horizontal

centerline. Drill two (2) overlapping M\,”(22 mm) holes, ZZ\zn”

(17 mm) deep.

Clean out holes for strike box. Use strike as pattern for

cutout. Use chisel to remove wood Z\v”(6 mm) deep.

4b Mark and drill C\zn”(4 mm) pilot holes for 3” wood

screws.

Install reinforcer, dust box, and strike with provided screws.

5 Install cylinder.

5a Insert driver bar into cylinder.

5b With key removed, insert cylinder into rings (See Step

1) and guide driver bar into slot in latch.

Screw mounting screws from thumbturn through the inside

cylinder and tighten evenly.

Z\v”(6 mm) deep

M\,”(22 mm) Hole

ZZ\zn”(17 mm) deep

Z\v”(6 mm)

Customer Service

1-877-671-7011 www.allegion.com/us
