Sanyo VCB-3454 User manual

1/3” B/W CCD

HIGH PERFORMANCE

CAMERA

VCB-3454

ISO

9001

• 400TVL of Horizontal Resolution

• Minimum Scene Illumination of 0.05

Lux @ F1.2

• Center Zone Backlight

Compensation

• Video & DC Lens Operation

• 12V DC / 24V AC Dual Power

Operation

Shown with optional lens

(Shown with Optional Lens)

VCB-3454

1/3” B/W CCD

HIGH PERFORMANCE CAMERA

SANYO Security Products

21605 Plummer Street

Chatsworth, CA 91311

Phone: (888) 893-7403

Fax: (888) 818-2597

Technical Support: (888) 66-SANYO

www.sanyocctv.com

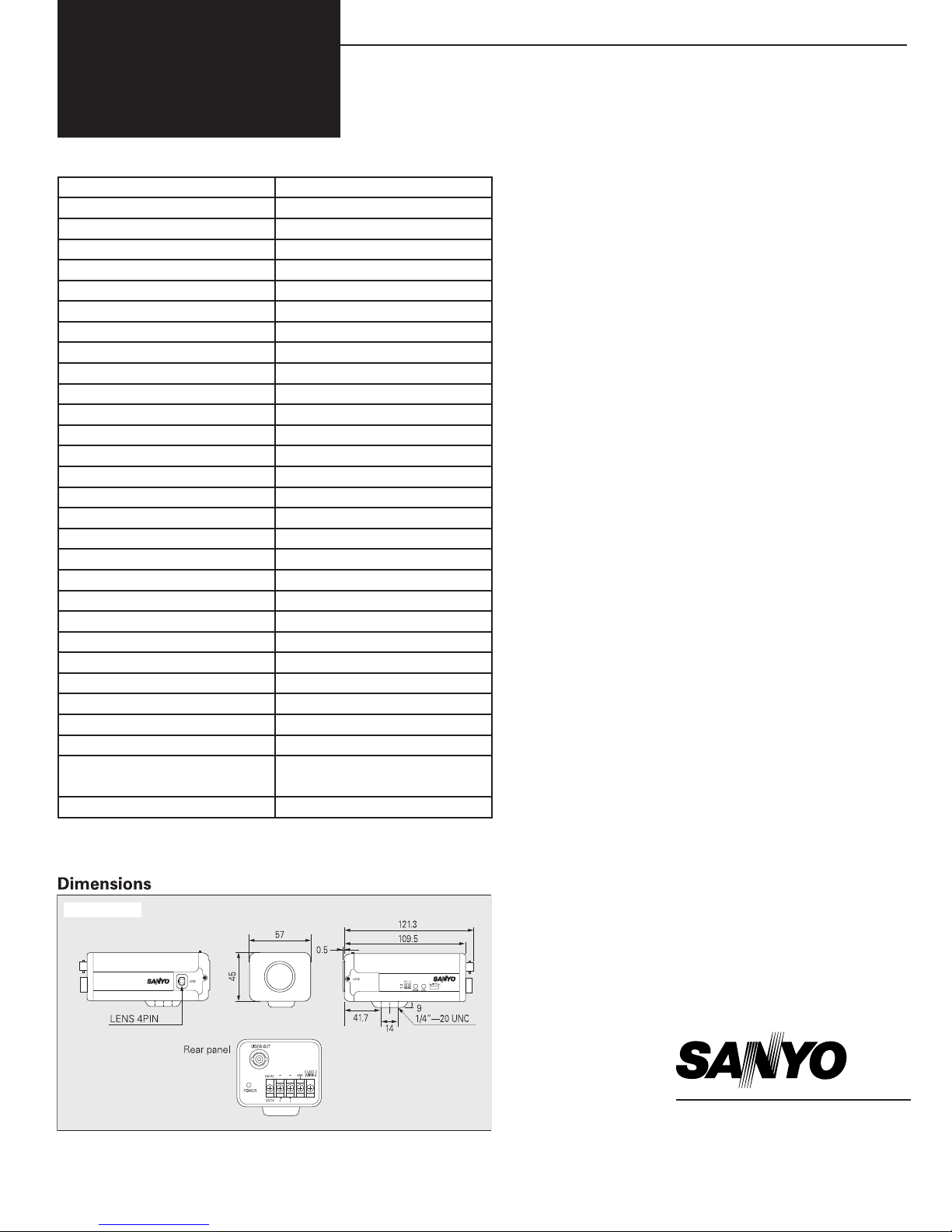

Specifications

Specifications and product design are subject to change without notice.

Image System

Image Sensor 1/3” IT CCD

Picture Elements Effective: 510 (H) x 492 (V)

Horizontal Resolution 400 TVL

Minimum Illumination 0.05 Lux (@ F1.2, 50IRE)

Video Output Level 1.0Vp-p (75-ohm composite)

S/N Ratio More than 50dB

Synchronization INT/L-L (Slide SW)

Electronic Iris Yes

Electronic Shutter –

Gain Control Auto

White Balance –

Control

Electronic Iris ON/OFF (Slide SW)

BLC ON/OFF (Slide SW)

White Balance –

Auto Iris Lens VIDEO/DC (Slide SW)

Color Adjustment –

Lens Iris Level LEVEL: L, H (VR)

V-Phase LINE PHASE (VR)

GAMMA –

Sockets

Video Out BNC x 1

Iris Control 4-pin

Power Inpt Terminal 3-pin Terminal

Lens Mount CS

Power Source 24V AC / 12V DC

Power Consumption (approx.) 3.0W

Dimensions 2.2(W) x 1.77(H) x 4.33(D)in.

[57(W) x 45(H) x 110(D)mm]

Weight (approx.) 8.64oz [245g]

VCB-3454

• 1/3” CCD image sensor with

approx. 270,000 picture elements

• Horizontal resolution of 400 TV

lines, S/N ratio of more than 50 dB

• Backlight compensation

• Minimum required illumination of

0.05 Lux (@ F1.2 lens)

• Electronic iris (indoor use)

• Internal sync / line lock

• CS mount

• Flange back adjustable externally

• 24V AC or 12V DC dual power

operation

Main Features
