Sanus CFR1610 User manual

AV Rack System

CFR1610

INSTRUCTION MANUAL

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the

item to your dealer; contact Customer Service. Never use damaged parts!

CAUTION: Avoid potential personal injuries and property damage!

°Please read through these instructions completely to be sure you’re comfortable with this easy install process.

°Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

°Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

°If you do not understand these instructions or have doubts about the safety of the installation,

assembly or use of this product, contact Customer Service.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

CAUTION: Avoid potential personal injuries and

property damage!

°The wall must be capable of supporting ﬁve

times the weight of the rack and components or

accessories combined.

°DO NOT install into drywall alone.

400 lbs.

(181.4 kg) 150 lbs.

(68.0 kg)

FREE STANDING INSTALLS

(single or stacked)

WALL MOUNTED INSTALLS

includes any components

or accessories includes any components

or accessories

CAUTION: To prevent tipping,

°Do not stack more than two (2) rack assemblies.

°If stacking racks of different weight ratings, the rack

with the highest rating needs to go on the bottom.

°Load the rack from the bottom up.

°Load the heaviest item in the rack first.

°Load 50% of the total weight in the lower 1/3 of the rack.

Rack Weight Limit:

DO NOT EXCEED

Customer Service

Americas: 800-359-5520 • 952-225-6013 • info@sanus.com

Europe, Middle East, and Africa: +31 (0) 495 580 852 • europe.sanus@legrand.com

Asia Pacific: 86 755 8996 9226 • sanus.ap@legrand.com

SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA

Rack Weight Limit:

DO NOT EXCEED

2.21in

56.1mm

16.00in

406.4mm

2.21in

56.1mm

0.54in

13.7mm

17.50in

444.5mm

10U HEIGHT

20.42in

518.6mm

17.82in

452.5mm

OPENING

1U SHELF

1.72in

43.7mm

19.00in

482.7mm

1U SHELF

REAR VIEW

FRONT AND SIDE VIEWS

12.12in

307.8mm

Required Tools

Technical Specifications

AwlStud

Finder

7/32 in.

(5.5 mm)

for wood

Drill Bit

Socket

Wrench

Socket

Wrench

Socket

Wrench

Hammer Drill Bit

3/8 in.

(10 mm)

for concrete

Wall-Mount Wood Stud Installation

Free-Standing Installation

Wall-Mount Concrete Installation

Pencil

Level

Phillips

Screwdriver

Phillips

Screwdriver

Phillips

Screwdriver

Slotted

Screwdriver 11/16 in.

Wrench

Tape

Measure

Tape

Measure Electric

Drill

Electric

Drill

1/2 in.

(13mm)

1/2 in.

(13mm)

1/2 in.

(13mm)

Verify Your Wall Construction - Only for Wall-mount Installs

Wood studs?Solid Concrete/

Concrete Block?

Perfect!

Good to Go

Perfect!

Good to Go

CAUTION:

DO NOT install

into drywall alone

For questions,

contact

Customer Service.

*Illustrations may vary depending upon selected model.

Supplied Parts

WARNING: This product contains small items that could be a choking hazard if swallowed. Keep these

items away from young children!

qty. 1 qty. 1

qty. 2

LEFT FRAME RIGHT FRAME

BACK BRACE

FRONT BRACES

SHELF 1U (12" deep)

qty. 4

qty. 12 qty. 25

qty. 2 qty. 2

qty. 4

qty. 2

U WASHER

LAG SCREW

RACK FOOT

For Free-standing Install

For Wall-mount Install

For Double-stacking Racks

SHELF BACKSTOP

#10-32 X 3/4 SCREW

HOOK AND LOOP

STRAP

CONCRETE ANCHOR

WASHER

613 15

10 11

5/16-18 NUT 1/4-20 X 3/8 SCREW

qty. 4

TOP

BOTTOM

Assemble the Frame

1A 1b

Repeat STEP 1B

1/2 in.

(13mm)

1/2 in.

(13mm)

Repeat STEP 1B

1/2 in.

(13mm)

Stacking Frames (second rack sold separately)

How Do You Want To Mount

for FREE-STANDING Installations:

— go to PAGE 7

for WALL-MOUNT Installations:

Wood Stud Installs — go to PAGE 8

Concrete Installs — go to PAGE 10

1 2

Casters (purchased separately)Rack (Leveling) Feet

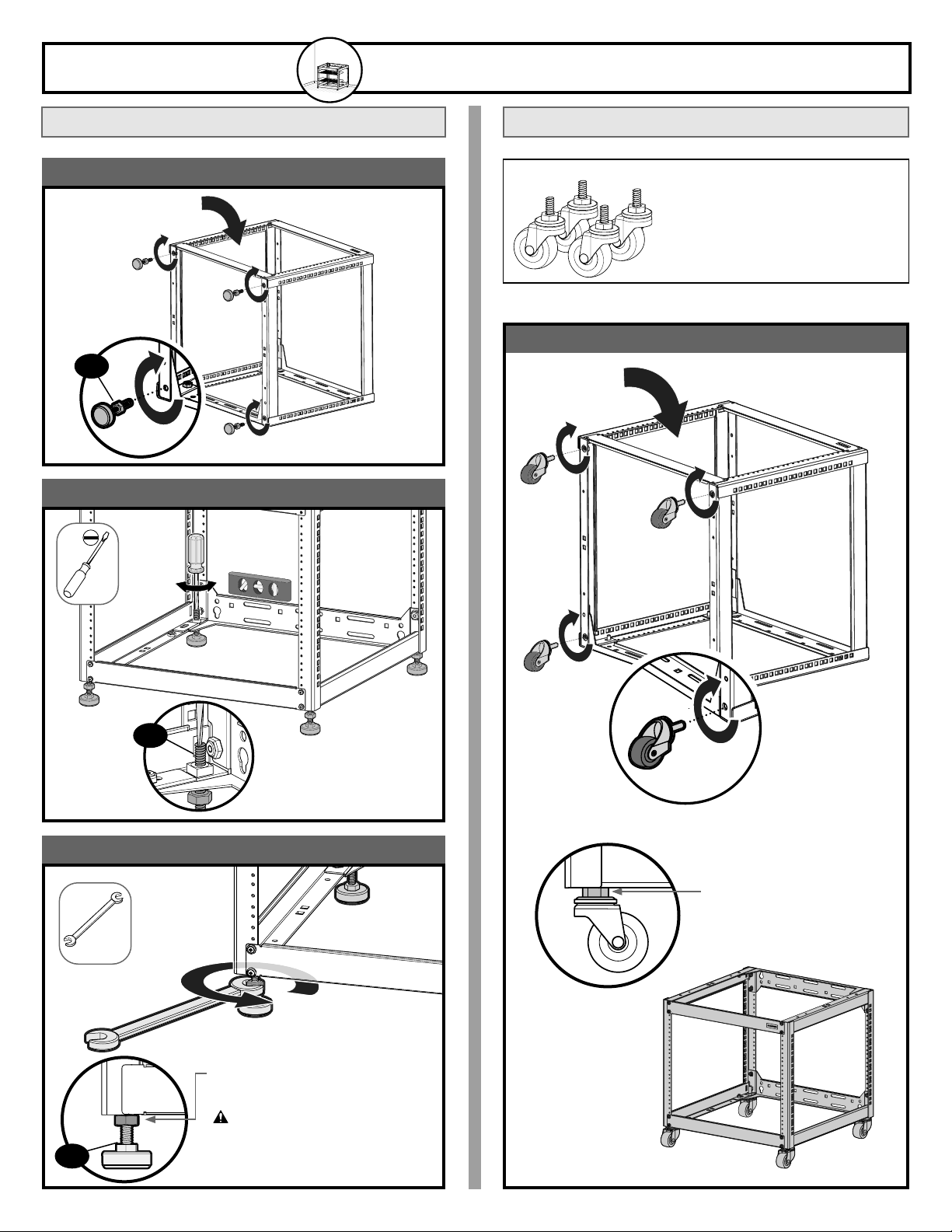

FREE-STANDING Foot or Caster Installation

CA6CK-B1

caster kit is available

at SANUS.com or on

Amazon.

Tighten the nut until they it's flush

with the bottom of the rack.

CAUTION: To avoid

potential injury or property

damage, always ensure that

your rack is level.

11/16 in.

Tighten the caster until

the nut is flush with the

bottom of the rack.

WALL-MOUNT Wood Stud Install

Use a stud

ﬁnder ...

... and/or verify

the edges with

an awl or a

small drill bit.

Find a Stud

CAUTION: Avoid potential personal injuries and property damage!

• Drywall covering the wall must not exceed 5/8 in. (16 mm).

• Minimum wood stud size: Nominal 2 x 4 in. (51 x 102 mm). Actual 1 ½ x 3 ½ in. (38 x 89 mm).

Mark TOP Two holes

Drill TOP Two Holes Partially Install Lag Screws

3 4

≈ 1/2 in.

(13 mm)

3 ½ in. (9 cm)

7/32 in.

(5.5 mm)

1/2 in.

(13mm)

Hang Tighten TOP Two Lags

Drill Lower Holes Secure Lags

5 6

7 8

3 ½ in. (9 cm)

7/32 in.

(5.5 mm)

Single Frame = 2X

Stacked Frame = 6X

12 10

1/2 in.

(13mm)

1/2 in.

(13mm)

WALL-MOUNT Solid Concrete and Concrete Block Install

Drill TOP Two HolesMark TOP Two holes

Insert Anchors Partially Install Lag Screws

≈ 1/2 in.

(13 mm)

2X 2X

FLUSH

3/8 in.

(10 mm)

3 ¾ in. (10 cm)

1/2 in.

(13mm)
