Samsung WA40J3000 User manual

Fast Track Troubleshooting

Model: WA40J3000

Publication #DR WA40J3000

Production date: 5-13-15

IMPORTANT SAFETY NOTICE –“For Technicians Only” This service data sheet is

intended for use by persons having electrical, electronic, and mechanical experience and knowledge

at a level generally considered acceptable in the appliance repair trade. Any attempt to repair a

major appliance may result in personal injury and property damage. The manufacturer or seller

cannot be responsible, nor assume any liability for injury or damage of any kind arising from the use

of this data sheet.

Bulletins:

Support Information:

HELP: 1-888-751-4086 (Tech Sup. –ASC/SSD) - 1-866-894-0637 (Tech Sup. - FE/ME)

GSPN: http://gspn3.samsungcsportal.com/main.jsp

PLUS ONE: http://my.plus1solutions.net/clientPortals/samsung

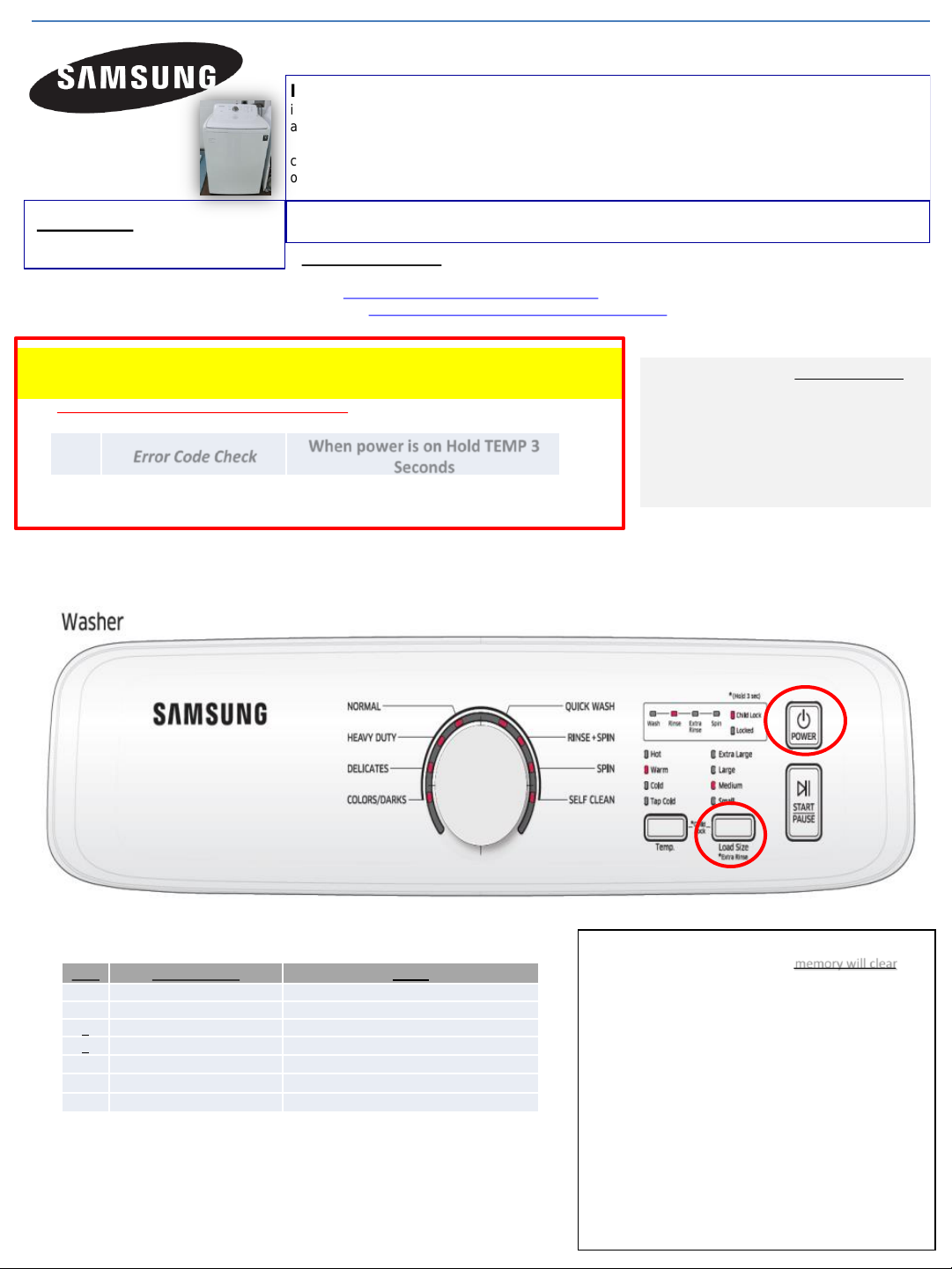

TEST MODE: WITH POWER OFF - PRESS: Load Size + POWER

* Entering Test mode will delete any stored errors

1. All LED’s light up and it sends out Beep Sound when it

enters into the Test Mode, and the memory will clear

EEPROM. ( including any errors that were saved)

2. Press the Start key to bypass LED light up, it would

displays software version after on normal mode.

3. Press the Temp key, test the Water Valve.

4. Press the Temp and Start key, test the Door Lock.

5. Press the Load Size and Start key, test the Pump.

6. Turn the Jog-Dial to

1) Normal course :Display the MCU SW version.

2) Heavy Duty Course : Display the Model Option.

3) Delicates course : Test the Motor On/Off.

4) Colors/Darks course : Test the Spin.

TEST

FUNCTION test PRESS

1 Water Valve Test TEMP

2 Door Lock / Unlock TEMP + Start

3 Pump Test Load Size + Start

4 Motor On / Off Set to Delicates

5 Spin Test Set to Colors/Darks

6 SW Version Set to Normal

7 Model Option Set to Heavy Duty

Activating or disable the Child Lock function

Press and hold the Temp. and Load Size

buttons simultaneously for approximately 3

seconds.

• When you activate the Child Lock function,

the “Child Lock” lamp blinks

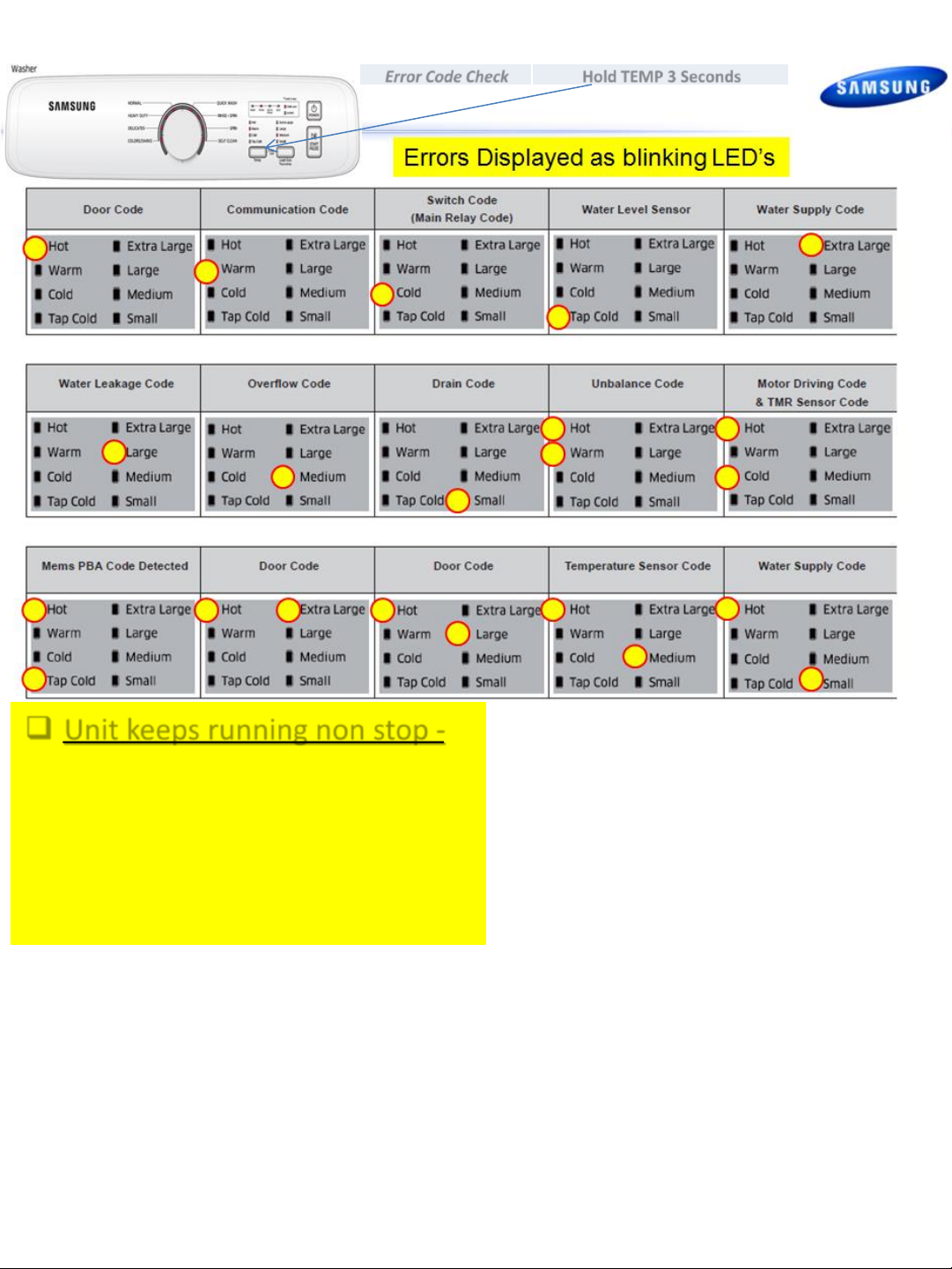

Error Code Check When power is on Hold TEMP 3

Seconds

Check Errors First before entering test mode

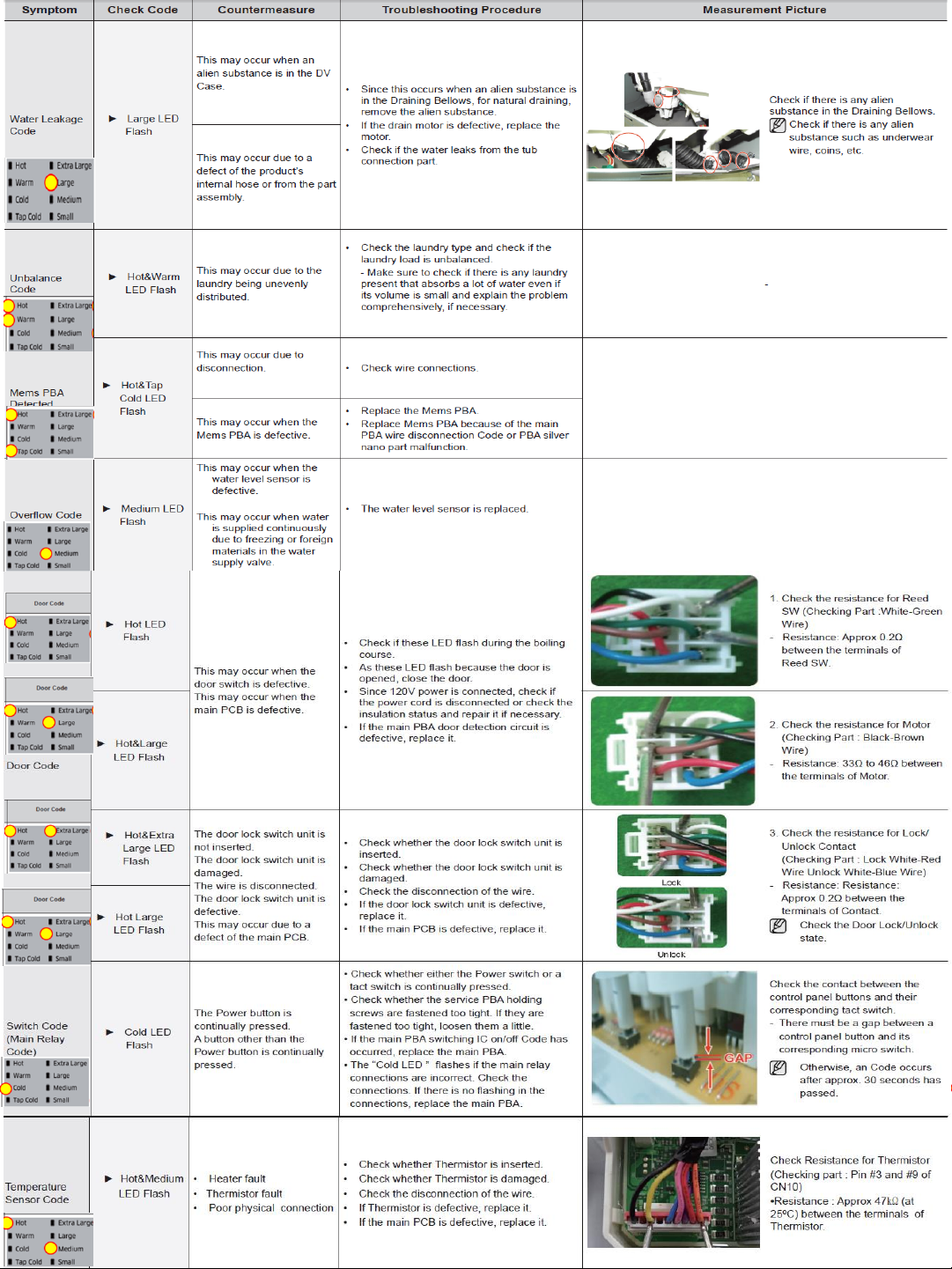

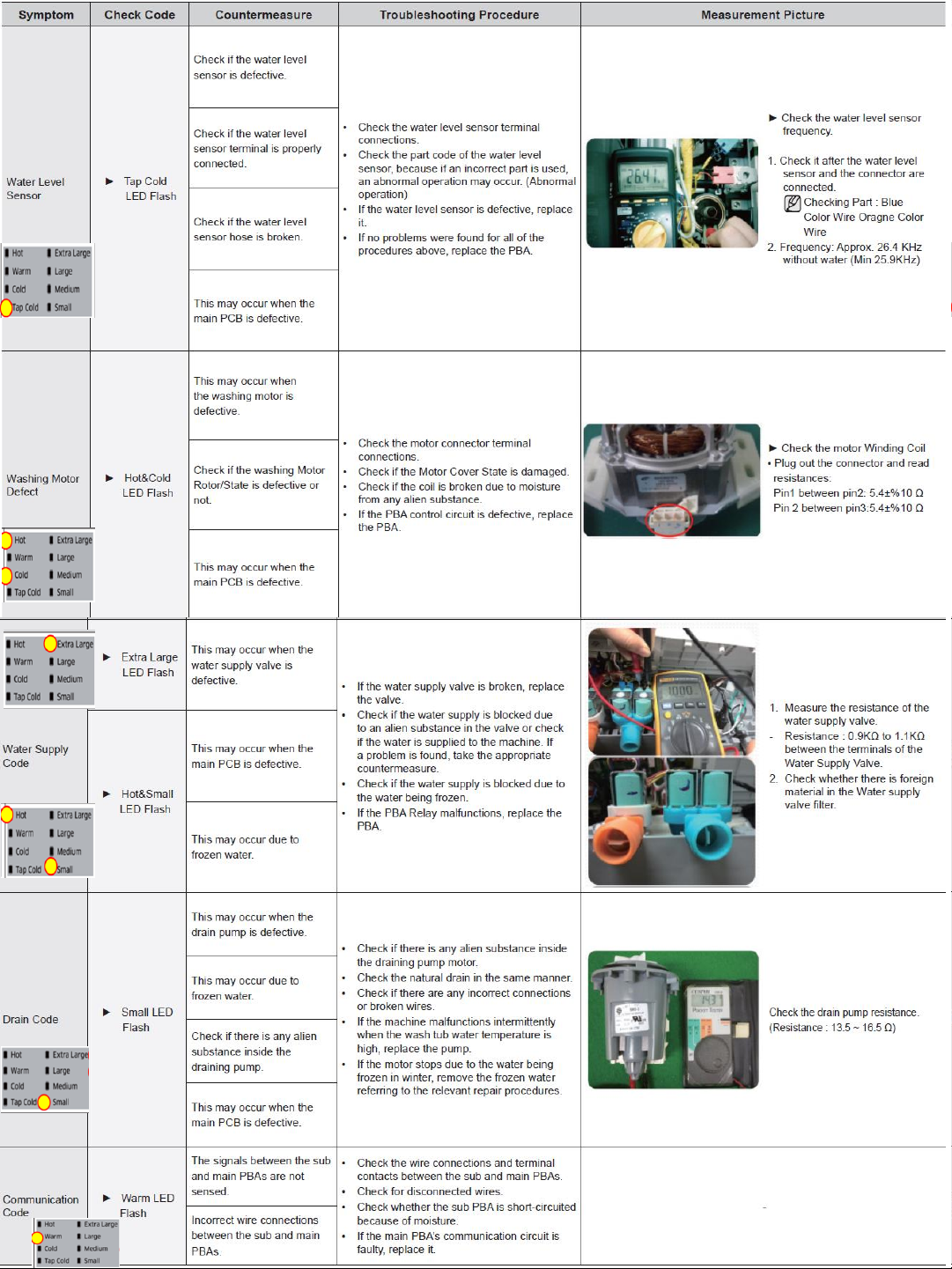

Error Codes

Unit keeps running non stop -

If you have this issue with this

unit replace the Main PCB,

software in the board has

changed it will correct this

symptom.

Error Code Check Hold TEMP 3 Seconds

ATC (Auto Temperature Control)

ATC is the control function that the washer controls water temperature with temperature sensor (thermistor).

Because there are numerous water temperatures depending on the customer’s environments (cold

areas, warm areas, various water temperatures, settings of heater temperature, etc.), ATC function in

our washer maintains the certain level of wash temperature to output the best washing performance at

each cycle.

If you select normal cycle, this cycle is the regulation and UL cycle. Since new washers must reduce

the amount of energy usage as a first priority, customers will notice more cold water entering the

washer. But, this is normal, not a problem.

In this regulation cycle, Hot temperature is similar to acceptable adult bath-water temperature and

warm temperature is similar to comfortable swimming-pool water temperature.

If customers want to wash clothes in specific water temperatures, customers should choose a different

cycle at each temperature (Hot/Warm).

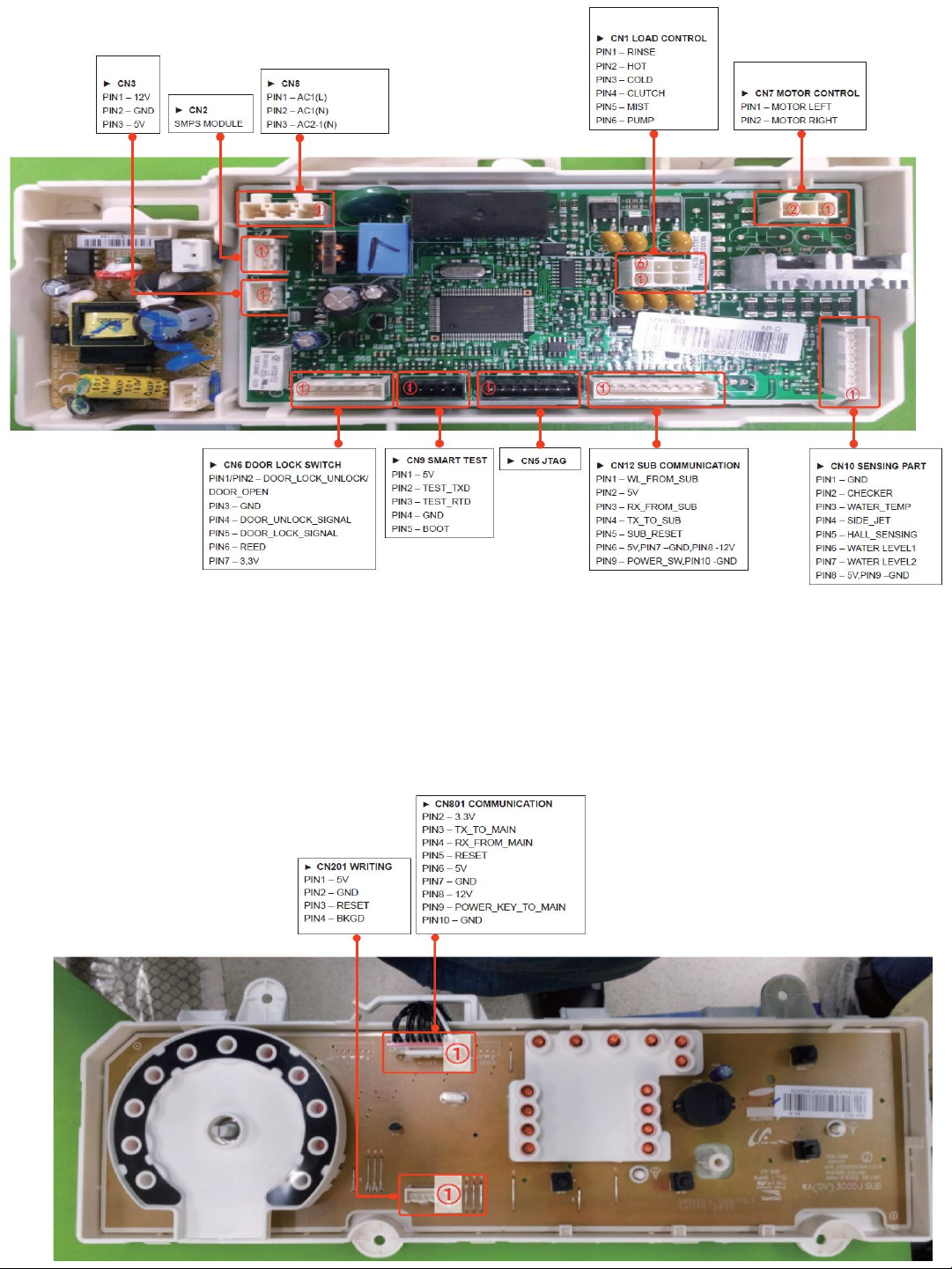

CN9

CN12

CN6 CN1 CN8CN7CN10

CN2

CN3

CN801

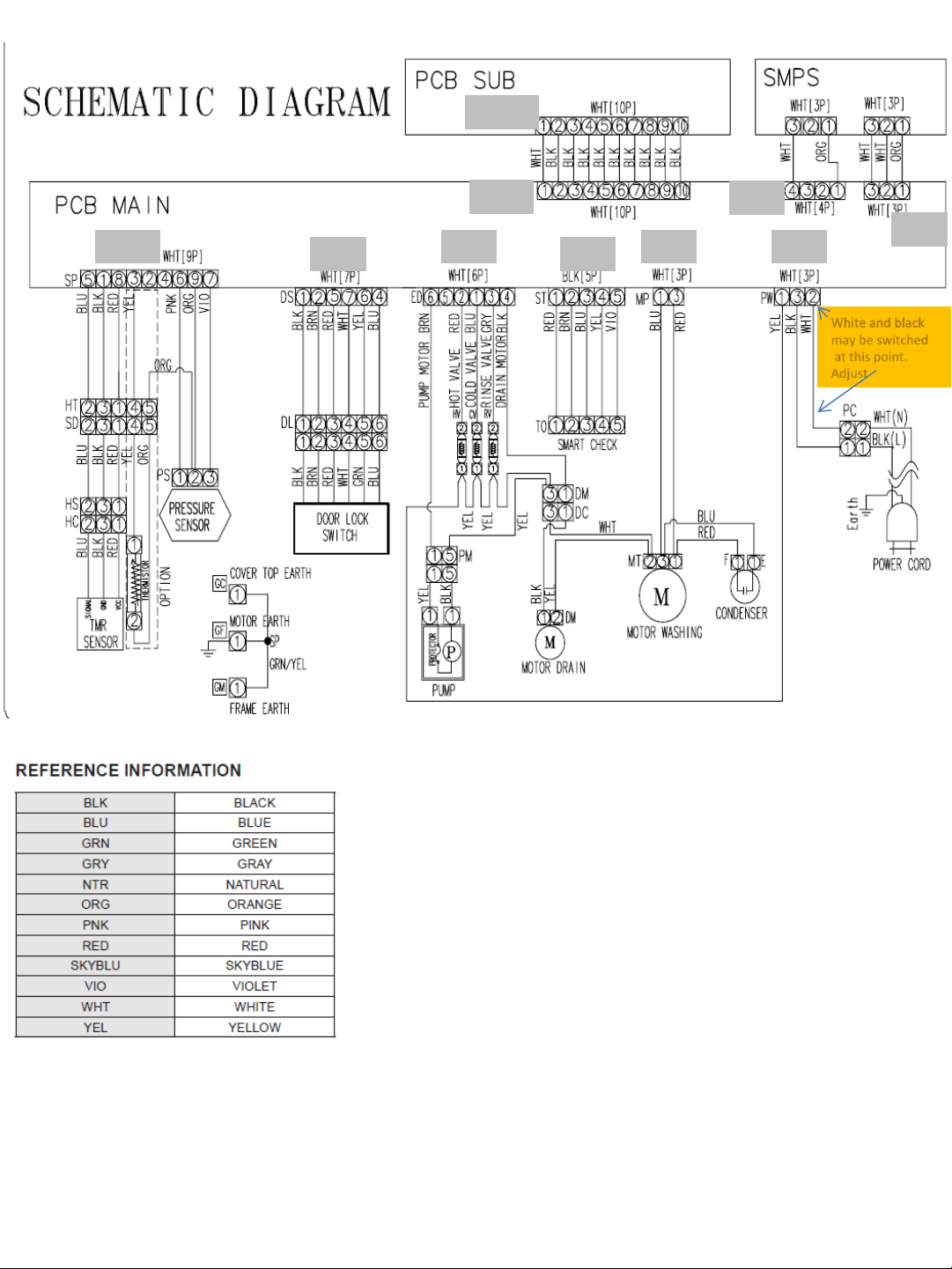

White and black

may be switched

at this point.

Adjust
