Samsung HW-LST70T Installation instructions

HW-LST70T

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

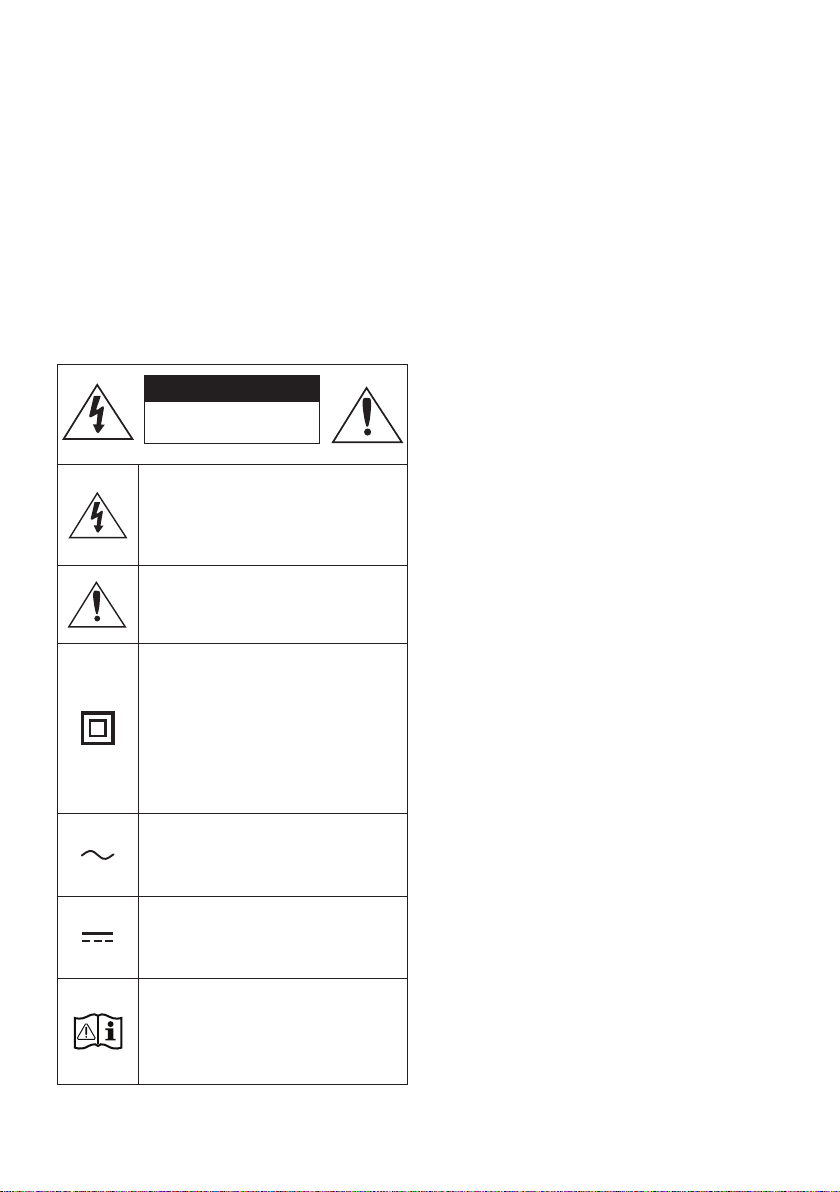

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to other heat sources.

This could lead to overheating and cause the

unit to malfunction.

4. Protect the product from excess heat (e.g. a

replace) or equipment creating strong

magnetic or electric elds. Unplug the power

cable from the AC wall socket if the unit

malfunctions. Your product is not intended

for industrial use. It is for personal use only.

Condensation may occur if your product has

been stored in cold temperatures. If

transporting the unit during the winter, wait

approximately 2 hours until the unit has

reached room temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat or re.

Do not short circuit, disassemble, or overheat

the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

ENG - 4

DURABILITY

•The Soundbar provides the robust durability by IP55 so that it can be used in outdoor environment

(when installed and used as per the instructions in this User Manual).

•The remote control of this product provides durability by IP56.

Protection against solids

Protection against water

5 5

No protection 0 0 No protection

Solids > 50 mm 1 1 Vertically falling water

Solids > 12 mm 2 2 Vertically water - enclosure tilted 15°

Solids > 2.5 mm 3 3 Sprayed water 60° from vertical

Solids > 1.0 mm 4 4 Splashed water from all directions

Dust Protected 5 5 Hosing jets from all directions

Dust tight 6 6 Strong hosing jets from all directions

- 7 Temporary Immersion: 1 m for 30 minutes

- 8 Immersion: manufacturer dened depth and time

Despite the IP55 and IP56 ratings, your Soundbar and remote control are not impervious to water damage

in any situation. To help prevent damage to your products, avoid the products being subjected to:

•Water projected by a source greater than 6.3 mm against enclosure from any direction or

submersion in water.

•Water projected at greater than 30 kPs (4.4 psi) with a water volume greater than 12.5 litres/minute

for more than 3 minutes and extreme weather conditions.

ENG - 5

CONTENTS

01 Checking the Components 7

Inserting Batteries before using the Remote Control

(AAA batteries X 2) ------------------------- 8

02 Product Overview 9

Front Panel / Bottom Panel of the Soundbar ------------------------- 9

Rear Panel of the Soundbar ------------------------- 10

03 Using the Remote Control 11

How to Use the Remote Control ------------------------- 11

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 14

Output specications for the different sound effect modes ------------------------- 14

Adjusting the Soundbar volume with a TV remote control ------------------------- 15

04 Connecting the Soundbar 16

Connecting Electrical Power ------------------------- 16

How to mount the AC/DC adapter ------------------------- 16

05 Installing the Wall Mount 17

Installation Precautions ------------------------- 17

Method 1. TV mount ------------------------- 17

Method 2. Wall mount ------------------------- 20

06 Using a wired connection to the TV 22

Connecting using an Optical Cable ------------------------- 22

07 Using a wireless connection to the TV 24

Method 1. Connecting via Bluetooth ------------------------- 24

Method 2. Connecting via Wi-Fi ------------------------- 26

ENG - 6

08 Connecting an External Device 27

Connecting using an Optical Cable ------------------------- 27

09 Connecting a Mobile Device 28

Method 1. Connecting via Bluetooth ------------------------- 28

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 31

Using the Tap Sound ------------------------- 32

10 Connecting an Amazon product 33

Connect and use with an Amazon product (Amazon Echo) ------------------------- 33

Use voice commands to control the Soundbar ------------------------- 33

11 Software Update 34

Auto Update ------------------------- 34

USB Update ------------------------- 34

Initialisation ------------------------- 34

12 Troubleshooting 35

13 Licence 36

14 Open Source Licence Notice 37

15 Important Notes About Service 37

16 SpecicationsandGuide 38

Specications ------------------------- 38

ENG - 7

01 CHECKING THE COMPONENTS

Soundbar Main Unit Soundbar Remote Control

Batteries

Optical Cable

x 2

AC/DC Adapter Wall Mount Guide Holder-Screw

x 2

x 2 x 2 x 2

Bracket-Top Bracket-Bottom Bracket-Guide Bracket-Wall Mount

x 4

(M3 x L10)

x 2

(M4 x L10)

x 2

(M6 x L10) x 2 x 2

(M5 x L50)

x 2

Screw-Taptype Screw-Machine Bolt-Etc A/S Bolt-Etc Anchor / Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•For Soundbar wall mounting components, see pages 17~21.

•This Soundbar is intended only for TV mount or wall mount.

•Design, specications, and App screen are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

ENG - 8

Inserting Batteries before using the Remote Control

(AAA batteries X 2)

232

1. Press the ^ button at the top rear of the Soundbar remote control. The body will pop out slightly

from the body cover.

2. Turn the remote over, push the body of the remote upwards until the battery compartment is

revealed, and then remove the battery cover.

3. If there are batteries in the remote, to remove the existing batteries.

4. Insert two new batteries (1.5V AAA type) into the battery compartment making sure that the

batteries’ polarities (+, -) are oriented correctly.

5. Once the batteries have been inserted, attach the battery cover and then slide down the body of

the remote.

6. Turn the remote over, press and hold the ^ button on the top rear, and then slide the body of the

remote down into place.

•Alkaline batteries are recommended for longer battery life.

ENG - 9

02 PRODUCT OVERVIEW

Front Panel / Bottom Panel of the Soundbar

Bottom Panel

Position the product so that the SAMSUNG logo is located on the top.

󱂔

󱂓

󱂕 󱂖

󱂓Display

Displays the product’s status and current mode.

󱂔(Power) Button

Turns the power on and off.

󱂕(Volume) Button

Adjusts the volume.

󱂖

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

Wi-Fi mode WIFI

BLUETOOTH mode BT

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

ENG - 10

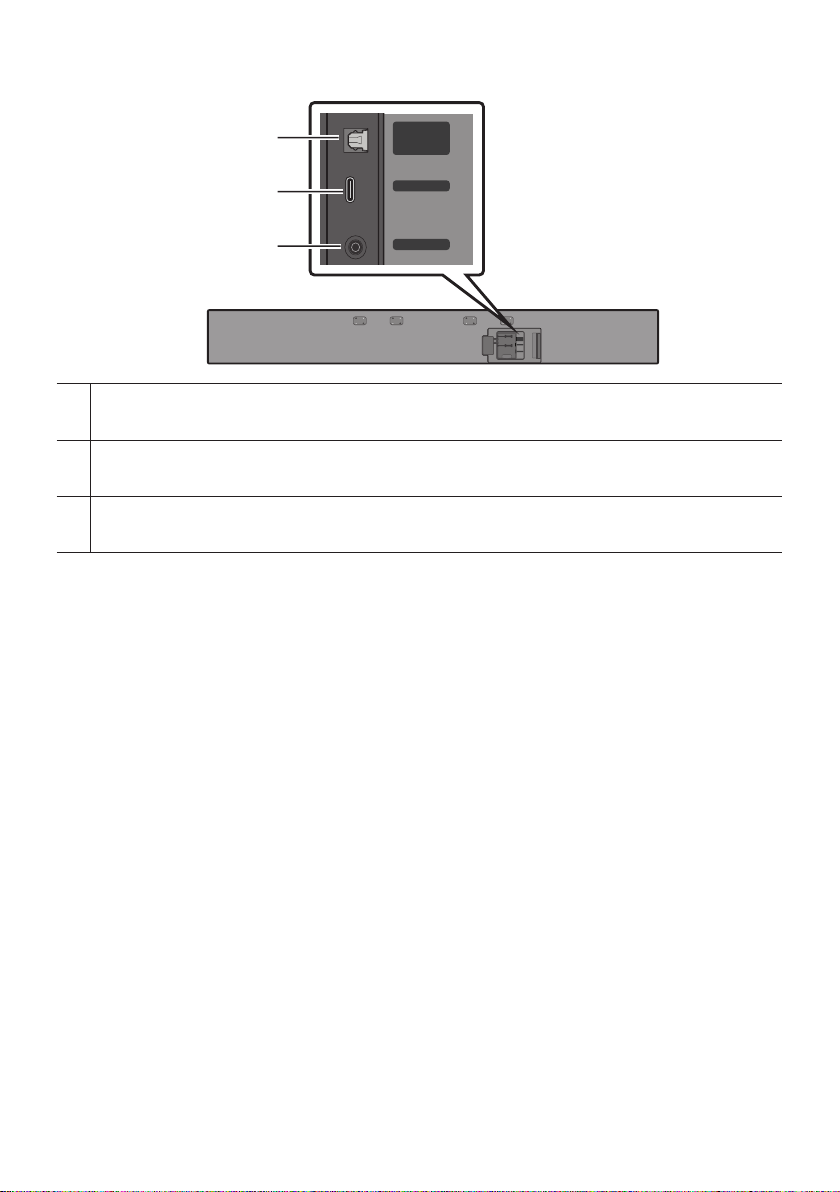

Rear Panel of the Soundbar

SERVICE

DC23V

DIGITAL

AUDIOIN

(OPTICAL)

SERVICE

DC 23V

DIGITAL

AUDIO IN

(OPTICAL)

󱂓

󱂔

󱂕

󱂓DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 27)

󱂔SERVICE

Connect a USB storage device to upgrade the product's software.

󱂕DC 23V (Power Supply In)

Connect the AC/DC power adapter. (See page 16)

•When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

Other manuals for HW-LST70T

Table of contents

Languages:

Other Samsung Speakers manuals

Samsung

Samsung HW-Q800T Installation instructions

Samsung

Samsung B550 Installation instructions

Samsung

Samsung HW-B450/XY Installation instructions

Samsung

Samsung HW-J560 User manual

Samsung

Samsung Shape WAM-750 User manual

Samsung

Samsung Wireless Audio Radiant 360 R5 User manual

Samsung

Samsung HW-M550/ZA Installation instructions

Samsung

Samsung HW-R470 User manual

Samsung

Samsung HW-K560 User manual

Samsung

Samsung HW-J6010R User manual

Samsung

Samsung MX-ST40B User manual

Samsung

Samsung BSP1000 User manual

Samsung

Samsung HW-J6000 User manual

Samsung

Samsung HW-J6000 User manual

Samsung

Samsung HW-K360 User manual

Samsung

Samsung HW-A430 Installation instructions

Samsung

Samsung HW-J6500 User manual

Samsung

Samsung HW-J470 User manual

Samsung

Samsung HW-MS6500 Installation instructions

Samsung

Samsung HW-K860 User manual

Samsung

Samsung HW-Q60T Installation instructions

Samsung

Samsung HW-J7500R User manual

Samsung

Samsung HW-M435 Installation instructions

Samsung

Samsung HW-H430 User manual

Popular Speakers manuals by other brands

argon audio

argon audio IE20 quick start

Denon

Denon SC-N7 owner's manual

Gemline

Gemline Ace 3952 user manual

Focal

Focal ON WALL 300 User manua

HEADRUSH

HEADRUSH Maximus HRSP 5024 manual

SoundLogic

SoundLogic BCCS-6/6395 instruction manual

Peavey

Peavey DTH 218 Specification sheet

Avantree

Avantree Pluto Air user guide

Morel

Morel Integra Series INTEGRA OVATION 4 install guide

Oppo

Oppo SONICA quick start guide

Bose

Bose SoundLink Wireless Music System owner's guide

Rocksteady

Rocksteady Stadium owner's manual

Bowers & Wilkins

Bowers & Wilkins 4 owner's manual

Sonance

Sonance SONOS OUTDOOR Series installation manual

Electro-Voice

Electro-Voice EVID FM4.2 Brochure & specs

Pioneer

Pioneer XW-HTD630 manual

Onn

Onn BWA16AA002 Product guide

HP GL313AA - USB Speakers PC Multimedia quick start guide
