Samsung HW-K360 User manual

Wireless Audio - Soundbar

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

User manual

HW-K360

Wireless Subwoofer

(PS-WK360)

GETTING STARTED

FEATURES

GETTING STARTED

Samsung Remote App

Hold the control of your Soundbar in the palm of your

hand with an Android smart device and the Samsung

Audio Remote app. This convenient app lets you control

all the Soundbar's basic functions such as power,

volume, and the media controls, and lets you control

customizable functions such as the equalizer.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and

spaciousness to your listening experience.

TV SoundConnect

Listen to TV audio through the Soundbar by connecting

your TV and the Soundbar via Bluetooth with

TV SoundConnect. Easy connectivity and the absence of

trailing wires between the Soundbar and TV allows you

to showcase the slim and sleek design of both systems,

while maintaining a clean look in your living environment.

Easily control the Soundbar and TV from a single TV

remote.

USB Host Support

You can connect and play music files from external USB

storage devices such as MP3 players, USB flash

memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar

and enjoy music with high quality stereo sound, all

without wires!

LICENSES

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing Limited.

DTS, the Symbol, & DTS and the Symbol together are

registered trademarks, and DTS 2.0 Channel is a

ENG

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

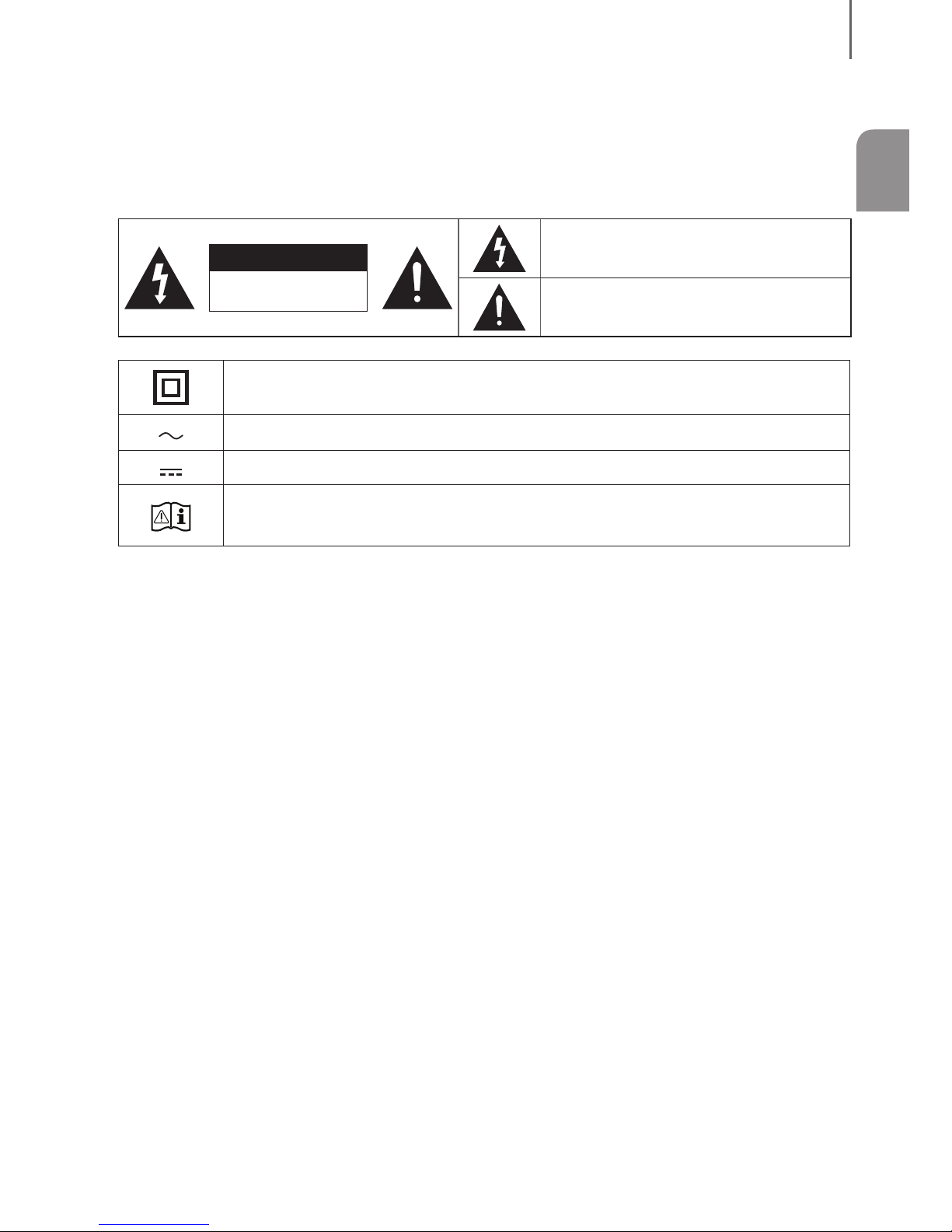

This symbol indicates “dangerous voltage”

inside the product that presents a risk of electric

shock or personal injury.

This symbol indicates important instructions

accompanying the product.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult Instructions for use : This symbol instructs the user to consult the user manual for

further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

GETTING STARTED

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied

withthis product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can

cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away

from children. If the battery compartment does not close securely, stop using the product and keep it

away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek

immediate medical attention.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker

located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or

other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect

the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

99.1mm 99.1mm

68.6

99.1mm

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. It is for

personal use only. Condensation may occur if your

product has been stored in cold temperatures. If

transporting the unit during the winter, wait approximately

2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment. Do not dispose of

batteries in the general household trash. Do not dispose

of batteries in a fire. Do not short circuit, disassemble, or

overheat the batteries. There is a danger of explosion if

the battery is incorrectly replaced. Replace only with the

same or equivalent type.

ENG

GETTING STARTED

CONTENTS

2 GETTING STARTED

2 Features

3 Safety Information

6 What’s Included

7 DESCRIPTIONS

7 Front / RIGHT SIDE Panel

8 Bottom Panel

9 Remote Control

12 INSTALLATION

12 Installing the Soundbar

12 Installing the Wall Mount

17 CONNECTIONS

17 Connecting the Subwoofer

18 Connecting the Subwoofer and the

SWA-8000S (Sold Separately)

20 Connecting to a TV

20 Connecting to a TV Using a Digital Optical

Cable

21 TV SoundConnect

23 Connecting to External Devices

23 Optical or Analog Audio Cable

24 USB

26 FUNCTIONS

26 Input Mode

27 Bluetooth

30 Software Update

31 TROUBLESHOOTING

31 Troubleshooting

32 APPENDIX

32 Specifications

● Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

● An administration fee may be charged if either

(a) An engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) You bring the unit to a repair centre and there

is no defect with the product (i.e. where the

user manual has not been read).

● You will be informed of the administration fee

amount before a technician visits.

GETTING STARTED

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

Check for the supplied accessories shown below.

Remote Control /

Lithium Battery

(3V : CR2032)

Power Cord : 2 EA AC/DC Adapter: 2 EA Optical Cable

Wall Mount Guide Holder-Screw: 2 EA Screw: 2 EA

Bracket-Wall Mount L Bracket-Wall Mount R

●The appearance of the accessories may differ slightly from the illustrations above.

●The Micro USB cable is sold separately. To purchase, contact a Samsung Service Center or Samsung

Customer Care.

ENG

DESCRIPTIONS

FRONT / RIGHT SIDE PANEL

1 /

(Volume) Button

Controls the volume level.

The numeric value of the volume level appears in the front

panel display.

(Source) Button

Selects the D.IN, AUX, BT, TV, or USB input.

●While the unit is powered on, pressing the

(Source) button for more than 3 seconds sets the

button to act as the (Mute) button. To cancel the

(Mute) button setup, press the (Source)

button for more than 3 seconds again.

3 (Power) Button

Turns the power on and off.

Right Side

Display

Displays the current mode.

●When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup

menu of your TV. Refer to the owner's manual supplied with your TV.

DESCRIPTIONS

BOTTOM PANEL

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 19V

(Power Supply In)

Connect the AC/DC power

adaptor to the power supply

jack, and then connect the

AC/DC power adaptor plug to

a wall outlet.

AUX IN

Connect to the Analog output

of an external device.

LABEL

(Micro USB Port)

Connect a Micro USB to Standard USB

adapter (not supplied) to the Micro USB

port, and then connect a USB device to

the adapter to play music from the USB

device. Refer to the USB Cable

specification on page 24.

DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an

external device.

●When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

●Make sure to rest the AC/DC Adapters flat on a table or the floor. If you place an AC/DC Adapter so that it

is hanging with the AC cord input facing upwards, water or other foreign substances could enter the

Adapter and cause the Adapter to malfunction.

ENG

DESCRIPTIONS

REMOTE CONTROL

Repeat

Press to set the Repeat function during music playback from a USB device.

OFF - REPEAT : Cancels Repeat Playback.

TRACK - REPEAT : Plays a track repeatedly.

ALL - REPEAT : Plays all tracks repeatedly.

RANDOM - REPEAT : Plays tracks in random order.

(A track that has already been played may be played again.)

Mute

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one file on the device you are playing, and you press

the ]button, the next file is selected.

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER On function on and off. See pages 22 and 28 for details.

SOUND

Surr.Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surr.Sound settings :

ON - SURROUND SOUND,OFF - SURROUND SOUND

SOUND EFFECT

You can select from 6 different sound modes - STANDARD (Original Sound),

MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT MODE - depending

on the content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

Press and hold the



button for about 5 seconds to turn the Auto Power Link

function on or off.

OFF - POWER LINK, ON - POWER LINK

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack

so it turns on automatically when you turn on your TV. (See page 20)

• This function is only available in the D.IN mode.

●Soundbar is a Samsung proprietary name.

●Operate the TV using the TV's remote control.

DESCRIPTIONS

Volume

Adjusts the volume level of the unit.

Power

Turns the Soundbar on and off.

SOUND CONTROL

Press to select TREBLE, BASS, SUBWOOFER LEVEL, AUDIO SYNC,

REAR

SPEAKER, or REAR LEVEL

Then, use the





buttons to adjust the Treble or Bass volume from -6 ~ +6,

SUBWOOFER LEVEL volume from -12, -6 ~ +6.

Press and hold the SOUND CONTROL button for about 5 seconds to adjust

the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz,

5KHz and 10KHz are selectable and each can be adjusted to a setting between

-6 and +6.

• To adjust the woofer level using the Samsung Audio Remote mobile app,

press the

[

, ] buttons to decrease or increase the woofer level within 3

seconds of pressing the WOOFER button.

If the Soundbar is connected to a digital TV and the video appears out of sync

with the audio, press the SOUND CONTROL button to select AUDIO SYNC to

sync the audio with the video. Use the





buttons to set the audio delay

between 0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio

Sync function is not available.

To control the volume of the rear speaker sound, select REAR SPEAKER in

Sound Control, and then use the , buttons to toggle the rear volume

between OFF-RS and ON-RS.

To control the volume of the rear level sound, select REAR LEVEL in

Sound

Control

, and then adjust the volume between RS -6~+6 using the , 

buttons.

• The REAR SPEAKER and the REAR LEVEL mode are only available when

you connect the SWA-8000S (sold separately).

Play / Pause

Press the

button to pause a file temporarily.

Press the

button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press

the

[

button, the previous file is selected.

Other manuals for HW-K360

This manual suits for next models

Table of contents

Languages:

Other Samsung Speakers manuals

Samsung

Samsung WAM7500 User manual

Samsung

Samsung HWQ850ZC Installation instructions

Samsung

Samsung HW-M360 Installation instructions

Samsung

Samsung HW-Q60T Installation instructions

Samsung

Samsung HW-H355 User manual

Samsung

Samsung harman/kardon HW-Q6CR Installation instructions

Samsung

Samsung HW-M360 User manual

Samsung

Samsung HW-R430 Installation instructions

Samsung

Samsung HW-T400/XL Installation instructions

Samsung

Samsung SWA-9000S/ZC User manual

Samsung

Samsung MX-ST40B Installation instructions

Samsung

Samsung HW-H7500 User manual

Samsung

Samsung HW-K360 User manual

Samsung

Samsung HW-K650 User manual

Samsung

Samsung BSP1000 User manual

Samsung

Samsung HW-MS6500 User manual

Samsung

Samsung HW-J6500R User manual

Samsung

Samsung HW-J250 User manual

Samsung

Samsung HW-J8500 User manual

Samsung

Samsung HW-M450 User manual

Samsung

Samsung EO-SG900 User manual

Samsung

Samsung HW-NW700 User manual

Samsung

Samsung HW-T550 Installation instructions

Samsung

Samsung HW-T420/XL Installation instructions

Popular Speakers manuals by other brands

argon audio

argon audio IE20 quick start

Denon

Denon SC-N7 owner's manual

Gemline

Gemline Ace 3952 user manual

Focal

Focal ON WALL 300 User manua

HEADRUSH

HEADRUSH Maximus HRSP 5024 manual

SoundLogic

SoundLogic BCCS-6/6395 instruction manual

Peavey

Peavey DTH 218 Specification sheet

Avantree

Avantree Pluto Air user guide

Morel

Morel Integra Series INTEGRA OVATION 4 install guide

Oppo

Oppo SONICA quick start guide

Bose

Bose SoundLink Wireless Music System owner's guide

Rocksteady

Rocksteady Stadium owner's manual

Bowers & Wilkins

Bowers & Wilkins 4 owner's manual

Sonance

Sonance SONOS OUTDOOR Series installation manual

Electro-Voice

Electro-Voice EVID FM4.2 Brochure & specs

Pioneer

Pioneer XW-HTD630 manual

Onn

Onn BWA16AA002 Product guide

HP GL313AA - USB Speakers PC Multimedia quick start guide
