Samsung SNV-6013 User manual

NETWORK CAMERA

User Manual SNV-6013

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall

be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no

formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own

responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The default password can be exposed to a hacking thread so it is recommended to change the password

after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible

for the user.

Network Camera

User Manual

English _3

●OVERVIEW

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

4_ overview

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC

OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS

ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects

filled with liquids, such as vases, shall be placed on the apparatus.

To prevent injury, this apparatus must be securely attached to the Wall/ceiling

in accordance with the installation instructions.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

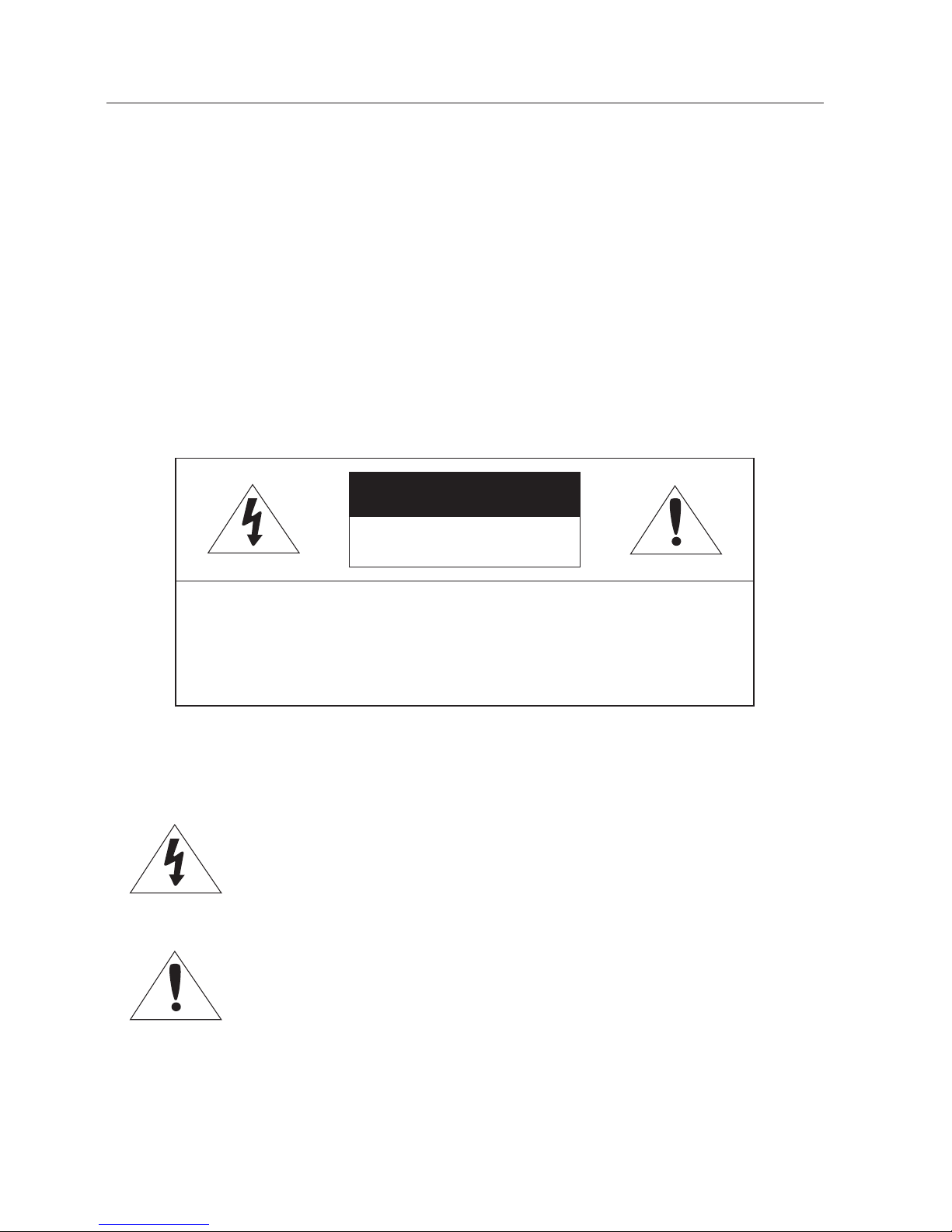

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature

accompanying the product.

English _5

●OVERVIEW

Class construction

An apparatus with CLASS construction shall be connected to a MAINS

socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive

heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call

a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of

an approved agency is employed.

CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than

that contained in the operating instructions unless you are qualified to do so.

The CVBS out terminal of the product is provided for easier installation, and is

not recommended for monitoring purposes.

Please use the input power with just one camera and other devices must not

be connected.

The ITE is to be connected only to PoE networks without routing to the

outside plant.

overview

6_ overview

Please read the following recommended safety precautions carefully.

Do not place this apparatus on an uneven surface.

Do not install on a surface where it is exposed to direct sunlight, near

heating equipment or heavy cold area.

Do not place this apparatus near conductive material.

Do not attempt to service this apparatus yourself.

Do not place a glass of water on the product.

Do not install near any magnetic sources.

Do not block any ventilation openings.

Do not place heavy items on the product.

User’s Manual is a guidance book for how to use the products.

The meaning of the symbols are shown below.

Reference : In case of providing information for helping of product’s usages

Notice : If there’s any possibility to occur any damages for the goods and

human caused by not following the instruction

Please read this manual for the safety before using of goods and keep it in

the safe place.

English _7

●OVERVIEW

CONTENTS

OVERVIEW

3Important Safety Instructions

9Product Features

10 Recommended PC Specifications

10 Recommended Micro SD/

SDHC/SDXC Memory Card

Specifications

11 NAS recommended specs

11 What’s Included

13 At a Glance

INSTALLATION &

CONNECTION

15 Installation

19 Inserting/Removing a Micro SD

Memory Card

20 Memory Card Information

(Not Included)

21 Connecting with other Device

NETWORK CONNECTION

AND SETUP

22 Connecting the Camera Directly

to Local Area Networking

23 Connecting the Camera Directly

to a DHCP Based DSL/Cable

Modem

24 Connecting the Camera Directly

to a PPPoE Modem

25 Connecting the Camera to a

Broadband Router with the

PPPoE/Cable Modem

26 Buttons used in IP Installer

27 Static IP Setup

31 Dynamic IP Setup

Port Range Forward (Port Mapping)

Setup

34 Connecting to the Camera from a

Shared Local PC

34 Connecting to the Camera from a

Remote PC via the Internet

overview

8_ overview

SETUP SCREEN

52 Setup

52 Video Setup

68 Network Setup

79 Event Setup

98 System Setup

APPENDIX

107

107 Specification

112 Product Overview

113 Troubleshooting

115 Open Source Announcement

WEB VIEWER

35 Connecting to the Camera

37 Password setting

37 Login

38 Installing Silverlight Runtime

41 Installing STW WebViewer Plugin

43 Using the Live Screen

45 Playing the recorded video

English _9

●OVERVIEW

PRODUCT FEATURES

• Dustproof/Waterproof (IP66)

The dustproof and waterproof design makes you feel at ease when installing the product

outdoors or exposing it to rain.

• Full HD Video Quality

• Multi-Streaming

This network camera can display videos in different resolutions and qualities

simultaneously using different CODECs.

• Alarm

When an event occurs, the related image is sent to the email address registered by a user

to the FTP server or saved in a micro SD card or the NAS.

• Web Browser-based Monitoring

Using the Internet web browser to display the image in a local network environment.

• Tampering Detection

Detects tempering attempts on video monitoring.

• Motion Detection

Detects motion from the camera’s video input.

• Intelligent Video Analysis

Analyzes video to detect logical events of specified conditions from the camera’s video

input.

• Face Detection

Detects faces from the camera’s video input.

• Smart codec

A clearer version of image of the area set by a user is transmitted.

• Auto Detection of Disconnected Network

Detects network disconnection before triggering an event.

• ONVIF Compliance

This product supports ONVIF Profile-S.

For more information, refer to www.onvif.org.

overview

10_ overview

RECOMMENDED PC SPECIFICATIONS

•CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps)

Intel Core i7 2.8 GHz or higher (for using 1920x1080 60 fps)

Web Plug-in is optimized to SSE 4.1 Instruction Set.

•Resolution : 1280X1024 pixels or higher (32 bit color)

•RAM : 2GB or higher

•Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7

•Supported Browser : Microsoft Internet Explorer (Ver. 7~10),

Mozilla Firefox (Ver. 9~19), Google Chrome (Ver. 15~25),

Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7)

Windows 8 is supported only in the Desktop mode.

Neither a beta test version unlike the version released in the company website nor the developer version will

be supported.

For IPv6 connection, Window 7 or higher is recommended.

For Mac OS X, only the Safari browser is supported.

•Video Memory : 256MB or higher

If the driver of the video graphic adapter is not installed properly or is not the latest version, the

video may not be played properly.

For a multi-monitoring system involving at least 2 monitors, the playback performance can be

deteriorated depending on the system.

RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD

SPECIFICATIONS

•4GB ~ 64GB

•For your camera, we recommend you use a memory card from the following

manufacturers:

Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend

•For the framerate below 30 fps, it is recommended to use the specification memory card

of Class 6 or higher.

•For the framerate over 31 fps, it is recommended to use the specification memory card of

Class 10 UHS or higher.

Other manuals for SNV-6013

Table of contents

Other Samsung Security Camera manuals

Samsung

Samsung SCC-C4335 User manual

Samsung

Samsung SDN-550 User manual

Samsung

Samsung SCC-520 User manual

Samsung

Samsung iPolis SNB-5000 User manual

Samsung

Samsung iPOLiS SNP-3120 Manual

Samsung

Samsung SDC-313B User manual

Samsung

Samsung 560TVL User manual

Samsung

Samsung SHC-735 User manual

Samsung

Samsung SNH-1011 User manual

Samsung

Samsung SCV-2120N User manual

Samsung

Samsung SMARTCAM SNH-V6110BN User manual

Samsung

Samsung SNC-C7225 Mini SmartDome User manual

Samsung

Samsung SCC-B2303(P) User manual

Samsung

Samsung SNZ-5200 User manual

Samsung

Samsung SNB-7000N User manual

Samsung

Samsung SNC-B5399 User manual

Samsung

Samsung iPolis SNB-7002 User manual

Samsung

Samsung SCC-B539X User manual

Samsung

Samsung IPOLIS SNP-3300 User manual

Samsung

Samsung BW-2302 SERIES User manual

Samsung

Samsung Wisenet SNH-V6430BN User manual

Samsung

Samsung iPOLiS SNP-3120 User manual

Samsung

Samsung SCB-2004 User manual

Samsung

Samsung SCC-B9374 User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Vitek

Vitek VTC-C544 Specifications

Lumens

Lumens VC-A50PNW installation guide
