Samsung SCC-B5366 User manual

ENG

DIGITAL COLOR DOME

CAMERA

user manual

SCC-B5366

SCC-B5368

SCC-B5366S

SCC-B5368S

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsungsecurity.com

ENG RUS

POL

CZE

TUR

2– DIGITAL COLOR DOME CAMERA

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is

present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the

appliance.

WARNING

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this appliance to rain

or moisture.

WARNING

Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet. Using any other adapter

could cause ﬁre, electrical shock, or damage to the product

Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric shock, or

damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat

generation or ﬁre.

Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly. A falling camera may cause personal injury.

Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers ﬁlled with water

on top of the camera. Doing so may cause personal injury due to ﬁre, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre or electric shock.

•

Safety information

English – 3

ENG

Safety information

If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately

disconnect the power source and contact the service center. Continued use in such a condition may cause

ﬁre or electric shock.

If this product fails to operate normally, contact the nearest service center. Never disassemble or modify

this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modiﬁcations or

attempted repair.)

When cleaning, do not spray water directly onto parts of the product. Doing so may cause ﬁre or electric shock.

CAUTION

Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to

excessive vibrationor magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C), or high

humidity. Doing so may cause ﬁre or electric shock.

If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall

it.

Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause ﬁre or

damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the

CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases,

shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

10.

4– DIGITAL COLOR DOME CAMERA

Important Safety Instructions

WARNING

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, or other apparatus (including

ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult

an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or

sold with the apparatus.

Unplug this apparatus when a card is used. Use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been

damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

10.

11.

12.

13.

14.

English – 5

ENG

Contents

Introduction

Features 6

Product & Accessories 7

Part Names and Functions 8

Installation

Before installation 11

Installation procedure 11

Adjusting the camera direction 13

How to use OSD Menu

Using Icons in the Menu 14

Main Menu 14

Proﬁle 15

Camera Setup 17

Intelligence 24

Privacy Zone Setup

Other Set 28

System Information 29

Language 29

Speciﬁcations

Speciﬁcations 30

6– DIGITAL COLOR DOME CAMERA

Introduction

FEATURES

High Resolution

This camera has realized high resolution of 600 lines using the top-notch full digital image processing and

special algorithm technologies.

Intelligent Motion Detection & Tracking

This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it

displays an alert if an object passes / enters /exits the virtual fence or virtual area.

XDR (eXtended Dynamic Range)

Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a

certain pixel unit to determine the optimal visibility.

High Sensitivity

It implements images of high sensitivity using the up-to-date SONY Super-HAD IT CCD..

Low Illumination

It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera

identify objects even in the worst environment.

Superior Backlight Adjustment

When an object has a bright illumination or sunlight behind it, this camera automatically improves the

shaded object picture quality.

Digital Power Synchronization

The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the

operationability and reliability of this camera.

Output Signal Setting

You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy,

Horizontal/Vertical proﬁling, and digital zooming.

OSD(On Screen Display) Menu

OSD menu is provided to display the status of camera and to conﬁgure the functions interactively.

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

❖



English – 7

ENG

Introduction

Product & Accessories❖

Accessories

•

Test Monitor Cable Tab screw User’s Manual

Main Product

•

Camera

Coaxial Cable Communication

This is a remote control function that overlaps the coaxial cable (for a transfer of the video signal) with the

control signal. In installation or repair, this helps you control the communication controller (optional) without

additional cabling.

PRODUCT & ACCESSORIES

❖

•

Note :

The test monitor cable is used to test the camera by connecting to a portable display. If you really want to connect the camera

to a monitoring display, use the BNC cable.



–

8– DIGITAL COLOR DOME CAMERA

Introduction

PART NAMES AND FUNCTIONS

Components of your camera❖

렌즈

전원 커넥터

비디오 커넥터

테스트 모니터 출력

Lens

Power connector

Video connector

Test monitor output

English – 9

ENG

Introduction

No Name Brief description

1 Cover dome Covers the inner cover, lens, and main body to protect them.

2 Inner cover Covers the main body to protect it.

3 Wing locker Push a long thin screwdriver into its narrow spot and press it outward when you want to

remove the inner cover.

4 Main body Includes a lens, a switch board, a PCB board, screws, and such.

5 Mount bracket Used as a ceiling or wall ﬁxture. It is ﬁxed using three long tab screws provided in the

package.

6 Wiring Passage

This passage is designed to make arrangement of the cables if you drill a hole to extend the wiring.

7 Zoom lever Using this lever, the lens zoom can be adjusted and ﬁxed.

8 Focus lever The lens focus can be adjusted by rotating it left or right. Rotate it clockwise for ﬁxing.

9 Tilt ﬁxing screw Using this screw, the slope of the lens can be adjusted and ﬁxed.

10 4-way Switch This switch is used to set and adjust the settings of the camera’s functions.

11 Groove mark To attach the Main body to the Mount bracket, align this groove mark on the Main body with

the wide groove in the CAMERA FRONT side on the Mount bracket.

12 Locker Used to open or close the Cover dome. To open the cover dome, press the locker.

13 Lock releaser Push it outward and rotate the main body in UNLOCK direction when you want to remove

the Mount bracket from the Main body or to remove the installed camera from the Mount

bracket.

14 Cable Connect the Video connector to BNC cable and Power connector to power adapter.

10 – DIGITAL COLOR DOME CAMERA

Introduction

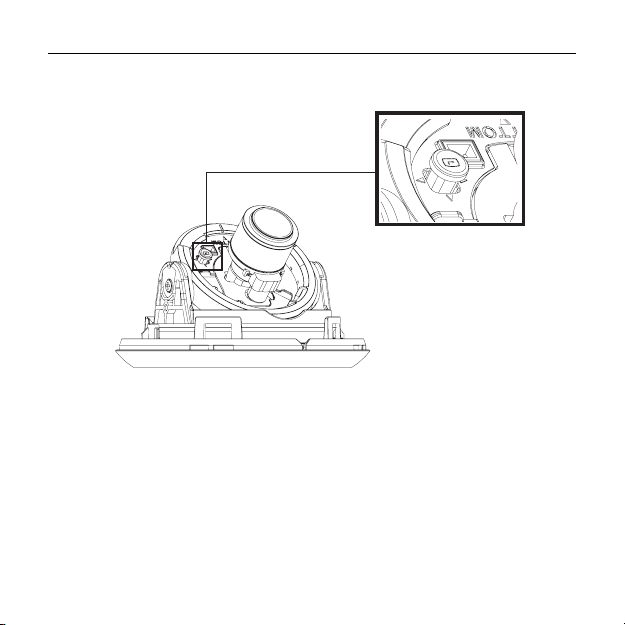

Setting switches❖

SETUP Switch

This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the

MAIN MENU appears.

(Left/Right)

: By pressing this switch left or right, you can move left or right on the menu or change the

displayed value.

(Up/Down) :

By pressing this switch up or down, you can move up or down on the menu.

: When you press this switch in the menu, the selected function is conﬁrmed. To enter a submenu, press

this button..

•
