OfficeServ Wireless USER INSTRUCTIONS

TECHNICAL MANUAL TABLE OF CONTENTS SEPTEMBER 2005

Home Page

Table of Contents

OfficeServ Wireless Quick Set Up Guide

Step 1: Connect System Components

1. Turn off system power.

2. Insert WLI into slot (500R2:1 to 3; 100R2: 1 to 3 of base cabinet; 7200: 1 to 5).

3. Load IDCS 500R2 or 100R2 or 7200 system with MCP2 software version 2.4x or up.

4. Use MMC 806 to install card.

5. Connect Combo APs (aka. WBS, WBS24, AP, type A, CWBS) to WLI using straight data cable; see

pin assignments for 500R2 and 100R2.

6. Turn on power.

a. Combo AP power LED will be on after all data are programmed.

Step 2: Pre-determinate the following data

1. System ID or SSID

2. System Key

3. System IP address

4. System Gateway IP address

5. AP RF channels (frequency planning)

6. AP IP addresses

7. Handset IP addresses

e.g.

Sample Configuration Table (1 WLI + 2 Combo APs + 4 Handsets)

1. System IP: 165.213.97.185

2. System gateway: 165.213.97.1

3. System ID: 123456 (must be numeric, max 6 digits)

4. System Key: 12345 (must be nonzero numeric, max 5 digits)

5. AP TX Power: Level 4 (max)

6. AP1 IP: 165.213.97.11

7. AP1 RF CH: 1

8. AP2 IP: 165.213.97.12

9. AP2 RF CH: 11

10. 2nd WBS IP: 165.208.144.10 (leave it as default)

11. Handset 1 IP: 165.213.97.101

12. Handset 2 IP: 165.213.97.102

13. Handset 3 IP: 165.213.97.103

14. Handset 4 IP: 165.213.97.104

15. WEP key: Disable

16. CODEC: G729

Home Page

Table of Contents

Step 3: Programming Wireless Voice

1. Enter the technician mode (MMC 800, pw: 4321).

2. MMC 830

a. Verify the desirable system IP and gateway address are in place.

e.g.

System IP: 165.213.97.185 Gateway: 165.213.97.1

3. MMC 831

a. If there is MGI card in the system, then make sure the VoIP phone and MGI IP addresses are

not conflict with VoWLAN IP addresses.

4. MMC 849; skip any field that is not mentioned.

a. Use password “0000” to enter.

[ENTER PASSWORD ]

[0000 ]

b. Enable VoWLAN registration.

[REGISTER VoWLAN]

[ENABLE ]

c. Select “Combo AP” type.

[SELECT AP TYPE ]

[COMBO WBS ]

5. MMC 845

a. Set WLAN data; use right soft key to move to the right field.

i. Set system ID.

[WLAN: SYSTEM ID ]

[123456 ]

ii. Set system KEY.

[WLAN: SYSTEM KEY]

[12345 ]

iii. Set system RF channel selection.

[WLAN: RF CHANNEL]

[USE CH 1: 01 ]

•Use/Select channel 1, 6 and 11 only.

iv. Set TX power level for the entire system.

[WLAN: WBS TX PWR]

[LEVEL 4 ]

Home Page

Table of Contents

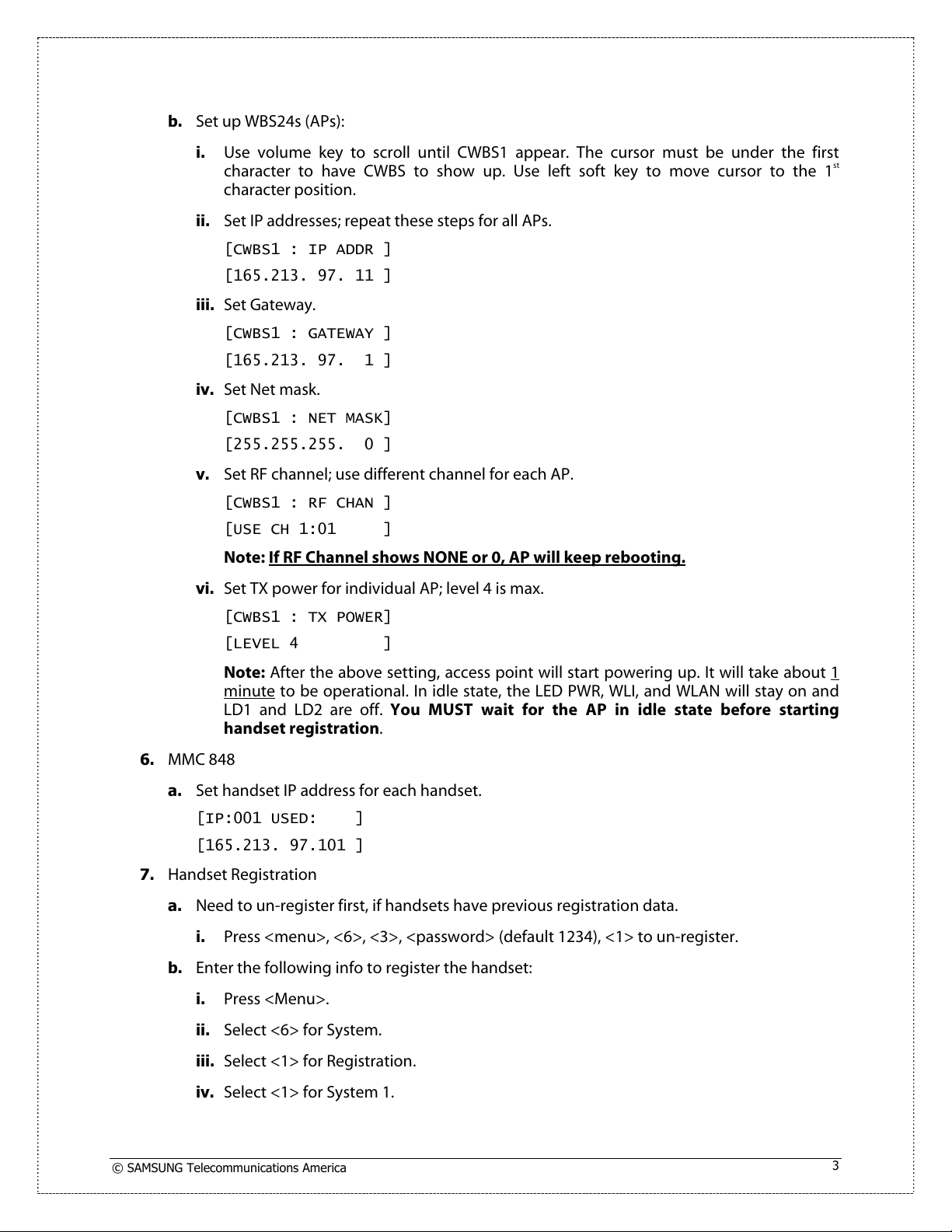

b. Set up WBS24s (APs):

i. Use volume key to scroll until CWBS1 appear. The cursor must be under the first

character to have CWBS to show up. Use left soft key to move cursor to the 1st

character position.

ii. Set IP addresses; repeat these steps for all APs.

[CWBS1 : IP ADDR ]

[165.213. 97. 11 ]

iii. Set Gateway.

[CWBS1 : GATEWAY ]

[165.213. 97. 1 ]

iv. Set Net mask.

[CWBS1 : NET MASK]

[255.255.255. 0 ]

v. Set RF channel; use different channel for each AP.

[CWBS1 : RF CHAN ]

[USE CH 1:01 ]

Note: If RF Channel shows NONE or 0, AP will keep rebooting.

vi. Set TX power for individual AP; level 4 is max.

[CWBS1 : TX POWER]

[LEVEL 4 ]

Note: After the above setting, access point will start powering up. It will take about 1

minute to be operational. In idle state, the LED PWR, WLI, and WLAN will stay on and

LD1 and LD2 are off. You MUST wait for the AP in idle state before starting

handset registration.

6. MMC 848

a. Set handset IP address for each handset.

[IP:001 USED: ]

[165.213. 97.101 ]

7. Handset Registration

a. Need to un-register first, if handsets have previous registration data.

i. Press <menu>, <6>, <3>, <password> (default 1234), <1> to un-register.

b. Enter the following info to register the handset:

i. Press <Menu>.

ii. Select <6> for System.

iii. Select <1> for Registration.

iv. Select <1> for System 1.

Home Page

Table of Contents

v. Select <1> for DHCP mode.

vi. Enter System SSID, e.g. 123456, and press <OK>.

vii. Enter user ID, e.g. 1212, and press <OK>; all handsets have the same default ID & PW.

viii.Enter password, e.g. 0000, and press <OK>.

ix. Skip encryption by pressing <OK>. (It takes about 30 seconds to complete one

handset registration.)

x. Default wireless IP handset extension number starts with 3301. Use MMC 724 to

change numbering plan.

c. Repeat the above process for each handset.

Step 4: Optional Wireless Data Set Up

1. Connect data cable between Combo AP LAN connector and data network.

a. Combo AP doesn’t have DHCP server built-in. Either the data network provide DHCP

function or client device need to use static IP to access data network.

b. Combo AP SSID is hidden. This is security feature. We don’t want to broadcast SSID to

everyone. If one uses Laptop to scan all available wireless networks, the SSID 123456 will

not show up. One needs to type in the assigned SSID.

2. Set up laptop PC to access data; laptop PC must have 802.11b/g Wi-Fi card. Set up example for

Windows 2000.

a. Click <Start>, <Settings>, <Network and Dial-Up Connections>.

b. Enable WLAN network by right click “Local Area Connection 3” (WLAN device) and select

“Enable”.

c. Enter WLAN network properties by right click “Local Area Connection 3” and select

“Properties”.

d. Click <Configure> tab.

e. Select <Wireless Network>.

f. Under Network Name (SSID), enter system ID, e.g. 123456.

g. Click <OK>.

h. Double click “Internet Protocol (TCP/IP)”.

i. Select “Obtain IP Address Automatically” and “Obtain DNS Server Address Automatically”,

or enter static IP address and DNS server address manually.

j. Select <OK>, and <OK>.

Home Page

Table of Contents

iDCS 500 Release 2 / OfficeServ

Connection between 8WLI 50pin Champ Connector and RJ-45 Connector

The cable you use to connect the 8WLI card with the WBS24 is a Twisted-pair cable that

the one end is RJ-45 Connector (Connected with WBS24) and the other end is champ

connector (Connected with 8WLI) as shown in the figure below.

8WLI WBS24

50 1 … 8

Home Page

Table of Contents

iDCS 500 Release 2 / OfficeServ

8WLI Side

Port Signal 50P Champ

Pin COLOR

D Channel data 26

W-BL

BL-W

# 1

Sync line 27

W-O

O-W

D Channel data 29

W-BR

BR-W

# 2

Sync line 30

W-S

S-W

D Channel data 32

R-O

O-R

# 3

Sync line 33

R-G

G-R

D Channel data 35

R-S

S-R

# 4

Sync line 36

BK-BL

BL-BK

D Channel data 38

BK-G

G-BK

# 5

Sync line 39

BK-BN

BN-BK

D Channel data 41

Y-BL

BL-Y

# 6

Sync line 42

Y-O

O-Y

D Channel data 44

Y-BN

BN-Y

# 7

Sync line 45

Y-S

S-Y

D Channel data 47

V-O

O-V

# 8

Sync line 48

V-G

G-V

Home Page

Table of Contents

iDCS 100 Release 2 / OfficeServ

S4WLI Side

Base Cabinet

Station # Signal 50P Champ

Pin COLOR

D Channel data 26

W-BL

BL-WSLOT1

# 1 Sync line 27

W-O

O-W

D Channel data 28

W-GN

GN-WSLOT1

# 2 Sync line 29

W-BR

BR-W

D Channel data 30

W-S

S-WSLOT1

# 3 Sync line 31

R-BL

BL-R

D Channel data 32

R-O

O-RSLOT1

# 4 Sync line 33

R-G

G-R

D Channel data 36

R-BN

BN-RSLOT2

# 1 Sync line 35

R-S

S-R

D Channel data 36

BK-BL

BL-BKSLOT2

# 2 Sync line 37

BK-O

O-BK

D Channel data 38

BK-G

G-BKSLOT2

# 3 Sync line 39

BK-BN

BN-BK

D Channel data 40

BK-S

S-BKSLOT2

# 4 Sync line 41

Y-BL

BL-Y

D Channel data 42

Y-O

O-YSLOT3

# 1 Sync line 43

Y-G

G-Y

SLOT3

# 2 D Channel data 44

Y-BN

BN-Y

1 2 3 4 5 6 7 8

RJ-45 CONNECTOR

Home Page

Table of Contents

S4WLI Side

Base Cabinet

Station # Signal 50P Champ

Pin COLOR

Sync line 45

Y-S

S-Y

D Channel data 46

V-BL

BL-VSLOT3

# 3 Sync line 47

V-O

O-V

D Channel data 48

V-G

G-VSLOT3

# 4 Sync line 49

V-BN

BN-V

Home Page

Table of Contents

Remarks

1. Handset has hidden mode for the following info:

a. Software version

b. IP address

c. MAC address

d. Phone State

e. Display RSSI, voice quality is guarantee when CQ>=45

To access the hidden mode:

•In Idle state: <menu>, <hold>, <*>, <#>

•In conversation state (only RSSI): <music key>, <#>

2. AP TX power setting (5 levels, including Default level):

a. Level 1: 10 mW, 10 dBm

b. Level 2: 25 mW, 14 dBm

c. Level 3: 50 mW, 17 dBm

d. Default: 85 mW, 18 dBm

e. Level 4: 100 mW, 20 dBm

3. 2nd WBS (AP) IP address is used for wireless voice communications only. It can be any IP

address. It doesn’t have to be on the same subnet address range as the system. Leave it at

its default.

4. Static WBS (AP) IP is only used for WAP-B (Basic) type. It doesn’t apply to WAP-A (Combo)

type.

5. If WEP key is used, user needs to enter all 13 numeric digits. System takes 13 ASCII digits WEP

key, no variable size is allowed.

6. When handset is out of range,

a. It will maintain the call for 30 seconds to allow user to come back to the coverage area;

b. It will keep searching AP (in pre-defined time interval).

c. Once in range, handset will automatically re-registered and in service.

7. DNS server info is not used in MMC 845.

8. Handset can be cleared (de-registered) from system by using MMC 849.

a. After selecting the extension number, move the right softkey to the field “FORCED”

[WIP REGISTER CLEAR]

[3301 : FORCED ]
