Samsung DW60R7070 Series Assembly instructions
DISHWASHER
REPAIR Guide
DISHWASHER
Basic Model : DW60R7070 Series
DW60R7050 Series
DW60R7040 Series
Model Name : DW60A8070 Series
DW60A8060 Series
DW60A8050 Series
DW60A8040 Series
Model Code : DW60A8070BB, DW60A8070US,
DW60A8060BB, DW60A8060IB,
DW60A8060FS, DW60A8060FW,
DW60A8050BB, DW60A8050US,
DW60A8050FS, DW60A8040BB
DW60A8040IB
* For End User.
IMPORTANT SAFETY NOTICE
Following the repair by a non-authorized service provider self-repair or
non-professional repair of the product Samsung is not liable for any
damage to the product any injury or any other product safety issue caused
by any attempt to repair the product which does not carefully follow these
repair and maintenance instructions. Any damage to the product caused by
an attempt to repair the product by any person other than a Samsung
certified service provider will not be covered by the warranty.
All rights reserved.
This service guide may not be reproduced in whole or
as a part in any form whatsoever without the written permission of
the SAMSUNG ELECTRONICS Company.
WARNING
Note
1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available
for purchase. The model code is labelled on the edge of the tub. When you open the dishwasher’s
door, you can check the model code and version on the barcode label at the left side of the tub.
3. For replacement parts make sure the part name matches that of the illustration in this manual.
- User-serviceable parts are limited to door hinge and seals other seals spray arms drain lters
interior racks and plastic peripherals such as baskets and lids.
Caution
1. The part name listed on the site may differ from that in this manual. Please make sure you choose
the right part name.
2. Be sure to wear safety gloves while making repairs.
3. Must working more than 2 people to handling heavy weight.
Disassembly and Reassembly _ 3

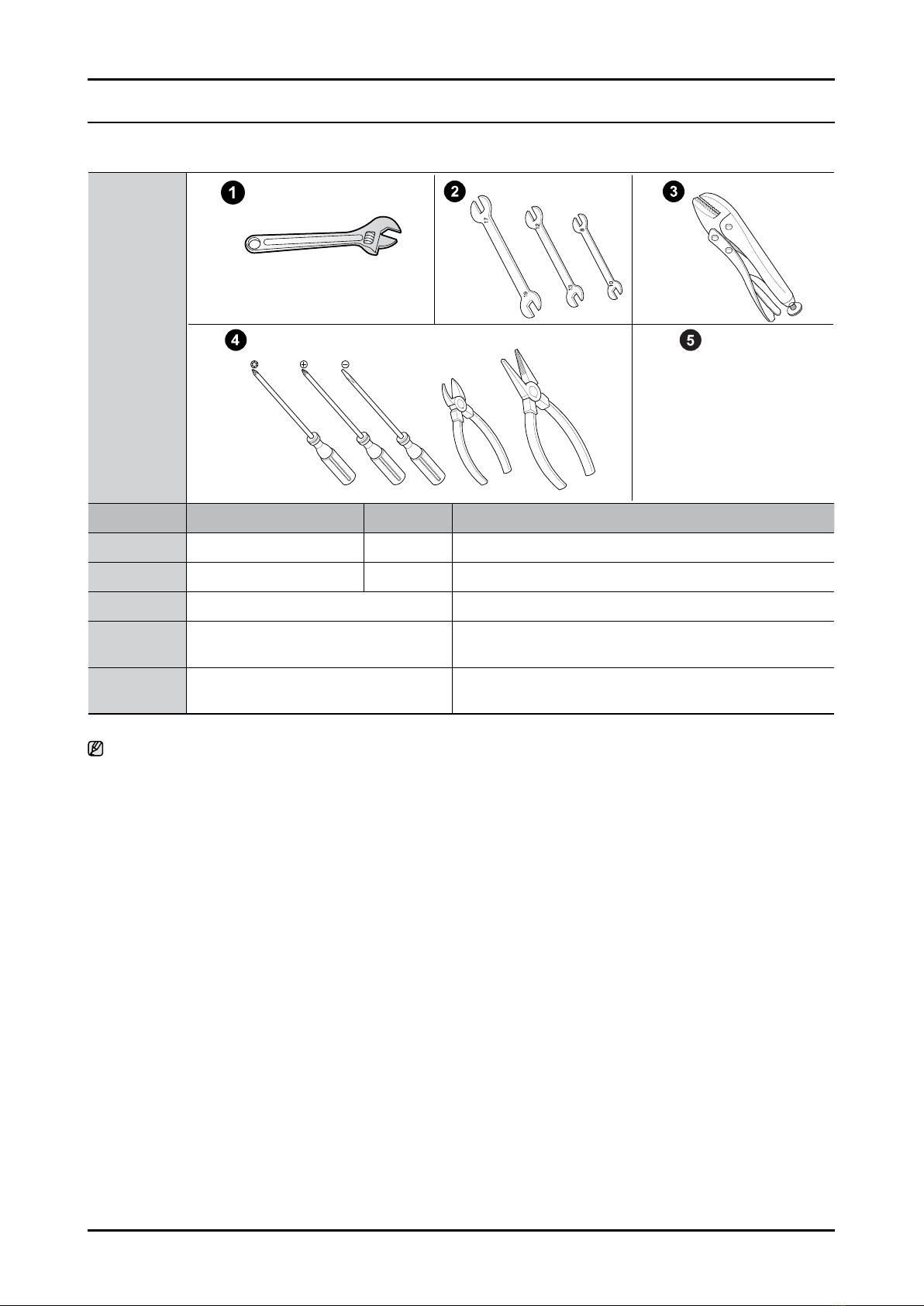

1. TOOLS FOR REMOVAL AND REASSEMBLY
Tool image
No. Tool Type Remarks
①Adjustable Wrench
②Open-end Wrench 1-7/16”
③Vice Pliers
④Others
(screwdriver, nipper, long nose pliers)
Common tools for servicing
Screwdriver – Phillip, Flat, Torx T15
⑤Ear clamping tool In reassembling of the clamp-bend(ear clamp) using our
SVC part, this tool is needed.
NOTE :
Preparation for parts replacement
1. Remove the residual water inside the product. (Drain the water by operating the drain pump)
2. Close the water supply valve.
3. Turn off the power & disconnect the power cable.
You must turn off the circuit breaker connected to the product.
4. Pull out the unit from the sink and lay it on the oor.
Be careful of the drain hose when pulling out the unit.
4 _ Disassembly and Reassembly
2. STANDARD DISASSEMBLY DRAWINGS
2-1. PRECAUTION
Caution
Before servicing,
- Make sure to remove all items include baskets inside dishwasher.
- Drain the water in the dishwasher and disconnect the power supply.
- Lock the water faucet that is connected with inlet hose.
- Uninstall the dishwasher from the furniture cabinet except simple work.
- Disconnect the Inlet & Drain hoses from the duct, if the hoses are too short to pull the dishwasher out of the furniture
cabinet enough.
- Make sure to remove any remaining water in the Sump and hoses by rag or vacuum.
→ There is a risk of water spill on the oor.
Disassembly and Reassembly _ 5

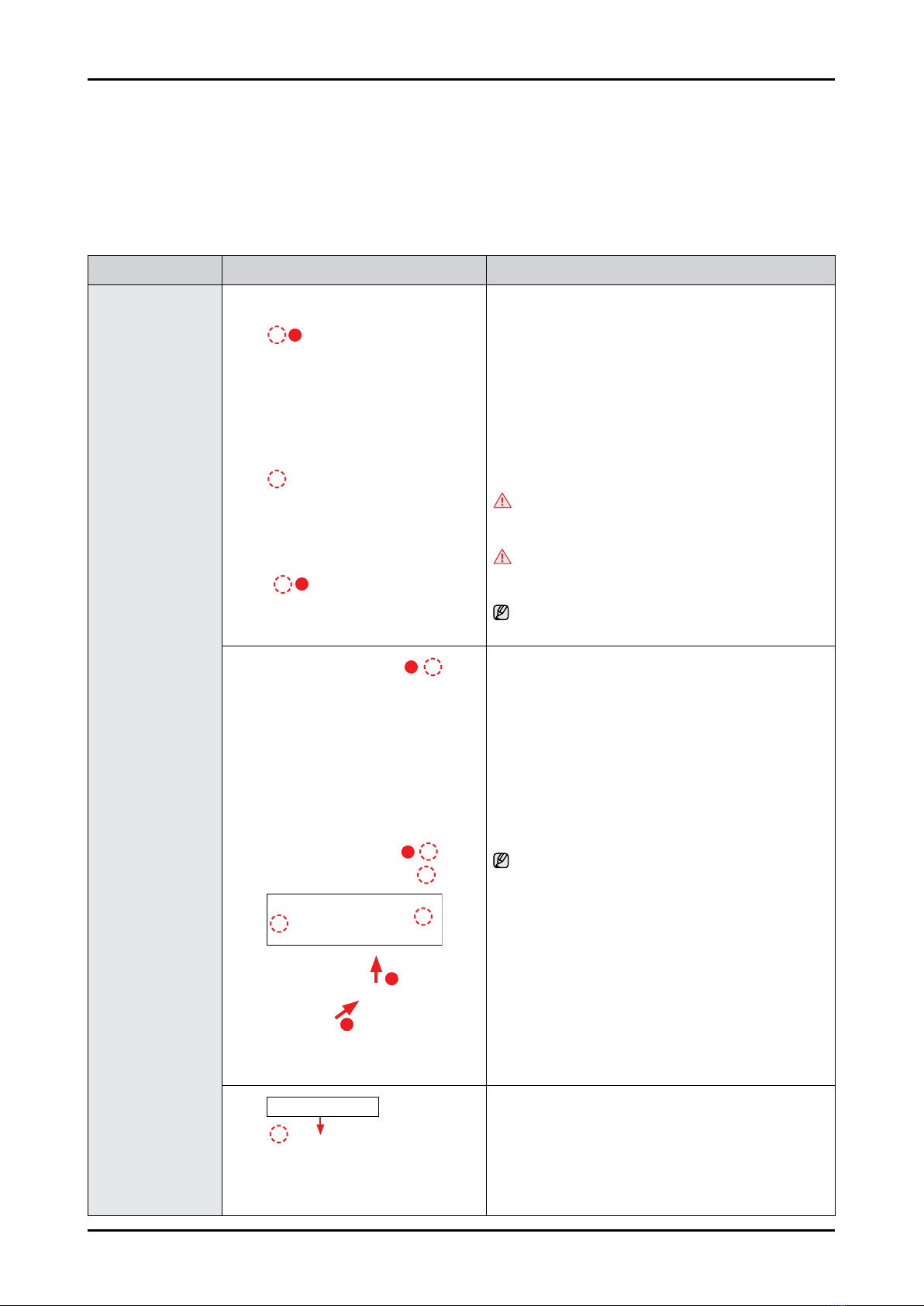

2-2. FRESH TANK / CAP CASE BRAKE / GASKET BRAKE (DW60A8070*/
DW60A8060* MODELS)
- FRESH TANK : DD82-01910A / SVC ASSY-FRESH TANK
- CAP CASE BRAKE : DD81-02725A / SVC CAP CASE BRAKE
- GASKET BRAKE : DD81-02726A / SVC GASKET BRAKE
Part Figure Description
CAP CASE
BRAKE/
GASKET
BRAKE/
(DW60A8070*/
DW60A8060*
models)
A
B
[DISASSEMBLY]
1. Remove 3 screws that connect left SIDE PANEL to
front side of dishwasher.
- Type A: DD81-02693A / 2 pcs
- Type B: DD81-02694A / 1 pc
- HOUSING-LEFT : DD81-02928B/DD81-02880A/
DD81-02880C
FRESH TANK replacement: Empty the FRESH TANK
before repair. (Refer to ~page for how to empty)
WARNING
Be sure to remove the power plug before
servicing.
CAUTION
Empty the water container before lay down set.
(Refer to ~page for how to empty)
In case of Free Standing models, there’re no
screws of type B.
C
B
2
1
2. Remove 3 screws at the back side of dishwasher.
- Type C: DD81-02692A / 1 pc
- Type B: DD81-02694A / 2 pcs
In case of Free Standing models, take off the
COVER TOP by removing 2 screws of type A.
After removing screws, pull the COVER TOP
backward rst, and take it off upward.
-TOP COVER : DD81-02552C/DD81-02552D
Guide Tub Top
3. Remove 1 screw at the left side of GUIDE TUB TOP.
- Screw: DD81-02694A / 1 pc
- GUIDE TUB TOP : DD81-02733A
6 _ Disassembly and Reassembly
Part Figure Description
CAP CASE
BRAKE/
GASKET
BRAKE/
(DW60A8070*/
DW60A8060*
models)

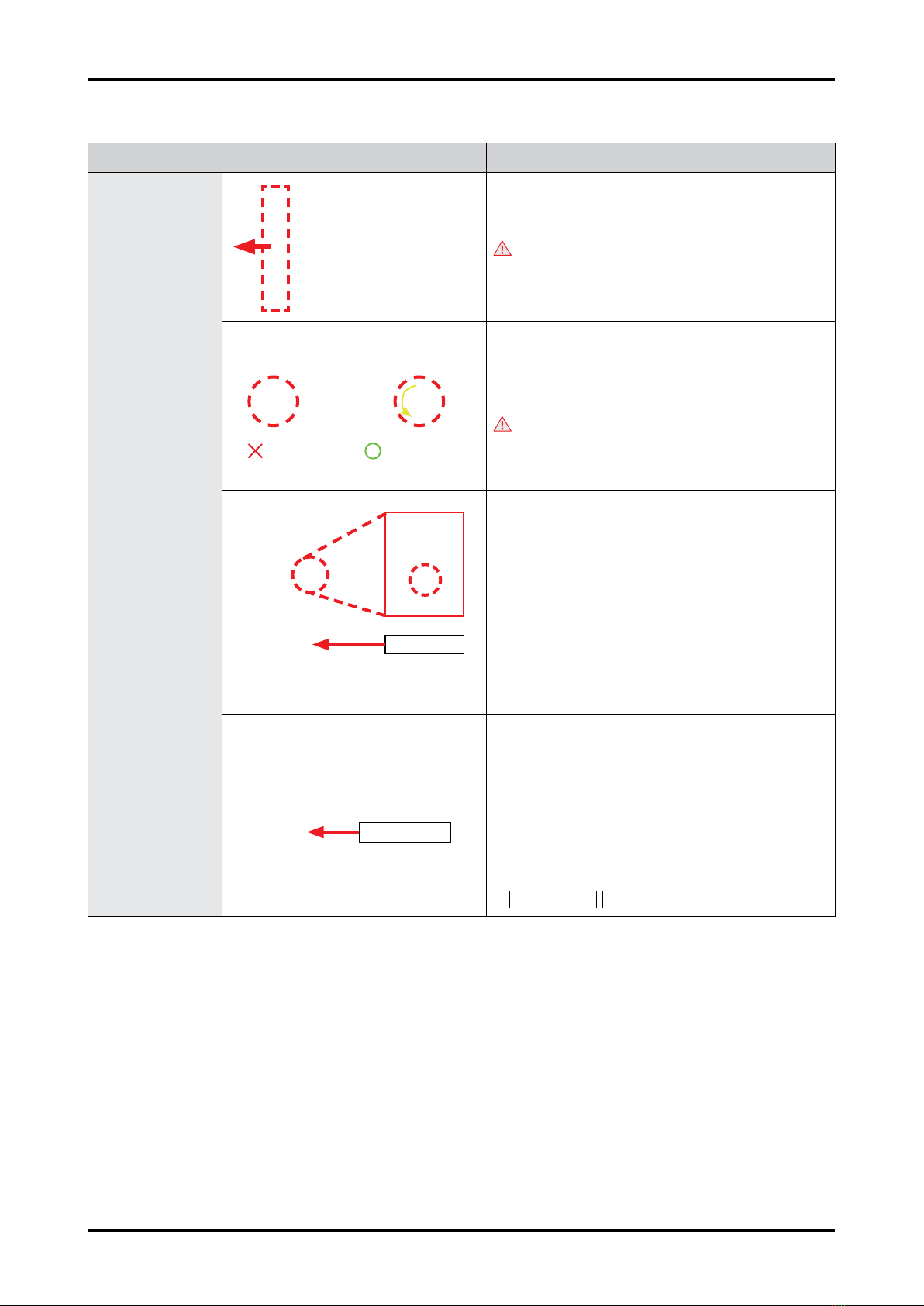

4. Take off the left SIDE PANEL.
WARNING
Do not this work without safety gloves.
It may cause injury from sharp edges.
5. Take off the CAP CASE BRAKE by rotating in a
counter-clockwise direction with long-nose pliers.
- CAP CASE BRAKE : DD81-02725A
CAUTION
It can be brake easily when you use the iron part
of the pliers. Take off the cap using the handle part
of the pliersto prevent damage.
Fresh Tank
6. Remove 1 screw from the FRESH TANK assembly.
- Screw : DD81-02694A / 1pc
Gasket brake
7. Remove the GASKET BRAKE from the FRESH
TANK assembly.
- GASKET-BRAKE : DD81-02726A
Cap Case brake Gasket brake
Disassembly and Reassembly _ 7
Part Figure Description
CAP CASE
BRAKE/
GASKET
BRAKE/
(DW60A8070*/
DW60A8060*
models)

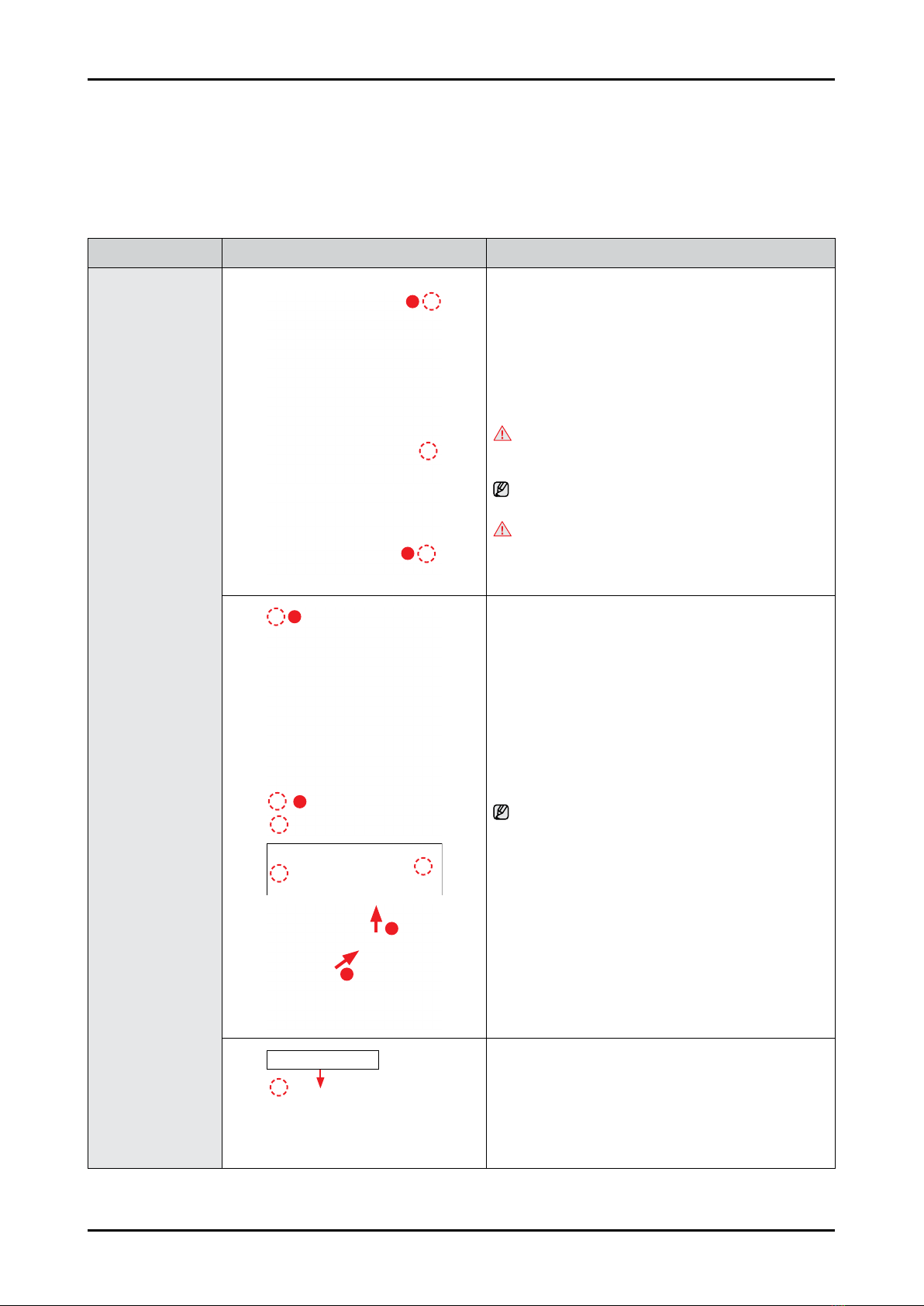

[ASSEMBLY]
1. Fit the GASKET BRAKE on the FRESH TANK, and
attach the FRESH TANK with screws.
- Screw : DD81-02694A / 1pc
CAUTION
Pay attention to assemble the seal correctly.
It can cause the water leakage when it’s
assembled wrong.
2. fasten the CAP CASE BRAKE by rotating in a
clockwise direction with long-nose pliers.
CAUTION
It can be break easily when you the use iron part
of the pliers. Take off the cap using the handle part
of the pliers to prevent damage.
3. Assemble the left SIDE PANEL with the screws.
CAUTION
Fasten the screws that was assembled to origin
location.
Don’t assemble to other locations.
WARNING
Do not this work without safety gloves.
It can cause injury from sharp edge.
8 _ Disassembly and Reassembly
2-3. RECYCLE TANK / DUCT DRY NUT / GASKET BRAKE (DW60A8070*/
DW60A8060* MODELS)
- RECYCLE TANK : DD82-01909A / SVC ASSY-RECYCLE TANK
- DUCT DRY NUT : DD81-02705A / SVC-DUCT DRY NUT
Part Figure Description
RECYCLE
TANK/
DUCT DRY NUT/
GASKET
BRAKE
(DW60A8070*/
DW60A8060*
models)
A
B
[DISASSEMBLY]

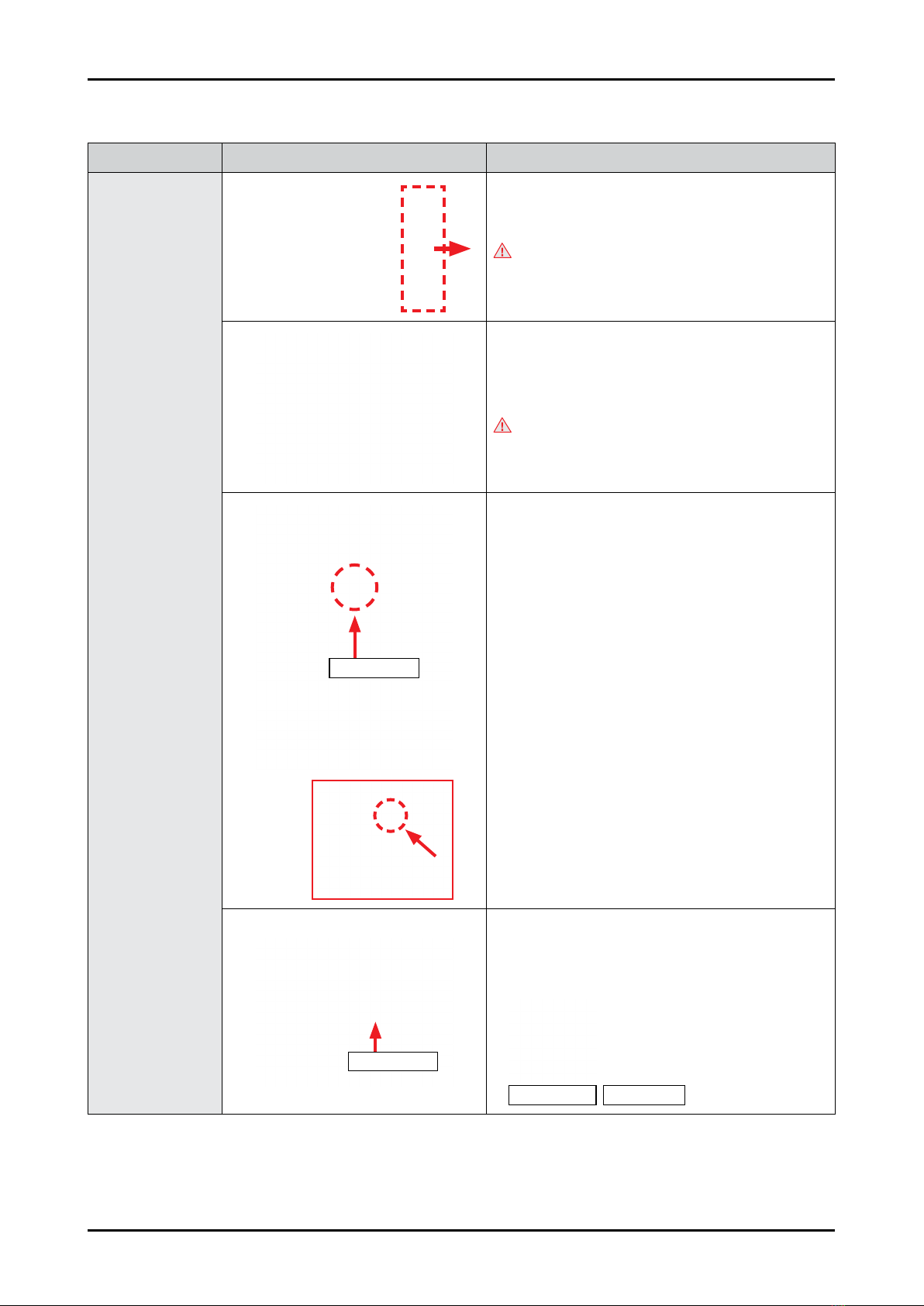

1. Remove 3 screws that connect right SIDE PANEL
to front side of dishwasher.
- Type A: DD81-02693A / 2 pcs
- Type B: DD81-02694A / 1 pc
- HOUSING_RIGHT : DD81-02929B/DD81-
02881A/DD81-02881C
WARNING
Be sure to remove the power plug before
servicing.
In case of Free Standing models, there’re no
screws of type B.
CAUTION
RECYCLE TANK replacement: Empty the
RECYCLE TANK before repair. (Refer to ~page
for how to empty)
C
B
2
1
2. Remove 3 screws at the back side of dishwasher.
- Type C: DD81-02692A / 1 pc
- Type B: DD81-02694A / 2 pcs
In case of Free Standing models, take off the
COVER TOP by removing 2 screws of type A.
After removing screws, pull the COVER TOP
backward rst, and take it off upward.
- TOP COVER : DD81-02552C/DD81-02552D
Guide Tub Top
3. Remove 1 screw at the left side of GUIDE TUB TOP.
- Screw: DD81-02694A / 1 pc
- GUIDE TUB TOP : DD81-02733A
Disassembly and Reassembly _ 9
Part Figure Description
RECYCLE
TANK/
DUCT DRY NUT/
GASKET
BRAKE
(DW60A8070*/
DW60A8060*
models)

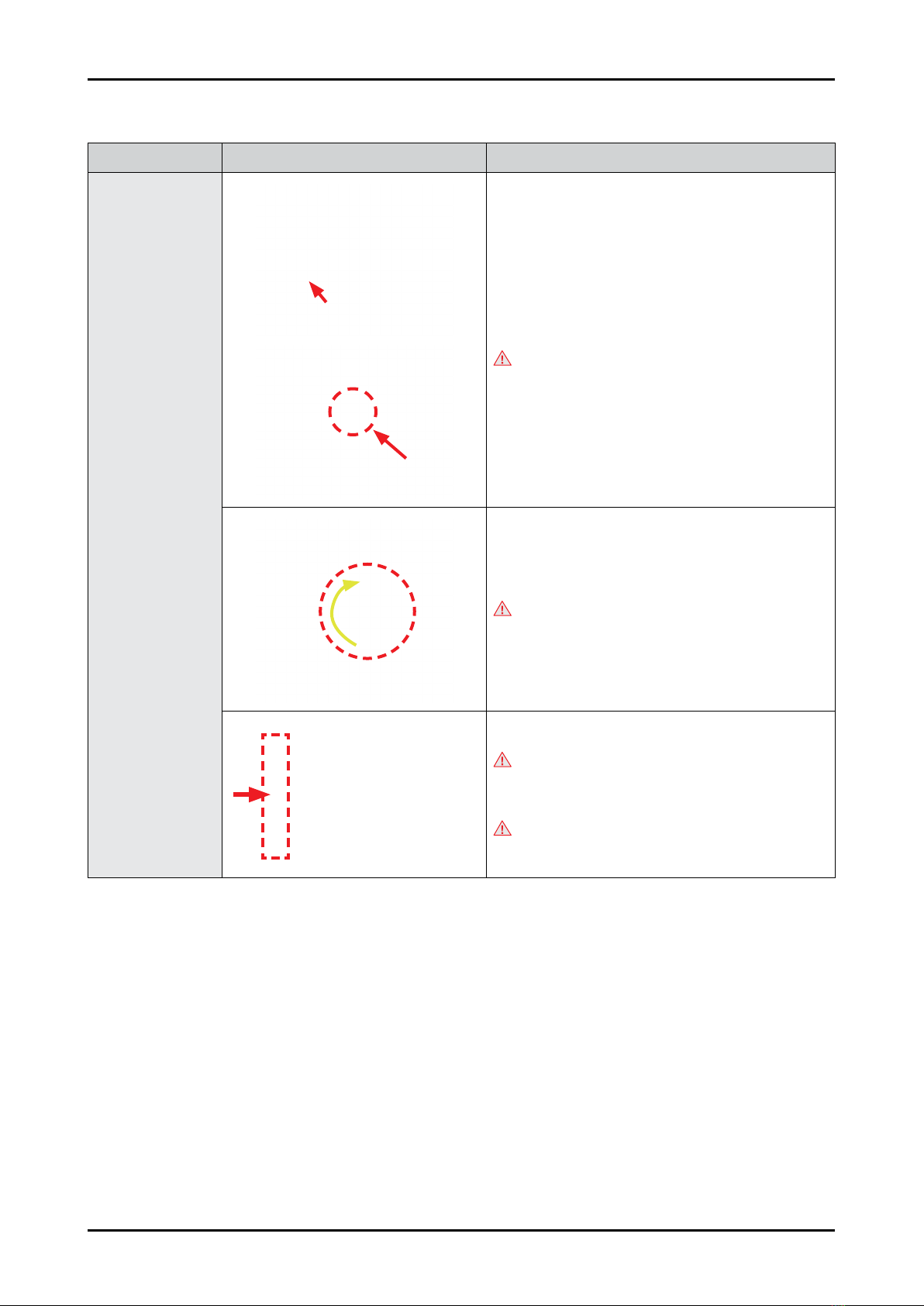

4. Remove the right SIDE PANEL.
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge.
5. Remove the DUCT DRY NUT by rotating in a
counter-clockwise direction with long-nose pliers.
- DUCT DRY NUT : DD81-02705A
CAUTION
It can be brake easily when you use the iron part
of the pliers. Take off the cap using the handle part
of the pliers to prevent damage.
Recycle Tank
6. Remove 1 screw from the RECYCLE TANK
assembly.
- Screw : DD81-02694A / 1pc
Gasket brake
7. Remove the GASKET BRAKE from the RECYCLE
TANK assembly.
- GASKET-BRAKE : DD81-02726A
Duct Dry Nut Gasket brake
10 _ Disassembly and Reassembly
Part Figure Description
RECYCLE
TANK/
DUCT DRY NUT/
GASKET
BRAKE
(DW60A8070*/
DW60A8060*
models)
Gasket brake
[ASSEMBLY]
1. Fit the GASKET BRAKE on the RECYCLE TANK,
and attach the FRESH TANK with screws.
- Screw : DD81-02694A / 1pc
CAUTION
Pay attention to assemble the seal correctly. It
can cause the water leakage when it’s assembled
wrong.
2. fasten the DUCT DRY NUT by rotating in a
clockwise direction
CAUTION
Wear gloves with friction and tighten rmly.
Otherwise, there is a risk of leakage.
3. Assemble the right SIDE PANEL with the screws.
CAUTION
Fasten the screws that was assembled to origin
location.
Don’t assemble to other locations.
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge.
