Hotpoint HDA1100ZWH Service manual

Specification Revised 8/99

HDA1100ZWH - Hotpoint Built-In Dishwasher

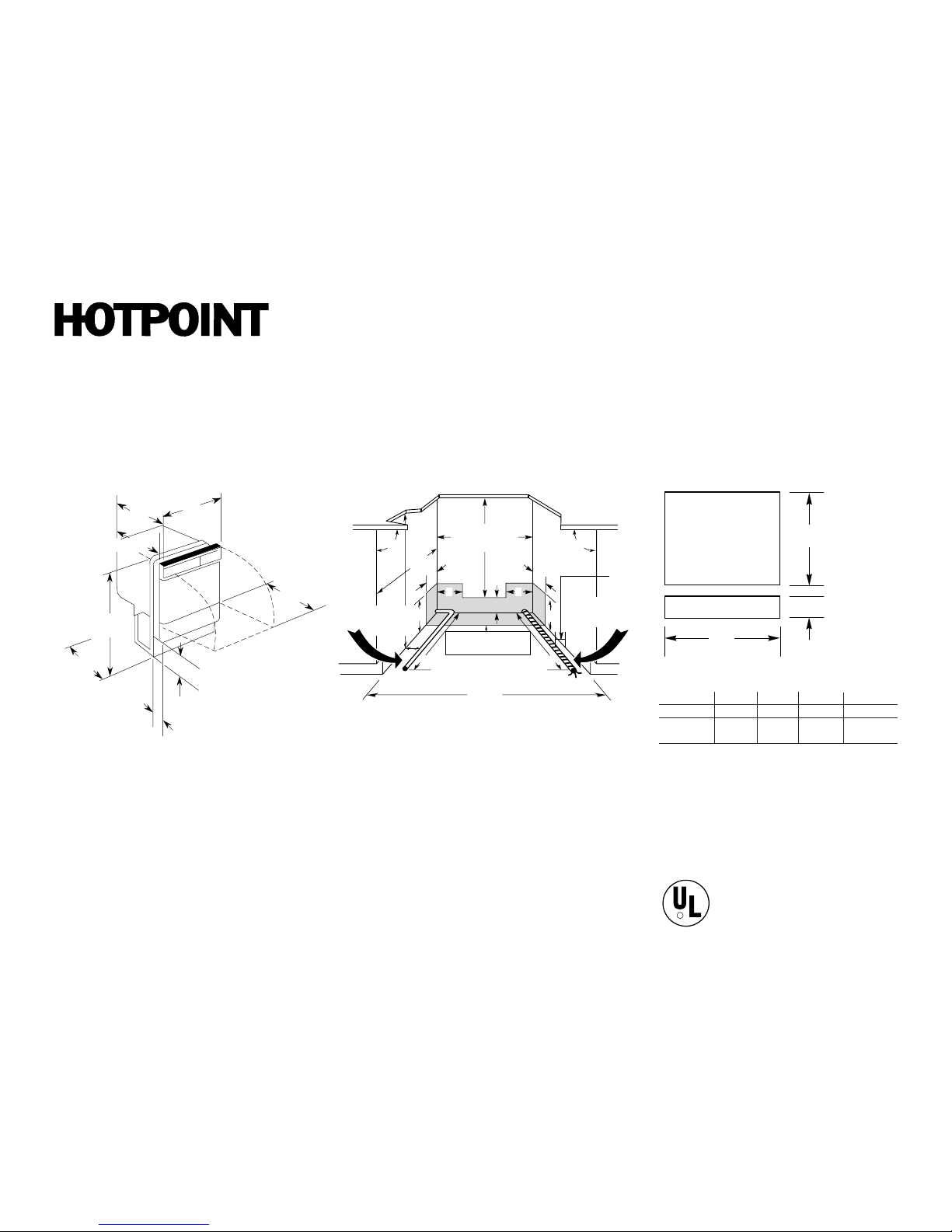

Dishwasher Dimensions (in inches) Wood Insert Cut-Out

Dimensions (in inches)

Installation Information

(in inches)

Note: Dishwasher must not be installed more than 10' from sink

for proper drainage. All plumbing and electrical work must be in

accordance with local codes. Dishwasher includes drain hose

and leveling legs.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Electrical Rating

Voltage AC.......................................................120

Hertz..................................................................60

Total connected load amperage.......................8.6

Calrod®heater watts.......................................500

For use on adequately wired 120-volt, 15-amp

circuit having 2-wire service with a separate

ground wire. This appliance must be grounded

for safe operation.

Listed by

Underwriters

Laboratories

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34-1/2±1/4"

Underside

of countertop

to floor

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

25-1/8*

21-1/2*

3-1/4 4 (Adjustable)

34" MIN.

adj. to 35"

*Add 1/4" for

*rear insulation

23-3/8*

24-3/4

Access insert

Door insert A

Panel

Models/Kits A B C Thickness

GPF325 Kit 18-7/8” 23-9/16” 3-11/16” 1/4”

4-1/4” to

GPF375 Kit 18-15/16” 23-5/8”* 3-3/4”** 3/4”

*Bottom of panel must be notched 1-1/2"x1/2" to clear

across panel

**Adjustment required to match adjcent cabinets fronts due to

leveling leg adjustment, 4" nominal.

Specification Revised 8/99

HDA1100ZWH - Hotpoint Built-In Dishwasher

OFF

HEATED

DRY

OFF

OFF NORMALWASH

SHORTWASH

DRYING

RINSE& HOLD

(HEATEDDRYOFF)

Features and Benefits

• 3 Cycles / 2 Options

• Normal Wash (Dial)

• Short Wash (Dial)

• Rinse Only / Hold (Dial)

• Heated Dry On/Off

• 2 Wash Levels

• Standard Wash Arm with Down Jet

• Standard Upper Rack

• Deluxe Flat Lower Rack

• Deluxe Silverware Basket

• Trimless Appearance

• Model HDA1100ZWH - White
