Samsung SL630 Instruction manual

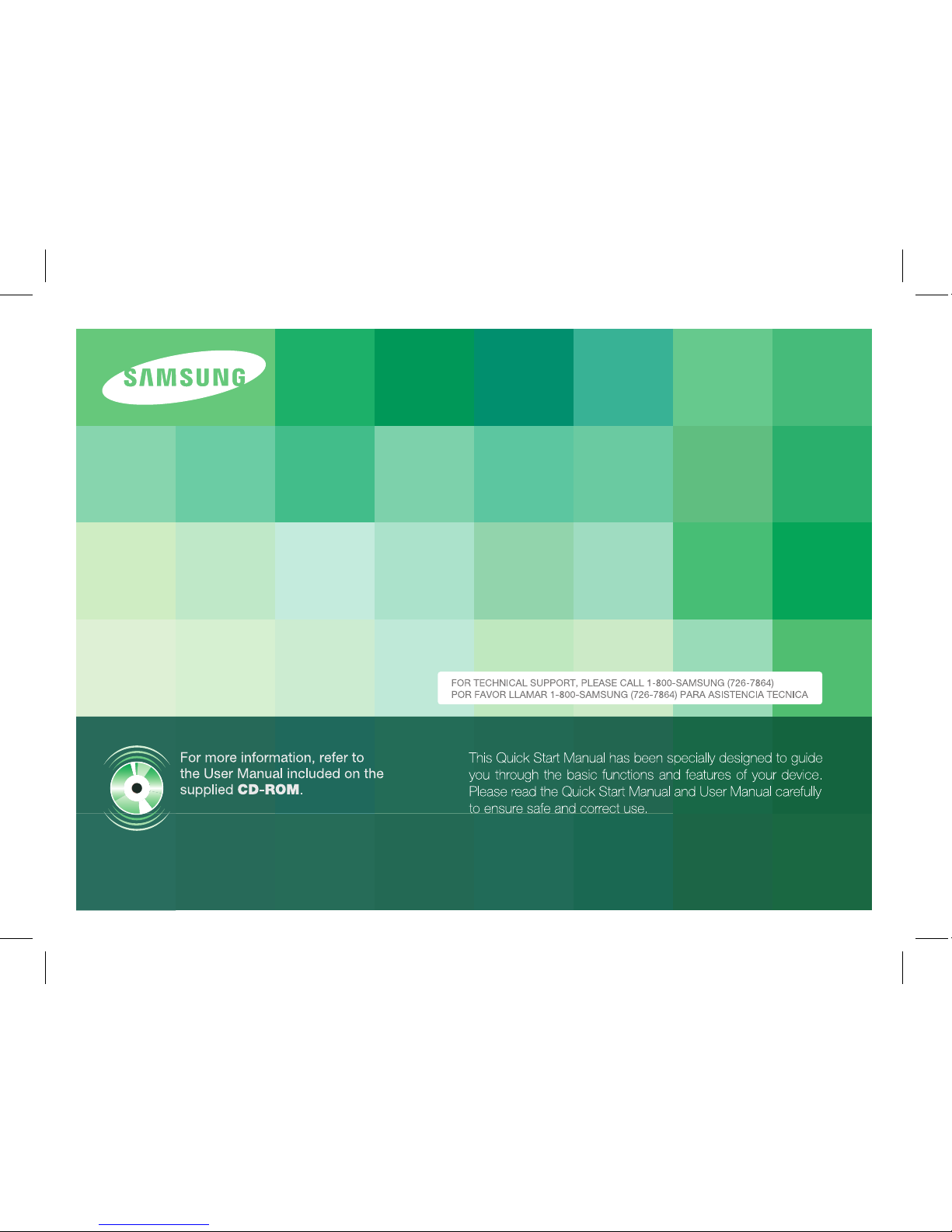

Quick Start Manual

SL630

ENG / SPA

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1m/3 ft) to

people or animals. Using the ﬂash too close to your subject’s

eyes can cause temporary or permanent damage.

Health and safety

information…………………… 2

Camera layout ……………… 4

Setting up your camera …… 5

Unpacking ……………………… 5

Inserting the battery and

memory card …………………… 6

Charging the battery …………… 7

Selecting options ……………… 7

Capturing photos or videos

… 8

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) …………………… 10

Speciﬁcations ……………… 11

English

Exercise caution when connecting cables or adapters•

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera’s•

compartments, slots, or access points. This type of

damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very•

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Prevent memory cards from making contact with•

liquids, dirt, or foreign substances. If dirty, wipe the

memory card clean with a soft cloth before inserting

in your camera.

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.•

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating•

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can•

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,•

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

Shutter button

Zoom W Lever (Thumbnail)

Zoom T Lever (Digital zoom)

POWER button

Smart button

AF-assist light/timer lamp

Speaker

Lens / Lens cover

Microphone

USB / AV / DC terminal

Flash

Camera layout

MENU button

Status lamp

MODE button

Strap eyelet

Fn/Delete button

Battery chamber cover

Playback button

Navigation button/OK button

Tripod mount

LCD monitor

English

Setting up your camera

Camera Rechargeable Battery

AD43-00194A

AC adapter/USB cable

AD44-00143A/

AD39-00165A

Camera strap

AD63-02604A

AD63-02596A

Quick Start Manual

AD68-04836A

Software CD-ROM

(User manual included)

AD46-00326A

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region.

To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Unpacking

Memory cards Camera case

A/V cable

AD39-00146A

Battery charger

AD44-00164A

Optional accessories

With the gold-coloured

contacts facing up

With the Samsung logo

facing up

Inserting the battery and memory card

▼

Removing the battery

▼

Removing the memroy card

Push gently until the card

disengages from the camera

and then pull it out of the

slot.

Setting up your camera

English

In Shooting mode, press [

Use the navigation buttons to scroll to an

option or menu.

Back

Photo Size

Move

To move left or right, press [▪] or [ ].

To move up or down, press [▪] or [ ].

Press [

] to conﬁrm the highlighted option or

menu.

Press [▪] again to go back to the previous

menu.

Selecting optionsCharging the battery

Indicator light

Red▪: Charging

Green▪: Fully charged

Before using the camera for the ﬁrst time, you must

charge the battery.

Taking a photo

Press [

] to select ( ).

(Press [ ], [ ] to select ( ).)

Align your subject in the frame.

Press [

Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.▪

Press [

Shutter] all the way down to take the

photo.

Recording a video

Press [

] to select ( ).

(Press [ ] to select ( ).)

Align your subject in the frame.

Press [

Shutter].

Press [▪] to pause or resume.

Press [

Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super ﬁne Fine Normal

4000 x 3000 168 238 362

3984 x 2656 195 267 407

3968 x 2232 229 305 477

3264 x 2448 244 326 514

2592 x 1944 362 489 699

2048 x 1536 543 674 752

1024 x 768 978 1,086 1,222

These ﬁgures are measured under Samsung’s standard

conditions and may vary depending on shooting conditions

and camera settings.

Capturing photos or videos

English

Playing ﬁles

Viewing photos

Press [

] or [ ] to scroll through ﬁles.

Press and hold to view ﬁles quickly.▪

Viewing videos

Press

[ ].

Press [

Play Capture

Use the following buttons to control playback.

[ ] Scan backward

[]Pause or resume playback

[]Scan forward

[Zoom] left or right Adjust the volume level

1110

Transferring ﬁles to a PC (Windows)

Insert the installation CD in a CD-ROM drive

and follow the onscreen instructions.

Connect the camera to the PC with the USB

cable.

Turn on the camera.

On your PC, select

My Computer →

Removable Disk →DCIM →100PHOTO.

Select the ﬁles you want and drag or save them

to the PC.

Disconnecting safely (for Windows XP)

Click

▼

Click
