Samsung NV100HD User manual

CONTENTS

1. Specification

2. Installation

3. Exploded view and Part list

4. Firmware

5. Adjustment

6. Block Diagram

7. Pattern Diagram

8. Circuit Diagram

9. Service Information

DIGITAL CAMERA

SERVICE

Manual

DIGITAL CAMERA

B-Type : SAMSUNG TL34

NV100HD

2- This Document can not be used without Samsung's authorization -

目　　　　录

.规格

1. 制品规格　　　　　　　　　　　　……………………………………………………………………… 4

2. 存储卡容量　　　　　　　　　　　　　　　　　　　　　　　……………………………………………………………… 8

ＬＣＤ显示器　　　　　　　　　　　

…………………………………………………………………………… 10

4. 连接图　　　　　　　　　　　　　……………………………………………………………………… 16

5. 相机各部位名称　　　　　　　　　　　　 …………………………………………………………… 17

.安装

1. 将文件拷入电脑　　　　　　　　　　　　　　　　　　　　　　　 …………………………………………………………… 20

2. USB : FAQ ……………………………………………………………………………………… 24

.分解图和零件清单

1. MAIN ASSEMBLY ……………………………………………………………………………… 26

2. BODY ASSEMBLY-1 …………………………………………………………………………… 28

3. BODY ASSEMBLY-2 …………………………………………………………………………… 30

4. TOP COVER ASSEMBLY ……………………………………………………………………… 32

5. FRONT COVER ASSEMBLY…………………………………………………………………… 34

6. BACK COVER ASSEMBLY …………………………………………………………………… 36

7. BARREL ASSEMBLY …………………………………………………………………………… 38

8. PACKING ITEM ………………………………………………………………………………… 42

.固件程序

1. 开发模式　　　　　　 ………………………………………………………………………………… 46

2. 初始化相机　　　　　　 ……………………………………………………………………………… 47

3. 确认版本　　　　　　　　　　　　 …………………………………………………………………………… 49

4. 升级固件程序　　　　　　　　　　 ………………………………………………………………………… 50

5. 触摸屏　　　　　　　　 …………………………………………………………………………………… 52

6. 触摸屏修复　　　　　　　　　　　　　　　　　　　 ……………………………………………………………………… 53

7. OIS 升级　　　　　 …………………………………………………………………………………… 54

.ADJUSTMENT

1. Adjustment Precautions ………………………………………………………………………… 56

2. Adjustment Data Backup and Restoration for Main Board Replacement …………………… 58

3. OIS Centering ADJ ……………………………………………………………………………… 59

4. Battery Level Test ……………………………………………………………………………… 60

5. CCD Gain Adjustment ………………………………………………………………………… 62

- This Document can not be used without Samsung's authorization -

CONTENTS

6. 快门关闭调整　　　　　　　　　　　　 ……………………………………………………………………… 64

7. 镜头周围曝光补偿调整　　　 ……………………………………………………………………… 66

8. 闪光调整　　　　　　　　　　　　　 ………………………………………………………………………… 68

9. 相面调整　　　　　　　 ……………………………………………………………………………… 70

10. 耐久测试　　　　 …………………………………………………………………………………… 72

11.

ＣＣＤ坏像素测试　　　　　　　　　　

……………………………………………………………………… 73

12.

ＣＣＤ黑色水平（ＯＢ）调整　　　　　　　　　　

…………………………………………………………… 74

.BLOCK DIAGRAM

………………………………………………………………………………………………… 78

.PATTERN DIAGRAM

1) MAIN_TOP

……………………………………………………………………………………… 79

2) MAIN_BOTTOM

………………………………………………………………………………… 80

.CIRCUIT DIAGRAM

1) MAIN_PCB_1

…………………………………………………………………………………… 81

2) MAIN_PCB_2

…………………………………………………………………………………… 82

3) MAIN_PCB_3

…………………………………………………………………………………… 83

4) MAIN_PCB_4

…………………………………………………………………………………… 84

5) MAIN_PCB_5

…………………………………………………………………………………… 85

6) MAIN_PCB_6

…………………………………………………………………………………… 86

7) MAIN_PCB_7

…………………………………………………………………………………… 87

8) MAIN_PCB_8

…………………………………………………………………………………… 88

9) MAIN_PCB_9

…………………………………………………………………………………… 89

10) MAIN_PCB_10

………………………………………………………………………………… 90

11) MAIN_TOP_FPCB_1

…………………………………………………………………………… 91

12) MAIN_TOP_FPCB_2

…………………………………………………………………………… 92

13) MAIN_CARD_PCB_1

…………………………………………………………………………… 93

14) MAIN_CARD_PCB_2

…………………………………………………………………………… 94

15) MAIN_CCD_FPCB

……………………………………………………………………………… 95

16) MAIN_STROBO_FPCB

………………………………………………………………………… 96

17) KEY_FPCB

…………………………………………………………………………………… 97

18) TOP_FPCB

…………………………………………………………………………………… 98

.维修知识

…………………………………………………………………………………………………99

4- This Document can not be used without Samsung's authorization -

.

SPECIFICATION

Image Sensor - Type : 1/1.72" (1.49cm) CCD

- Effective Pixel : Approx. 14.7 Mega-pixel

- Total Pixel : Approx. 15.0 Mega-pixel

Lens - Focal Length : Schneider - KREUZNACH lens f = 6.0 - 21.6mm

(35mm film equivalent : 28 - 102 mm)

- F-stop range : F2.8 (W) - F5.9 (T)

- Digital Zoom :·Still Image mode : 1.0X ~ 5.0X

·Play mode : 1.0X ~ 13.7X (depending on image size)

LCD Monitor - 3.0" (7.62cm) hVGA colour TFT LCD (460,000 pixels) (Touch)

Focusing - Type : TTL auto focus (Multi AF, Center AF, Touch AF, Face Detection AF)

- Range

Shutter speed - AUTO : 1 - 1/2,000 sec.

- MANUAL : 16 - 1/2,000 sec.

- NIGHT : 8 - 1/2,000 sec.

- FIREWORK : 4 sec.

Exposure - Control : Program AE

- Metering : Multi, Spot, Center Weighted, Face Detection AE

- Compensation : ±2EV (1/3EV steps)

- ISO Equivalent : Auto, 80, 100, 200, 400, 800, 1600,

3200 (Photo size of 3200 is fixed as 3M)

Flash - Mode : Off, Auto, Red Eye, Fill in, Slow Sync, Red Eye Fix

- Range : Wide: 0.3m - 5.5m (ISO Auto), Tele: 0.5m - 2.6m (ISO Auto)

- Recharging Time : Approx. 5 sec

1. CAMERA SPECIFICATION

Wide(W) Tele(T)

Normal 80cm - infinity 80cm - infinity

Macro 5cm - 80cm 50cm - 80cm

Auto Macro 5cm - infinity 50cm - infinity

5- This Document can not be used without Samsung's authorization -

. SPECIFICATION

Shake reduction - Dual IS [Optical Image Stabilisation (OIS) + Digital Image Stabilisation (DIS)]

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

Effect - Shooting mode :

·Photo Style Selector : Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic

·Color : Normal, B & W, Sepia, Blue,Red, Green, Negative

·Image adjust : Sharpness, Contrast, Saturation

- Playback mode :

·Image edit : Resize, Rotate, Trimming

·Color effect : Normal, B & W, Sepia, Blue, Red, Green, Negative

·Special color : Color Filter, Shaded, Elegant, Add Noise

·Image adjust : Face retouch, Brightness, Contrast, Saturation, Red Eye Fix, ACB

White Balance - Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Set

Voice Recording - Voice Recording (Max 10 hours)

- Voice Memo in Still Image (Max. 10 sec.)

Date Imprinting - Date & Time, Date, Off (user selectable)

Shooting - Photos :

·Modes : AUTO, PROGRAM, MANUAL, DUAL IS, NIGHT, BEAUTY SHOT, SCENE

(PORTRAIT, CHILDREN, LANDSCAPE, CLOSE UP, TEXT, SUNSET,

DAWN, BACKLIGHT, FIREWORK, BEACH & SNOW, SELF SHOT, FOOD,

CAFÉ)

·Continuous : Single, Continuous, High Speed, M. Capture, AEB

·Timer : 10 sec, 2 sec, Double, Remote

- Videos :

·With Audio or without Audio (Max Recording time : 25min)

·Size : 1280x720 High Quality, 1280x720 Standard Quality, 640x480, 320x240

·Frame rate : 60 FPS, 30 FPS, 15 FPS

·3.6X Optical Zoom and Mute in Zooming

(sound is muted when operating the zoom function)

·Color Effect & WB selectable

6- This Document can not be used without Samsung's authorization -

.

SPECIFICATION

·Video Editing (embedded) : Pause during recording, Still Image Capture,

Time Trimming

*Due to the noise while optical zooming, user can select to record sound or not.

Storage - Media :

·Internal memory : approx. 40MB

·External Memory (Optional) : SD card (up to 4GB guaranteed)

SDHD card (up to 8GB guaranteed)

MMC Plus (up to 2GB guaranteed, 4bit 20MHz)

*Internal memory capacity is subject to change without prior notice.

- File Format :

·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0

·Video : MP4 (H.264(MPEG4.AVC))

·Audio : WAV

- Image Size

- For 1GB SD

These figures are measured under Samsung’s standard conditions and may vary

depending on shooting conditions and camera settings.

Image Play - Type : Single image, Thumbnails, Advanced slide show (with effect and music)

Interface - Digital output connector : USB 2.0 (30pin)

- Audio output : Mono(Internal Speaker), Stereo(Microphone)

- Video output : AV: NTSC, PAL (selectable)

HDMI 1.2: NTSC, PAL (selectable)

* HDMI is available when it is connected to the optional cradle.

Super fine 136 153 180 240 370 807 1655

Fine 265 296 347 457 685 1374 2438

Normal 386 430 501 653 957 1794 2894

4384x3288 4384x2920 4384x2464 3264x2448 1920x10802592x1944 1024x768

7- This Document can not be used without Samsung's authorization -

. SPECIFICATION

- DC power input connector : 30 pin, 4.2V

Power Source - Rechargeable battery : Lithium-ion battery SLB-1137D (1100mAh)

- AC adapter : Power adapter (SAC-47), USB cable (SUC-C4)

- Cradle (Optional) : SCC-NV5 HD

The power source may differ depending on your region.

Dimensions (WxHxD)

- 94.9 x 59.5 x 19.9mm (without projection part)

Weight - 138g (without battery and memory card)

Operating Temperature

- 0 ~ 40°C

Operating Humidity

- 5 ~ 85%

Software - Samsung Master, QuickTime® Player 7.4, Adobe Reader

8- This Document can not be used without Samsung's authorization -

.

SPECIFICATION

2. The capacities of the memory card

You can prevent files from being deleted by using a write-protect switch on the SD or SDHC card.

Slide the switch down to lock or slide it up to unlock.

Unlock the card when shooting.

You can use SD (Secure Digital), SDHC (Secure Digital HighCapacity), or MMC (MultiMedia Card)

memory cards.

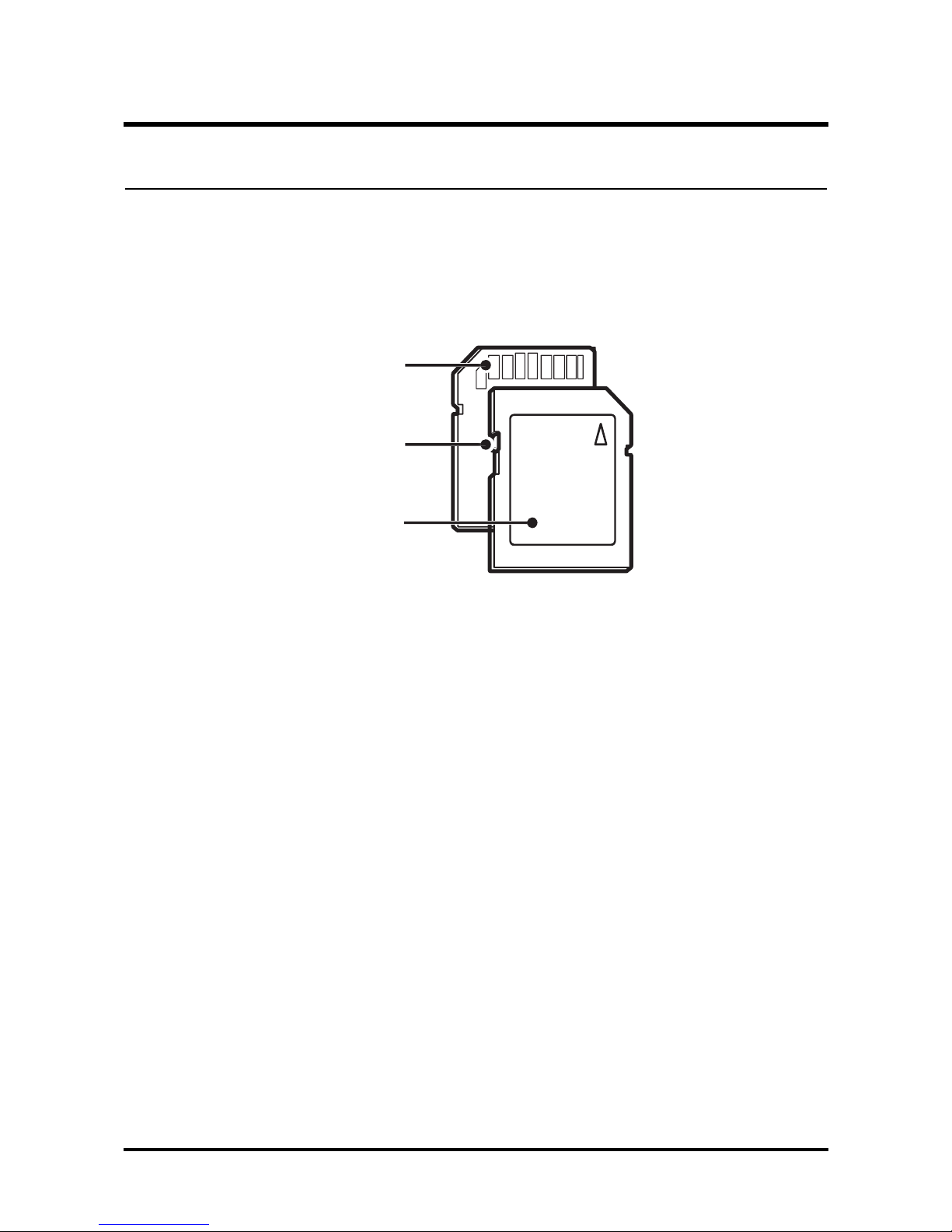

Terminal

Write-protect switch

Label (front)

[SD (Secure Digital) memory card]

9- This Document can not be used without Samsung's authorization -

. SPECIFICATION

The zoom button doesn’t function during the movie recording.

The recording times can be changed by the zoom operation.

The memory capacity may differ depending on shooting scenes or shooting conditions.

For 1GB SD card:

Size

Super Fine

136

153

180

240

370

807

1655

Fine

265

296

347

457

685

1374

2438

Fine

386

430

501

653

957

1794

2894

60 FPS

About 25'

30 FPS

About 10' 33"

About 20' 47"

About 25'

15 FPS

About 20' 47"

About 25'

10 - This Document can not be used without Samsung's authorization -

.

SPECIFICATION

3. LCD monitor indicator

Recording mode

[ Image & Full Status ]
