Samsung MIM-B13A User manual

Transmitter

MIM-B13A

MIM-B13AC

MIM-B13B

Air Conditioner

installation manual

DB98-29543A(4)

CEK

imagine the possibilities

Thank you for purchasing this Samsung product.

MIM-B13A_IM_E_29543-4.indd 21 2010-09-03 오후 2:27:48

E-2

Safety Precautions

Read this installation manual carefully before installation

and check whether the transmitter is installed correctly

after installation.

Do not attempt to install or repair this transmitter by

yourself.

This transmitter contains no user-serviceable parts.

Always consult authorized service personnel for repairs.

Must install the transmitter with the cable which is

supplied with the transmitter.

When moving, consult authorized service personnel for

disconnection and installation of the transmitter.

The transmitter must be installed according to the

national electrical rules by an installation specialist.

When you want to disuse the centralized control,

consult authorized installation center.

WARNING

CAUTION  Do not use inflammable gases near the centralized

control.

Do not install the centralized control in a location where

it will come into contact with the combustible gases,

machine oil, sulphide gas, etc.

Avoid a location where acid/alkali solution or special

spray is used.

 Do not spill water into the transmitter.

Do not give tensile strength to the cable to avoid

disconnection.

 Do not connect the power cable to the control terminal.

 If the transmitter is installed in a hospital or other special

places, it should not affect other electronic devices.

This installation manual indicates you to install the transmitter which is attached

to the outdoor unit to use the centralized control. For installation of other optional

accessories, see an appropriate installation manual.

MIM-B13A_IM_E_29494-1.indd 2 2008-03-19 ｿﾀﾈﾄ 12:22:16

E-3

ENGLISH

Transmitter Installation(For 64 indoor units)

Accessories

Transmitter MAIN Transmitter SUB

 

   

485 Communication

Cable

DC Power Cable

(12V)

DC Power Cable

(5V)

Communication

Cable

Cable Tie

Case

For certain types of outdoor unit, if the DC power cable

provided with the transmitter can not be used, use the DC

power cable provided with the outdoor unit.

1Attach the transmitter to the left side of the electrical

component box in the outdoor unit, then connect the power

and communication cable between the transmitter and the

outdoor unit; refer to the figure in page 4.

2If you install a transmitter to an outdoor unit, every indoor

unit which is connected to an outdoor unit can be controlled

simultaneously.

3If the number of installed indoor units connected to the

outdoor unit is below 16, install only the transmitter MAIN PCB.

If the number of installed indoor units connected to the

outdoor unit is over 16, install with a transmitter SUB PCB.

MIM-B13A_IM_E_29494-1.indd 3 2008-03-19 ｿﾀﾈﾄ 12:22:16

E-4

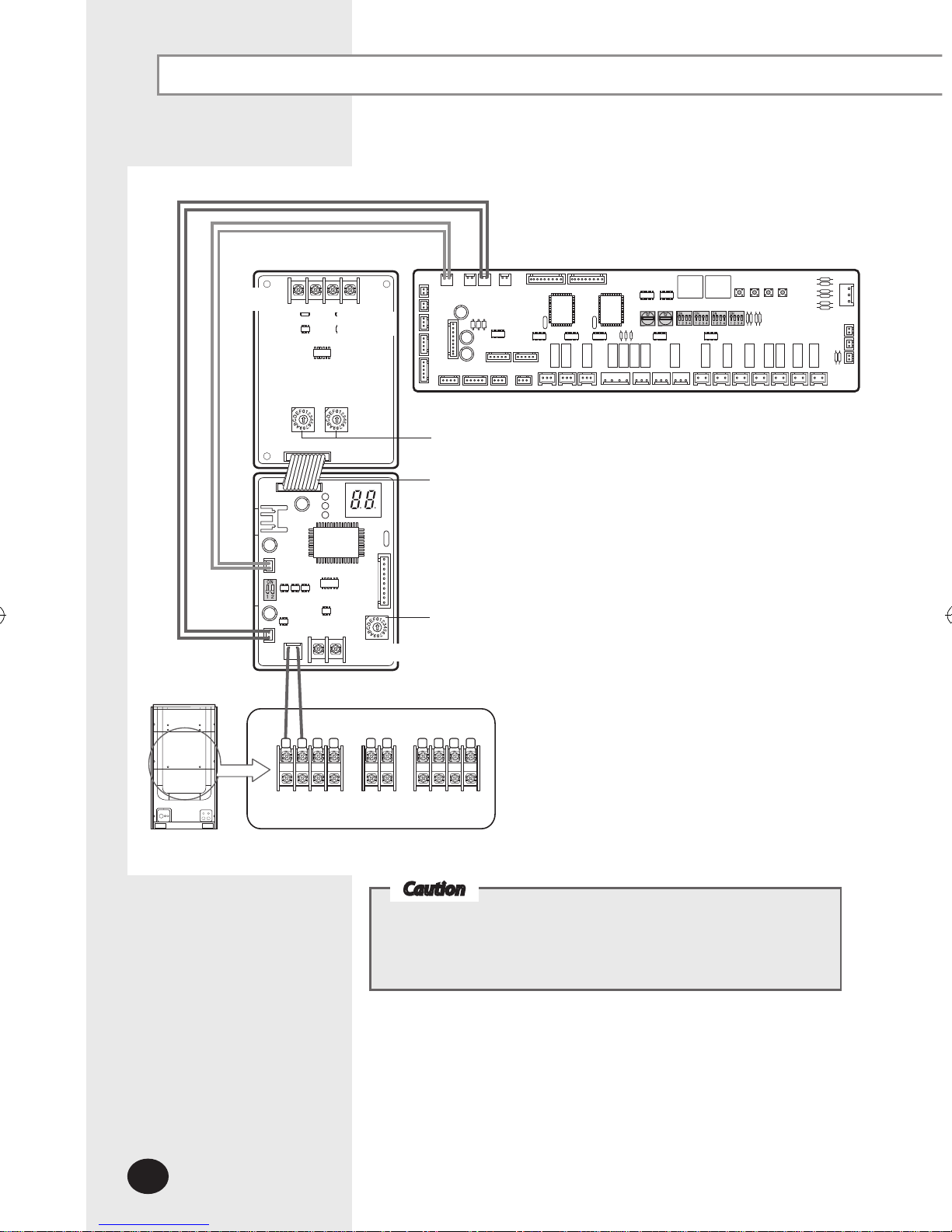

Transmitter Installation (Continued)

All cables must be installed according to the national wiring

regulation and make sure the wires are installed inside the

wall.

Caution

   

 

      





Transmitter ADDRESS Seting Switch

Communication Cable between

transmitter



Terminal board

Transmitter ADDRESS Setting Switch

Channel 0

Channel 1

Channel 2

DC 12V

supply

DC 5V

supply

Control panel

Outdoor unit Transmitter MAIN PCB

Transmitter SUB PCB

12V

(BLU)

(BLK)

Outdoor unit PCB

MIM-B13A_IM_E_29494-1.indd 4 2008-03-19 ｿﾀﾈﾄ 12:22:17

E-5

ENGLISH

Transmitter Installation (Continued)

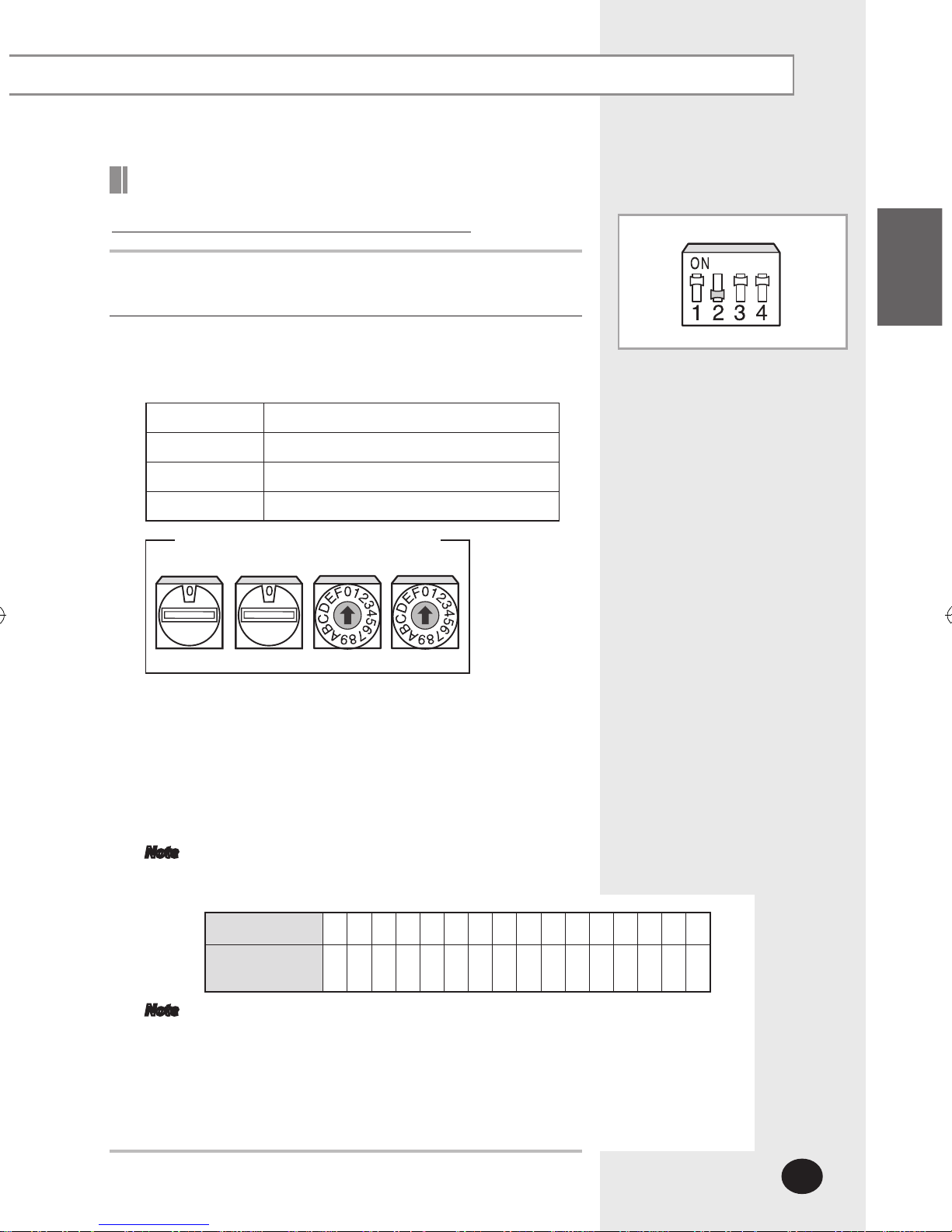

Setting up Option Switches (Indoor Unit)

1Adjust K2 DIP switch(SW05) on the indoor unit PCB to the

'OFF' position to enable centralized control.

2Set the RMC(1) and RMC(2) switch among the address setup

switches of indoor unit main PCB as below.



RMC(1)

Setting Meaning

Select transmitter 'channel 0'

Select transmitter 'channel 1'

Select transmitter 'channel 2'

SW01 SW02 SW03 SW04

Indoor unit address setup switch

MAIN(TEN) MAIN(ONE) RMC(1) RMC(2)

In Case of Installing Centralized Control Only

K1 K2 K3 K4

SW05



RMC(2)

Note The numbers on the centralized control represent

the RMC(2) addresses of indoor units.

Refer to the table below.

RMC(2) Address 0 1 2 3 4 5 6 7 8 9 A B C D E F

Button No. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Note 

Individual control

means a centralized controller controls only 1 indoor unit. In this case,

you should assign the RMC address to the indoor unit.



Group control

means a centralized controller controls more than 2 indoor units. In this case,

you should assign the RMC address to each indoor unit to be controlled by the

centralized controller and cannot use a wireless remote controller.

 

If the RMC (1) switch is set to other numbers besides

0, 1, and 2, communication error occurs.

 

According to the number of installed indoor units,

transmitter connection setup is changed. For detailed

installation structure, refer to the installation example of

central control + transmitter (pages 7 to 17).

MIM-B13A_IM_E_29494-1.indd 5 2008-03-19 ｿﾀﾈﾄ 12:22:18

E-6

The transmitter channel for controlling the indoor unit is set according to the

RMC(1) switch of the indoor unit.

Setting Meaning Remarks

Select transmitter 'channel 0' Control the indoor unit by

using the centralized control

connected to the selected

channel

Select transmitter 'channel 1'

Select transmitter 'channel 2'

Yes

Install the Transmitter MAIN PCB

and the SUB PCB separately.

Is the number

of indoor units over 16?

Install the Transmitter MAIN PCB

only.

Set the Transmitter

address differently.

(DS01, DS02, DS03).

Transmitter Installation (Continued)

Transmitter Classifying Flow Chart



Select and install the transmitter according to the number of

installed indoor units.



If the number of indoor units connected to the outdoor unit is

below 16 : Install the Transmitter MAIN PCB only.



If the number of indoor units connected to one outdoor unit is

over 16 : Install the Transmitter MAIN PCB and the SUB PCB

separately.

Note 

When setting the indoor unit address



If the RMC(1) switch is set to '0', the Centralized Controller

should to be connected to 'channel 0'.

If the RMC(1) switch is set to '1', the Centralized Controller

should to be connected to 'channel 1'.

If the RMC(1) switch is set to '2', the Centralized Controller

should to be connected to 'channel 2'.



If the MAIN address is set incorrectly, the communication

error occurs.

MIM-B13A_IM_E_29494-1.indd 6 2008-03-19 ｿﾀﾈﾄ 12:22:18

E-7

ENGLISH

Transmitter Installation (Continued)

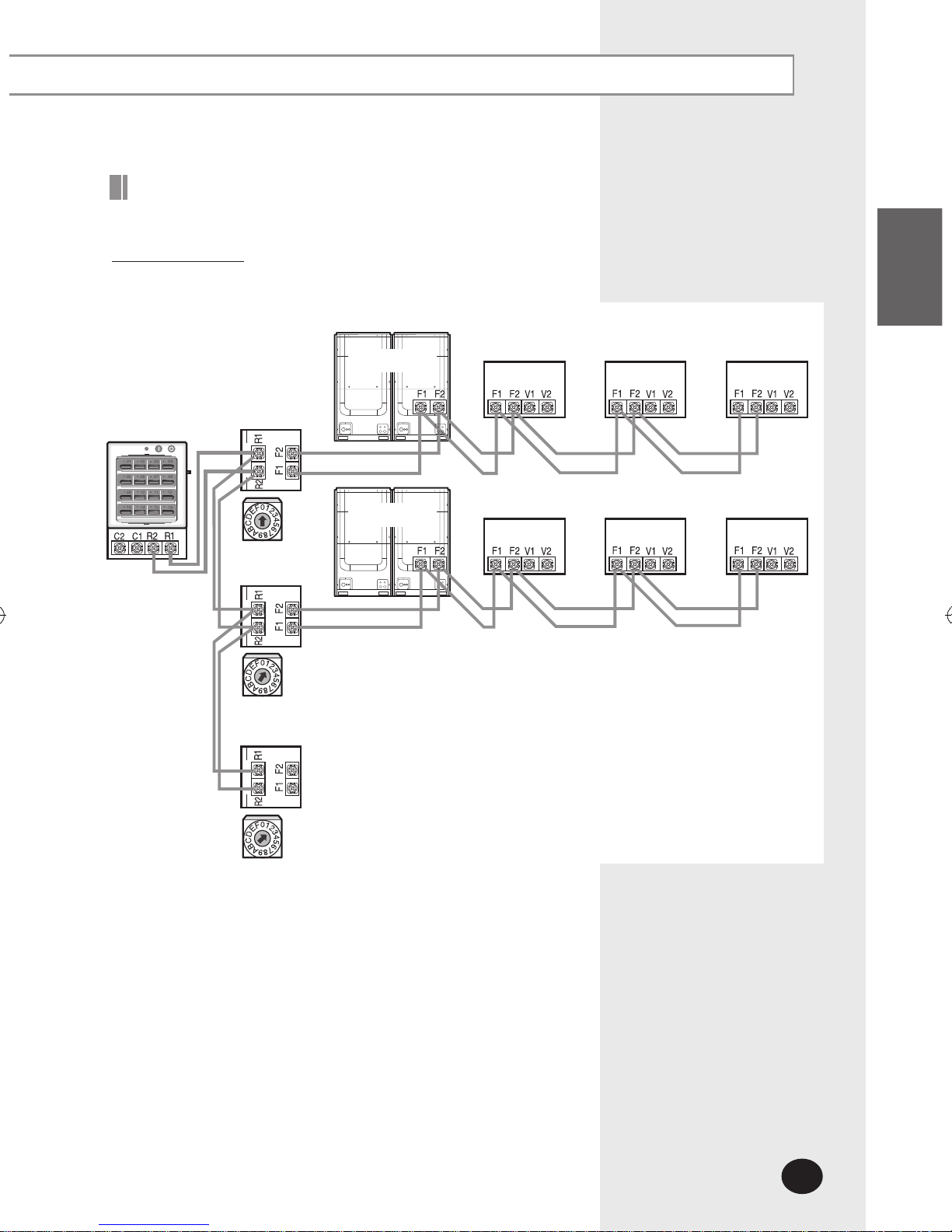

If the number of installed indoor units

connected to one outdoor unit is below 16

Wiring Diagram



Distance between the centralized control and the last

transmitter should be 1000 meters or less.

Transmitter

Centralized

control

Outdoor unit 1 Indoor unit

Transmitter

Outdoor unit 2

Indoor unit Indoor unit

Indoor unit Indoor unit Indoor unit

MAIN 0 RMC(1) 0

RMC(2) 0

MAIN 1 RMC(1) 0

RMC(2) 1

MAIN 2 RMC(1) 0

RMC(2) 2

MAIN 3 RMC(1) 0

RMC(2) 3

MAIN 4 RMC(1) 0

RMC(2) 4

MAIN 5 RMC(1) 0

RMC(2) 5

Channel 0Channel 0Channel 0

MIM-B13A_IM_E_29494-1.indd 7 2008-03-19 ｿﾀﾈﾄ 12:22:18

E-8

   

 

SW01 SW02 SW03

SW03

SW04

SW03

Centralized

control

Outdoor unit

Controls 16 indoor units

with the RMC(1) switch

set to '2'.

Channel 2 Channel 1

Channel 0

Centralized

control

Controls 16 indoor units

with the RMC(1) switch

set to '1'.

Centralized

control

Controls 16 indoor units

with the RMC(1) switch

set to '0'.

DIP 1

OFF : 12V, 5V Supply



Transmitter ADDRESS switch

setting should be set respectively.

Power cable(DC 12V)

Power cable(DC 5V)

Communication Cable

Transmitter

Transmitter Installation (Continued)

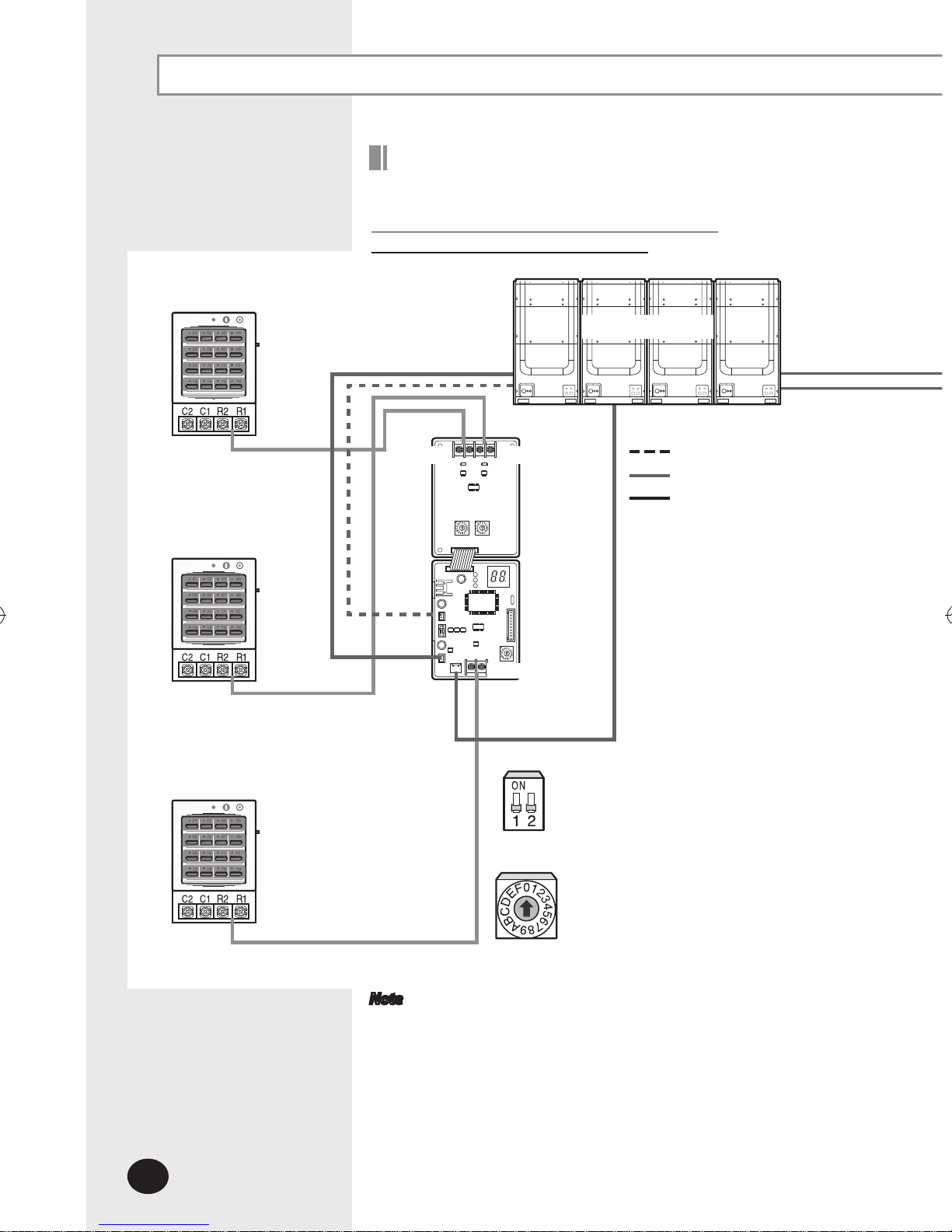

If the number of installed indoor units

connected to one outdoor unit is over 16

To install 48 Indoor units for 1 Outdoor unit

(Individual control of indoor units)

Note 

When setting the indoor unit address



If the RMC(1) switch is set to '0', the Centralized Controller

should to be connected to 'channel 0'.

If the RMC(1) switch is set to '1', the Centralized Controller

should to be connected to 'channel 1'.

If the RMC(1) switch is set to '2', the Centralized Controller

should to be connected to 'channel 2'.



If the MAIN address is set incorrectly, the communication

error occurs.

MIM-B13A_IM_E_29494-1.indd 8 2008-03-19 ｿﾀﾈﾄ 12:22:19

E-9

ENGLISH

   

 

SW01 SW02 SW03

SW03

SW04

SW03

Indoor

unit

ADDRESS

MAIN(TEN) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

MAIN(ONE) 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5

RMC(1) 0

RMC(2) 0 1 2 3 4 5 6 7 8 9 A B C D E F

Indoor unit

MAIN(TEN) MAIN(ONE) RMC(1) RMC(2)

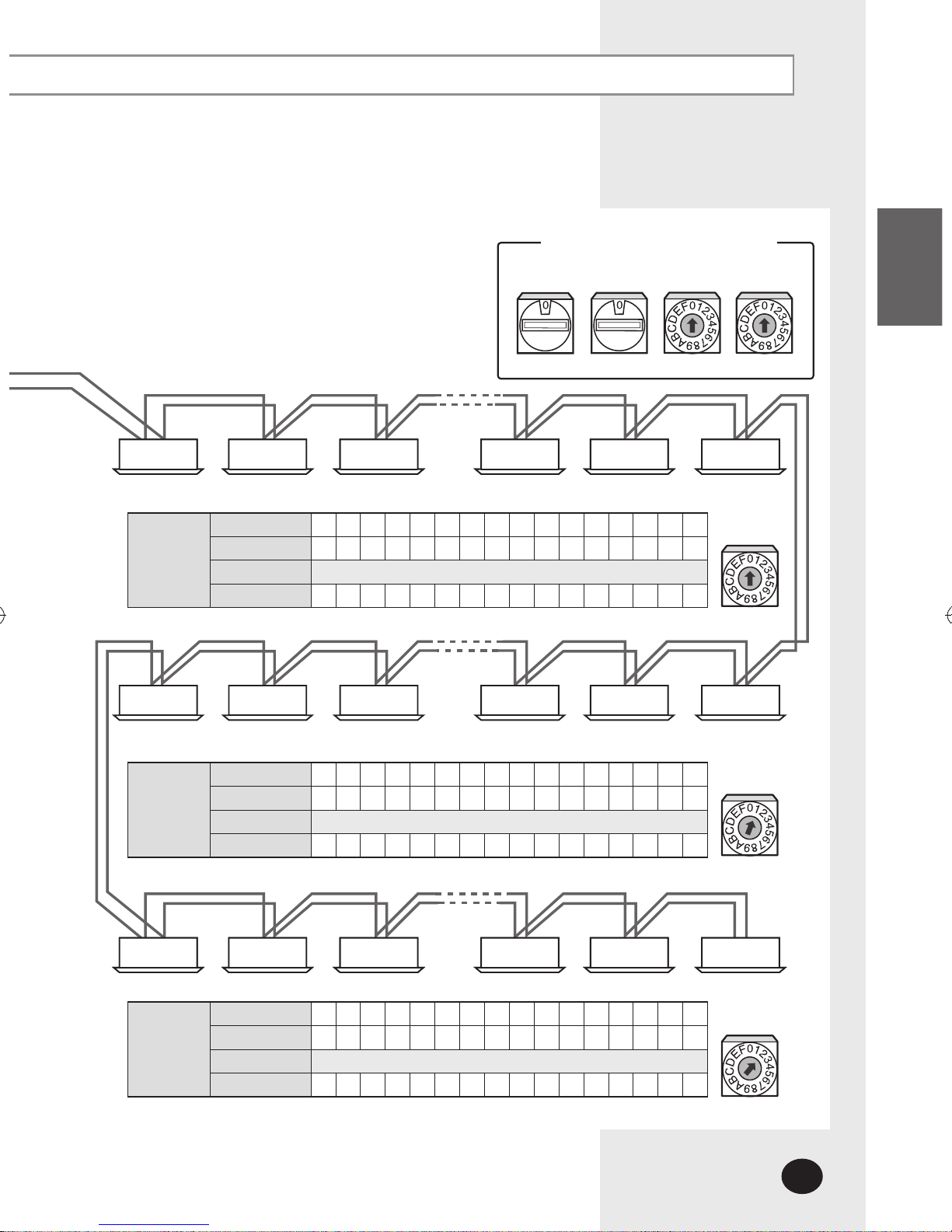

When setting the indoor unit address

Indoor

unit

ADDRESS

MAIN(TEN) 1 1 1 1 2 2 2 2 2 2 2 2 2 2 3 3

MAIN(ONE) 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1

RMC(1) 1

RMC(2) 0 1 2 3 4 5 6 7 8 9 A B C D E F

Indoor

unit

ADDRESS

MAIN(TEN) 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4

MAIN(ONE) 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7

RMC(1) 2

RMC(2) 0 1 2 3 4 5 6 7 8 9 A B C D E F

Indoor unit

3~ 12

Indoor unit

19~28

Indoor unit

35~44

RMC(1)

Transmitter Installation (Continued)

MIM-B13A_IM_E_29494-1.indd 9 2008-03-19 ｿﾀﾈﾄ 12:22:20

E-10

   

 

SW01 SW02 SW03

SW03

SW04

SW03

Centralized

control

Outdoor unit

Controls 16 indoor units

with the RMC(1) switch

set to '1'.

Channel 2 Channel 1

Channel 0

Centralized

control

Controls 16 indoor units

with the RMC(1) switch

set to '0'. DIP 1

OFF : 12V, 5V Supply



Transmitter ADDRESS switch

setting should be set respectively.

Transmitter

Transmitter Installation (Continued)

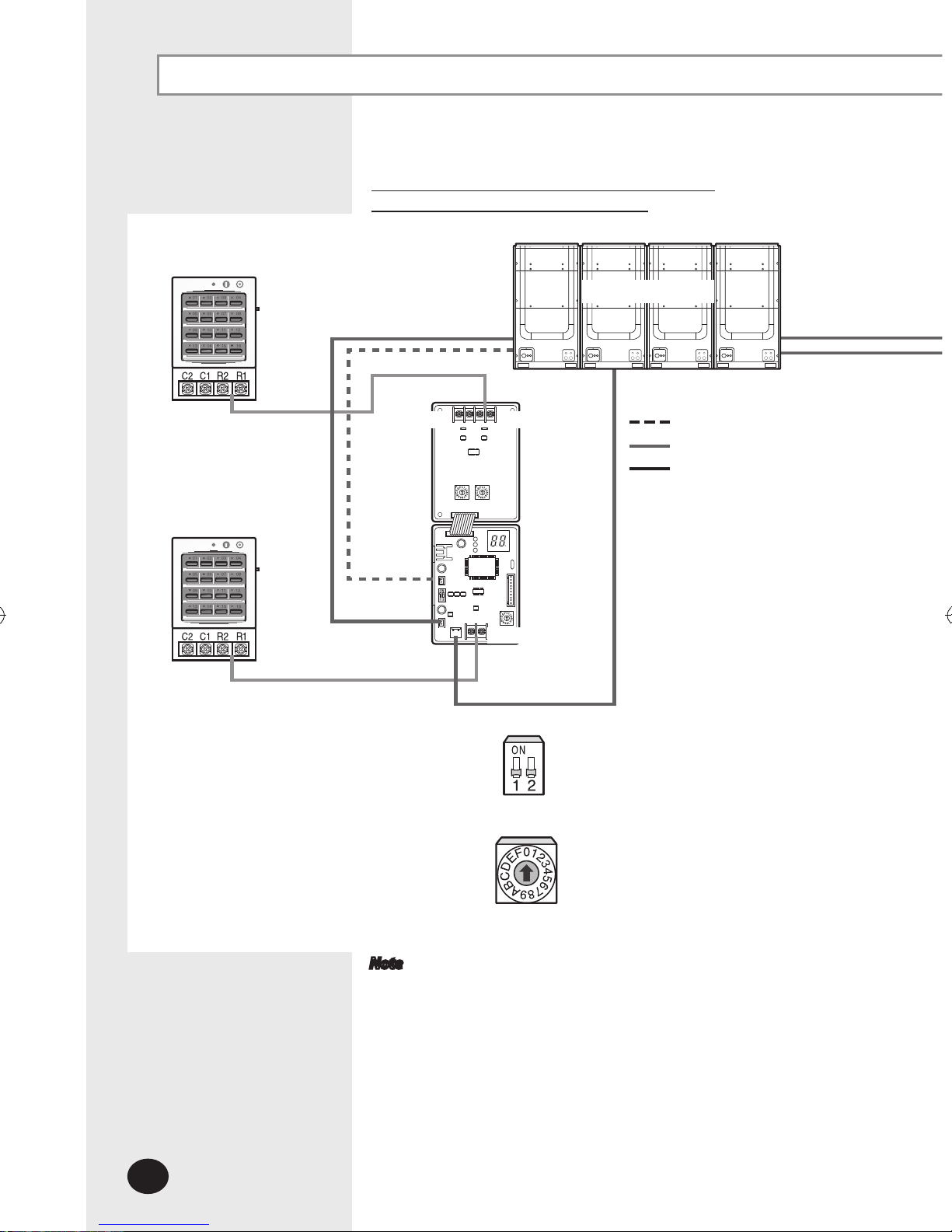

To install 32 indoor units for 1 outdoor unit

(Individual control of indoor units)

Power cable(DC 12V)

Power cable(DC 5V)

Communication Cable

Note 

When setting the indoor unit address



If the RMC(1) switch is set to '0', the Centralized Controller

should to be connected to 'channel 0'.

If the RMC(1) switch is set to '1', the Centralized Controller

should to be connected to 'channel 1'.

If the RMC(1) switch is set to '2', the Centralized Controller

should to be connected to 'channel 2'.



If the MAIN address is set incorrectly, the communication

error occurs.

MIM-B13A_IM_E_29494-1.indd 10 2008-03-19 ｿﾀﾈﾄ 12:22:21

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung ARJ series User manual

Samsung

Samsung AVMCH070EA4 User manual

Samsung

Samsung AW0719 User manual

Samsung

Samsung AVXC1H022EA User manual

Samsung

Samsung AR CXCA Series User manual

Samsung

Samsung AC TN4P Series User manual

Samsung

Samsung AVMKH035EA0 User manual

Samsung

Samsung AM072/096/120/144FXVAFH User manual

Samsung

Samsung SH18ZP0B User manual

Samsung

Samsung AM072BXV Series User manual

Samsung

Samsung EH052EAMC User manual

Samsung

Samsung AS09HPBN User manual

Samsung

Samsung AW0700A Setup guide

Samsung

Samsung SH09AI8VX User manual

Samsung

Samsung AQV09NSD User manual

Samsung

Samsung AC BNADCH Series User manual

Samsung

Samsung AC BN DCH Series User manual

Samsung

Samsung PC1MWFMAN User manual

Samsung

Samsung AS09USeries Guide

Samsung

Samsung AWT18P1HBA User manual

Samsung

Samsung SH07AWHX User manual

Samsung

Samsung SH07ZP2 Series User manual

Samsung

Samsung AM040FXMDEH User manual

Samsung

Samsung AQ24P6GEA6/SAR User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
