Samsung DH105CAV User manual

ENGLISH

USER’S MANUAL

Indoor Unit Outdoor Unit

DH105CAV UH105CAV

DH140CAV UH140CAV

System Air Conditioner

(Cooling and Heating)

ESPAÑOLFRANÇAIS

DB98-29517A(1)SE F

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-2

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes

at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of

material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,

for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Contents



PREPARING YOUR AIR CONDITIONER



Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3



View of the Indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8



RECOMMENDATIONS FOR USE



Periodical Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9



Protections enabled by the Unit control system . . . . . . . . . . . . . . . . . . . . . . . 10



Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11



Operating Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12



Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13



Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-3

ENGLISH

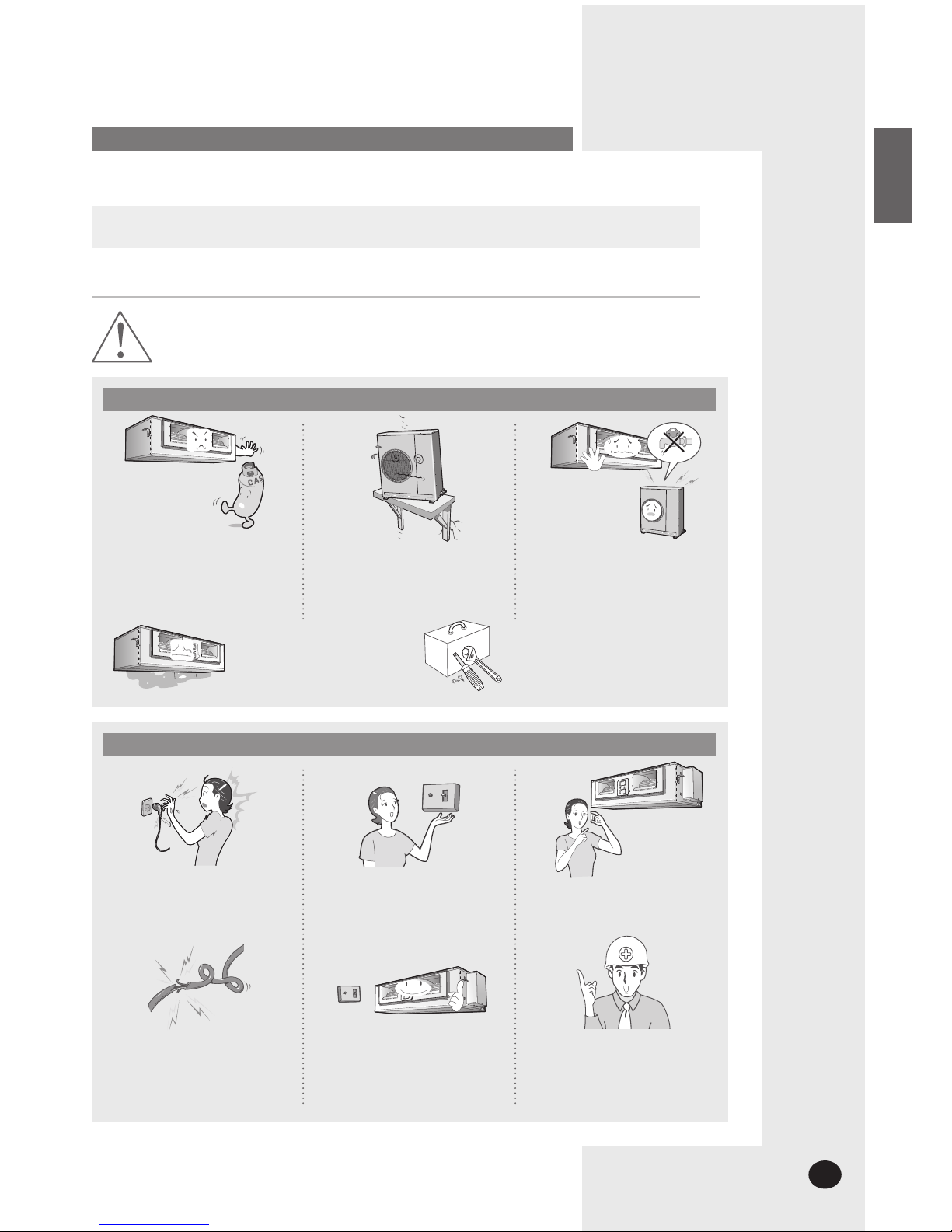

Safety Precautions

The following safety precautions are provided to protect the users’ safety and prevent property damage.

Make sure to read the followings and use the air conditioner properly.

 Keep this user’s manual together with the installation manual in a handy place so that you can find it whenever

you need to see it after reading this manual thoroughly.



Do not pull the electric wire

or touch the power plug with

the wet hands.



Install the switch and circuit

breaker only for

air conditioner.



Use the rated current fuse.

REGARDING POWER SOURCE



Do not bend the electric wire

by force or weigh down the

air conditioner not to be out

of order.



Use the power source with

separate wiring only for air

conditioner.



If the power plug is

damaged, replace it by the

manufacturer or qualified

personnel to avoid the risk.



Do not install the unit in a

place where it is exposed to

inflammable gas leakage.



Do not install the outdoor

unit where there’s the risk of

dropping such as on high

outer wall or outside of the

terrace.



Do not connect the ground

to a gas pipe, water pipe,

lightning rod or telephone

earth.

WHEN INSTALLING



Contact the service center

if the air conditioner is

under water.



The installation must be carried out

by a licensed installer or qualified

personnel when installing the unit

for the first time or reinstalling it.

WARNING

 This indicates the possibility of serious injury or death.

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-4

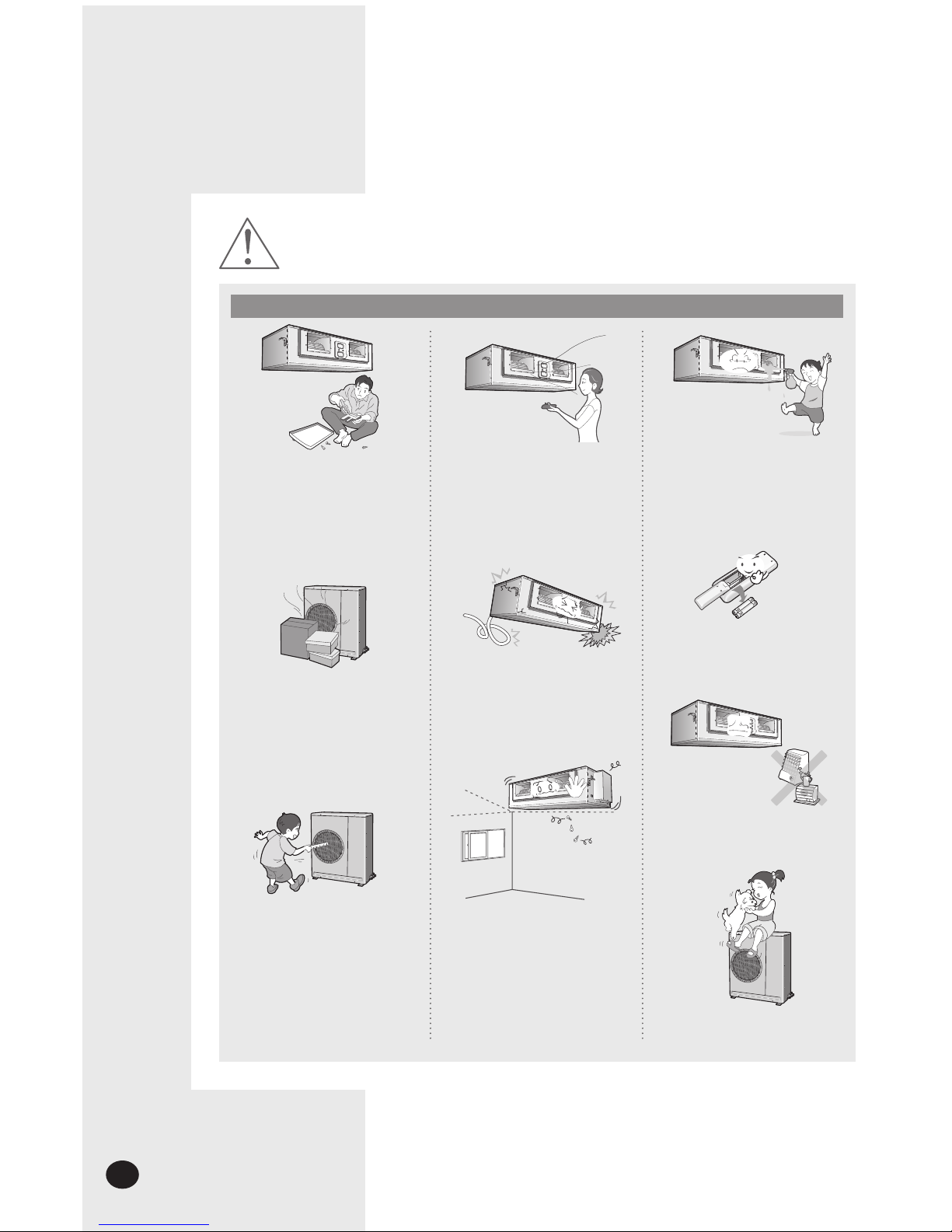

WARNING



Do not attempt to repair,

move, modify or reinstall

the unit on your own. Make

sure that these installations

are carried out by qualified

personnel to avoid electric

shock or fire.



Never spill any kind of liquid

into the unit. Should this

happen, unplug or main

switch off the unit and

contact an authorized

service center.

DURING OPERATION



Do not place any obstacles in

front of the unit.

Make sure that the unit is

correctly ventilated at all

times: Do not place clothing

or other materials over it.



If the wireless remote

control is not used for

a long time, remove the

batteries. (If applicable)



When using a wireless

remote control, the distance

should not be more than

23 ft (7m) from the air condi-

tioner. (If applicable)



Do not place any materials

so that children cannot step

on it.



Do not connect the electric

heater to the air conditioner

or repair it with your

discretion.



The manufacturer declines

any liability for damage

resulting from modifications

or errors in the electrical or

hydraulic connections.



Do not insert anything

between the air outlet

blades because the inner fan

may be damaged and could

cause injury. Keep children

away from the unit.



Failure to observe the

installation instruction, or use

of the unit under conditions

other than those indicated in

the table 'Operating limit' of

the unit installation manual,

will immediately invalidate

the unit warranty.

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-5

ENGLISH



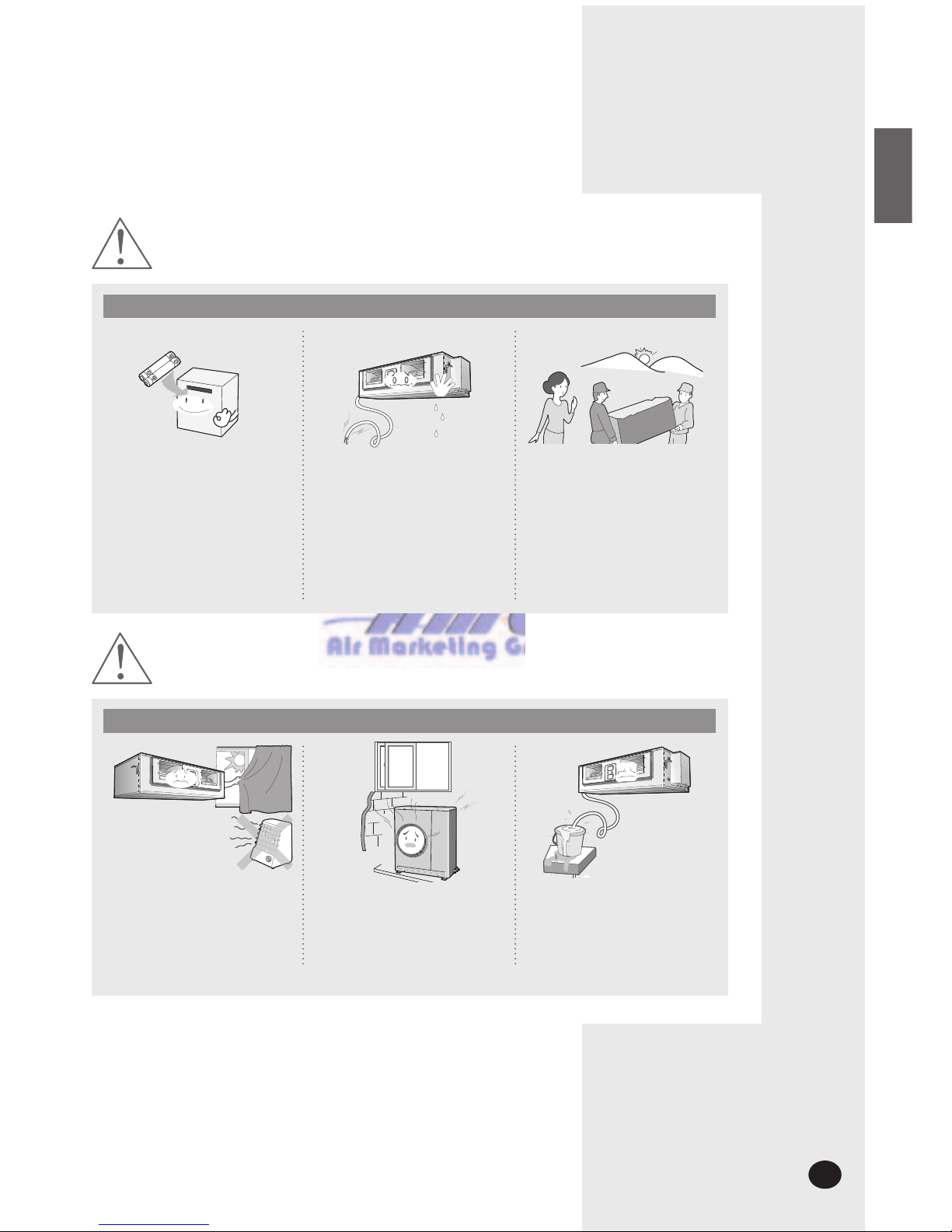

Before throwing out the

device, it is necessary to pull

back the battery cells and get

rid of them safely for recycling

reasons.



When you need to dispose of

the unit, consult your dealer.

If pipes are removed

incorrectly, refrigerant may

blow out and come into

contact with your skin, causing

injury. Releasing refrigerant

into the atmosphere also

damages the environments.



Please recycle or dispose

of the packaging material for

this product in an

environmentally responsible

manner.

DISPOSING THE UNIT

WARNING



Install the air conditioner

avoiding direct sunlight or

heater, especially water.



Install the outdoor unit so as

to let the discharged air out

properly. Avoid a place that

may disturb your neighbor by

noise.



Install the drain hose to let

the water run safely and

correctly.

WHEN INSTALLING

CAUTION

 This indicates the possibility of serious injury or damage to

environments when operated incorrectly.

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-6



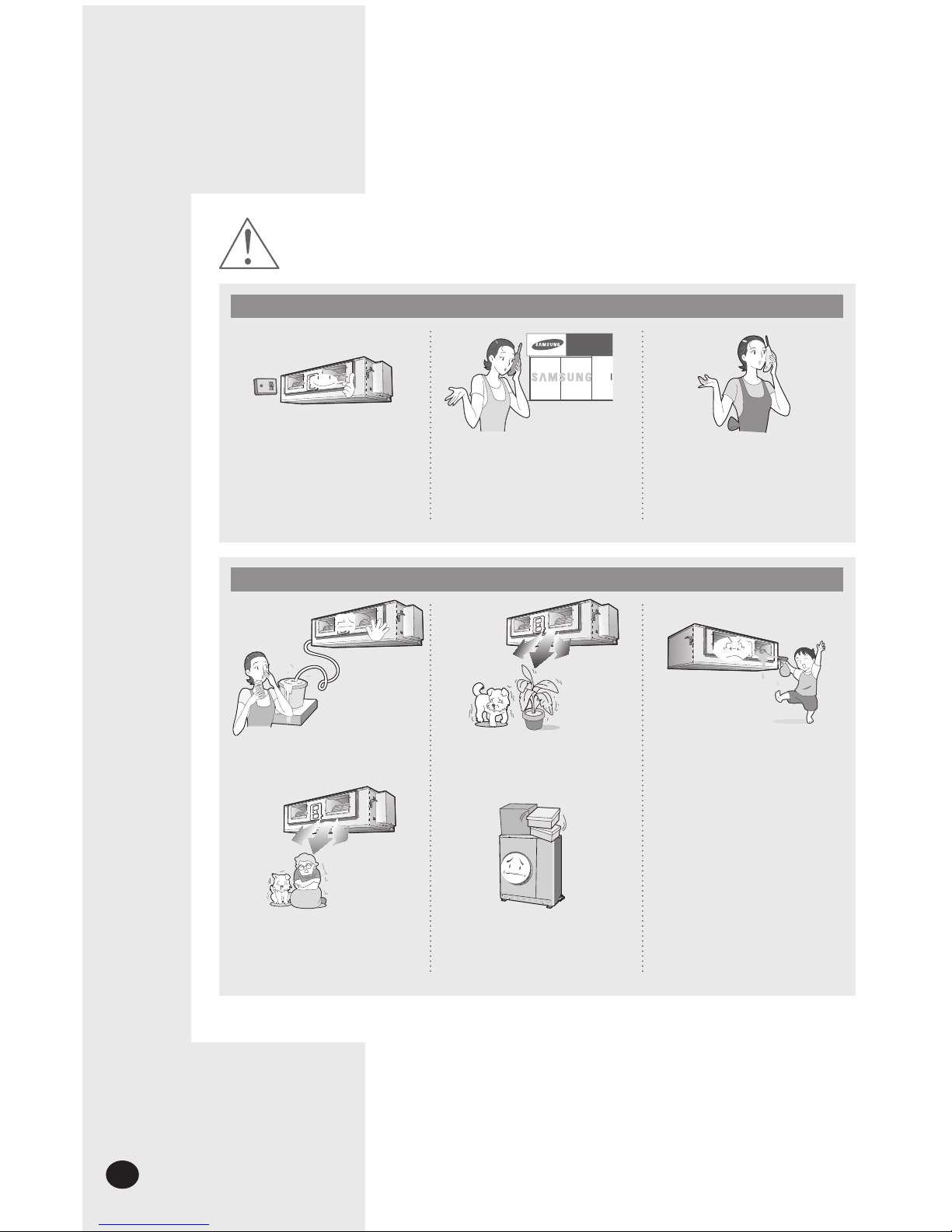

Disconnect the circuit breaker

when you don’t use the

air conditioner for a long time

to save energy.



Contact the service center or

manufacturer if you want to

repair the air conditioner.



Contact the service center

after turning off the air

conditioner if strange noise

is heard, burning smell or

smoke blow.

REGARDING POWER SOURCE



Do not drink the water from

the air conditioner.



Avoid cold and hot air

reaching to person, pet or a

plant directly for a long time.



Avoid the water from

getting into the

air conditioner.

DURING OPERATION



Do not use the air conditioner

for a long time in a closed room

or in a place where there’s a

baby or an old person.



Do not step on the air

conditioner or put heavy

object on it.

CAUTION

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-7

ENGLISH



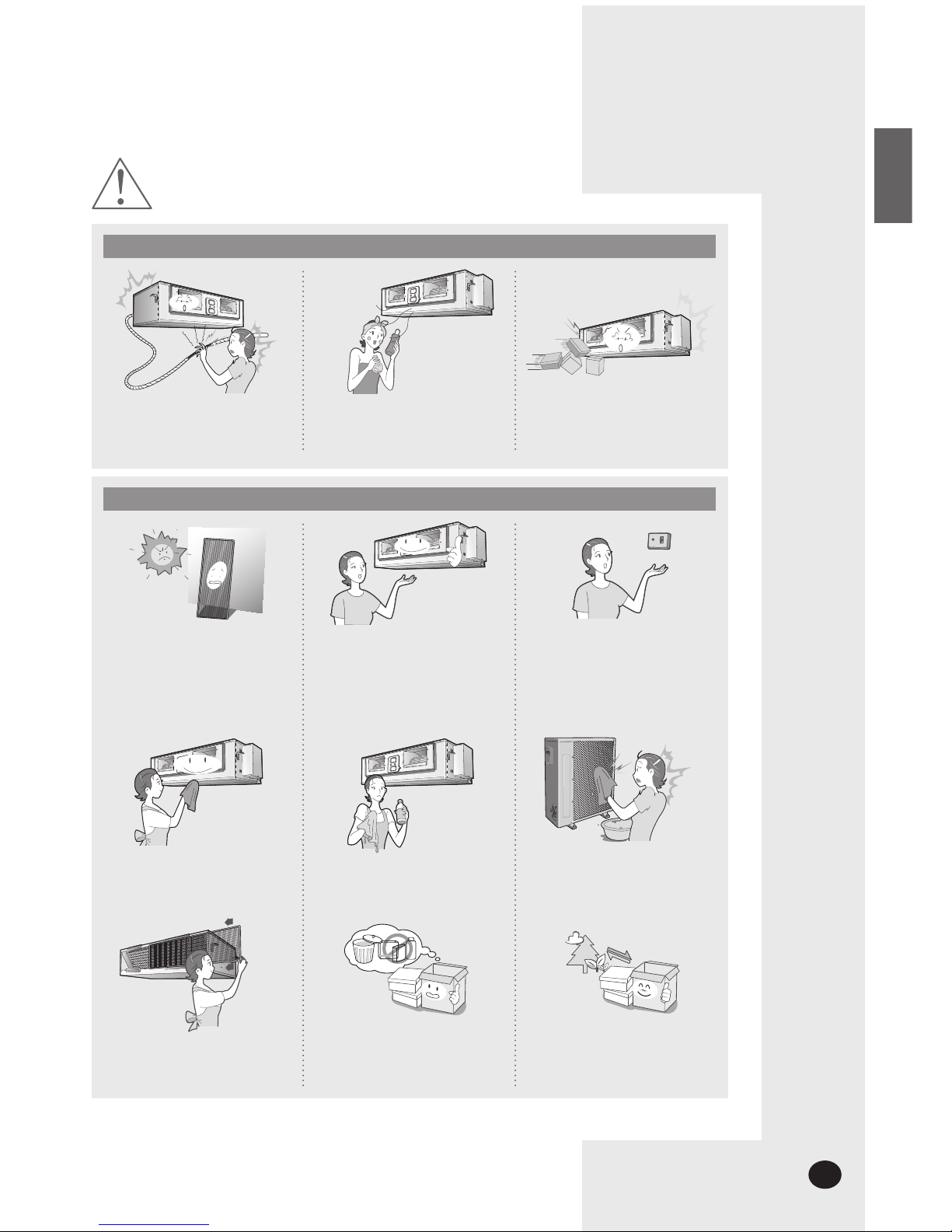

Do not touch the pipes

connected to the air

conditioner.



Do not use the air conditioner

to maintain the machine, food,

pet, plant or cosmetics.



Do not give excessive shock

to the air conditioner.

DURING OPERATION



The appliance is not intended

for use by young children or

infirm persons without

supervision: Young children

should be supervised to

ensure that they do not play

with the appliance.



The maximum input power &

current is measured

according to the IEC standard

and the input power & current

is measured according to the

ISO standard.

OTHERS



Be sure that the air filter not to

be exposed to direct sunlight.



Do not clean the air

conditioner by spraying water

directly or with benzene,

thinner or alcohol.



The surface of the heat

exchanger is sharp, so be

careful of it when cleaning.



Be sure to insert the air filter.

CAUTION



All of the manufacturing and

packaging materials used for your

new appliance are compatible

with the environment and can be

recycled.



Dispose of the packaging

material in accordance with

the local requirements.



Turn off the air conditioner

and if the fan stops to operate,

clean the air conditioner.

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-8

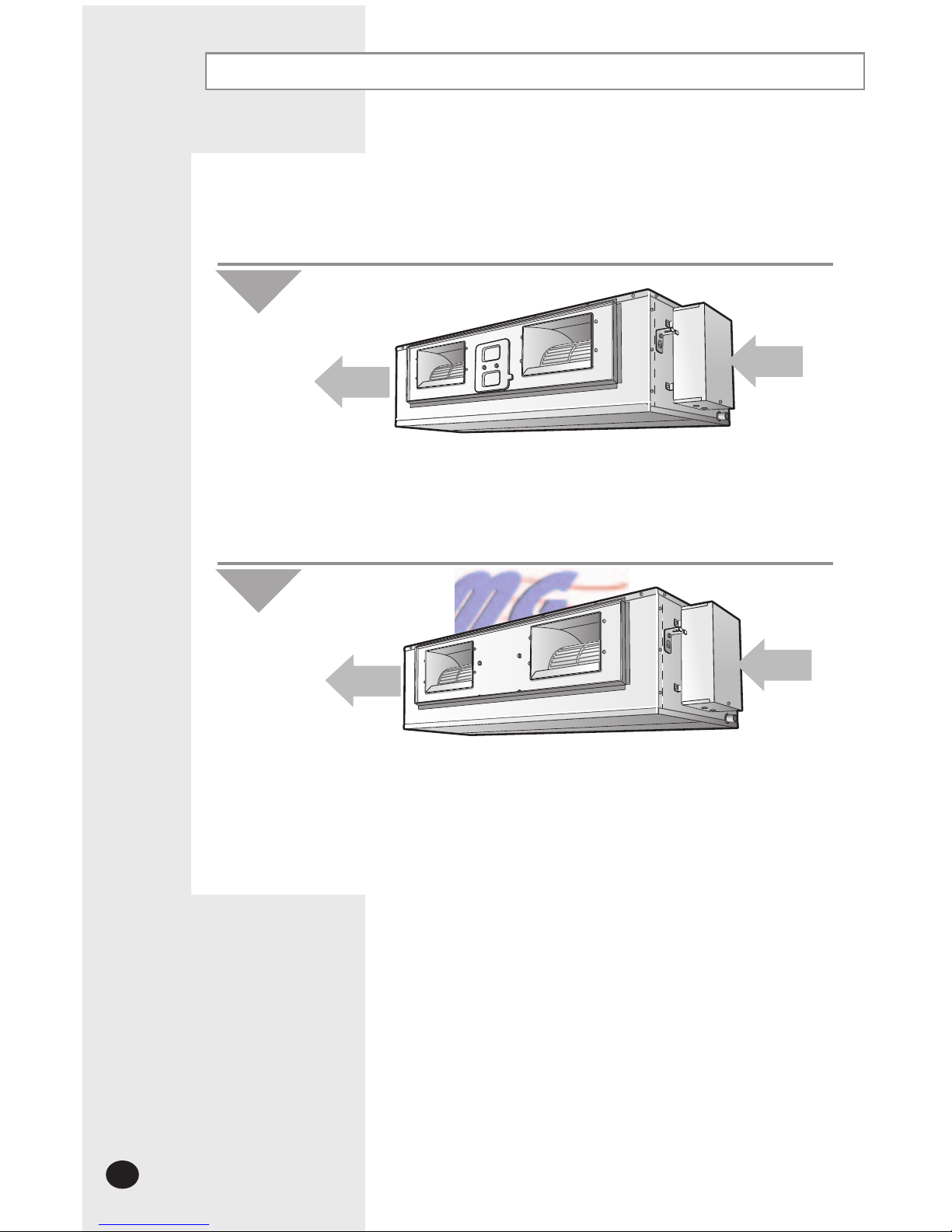

View of the Indoor Unit

The figures are shown in this instruction may differ from yours depending on the model.

Indoor Unit

Air Inlet

Air Outlet

DH105CAV

DH140CAV

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-9

ENGLISH

Periodical Checks

Type Description Monthly Every 4 months Once a year

Indoor unit

Clean the air filter (1)

Clean the condensate drain pan (2) 

Thoroughly clean the heat exchanger (2) 

Clean the condensate drain pipe (2) 

Replace the remote control batteries 

Outdoor unit

Clean the heat exchanger on the outside

of the unit (2) 

Clean the heat exchanger on the inside

of the unit (2) 

Clean the electric components with jets

of air (2) 

Verify that all the electric components

are firmly tightened (2) 

Clean the fan (2) 

Verify that all the fan assembly is firmly

tightened (2) 

Clean the condensate drain pan (2) 

 The checks and maintenance operations described are essential to guarantee the efficiency of the air conditioner.

The frequency of these operations varies according to the characteristics of the area, the amount of dust, etc.

(1) The described operations should be performed more frequently if the area of installation is very dusty.

(2) These operations must always be performed by qualified personnel. For more detailed information, see the

Installation Manual.

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

E-10

Protections enabled by the Unit control system

Type of protection Description Operation When it enables

Protection against cold air The internal fan is off Heating on

heat pump During operation

Defrost cycle The internal fan is off Heating on

heat pump During operation

Anti-frost protection

of internal battery The compressor is off Cooling During

operation

Delayed start of compressor The start of the

compressor is delayed.

Cooling or heating

on heat pump

At start-up or during

the selection

of the operating mode

CAUTION If the air conditioner is operating in heat pump mode, it performs several defrost cycles in order

to remove the frost that may have deposited on the outdoor unit (at low temperatures).

In this case, the internal fan is switched off automatically and restarted only after the defrost

cycle is completed.

Air Marketing Group LLC

141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: [email protected]

Other manuals for DH105CAV

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AC TNNDKG Series User manual

Samsung

Samsung SH07AWHX User manual

Samsung

Samsung AM028NN1DEH/TL User manual

Samsung

Samsung AW07A0NEB User manual

Samsung

Samsung AW069CB User manual

Samsung

Samsung MH052FDEA User manual

Samsung

Samsung FH052EAMC User manual

Samsung

Samsung MCM-D211UN User manual

Samsung

Samsung AS12 XAX Series User manual

Samsung

Samsung AM***MNVD Series User manual

Samsung

Samsung TH026EAV User manual

Samsung

Samsung AW2400M User manual

Samsung

Samsung NS026NHXEA User manual

Samsung

Samsung NS***HHXEH Guide

Samsung

Samsung RD MHXE Series User manual

Samsung

Samsung AC777MNADCH User manual

Samsung

Samsung AST30C2BB User manual

Samsung

Samsung AW0503B Setup guide

Samsung

Samsung AC BXADCH Series User manual

Samsung

Samsung MXD-K025AN User manual

Samsung

Samsung AW069CB Use and care manual

Samsung

Samsung AM JXVHGH Series User manual

Samsung

Samsung ASA24C5 User manual

Samsung

Samsung SPHA503 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
