Samsung AW09A8SB User manual

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

MANUAL DE INSTRUÇÕES

ISTRUZIONI PER L'USO

AW07F2SBA/DA/EA

AW09F2SBA/BB/DA/EA

AW10F2JBA/DA/EA

AW12F2JBA/DA/EA

AW14F2MBA/DA/EA

AW18F2MBA/DA/EA/BC

AWT18F2MDA

AW22F2MBA

AW22F2MBB

AW24F2MBA

AW24F2MBB

AW07A(G)2SBA/DA/EA

AW09A(G)2SBA/BB/DA/EA

AW10A(G)2JBA/DA/EA

AW12A(G)2JBA/DA/EA

AW14A(G)2MBA/DA/EA

AW18A(G)2MBA/DA/EA/BC

AWT18A(G)2MDA

AW22A(G)2MBA

AW22A(G)2MBB

AW24A(G)2MBA

AW24A(G)2MBB

Window-type Room Air Conditioner ( Cool )

Acondicionador de aire doméstico sistema de tipo ventana ( Refrigeración )

Climatiseur de type Fenêtre ( Refroidissement )

O ar Condicionado de Window-Type ( Refrigeração )

Condizionatore d’aria per ambienti da finestra ( Raffreddamento )

E S F P I

DB68-02008A(5)

ENGLISH

ESPAÑOL

FRANÇAIS

PORTUGUÊS

ITALIANO

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged

and you may be hurt. Keep children away from the unit.

5ALWAYS ensure that the power cable is in good condition.

Make sure that it is not walked on or damaged by items placed on or against it.

If the power cord is damaged in any way, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An approved service center

◆ The outlet at which the air conditioner was purchased

7Do NOT place any obstacles in front of the unit.

3NEVER spill liquid of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be hap-

pened in case of installing improperly.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

8The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

E-2

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts and Control Panel .................................... 4

■Getting Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 6

■Setting the Off timer ....................................................................................... 7

■Cancelling the Off Timer ................................................................................. 7

■Switching the Air Conditioner Off .................................................................... 7

■Adjusting the Air Flow Direction Horizontally .................................................. 8

■Adjusting the Air Flow Direction Vertically ...................................................... 8

■Using the Ventilation Lever ............................................................................. 8

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 9

■Temperature and Humidity Ranges ................................................................ 9

■Cleaning Your Air Conditioner ........................................................................ 10

■Solving Common Problems ............................................................................ 12

■Technical Specifications ................................................................................. 13

◆INSTALLATION ....................................................................................................... 14

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The maximum permissible system impedance at the power junction box is 0.24 ohms.

Usually, the maximum permissible mains impedance will not be exceeded when the

branch to the power outlet is fed from a junction box with a rated current of 32A.

AW18✴✴

" The high inrush current of the starting compressor motor can have adverse effects to

the operation of other equipment under unfavorable mains conditions. This equipment

does not comply with the relevant technical standards for the limitation of voltage

fluctuations and flicker."

Before connecting this equipment to the power supply system, please report to your

supply authority and obtain the consent.

Do not connect other electric appliances to the same supply lines.

E-3

ENGLISH

Air Conditioning Unit - Main Parts and Control Panel

Air filter(The air filter

is located in inside.) Ventilation lever

Power plug

(The type of power plug

may differ, depending on

the local power supply.)

Air outlet

Outer air flow blades

(up/down orientation)

Inner air flow blades

(right/left orientation)

Air inlet (Outside)

Temperature control dial

Timer control dial

Air flow blade swing switchFan speed switch

Air inlet(Inside)

❄The design and shape are subject to

change according to the model.

E-4

Getting Started

You have just purchased a window-type room air conditioner and it has been installed

by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

This Owner’s Instructions is just for using your air conditioner correctly.

Thus, the illustrations shown in this manual may not exactly match your air conditioner.

The booklet is organized as follows.

◆The illustration on page 4 shows the air conditioning unit;

it indicates the location and purpose of the main parts and controls on the unit.

◆ In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

E-5

ENGLISH

Set the timer control dial to the “CON.” position.

Result:

The air conditioner starts up in Cool mode.

When attempting to use it for a specified period of time,

set it to the desired period of time.

Refer to page 7.

Cooling Your Room

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

If necessary, set the FAN SPEED switch to the desired speed.

The fan turns rapidly.

The fan turns slowly.

To control the direction of the air flow, refer to page 8.

To adjust the temperature, turn the temperature control dial

to the desired position.

Possible temperatures: Between 18°C and 29°C inclusive.

Result: The air conditioner starts cooling if the room temperature

is higher than the selected temperature.

➢

27˚C ~ 23˚C

23˚C

~ 18˚C

29˚C

~ 27˚C

E-6

Set the timer control dial to the desired time.

Example: ◆ When you want to turn it off after operating

it for four hours, set it to "4".

Some minor errors may occur when setting the time

depending upon the supply power and position of the timer.

Setting the Off Timer

Cancelling the Off Timer

Switching the Air Conditioner Off

➢

To switch the unit off, simply set the timer control dial to the “OFF ” position.

Result: The air conditioner stops operating.

Use the timer when attempting to operate the air conditioner

for a specified period of time, and then turn it off automatically.

You can switch the air conditioner off whenever you want.

Set the timer control dial to the “CON.” or “OFF ” position.

You can cancel the operation of the timer whenever

you want to cancel it.

Set it to desired operating conditions.

Refer to page 6.

E-7

ENGLISH

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

Using the Ventilation Lever

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

To stop the blades moving left and right, set the air flow blade swing switch

to the position.

To stop the blades in a specific position and orient the air flow in the

corresponding direction, simply set the switch to the position

when the blades are in the desired position.

Set the air flow blade swing switch to the position.

Result:

The inner blades swing automatically left and right.

Again depending on the position of the unit in your room, you can

adjust the orientation of the outer air flow blades on the right-hand

side of the unit.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

◆

Form on the surface of the blades

◆

Drip from the blades

➢

Use the ventilation lever when you want to exhaust unfresh air.

If you wish to evacuate stale air outside, push the ventilation lever on the front

of the unit to the right and the open position ( ).

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

Result:

The air simply circulates inside the room.

E-8

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used.

Mode Indoor

Temperature Outdoor

Temperature Indoor Humidity

Cooling 21°C to 32°C approx. 21°C to 43°C approx. 80% or less

Here is a recommendation that you should follow when using your

air conditioner.

Topic Recommendation

If a power failure occurs when the air conditioner is operating,

the unit is switched off. When the power returns,

the air conditioner starts up again automatically.

Power failure

Operating Recommendation

Temperature and Humidity Ranges

E-9

ENGLISH

If you...

Will not be using the

air conditioner for a

long period of time

Have not used the air

conditioner for a long

period of time

Then...

◆ Set the timer control dial to “CON.”,

the temperature control dial to “2” or less,

and let it run of a few hours to dry the

inside of the air conditioner thoroughly.

◆ Switch the air conditioner off and

unplug it from the wall socket.

◆ Clean the filter and outer surfaces.

Set the timer control dial to “CON.”,

the temperature control dial to “2” or less, and

let it run of a few hours to dry the inside of the

air conditioner thoroughly.

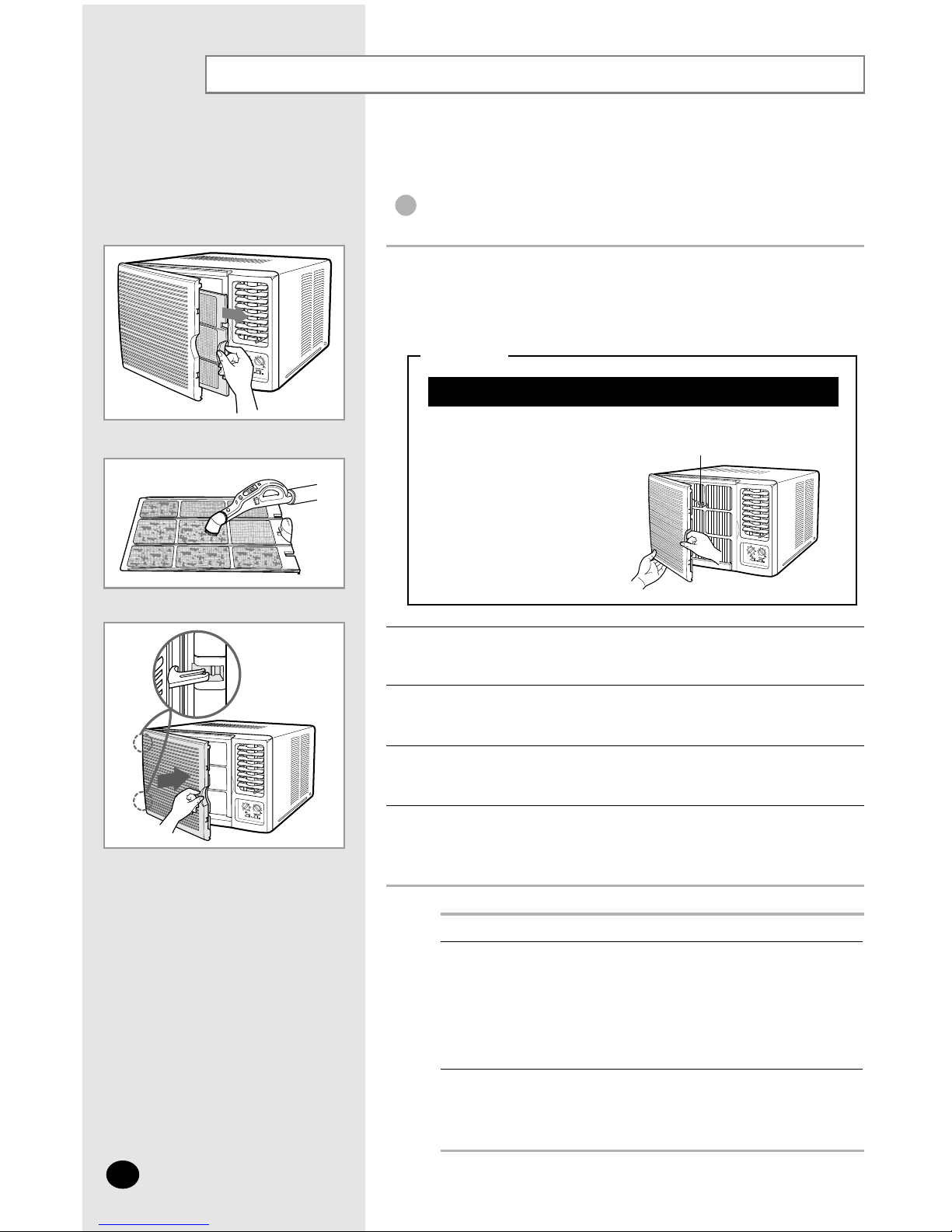

Hold the air filter handle, slightly pull it to the left side and open the front grille.

Pull the air filter to the right side.

Remove all dust on the air filter with a vacuum cleaner or brush.

When you have finished, insert the air filter back into its original position.

Wipe the surface of the unit with a neutral detergent and then wipe it again

with dry cloth.

(Be sure not to use benzene, solvent or other chemical products.)

➢

The removal of the front grille makes it easier to clean the air

conditioner. Open the grille as much as possible.

➢

Be sure to clean the air filter periodically to maintain the air conditioner

in the best condition for a long period of time.

When cleaning the air conditioner, turn it off and pull out

the power plug.

IMPORTANT

Removal and Reassembly of the Front Grille

Grasp the lower part of the

front grille and the air filter

handle, then open the grille.

Remove the safety clip and

the front grille.

When reassembling the front

grille, you should install the

safety clip again.

For user's safety, a safety clip has been installed in the front grille.

Safety clip

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The air conditioner has two or three

grille grooves depending on the model.

Cleaning Your Air Conditioner (✴✴✴✴F2✴✴✴ models)

E-10

This manual suits for next models

117

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AVXC1H022EA User manual

Samsung

Samsung AR Series User manual

Samsung

Samsung MR-AH01 User manual

Samsung

Samsung MH14VA2 User manual

Samsung

Samsung AQV09NSeries User manual

Samsung

Samsung AC030JN4DCH User manual

Samsung

Samsung AC NN4DKH Series User manual

Samsung

Samsung AC TNXDKG Series User manual

Samsung

Samsung AG TN1DKH Series User manual

Samsung

Samsung DC18BTVA(X) User manual

Samsung

Samsung AC052HBMPKH User manual

Samsung

Samsung AM***KN4DCH User manual

Samsung

Samsung MIM-B18BN Guide

Samsung

Samsung 4qt12whwe User manual

Samsung

Samsung AQ30C1(2)BCD User manual

Samsung

Samsung AR07CSDAFWKN User manual

Samsung

Samsung AR09HSFSHWKNCV User manual

Samsung

Samsung AJ040 Series User manual

Samsung

Samsung AE022MNJDEH User manual

Samsung

Samsung AQ09FDN User manual

Samsung

Samsung APH289SEF User manual

Samsung

Samsung AQ07A1VE User manual

Samsung

Samsung JH052EAV1 User manual

Samsung

Samsung AQ12AAMC User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
