Samsung AVMKC020CA0(1) User manual

AVMKH020CA0(1)

AVMKH032CA0(1)

AVMKH040CA0(1)

Heat pump

AVMKC020CA0(1)

AVMKC032CA0(1)

AVMKC040CA0(1)

Cooling only

ENGLISH

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

ESPAÑOL

FRANÇAIS

System Air Conditioner

Aire acondicionado sistemático

Climatiseur numérique multifonctionnel

ESFDB98-05585A(2)

Safety Precautions

◆If the power supply cord of this air conditioner is damaged,

it must be replaced by the manufacturer or its authorized

service personnel only in order to avoid a safety hazard.

WARNING

◆Do not attempt to install this air conditioner by yourself.

◆This unit contains no user-serviceable parts. Always consult authorized

service personnel for repairs.

◆When moving, consult authorized service personnel for disconnection

and installation of the unit.

◆Do not become over-exposed to cold air by staying in the direct path of

the airflow of the air conditioner for extended periods of time.

◆Do not insert fingers or objects into the outlet port or intake grilles.

◆Do not start and stop air conditioner operation by disconnecting the

power supply cord and so on.

◆Take care not to damage the power supply cord.

◆In the event of a malfunction (burning smell, etc.), immediately stop

operation, turn off the electrical breaker, and consult authorized

service personnel.

DANGER

◆Provide occasional ventilation during use.

◆Do not direct air flow at fireplaces or heating apparatus.

◆Do not climb on, or place objects on, the air conditioner.

◆Do not hang objects from the indoor unit.

◆Do not set flower vases or water containers on top of air conditioners.

◆Do not expose the air conditioner directly to water.

◆Do not operate the air conditioner with wet hands.

◆Do not pull power supply cord.

◆Turn off power source when not using the unit for extended periods.

◆Check the condition of the installation stand for damage.

◆Do not place animals or plants in the direct path of the air flow.

◆Do not drink the water drained from the air conditioner.

◆Do not use in applications involving the storage of foods, plants or

animals, precision equipment, or art works.

◆Do not apply any heavy pressure to radiator fins.

◆Operate only with air filters installed.

◆Do not block or cover the intake grille and outlet port.

◆Ensure that any electronic equipment is at least one metre away from

either the indoor or outdoor units.

◆Avoid installing the air conditioner near a fireplace or other heating

apparatus.

◆When installing the indoor and outdoor unit, take precautions to prevent

access to infants.

◆Do not use inflammable gases near the air conditioner.

◆Max input power & current is measured according to IEO standard and

input power & current is measured according to ISO standard.

CAUTION

E-2

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6

■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 7

■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 10

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Bio-Pure Filter Installation (Optional) . . . . . . . . . . . . . . . . . . . . 12

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 13

◆

ECHNICAL SPECIFICATIONS

E-3

ENGLISH

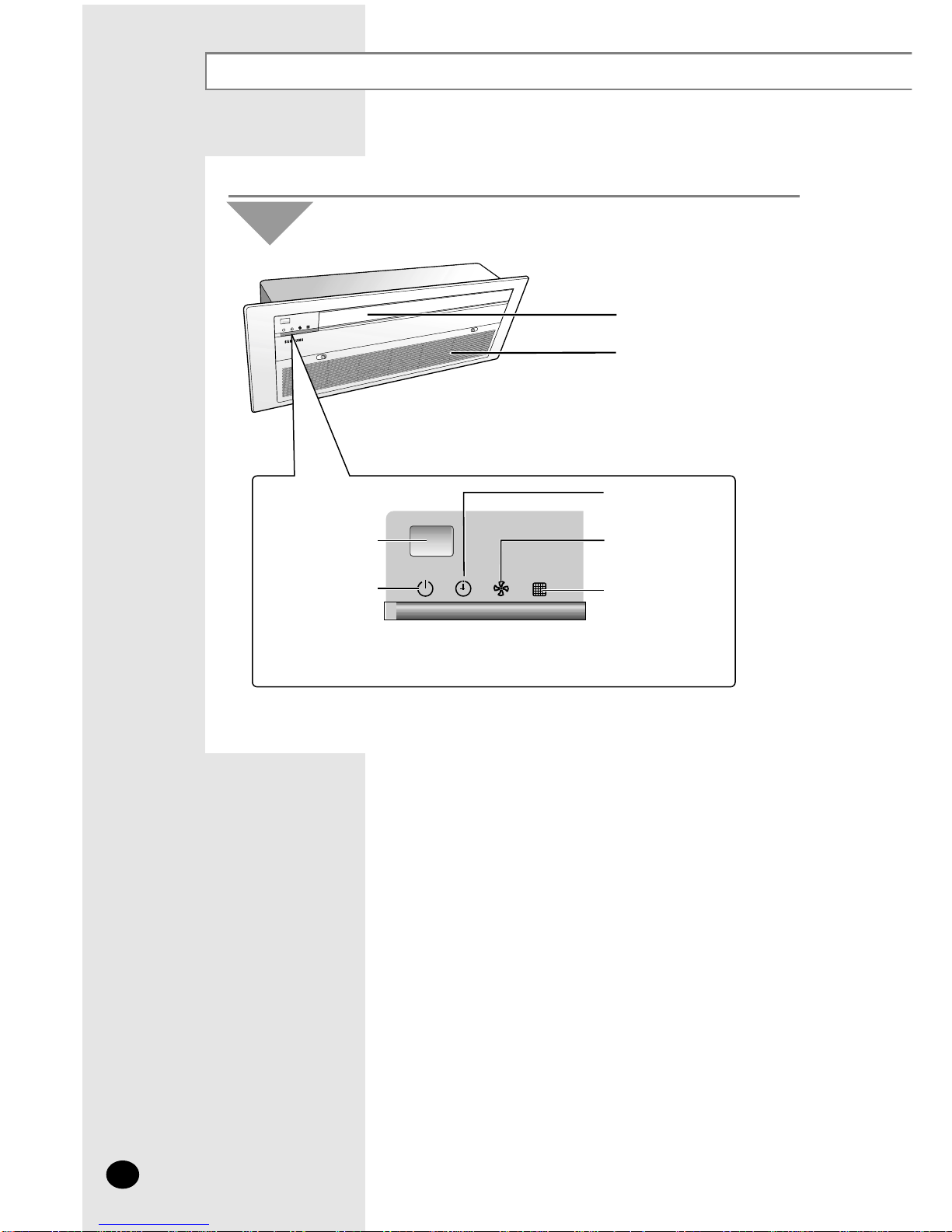

View of the Unit

The figures are shown in this instruction may differ from yours depending on the model.

Air flow blade

Air inlet

Indoor Unit

E-4

Fan indicator

Timer indicator

Filter sign indicator

- Heat Pump Models :

On/Off indicator(Green) &

Removing frost

indicator(Red)

- Cooling Only Models :

On/Off indicator

Remote control sensor

Air outlet

Connection valve

TYPE A

Outdoor Unit

Air outlet

Connection valve

TYPE B

Outdoor Unit

Air outlet

Connection valve

TYPE C

Outdoor Unit

Air outlet

Connection valve

TYPE D

Outdoor Unit

Air outlet

Connection valve

TYPE E

Outdoor Unit

E-5

ENGLISH

If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water

when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.

NNoo

oott

ttee

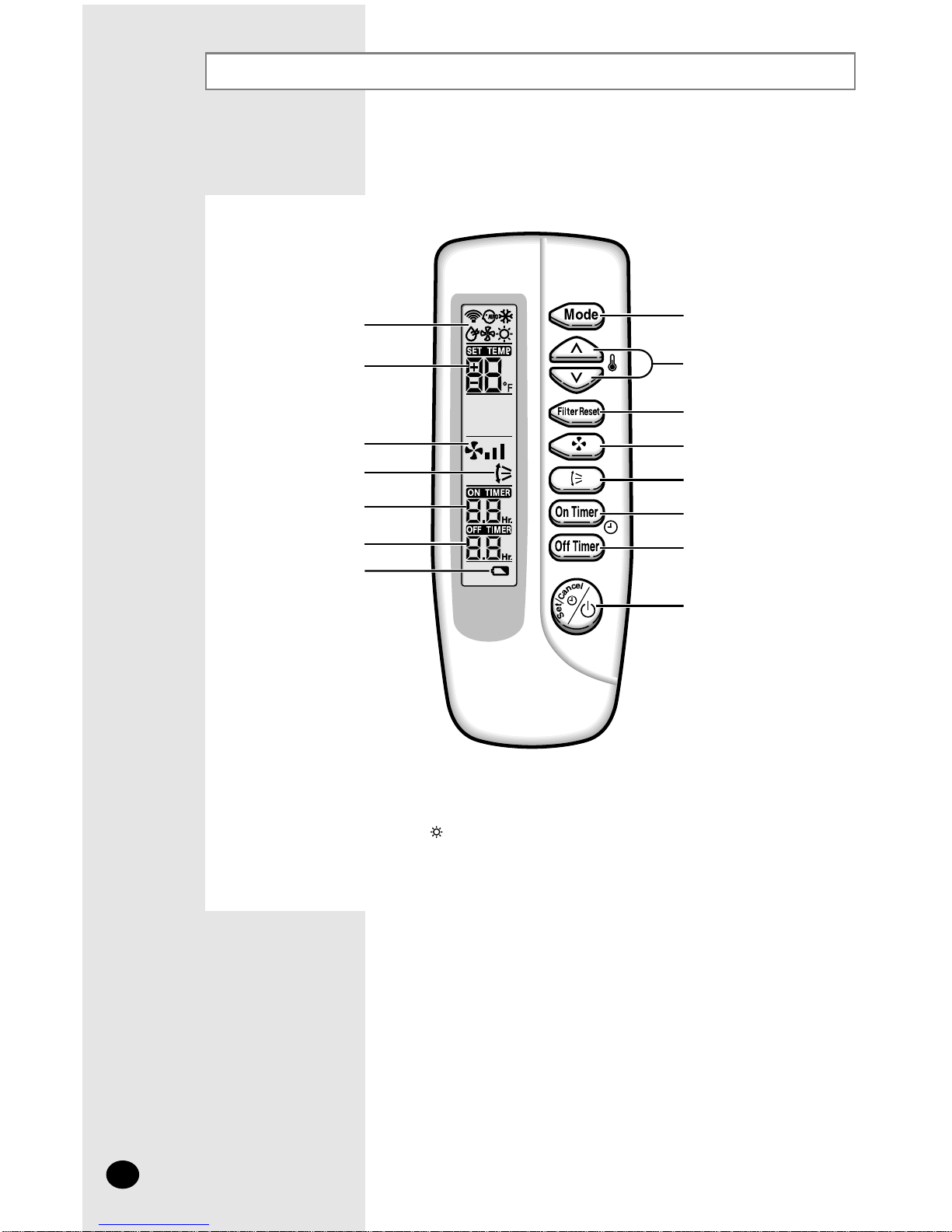

Wireless Remote Controller-Buttons and Display

- After cleaning the air filter, press the filter reset button.

- The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Operating mode Mode selection button

Filter Reset button

Swing button

On Timer button

Off Timer button

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

E-6

The wireless remote controller is an optional accessory.

To use the wireless remote controller, refer to an appropriate manual.

E-7

ENGLISH

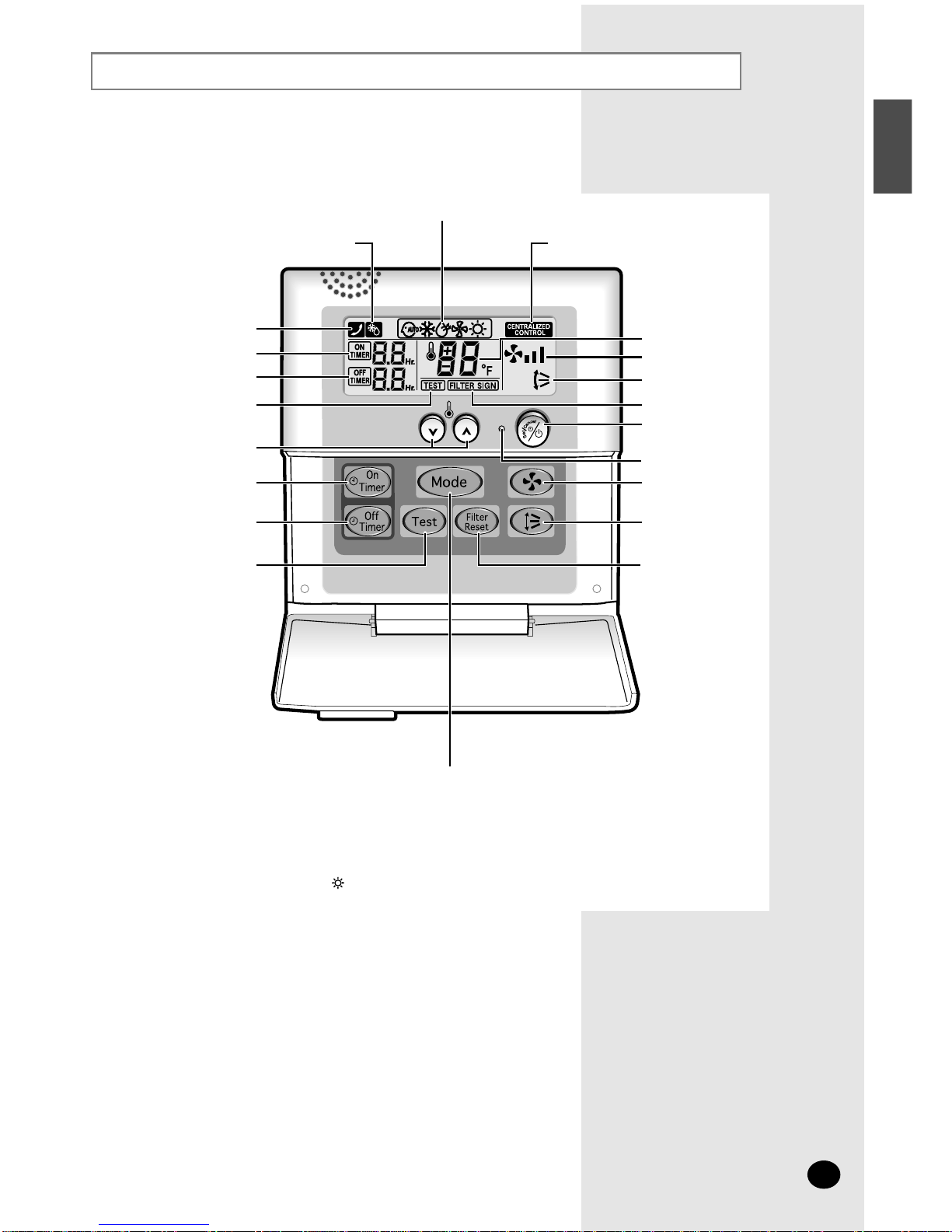

Wired Remote Controller-Buttons and Display

The wired remote controller is an optional accessory and it is installed on the wall.

To use the wired remote controller, refer to an appropriate manual.

- Test button is for your installation specialist. You must NOT press it.

- After cleaning the air filter, press the filter reset button. Then the wired remote

controller will display the FILTER SIGN indicator when the time to clean the air filter;

refer to page 11.

- The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Communication error indicator

On Timer setting

Off Timer setting

Test indicator

On Timer button

Off Timer button

Test button Filter Reset button

Mode selection button

Temperature adjustment

buttons

Centralized controller indicator

(In case of installing the Centralized controller)

Removing frost indicator

(Except Cooling Only Models)

Temperature setting

Fan speed

Air flow direction

Filter Sign indicator

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

Swing button

On/Off indicator

Operating mode

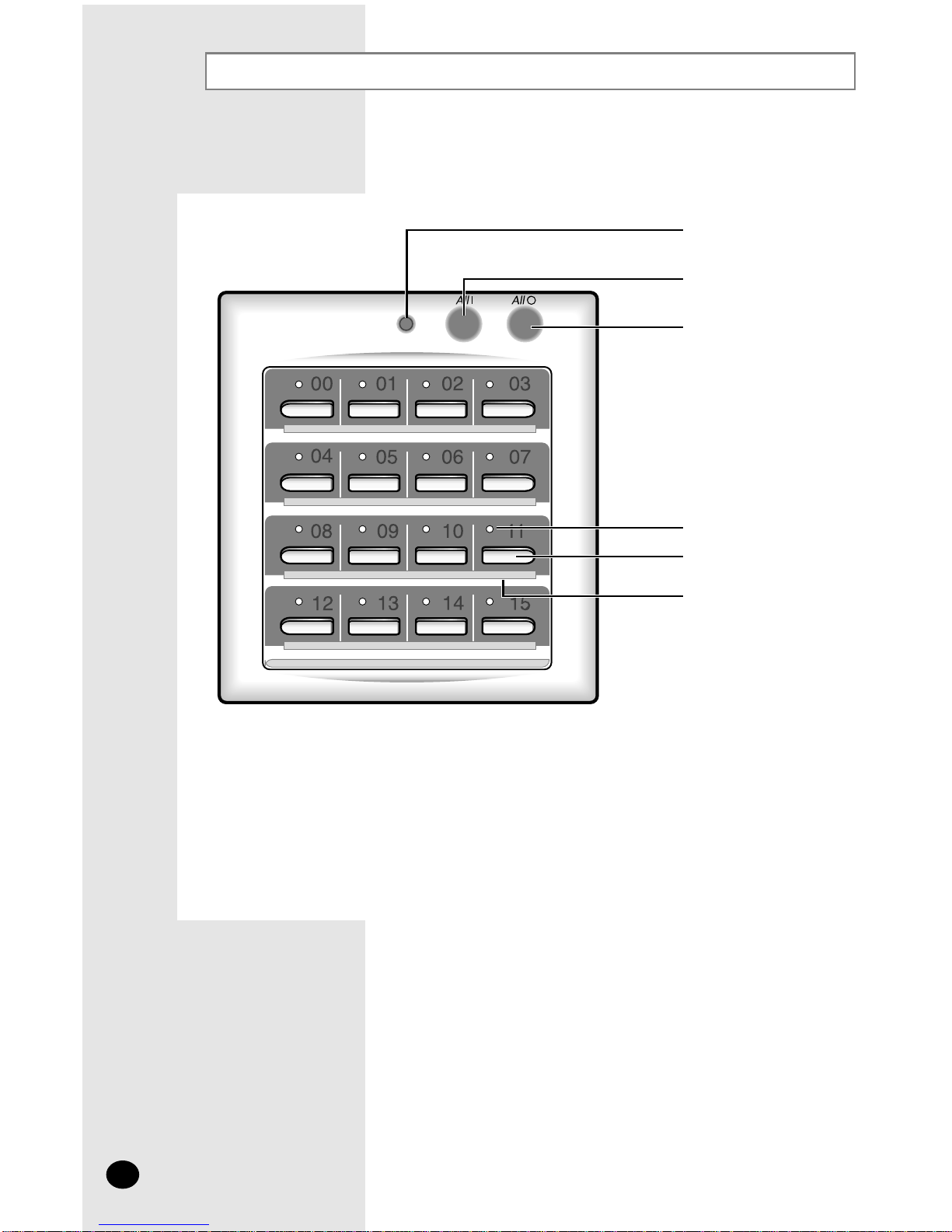

Centralized Controller

The centralized controller is an optional accessory and it is installed on the wall.

To use the centralized controller, refer to an appropriate manual.

E-8

Operating lamp

All On button

All Off button

On/Off indicators

On/Off buttons

Index

Operating lamp comes on when at least one air conditioner connected to the

centralized controller is operating.

NNoo

oott

ttee

Operating Recommendations

E-9

ENGLISH

Here are a few recommendations that you should follow when operating

your air conditioner.

Topic Recommendation

The heat pump function of the air conditioner absorbs heat

from

outside air and brings it indoors. As the temperature of the

outside

air drops, the heating performance of air conditioner will

decrease. If you find that the room is not warm enough, using

an additional heating appliance is recommended.

Heating

performances

When outside temperature is low but humidity is high,

frost may form on the outdoor unit at HEAT mode.

If this happens:

◆ The heating operation stops.

◆ The defrost mode will be triggered automatically for about ten

minutes.

No intervention is required ; after about ten minutes, the air

conditioner operates again normally.

Frost

If both indoor and outdoor temperatures are high and the air

conditioner is running at HEAT mode, the outdoor unit’s fan

and compressor may stop at times.

This is normal ; simply wait until the air conditioner switches

on again.

High indoor

and outdoor

temperatures

If a power failure occurs while the air conditioner is operating,

the unit will be switched off. When the power returns, the air

conditioner starts up again automatically.

Power failure

Temperature and Humidity Ranges

E-10

The following table indicates the temperature and humidity ranges,

within which the air conditioner can be used.

If the air conditioner is used at...

Then...

The automatic protection feature may be

triggered and the air conditioner stopped.

High temperature

A water leakage or some other

malfunction may happen if the heat

exchanger freezes.

Low temperature

Water may condense on and drip from

the surface of the indoor unit if it is used

for a long periods.

High humidity levels

❇ If the heating operation is used at below 32°F(outdoor temperature)

then, it does not heat at its full capacity.

If the cooling operation is used at over 91°F(indoor temperature) then,

it does not cool at its full capacity.

Mode

Outdoor Temperature Indoor Temperature

Indoor Humidity

Heating

Cooling

Drying

5°F to 75°F approx.

23°F to 109°F approx.

81°F or less

70°F to 90°F approx.

65°F to 90°F approx.

80% or less
