USER’S MANUAL

System Air Conditioner

E F I P D G R DB98-05146A(6)

Silhouette duct : AVMDH(C)✴✴

High static pressure duct : AVMHH(C)✴✴

E§§HNIKA ENGLI H

E PAÑOLFRANÇAI

ITALIANODEUT CH PORTUGUÊ

RUSSIAN

Duct Type Series

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 17

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.

◆Never spill any kind of liquid into the unit. hould this happen, unplug

or main switch off the unit and contact an authorized service center.

◆Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.

◆Do not place any obstacles in front of the unit.

◆Do not spray liquid of any kind into the indoor unit. hould this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.

◆Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

◆If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)

◆When using a wireless remote control, the distance should not be more

than 7 meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.

◆The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.

◆Max current is measured according to IEC standard for safety and

current is measured according to I O standard for energy efficiency.

OTHERS

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.

◆When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.

◆Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 2

Contents

◆

REPARING YOUR AIR CONDITIONER

■ afety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6

■ The Receiver & Display Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 8

■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Function controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . 11

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 12

■ olving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 14

E-3

ENGLI H

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union an other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household

wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable

reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government

office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 3

View of the Unit

The figures are shown in this instruction may differ from yours depending on the model.

E-4

Air filter

Air

inlet

Air

outlet

Indoor Unit

AVMDH(C)✴✴

Air

inlet

Air

outlet

Indoor Unit

AVMHH(C)✴✴

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 4

E-5

ENGLI H

If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall.

o clean the heat exchanger with water when it becomes dirty. However, be careful

when you wash the surface of the heat exchanger because it is very sharp.

NNoo

oott

ttee

Air outlet

Connection

valve

TYPE A

Outdoor Unit

Air outlet

Connection valve

TYPE B

Air outlet

Connection valve

TYPE C

Outdoor Unit

Air outlet

Connection valve

TYPE D

Air outlet

Connection valve

TYPE E

Air outlet

Connection valve

TYPE F

Outdoor Unit

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 5

ireless Remote Controller-Buttons and Display

E-6

◆After cleaning the air filter, press the filter reset button.

◆Duct type air conditioner does not have function of adjusting air flow direction.

Therefore, the function is not operated even if you press the swing button.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Operating mode Mode selection button

Filter Reset button

wing button (Not operated)

On Timer button

Off Timer button

On/Off & Timer

et/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

The wireless remote controller is an optional accessory.

To use the wireless remote controller, refer to an appropriate manual.

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 6

The Receiver & Display Unit

The Receiver & Display unit is an optional accessory and it is installed on the wall.

To use the receiver & display unit, refer to an appropriate manual.

Filter sign indicator

Fan indicator

Timer indicator

Remote control sensor

- Heat Pump Models :

On/Off indicator(Blue) &

Removing frost

indicator(Red)

- Cooling Only Models :

On/Off indicator

Concealed Type

Fan indicator

Filter sign indicator

On/Off indicator

Removing frost indicator

(Except Cooling Only Models)

Timer indicator

Remote control sensor

On/Off button

Standard Type

E-7

ENGLI H

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 7

ired Remote Controller-Buttons and Display

The wired remote controller is an optional accessory and it is installed on the wall.

To use the wired remote controller, refer to an appropriate manual.

◆Test button is for your installation specialist. You must NOT press it.

◆After cleaning the air filter, press the filter reset button. Then the wired remote

controller will display the FILTER IGN indicator when the time to clean the air

filter; refer to page 12 or 13.

◆Duct type air conditioner does not have function of adjusting air flow direction.

Therefore, the function is not operated even if you press the swing button.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Communication error indicator

On Timer setting

Off Timer setting

Test indicator

On Timer button

Off Timer button

Test button Filter Reset button

Mode selection button

Temperature adjustment

buttons

Centralized controller indicator

(In case of installing the Centralized controller)

Removing frost indicator

(Except Cooling Only Models)

Temperature setting

Fan speed

Air flow direction

Filter ign indicator

On/Off & Timer

et/Cancel button

Fan speed adjustment

button

wing button

(Not operated)

On/Off indicator

Operating mode

E-8

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 8

Centralized Controller

The centralized controller is an optional accessory and it is installed on the wall.The centralized controller is an optional accessory and it is installed on the wall.

To use the centralized controller, refer to an appropriate manual.

E-9

ENGLI H

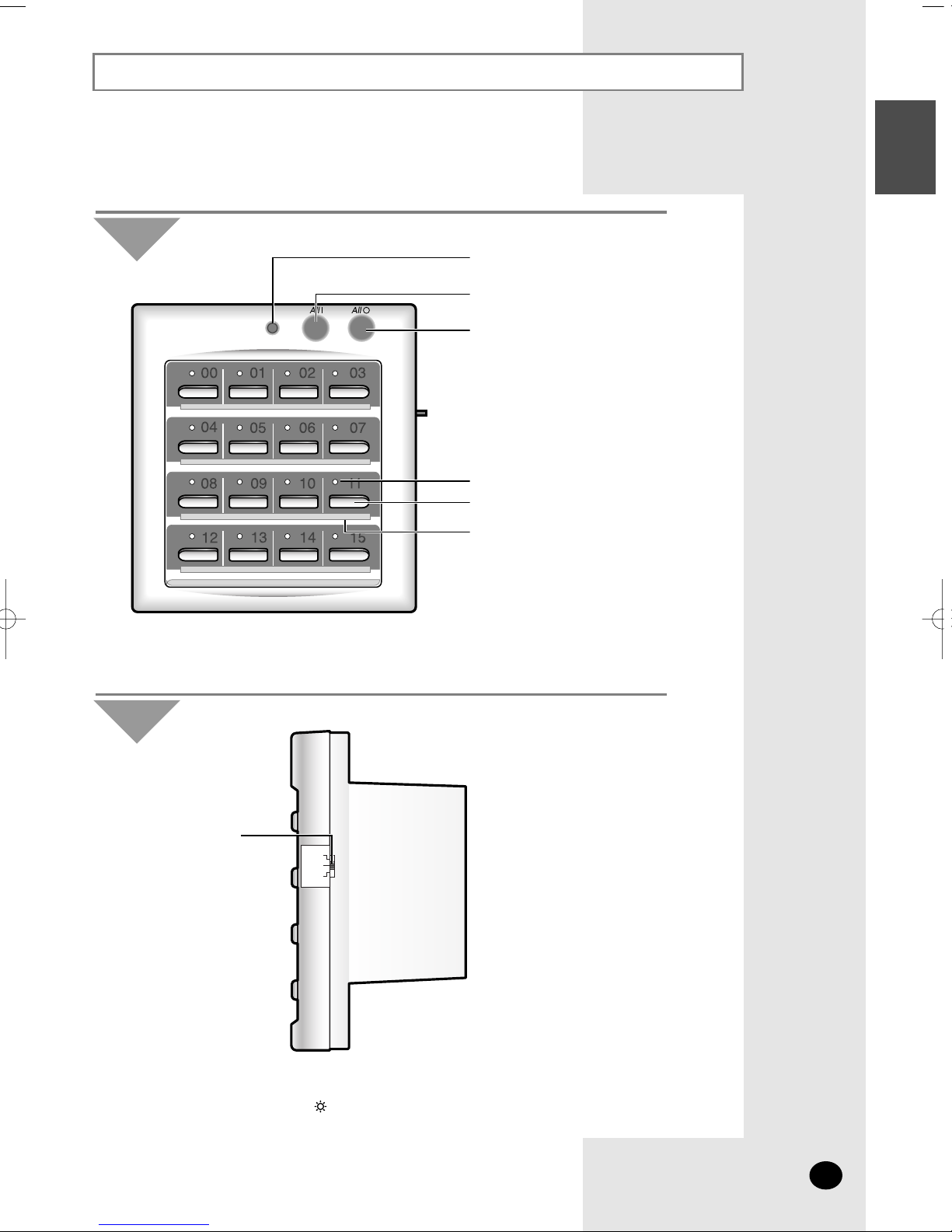

Operating lamp

All On button

All Off button

On/Off indicators

On/Off buttons

Index

The operating lamp comes on even when only one air conditioner

connected to the centralized controller is operating.

NNoo

oott

ttee

Operating Mode witch

COOL

AUTO

HEAT

◆Choose the appropriate operating mode with the Operating Mode witch

that enables the user to choose between the Cool/Auto/Heat mode.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Front View

Side View

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 9

E-10

Function Controller

The function controller is an optional accessory and it is installed on the wall.

The function controller is an additional controller which is used with the centralized controller.

To use the function controller, refer to an appropriate manual.

◆

Test button is for your installation specialist. You must NOT press it.

◆After cleaning the air filter, press the filter reset button. Then the wired remote controller

will display the FILTER IGN indicator when the time to clean the air filter.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Mode selection button

Room number display

Test indicator

Indoor unit selection button

Test button Filter Reset button

wing button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

Filter ign indicator

On/Off & Timer

et/Cancel button

Fan speed adjustment

button

On/Off indicator

Centralized controller indicator

Communication error indicator

Removing frost indicator

(Except Cooling Only Models)

Operating mode

AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 10

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AJ NCJ2EG Series User manual

Samsung

Samsung DH052EZM1 User manual

Samsung

Samsung AC024KN4DCH User manual

Samsung

Samsung RC36BTVR User manual

Samsung

Samsung MH020FNEA User manual

Samsung

Samsung 1 way cassette type User manual

Samsung

Samsung AQV09VBA Series User manual

Samsung

Samsung AVXCSH023/032/040CE User manual

Samsung

Samsung AS09E Series User manual

Samsung

Samsung PL-50D4H User manual

Samsung

Samsung AW07P1HBA User manual

Samsung

Samsung IAQT32C2BEDHAC User manual

Samsung

Samsung AC KXADKH Series User manual

Samsung

Samsung AQ12F Series User manual

Samsung

Samsung AR12HSSDPWKNEE User manual

Samsung

Samsung MCM-A202D User manual

Samsung

Samsung AQV09N Series User manual

Samsung

Samsung AW0750 Setup guide

Samsung

Samsung AVMXC023B1A-GB User manual

Samsung

Samsung 4qt12whwe User manual

Samsung

Samsung IAST18SJGB/UMG User manual

Samsung

Samsung AW06ECB7 User manual

Samsung

Samsung AW0503B User manual

Samsung

Samsung AC FB4DEH Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
