Samsung ASK09G6VE User manual

Split-type Room Air Conditioner

(Cool)

OWNER’S

INSTRUCTIONS

ASK09G6VE

ASK12G6VE

Indoor Unit

USK09G6VE

USK12G6VE

Outdoor Unit

E S

DB98-24286A(1)

Safety Precautions

You should take the following safety precautions when using your air conditioner.

◆Do not repair the air conditioner at your discretion.

It is recommended to contact a service center directly.

◆Never spill any kind of liquid on the air conditioner.

If this happens, unplug or turn off the air conditioner and contact an

authorized service center.

◆Do not insert anything between the airflow blades to prevent damage of

the inner fan and consequent injury. Keep children away from the air

conditioner.

◆Do not place any obstacles in front of the air conditioner.

◆Do not spray any kind of liquid into the indoor unit. If this happens,

turn off the breaker and contact a service center.

◆Make sure that the air conditioner is well ventilated at all times:

Do not place a cloth or other materials over it.

◆Remove the batteries if you don’t use the remote control for a long

time. (If applicable)

◆Use the remote control within 7 meters from the indoor unit. (If applicable)

WARNING

DURING OPERATION

◆Never store or load the air conditioner upside down or sideways to

prevent the damage of the compressor.

◆Young children or infirm persons should be always supervised when

they use the air conditioner.

◆Max current is measured according to IEC standard for safety.

◆Current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the air conditioner, remove the batteries from the

remote control.

◆When you dispose of the air conditioner, consult your dealer. If pipes

are removed incorrectly, refrigerant may blow out and cause air

pollution. When it contacts with your skin, it can cause skin injury.

◆The package of the air conditioner should be recycled or disposed

properly for environmental reasons.

ISPOSING OF THE UNIT

• If you don’t follow the safety precautions, you may get the risk of an electric

shock, injury or death.

•The manufacturer or qualified service personnel must install this air conditioner.

• Unplug the electric power before repairing, installing or cleaning.

E-2

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ 5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . 10

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . 12

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . 15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . 20

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 20

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

◆

ECHNICAL SPECIFICATIONS

E-3

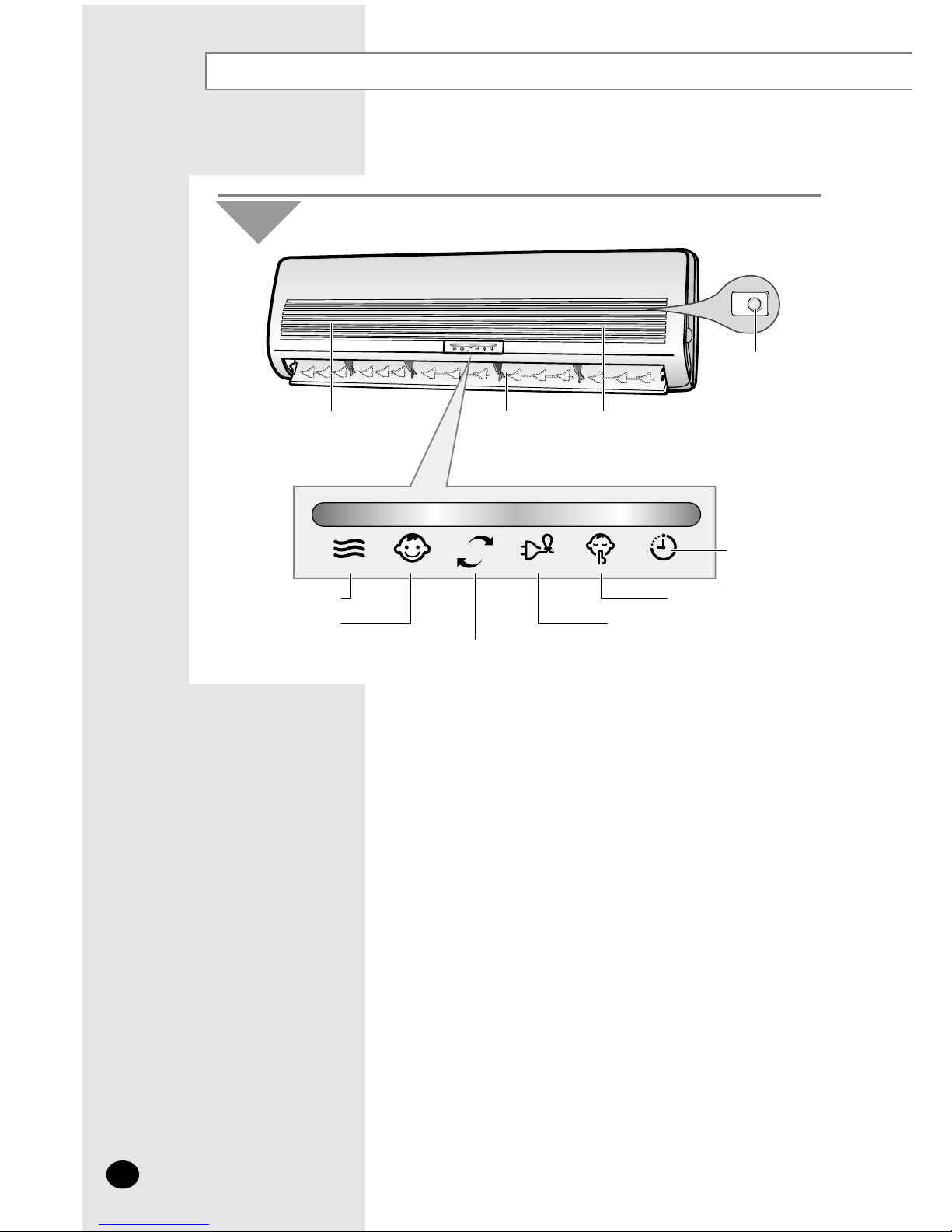

View of the Unit

E-4

Air filter

(under the grille) Air flow blades

(outlet) Air Inlet

Standard indicator

Nature indicator

Power indicator

Timer indicator

Saving indicator

On/Off switch

(operation without

remote control)

Indoor Unit

Power

Standard Nature Saving Silence Timer

Power

Standard Nature Saving Silence Timer

Silence indicator

E-5

Outdoor Unit

Air Inlet(Rear)

Connection Valve

(inside)

Air Outlet

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

5 Way selection button

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the installation book, you will find a series of

step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

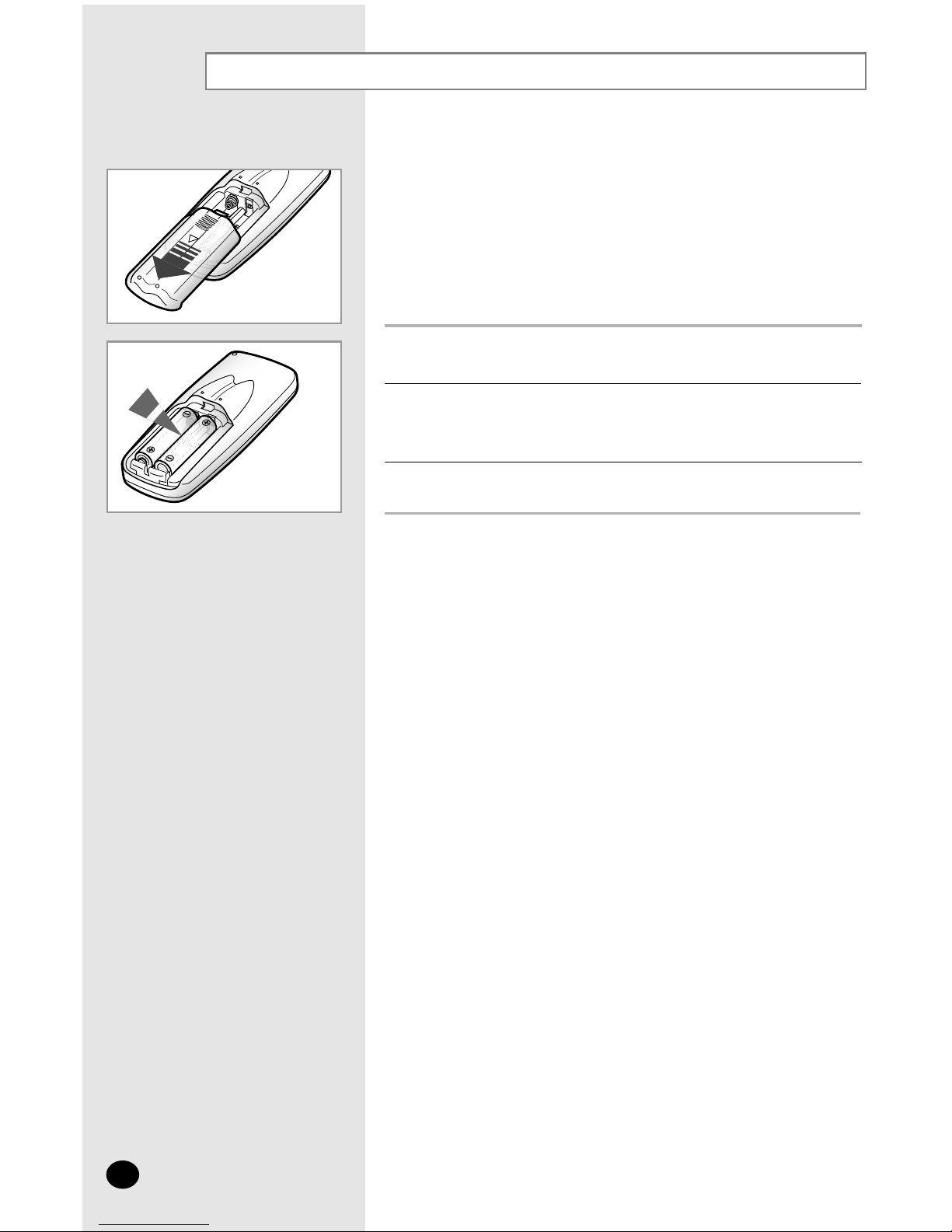

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

Power

Standard Nature Saving Silence Timer

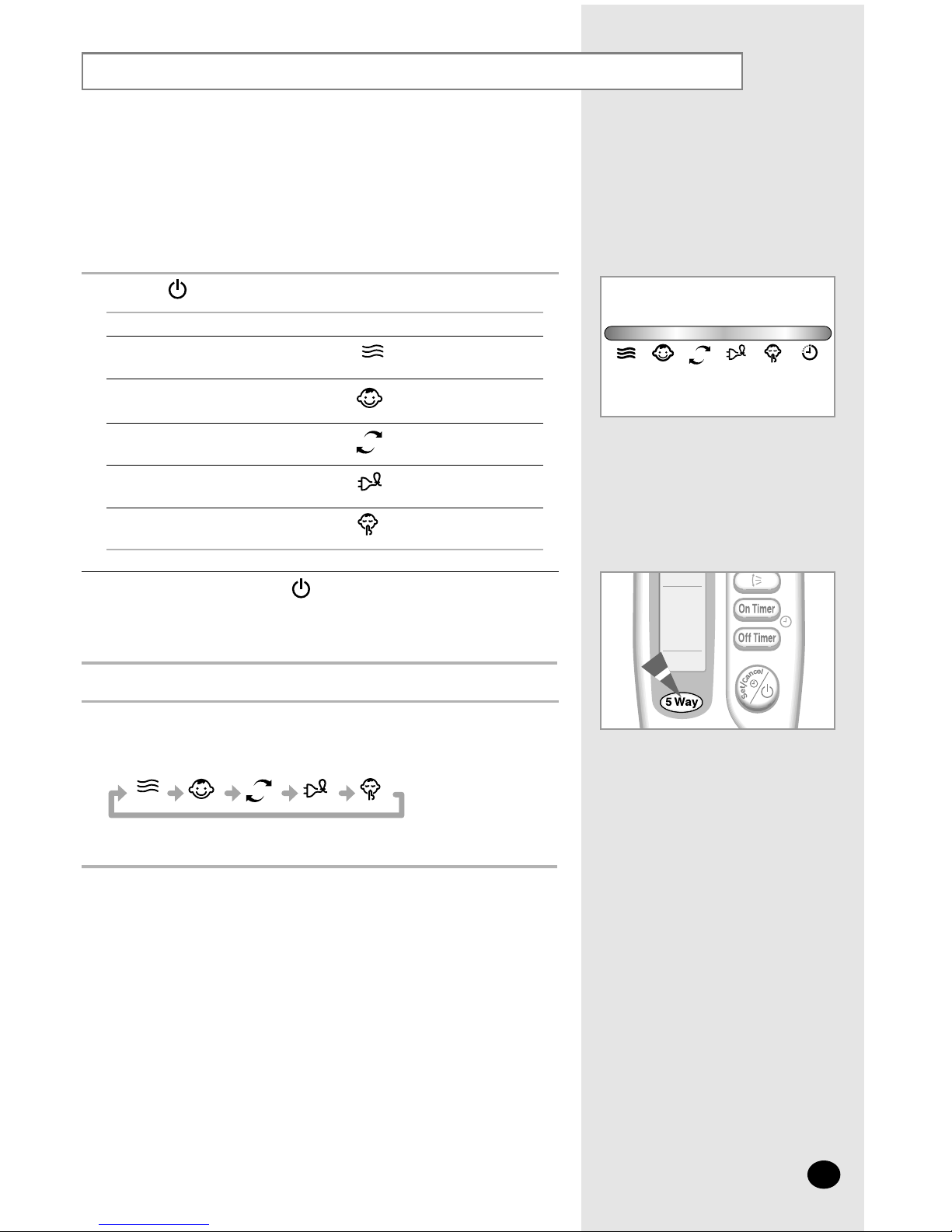

5 Way Function

Press the (ON/OFF) button one time and then select the desired mode.

To stop the operating, press the (ON/OFF) button until all indicators turn off.

You can select the 5 Way function with operating mode of the air conditioner for

more comfortable circumstances. You can use the 5 Way function with the indoor

unit as well as the remote control. Thus, you can use this function

even though you have lost your remote control.

Using with the indoor unit

To select the 5 Way function with the remote control, press the 5 Way

button one or more times until the desired mode is selected.

◆Each time you press the 5 Way button:

Each 5 Way indicator on the indoor unit lights up in order.

Selecting with the Remote Control

Even if the air conditioner has been turned on via the ON/OFF

button on the unit, operations can still be controlled using the

remote control as usual.

NNoo

oott

ttee

To obtain a(n)...

Normal operating (Standard) mode

Then select...

Standard

(Nature) mode

Nature

Reducing the uncomfortable

temperature gradually

(Power) mode

Power

High fan speed

(Saving) mode

Saving

Compressor run time reduced

(Silence) mode

Silence

Fan speed reduces as the temperature

decreases

Standard Nature

Power

Saving Silence

E-9

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The 5 Way indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

E-10
