Samsung AS07S8GB User manual

E§§HNIKA ENGLISH

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

GEBRAUCHSANWEISUNG

O¢H°IE™

Split-type Room Air Conditioner (Cool)

Aire acondicionado doméstico sistema Split (Refrigeración)

Climatiseur de type Séparé(Refroidissement)

Condizionatore d’aria per ambienti ad unitàSeparate (Raffreddamento)

Aparelho de ar condicionado tipo Split (Refrigeração)

Geteilte raumklimaanlage (Kühlen)

¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY

(æ‡ÍË˜)

ESPAÑOL

FRANÇAIS

ITALIANO

PORTUGUÊS

DEUTSCH

E S F I P D G DB98-08801A(4)

AS07S8GB

AS07S8GE

AS07SBGE

AS09S8GB

AS09S8GE

AS09SBGE

AS12SBGE

AS12SGGB

AS12SGGE

AS14SGGB

AS18S0GB

AS18S0GE

AS24S6GB

AST24S6GE

Indoor unit

US07S8GB

US07S8GE

US07SBGE

US09S8GB

US09S8GE

US09SBGE

US12SBGE

US12SGGB

US12SGGE

US14SGGB

US18S0GB

US18S0GE

US24S6GB

UST24S6GE

Outdoor unit

E-2

Safety Precautions

◆If the power supply cord of this air conditioner is damaged, it must

be replaced by the manufacturer or its authorized service personnel

only in order to avoid a safety hazard.

WARNING

◆Do not attempt to install the air conditioner by yourself.

◆This unit contains no user-serviceable parts. Always consult

authorized service personnel for repairs.

◆When moving, consult authorized service personnel for disconnection

and installation of the unit.

◆Do not become over-exposed to cold air by staying in the direct path

of the air flow of the air conditioner for extended periods of time.

◆Do not insert fingers or objects into the outlet port or intake grilles.

◆Do not start and stop air conditioner operation by disconnecting the

power supply cord and so on.

◆Take care not damage the power supply cord.

◆In the event of a malfunction(burning smell, etc.), immediately stop

operation, turn off the electrical breaker, and consult authorized

service personnel.

DANGER

◆Provide occasional ventilation during use.

◆Do not direct air flow at fireplaces or heating apparatus.

◆Do not climb on, or place objects on, the air conditioner.

◆Do not hang objects from the indoor unit.

◆Do not set flower vases or water containers on top of air conditioner.

◆Do not expose the air conditioner directly to water.

◆Do not touch the power supply plug with wet hands.

◆Do not turn off the air conditioner with pulling power cord.

◆Turn off power source when not using the unit for extended periods.

◆Do not place animals or plants in the direct path of the air flow.

◆Do not drink the water drained from the air conditioner.

◆Do not use in applications involving the storage of foods, plants or

animals, precision equipment, of art works.

◆Do not block or cover the intake grille and outlet port in use.

◆Do not use inflammable gases near the air conditioner.

◆If the supply cord is damaged, it must be replaced by a special cord

or assembly available from the manufacturer or its service agent.

(For Europe)

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely.

CAUTION

E-3

ENGLISH

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 11

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Selecting Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Operating Your Air Conditioner Without the Remote Control . . . . . 20

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Cleaning Deodorizing and Bio-Green filters (option) . . . . . . . . . . . 22

◆

ECHNICAL SPECIFICATIONS

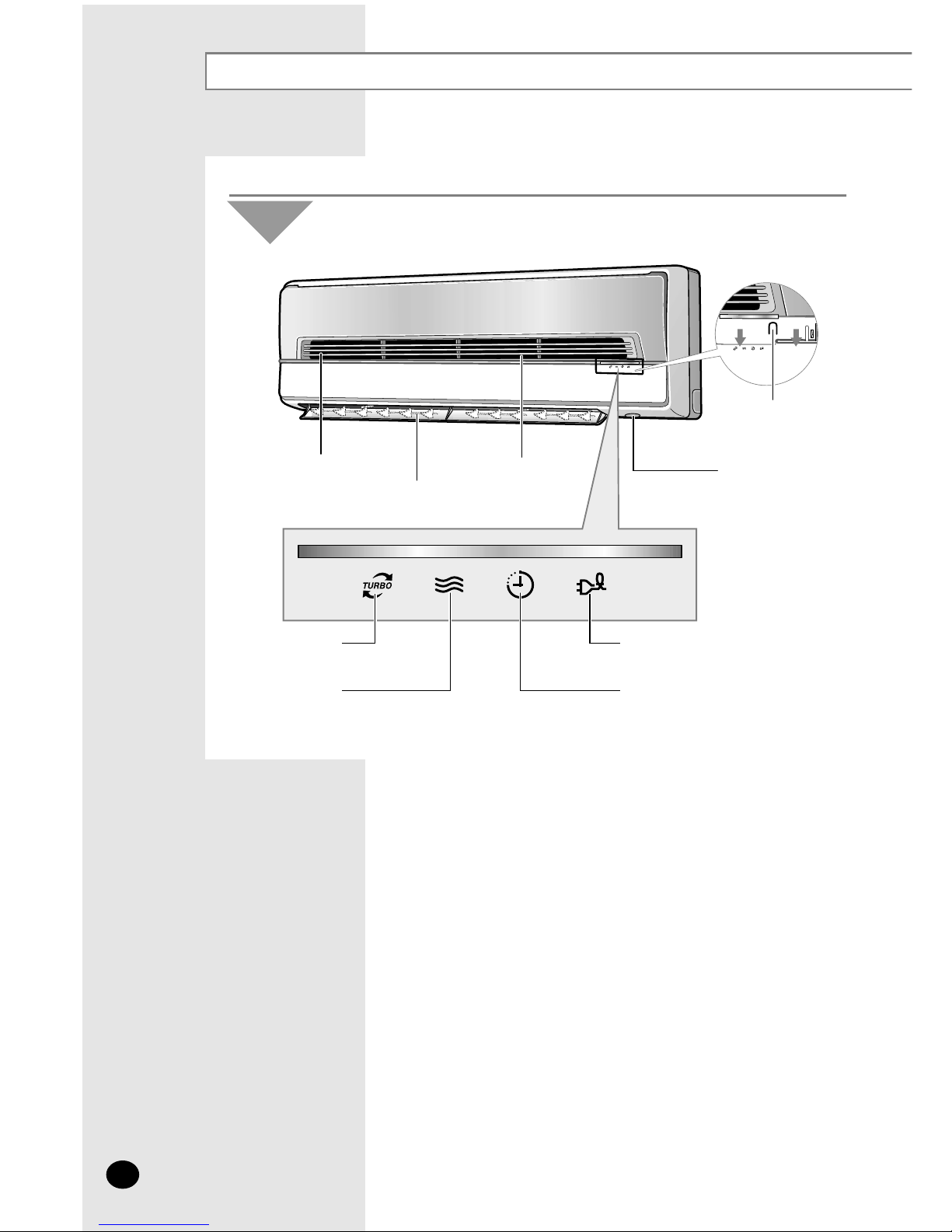

View of the Unit

E-4

The design and shape are subject to change according to the model.

Indoor Unit

Air filter

(under the grille) Air flow blades

(outlet)

Air Inlet

Remote Control Sensor

On/Off switch

TURBO indicator (RED)

Operation indicator

(GREEN)

Energy Saving indicator

(GREEN)

Timer indicator

(YELLOW)

SH30ZC1(C2)X

E-5

ENGLISH

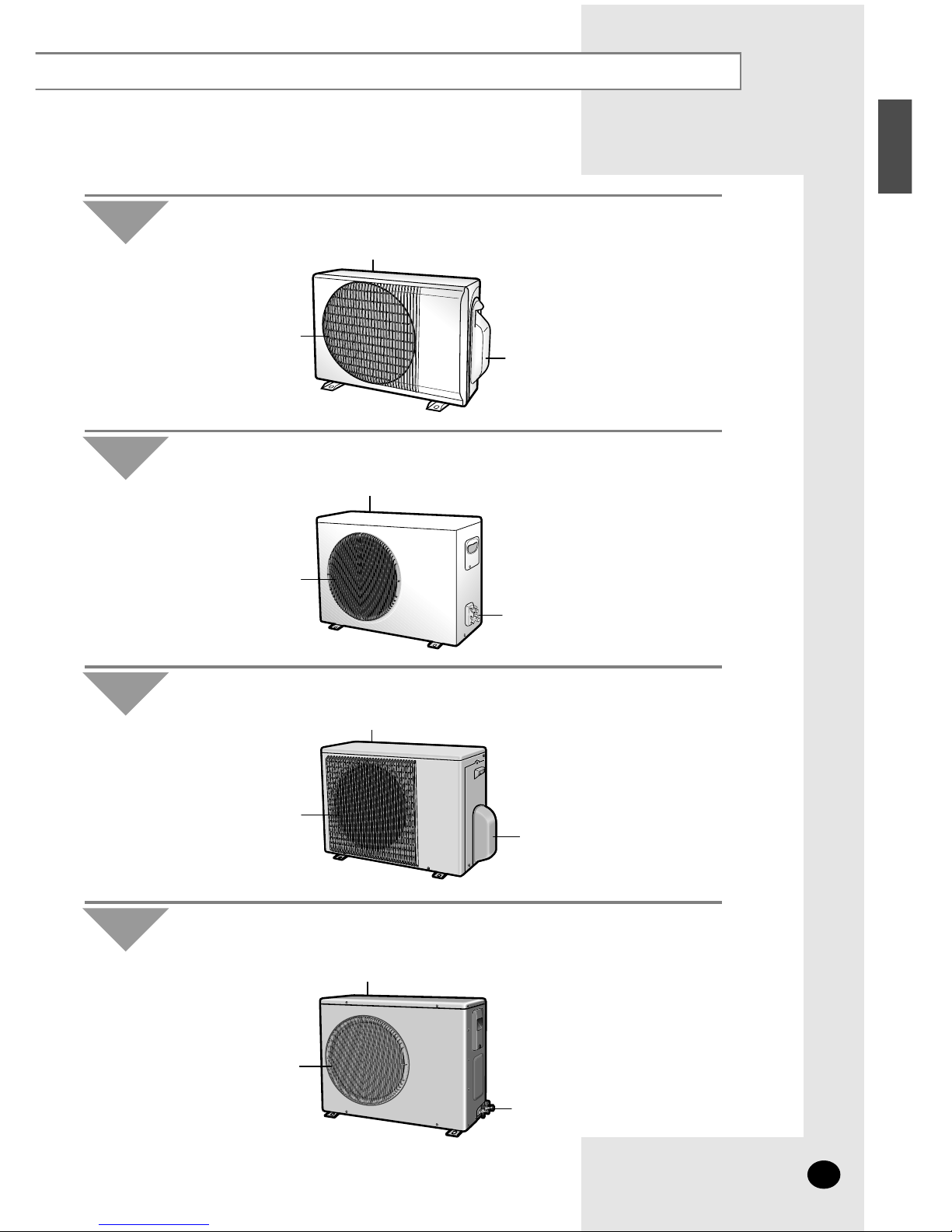

Air Inlet(Rear)

Air Outlet Connection Valve

(inside)

Outdoor Unit US07S8GB US07S8GE US09S8GB US09S8GE

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit US07SBGE US09SBGE US12SBGE

Air Inlet(Rear)

Air Outlet

Connection Valve

(inside)

Outdoor Unit US12SGGB US12SGGE US14SGGB

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit US18S0GB US18S0GE US24S6GB UST24S6GE

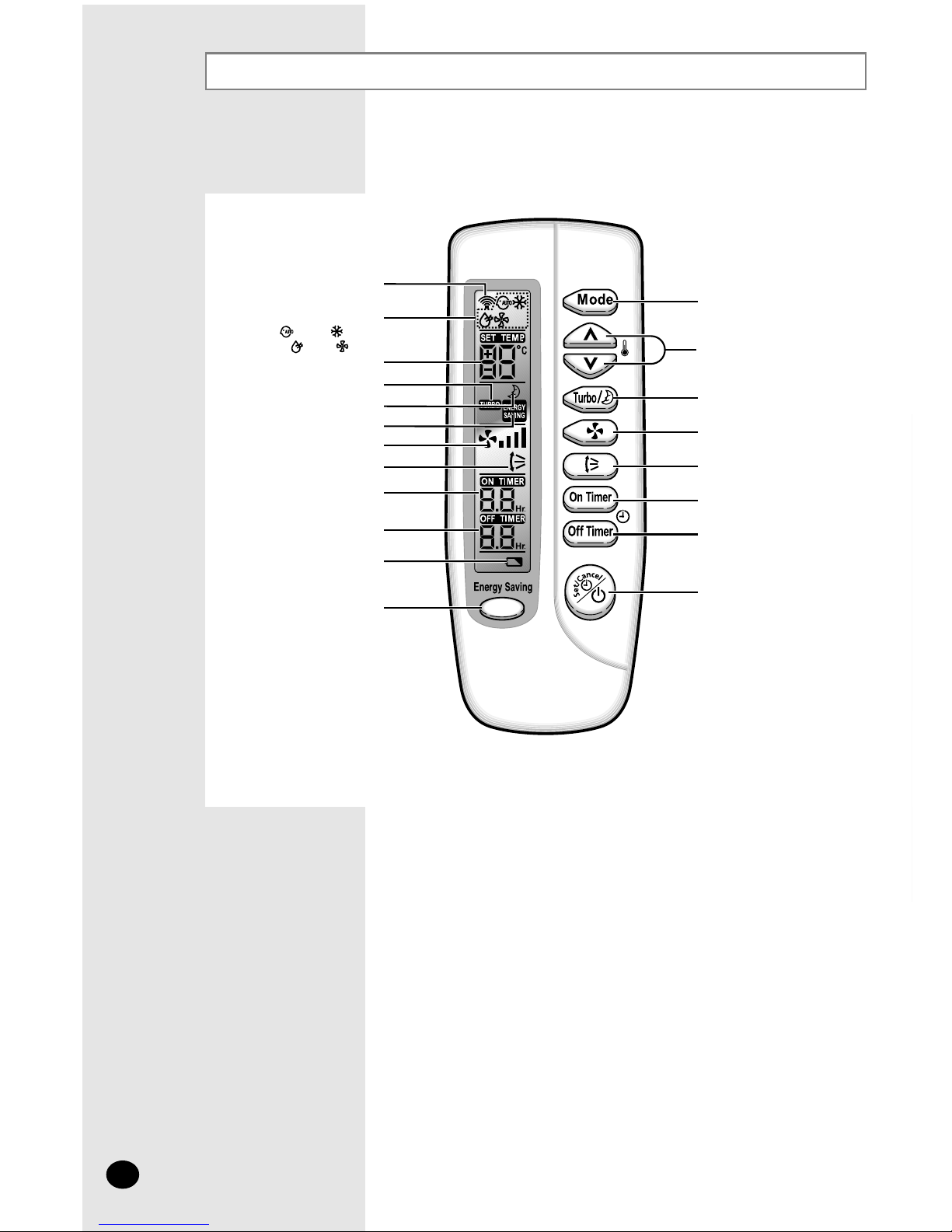

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Energy saving

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

Energy Saving button

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

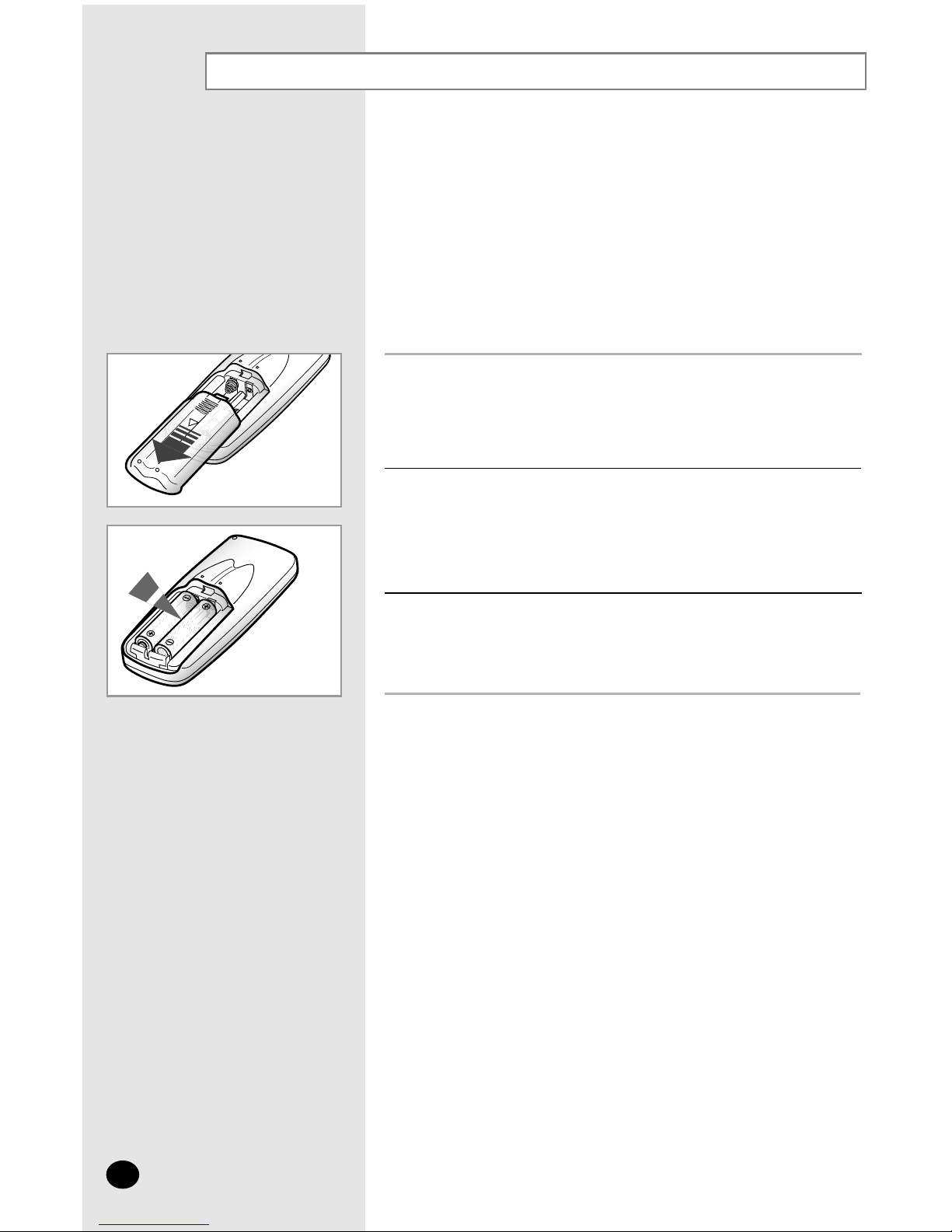

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

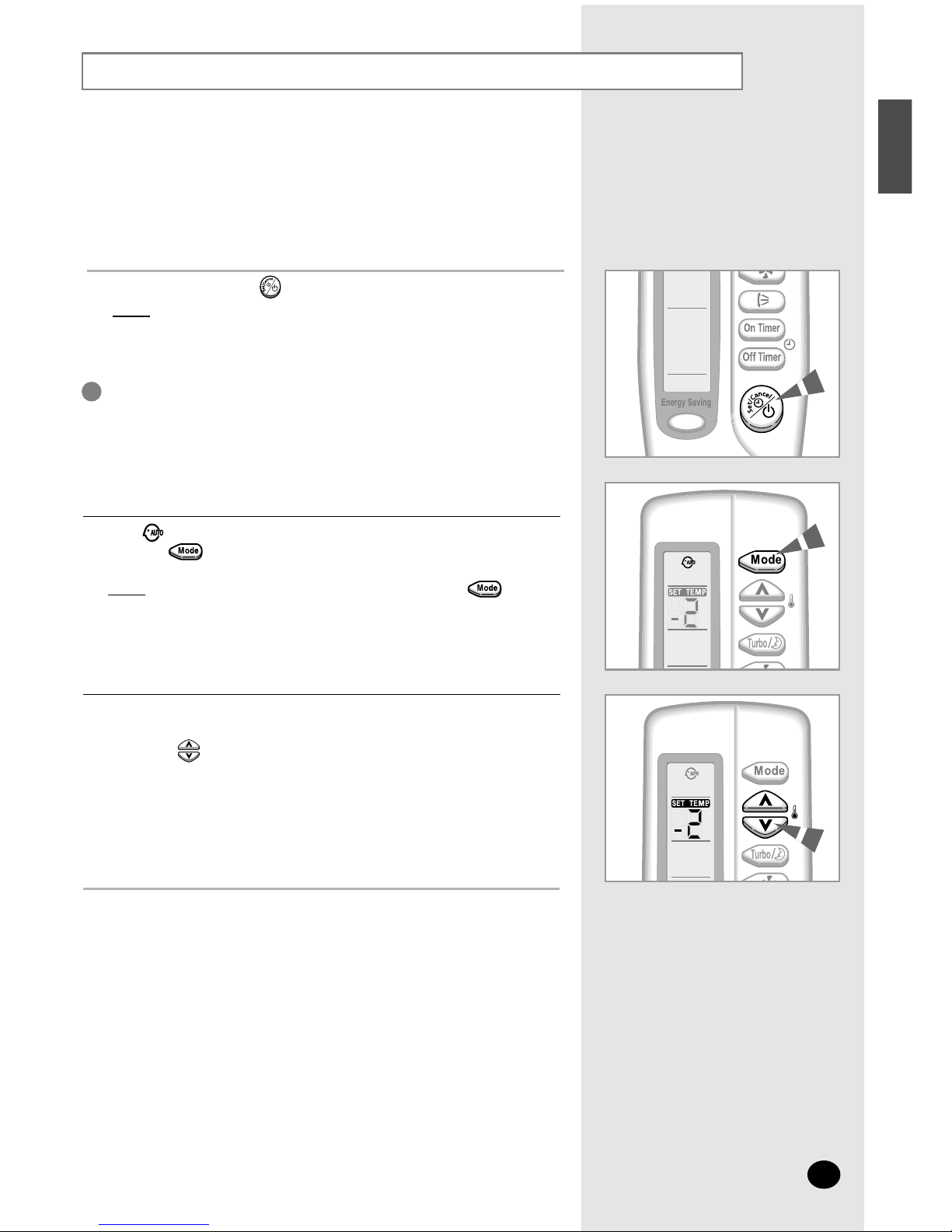

Selecting the Automatic Operating Mode

E-9

ENGLISH

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The operation indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the button one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

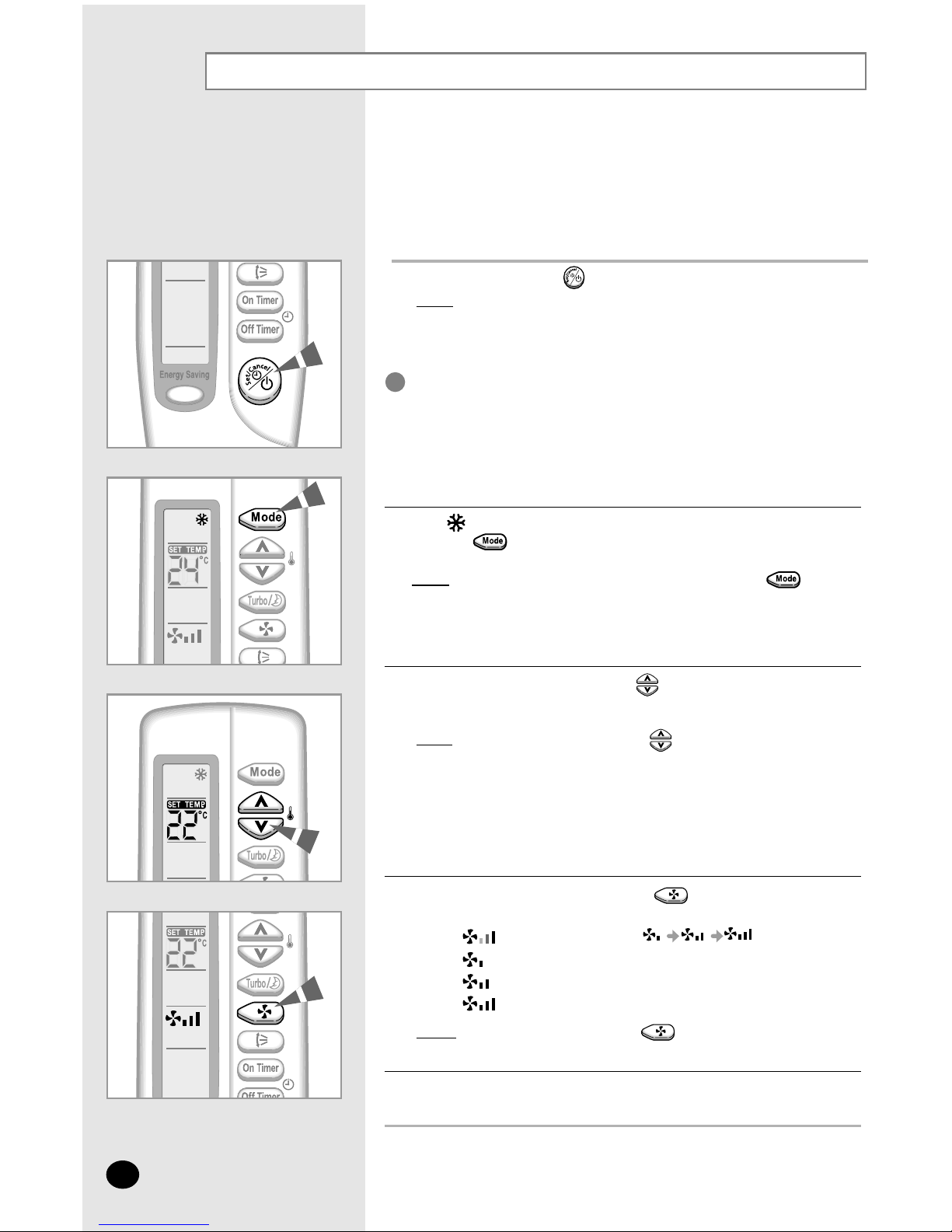

Cooling Your Room

1If necessary, press the (On/Off) button.

Result:

◆

The operation indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the button.

◆

The air conditioner runs in COOL mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the button one or more times until

the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆

Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature.

◆If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Select the fan speed by pressing the button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the button, the indoor unit

beeps.

To control the direction of the air flow, refer to page 15.

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

E-10

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AM KN4DCH Series User manual

Samsung

Samsung AS12SGGB Setup guide

Samsung

Samsung AWT24QPHBB User manual

Samsung

Samsung FH052EAV1 User manual

Samsung

Samsung AQ12F Series User manual

Samsung

Samsung AQ09AWAN User manual

Samsung

Samsung AC***KNLDCH Guide

Samsung

Samsung AM Series User manual

Samsung

Samsung AW07P2 Series User manual

Samsung

Samsung AM KN4DCH Series User manual

Samsung

Samsung AC***KX4D*H Series User manual

Samsung

Samsung MH080FXEA4B User manual

Samsung

Samsung AM072BXV Series User manual

Samsung

Samsung AC***KNPDEH User manual

Samsung

Samsung MIM-H14UN Guide

Samsung

Samsung AQV09K Series User manual

Samsung

Samsung FH18BTA(X) User manual

Samsung

Samsung AM JNVD Series User manual

Samsung

Samsung AR09NXFSPWKNEE User manual

Samsung

Samsung HH105EZM User manual

Samsung

Samsung AS18BPAN User manual

Samsung

Samsung AG AN4DKH Series User manual

Samsung

Samsung JH035EAV Series User manual

Samsung

Samsung AM FNLD Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
