Samsung APH523QF User manual

E A DB98-19122A(2)

APH503QG

APH523QF

APH553QF

OWNER’S

INSTRUCTIONS

FLOOR STAND TYPE AIR CONDITIONER

( Cool and Heat )

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.

◆Never spill any kind of liquid into the unit. Should this happen, unplug

or main switch off the unit and contact an authorized service center.

◆Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.

◆Do not place any obstacles in front of the unit.

◆Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.

◆Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

◆If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)

◆When using a wireless remote control, the distance should not be more

than 7 meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.

◆The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.

◆Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.

◆When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.

◆Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . 8

■ Operating Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

■ Using the Control Panel on the Indoor Unit . . . . . . . . . . . . . . . . 8

■ Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . 11

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . 12

■ Operating to the Long Distance . . . . . . . . . . . . . . . . . . . . . . . 13

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . 16

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . 16

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Other Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 20

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 22

◆

ECHNICAL SPECIFICATIONS

E-3

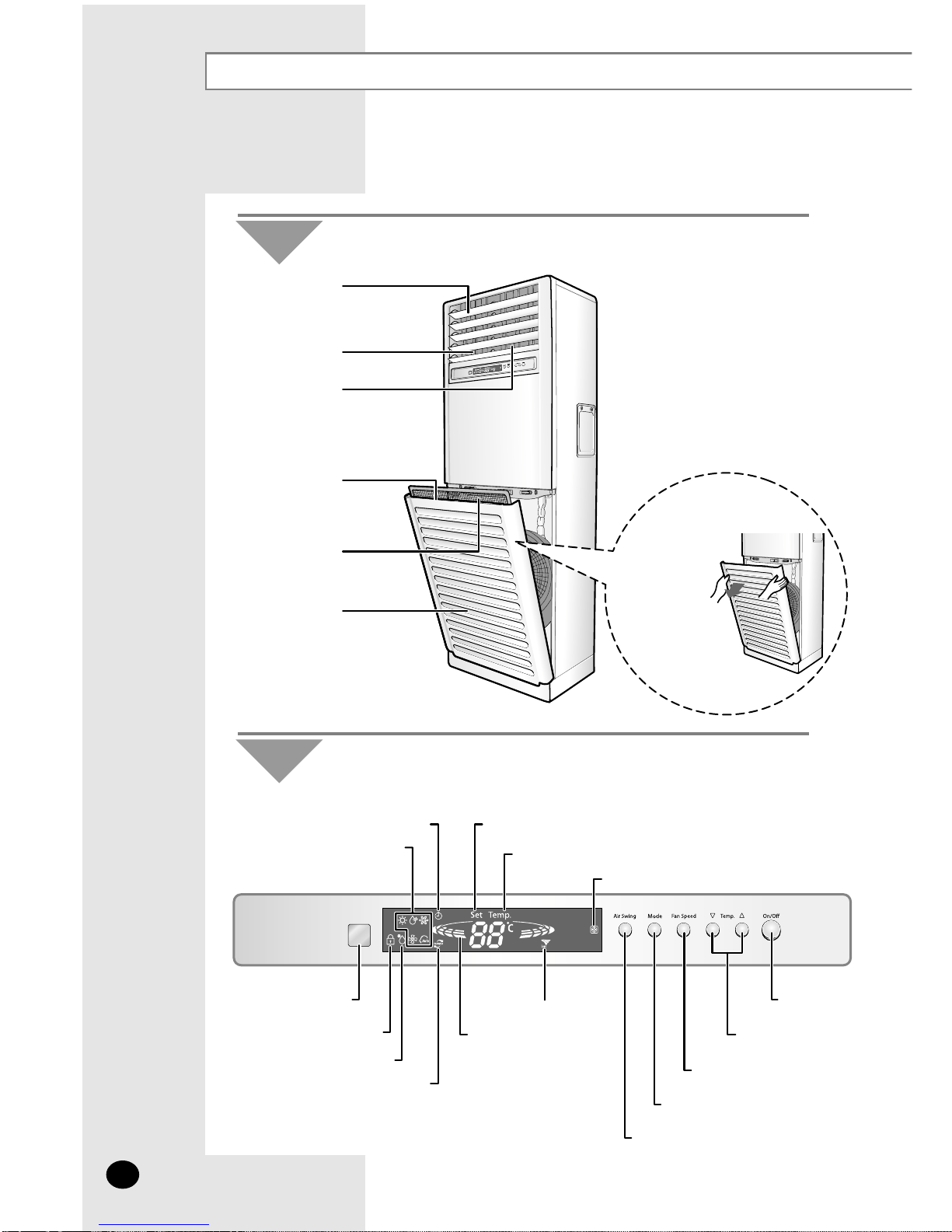

View of the Unit

Indoor Unit

Air flow blades

(up/down orientation)

Air flow blades

(right/left orientation)

Air outlet

Air filter

Remote

control holder

Air inlet

Control Panel

On/Off button

Temperature

adjustment buttons

You can operate the air conditioner with the control panel when you do not

wish to or cannot operate the air conditioner with the remote control.

E-4

To open the grille

◆Hold the

upper

part of the

grille, then

pull it slightly

forward.

Fan speed

Timer indicator

Operating mode indicators

(Cool, Heat, Auto, Dry, Fan) Outdoor operating indicator

Air Swing button

Operation mode selection button

Fan speed adjustment button

Remote control sensor

Lock function indicator Long function indicator

Turbo function indicator

Defrost indicator

Set temperature

Indoor temperature

Air inlet(Rear)

Air outlet

Connection valve

Outdoor Unit

E-5

E-6

Remote Control - Buttons

Temperature adjustment

buttons

Operation mode selection button

(Cool, Heat, Auto, Dry, Fan)

Turbo/Long function button

(Only in the cool mode)

Fan speed adjustment button

On/Off button

Air flow swing buttons

Off Timer button

E-7

Getting Started

You have just purchased a Floor stand type air conditioner and

it has been installed by your installation specialist.

Your Owner's Instructions contain much valuable information on using your

air conditioner. Please take the time to read them as they will help you take

full advantage of unit's features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6:

- Indoor and outdoor units

- Remote control (buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

For the... The illustrations are...

Remote control In the upper part.

Unit itself In the lower part.

Inserting the Remote Control Batteries

Operating Preparation

Using the Control Panel on the Indoor Unit

Using the Remote Control

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months,

even if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

Turn the power switch on.1

Look around the indoor and outdoor unit. Confirm if any obstacles

that may prevent the air flow are present near the air conditioner.

E-8

To operate the unit, the power switch is fitted to the wall

must be set to ON.

IMPORTANT

You can operate with the indoor unit when you do not wish to or cannot

operate the air conditioner with the remote control.

You can : Adapt the On/Off, Temperature, Fan Speed, Operation Mode and

Air Swing settings to your specific requirements.

Example :Remote control is broken or lost.

All air conditioner features except Lock function can be controlled from

your seat by using the remote control.

You can : Adapt the Turbo, Long function and Fan Speed, Timer settings

to your specific requirements.

NNoo

oott

ttee

eeYou must operate the Turbo, Long function and Off Timer with

the remote control.

E-9

Cooling Your Room

You must select the Cool mode if you wish to adjust the :

◆Cooling temperature

◆Fan speed when cooling

1If necessary, press the (On/Off) button.

Result: ◆The power indicator on the control panel comes on.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Switched on

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed on the control panel, press the button on the

remote control one or more times until it appears.

Result: ◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in the Cool mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the buttons on the remote control or

buttons on the control panel one or more times until the required temperature is

displayed. Possible temperatures are between 18

C and 30

C inclusive.

Result: ◆Each time you press the buttons:

- The temperature is adjusted by 1

- The indoor unit beeps.

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature.

◆If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Select the fan speed by pressing the button on the remote control

or button one or more times until the required setting is displayed :

Result: ◆Each time you press the button, the indoor unit beeps.

Automatic(rotated : ➔➔ )

Low

High

Turbo

To control the direction of the air flow, refer to page 16.

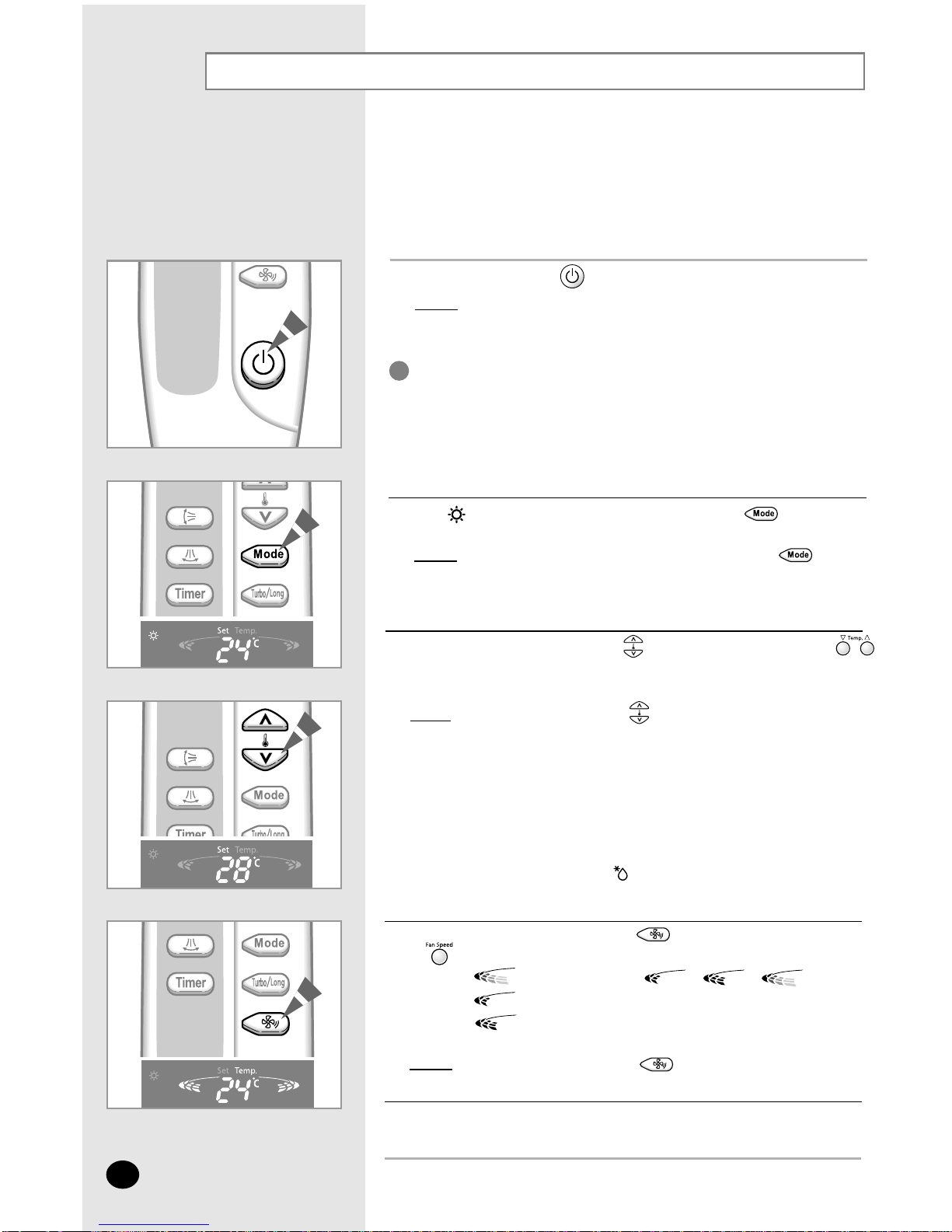

Heating Your Room

E-10

You must select the Heat mode if you wish to adjust the :

◆Heating temperature

◆Fan speed when heating

1If necessary, press the (On/Off) button.

Result: ◆The power indicator on the control panel comes on.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Switched on

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed on the control panel, press the button on the

remote control one or more times until it appears.

Result: ◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in the Heat mode.

You can change modes at any time.

NNoo

oott

ttee

You can't control the airflow direction when the fan doesn't operate.

NNoo

oott

ttee

To adjust the temperature, press the buttons on the remote control or

buttons on the control panel one or more times until the required temperature is

displayed. Possible temperatures are between 16

C and 30

C inclusive.

Result: ◆Each time you press the buttons:

- The temperature is adjusted by 1

- The indoor unit beeps.

◆The air conditioner starts heating, provided that the room

temperature is lower than the selected temperature.

◆For the first 3~5 minutes, the fan may not operate to prevent

the cool air from running out of the indoor unit.

◆If the room temperature reachs the set temperature, the air

conditioner stops heating, but the fan is still operating.

◆The Defrost indicator( ) appears when frost forms on the outdoor

unit and disappears automatically after removing frost.

Select the fan speed by pressing the button on the remote control

or button one or more times until the required setting is displayed :

Result: ◆Each time you press the button, the indoor unit beeps.

Automatic(rotated : ➔➔ )

Low

High

To control the direction of the air flow, refer to page 16.

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AR CSFC Series User manual

Samsung

Samsung AP80S0A Series Guide

Samsung

Samsung AWT18Q1HDA User manual

Samsung

Samsung AR09/12JSPFBWKN User manual

Samsung

Samsung SH09BWH User manual

Samsung

Samsung MH026FNEA/UH026EAV1 User manual

Samsung

Samsung AS09BPAN User manual

Samsung

Samsung AS U Series Guide

Samsung

Samsung MH FW series User manual

Samsung

Samsung AM022FN1DEH/TK User manual

Samsung

Samsung AS30C2BC User manual

Samsung

Samsung AVXWH series User manual

Samsung

Samsung AVMFH052EA0 User manual

Samsung

Samsung MV Series Guide

Samsung

Samsung AM BN4PCH Series User manual

Samsung

Samsung AM JXVHGH EU Series Instruction manual

Samsung

Samsung AVXTFH071EB User manual

Samsung

Samsung SC07AS2 User manual

Samsung

Samsung MXD-E24K Series User manual

Samsung

Samsung AJ JCJ2CH Series User manual

Samsung

Samsung AR TSF BWKNCV Series Service manual

Samsung

Samsung AS18A9RCF User manual

Samsung

Samsung AR12HSSDPWKNEE User manual

Samsung

Samsung AC BXU CH Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
