Ruijie RG-ES05 Series User manual

RG-ES05 / RG-ES05G

Series Switch Quick Installation Guide

系列交换机快速安装指南

锐捷以太网交换机快速安装指南

Ruijie Ethernet Switches Installation Quick Start

本指南适用于 RG-ES05 和RG-ES05G。

This quick start applies to RG-ES05 and RG-ES05G.

1 设备安装

Install the Device

安装到墙壁

Wall Mounting

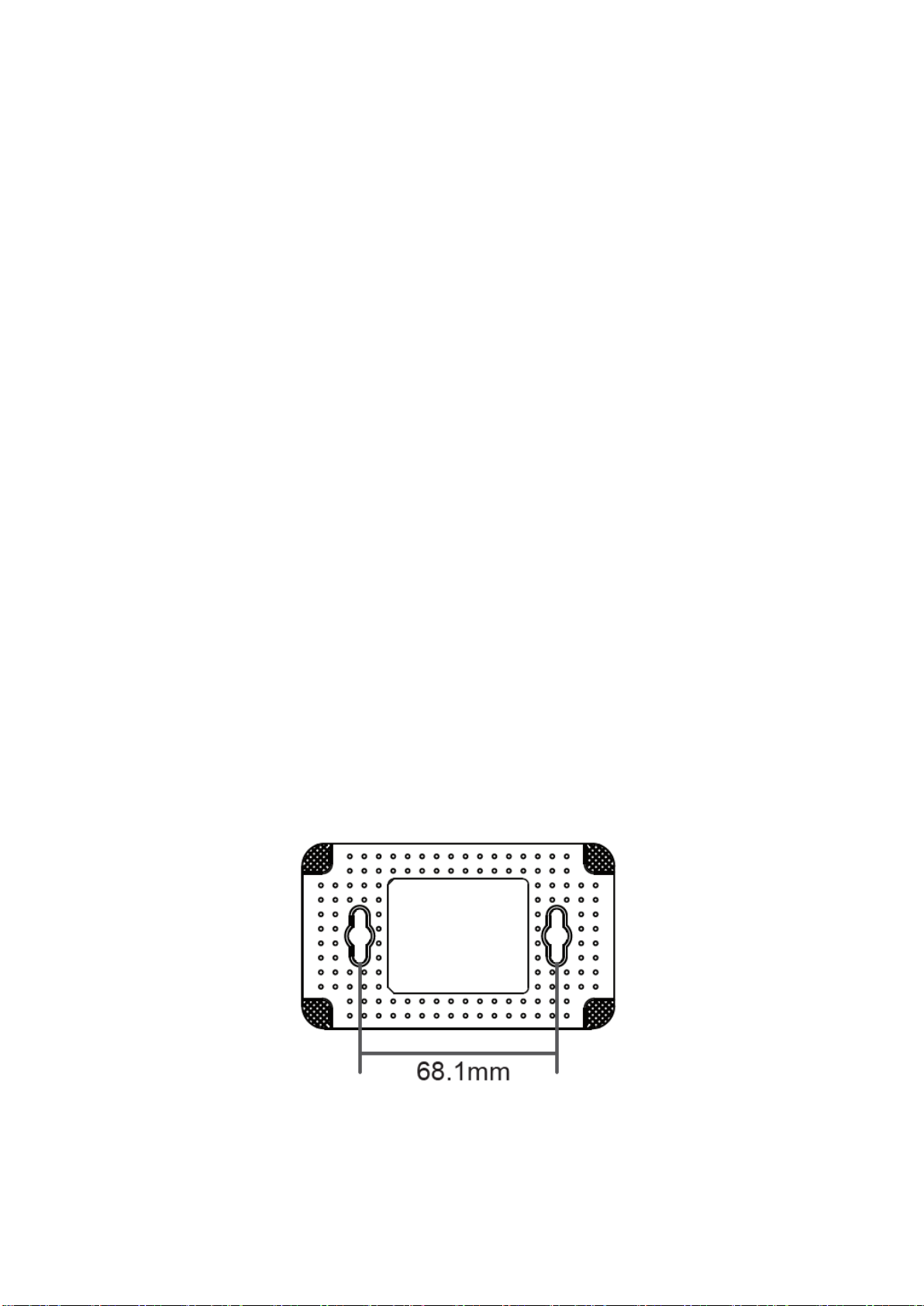

第一步：根据交换机底部的槽位，在墙上定位并钻孔，拧入螺丝（自备）。留出螺丝头用于挂壁。

Step1: Drill two holes in the wall based on the distance between the two slots on the bottom panel of the

switch. Put and tighten two screws (self-prepare) into the holes, and keep an appropriate

distance between the inner edge of the screw head and the wall to ensure that the switch can be

hung on the screws firmly.

第二步：将交换机底部的槽对准螺丝头，滑入并扣紧。

Step 2:Align the slots of the switch to the screw heads, and slip the switch to make it fixed on the screws

firmly.

安装到桌面

Desktop Mounting

将交换机正面朝上置于足够大且平稳的桌面上即可。

Place the switch upside down on a stable and flat desktop.

2 设备连接

Connect the Device

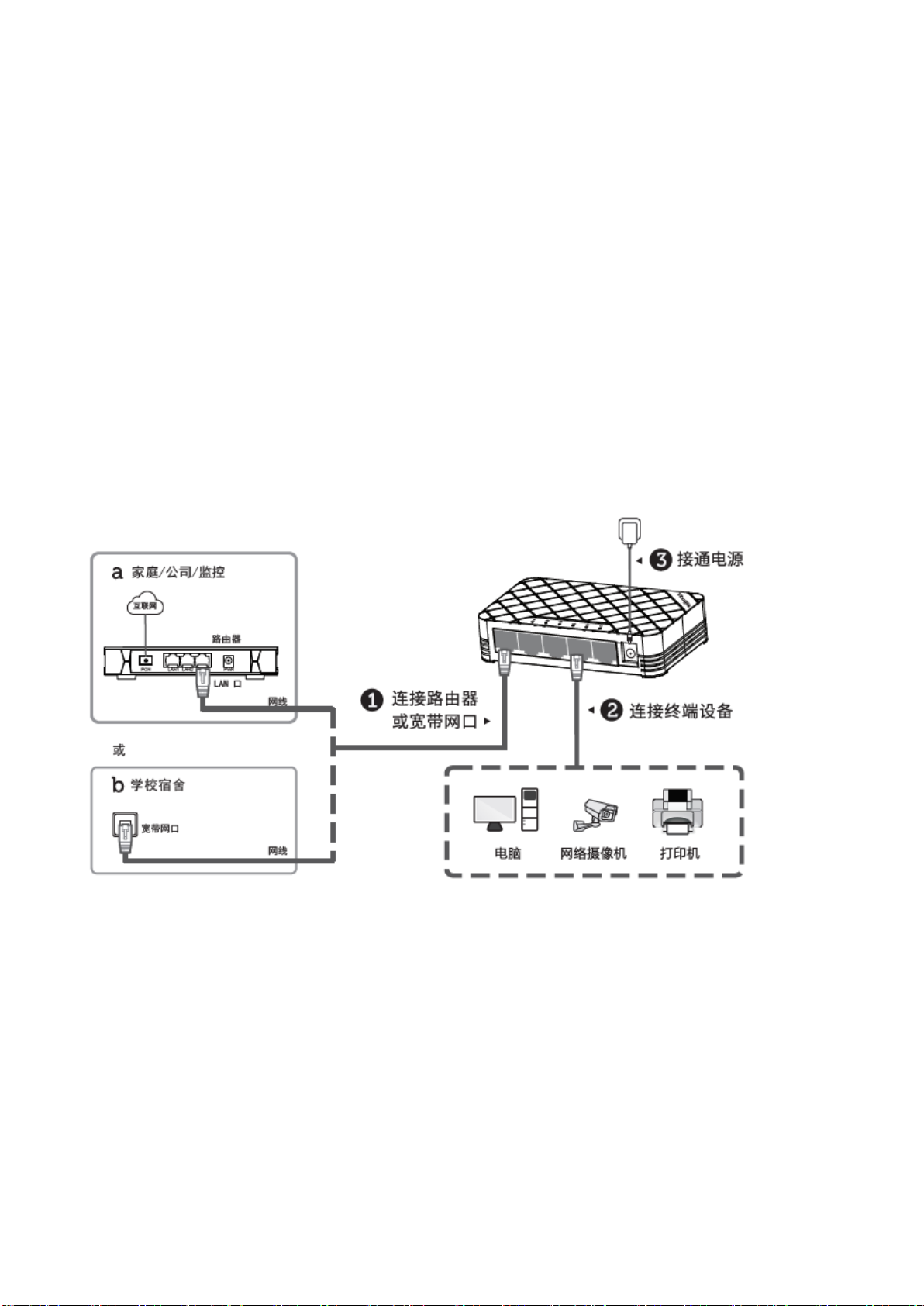

请根据您的组网需求，参照常见场景 a或b进行设备连接。

Refer to scenario a or bfor networking guidance based on your actual situation.

请参考下表检查设备连接是否正确。正确完成连接后，交换机无需进行任何设置即可使用。

Refer to the following table to check whether the device connection is correct. The switch can work immediately

only after correct connection.

指示灯

状态

说明

长亮

交换机通电正常

熄灭

交换机未通电

1~5

长亮

端口已连接

闪烁

端口正在传输数据

熄灭

端口未连接，或连接异常

LED indicators

Status

Description

Solid on

The switch is connected to the power supply properly.

Off

The switch is disconnect from or not connected to a power supply properly.

1~5

Solid on

The port is connected properly.

Blinking

Data is being transmitted over the port.

Off

The port is disconnected or not connected properly.

如需了解产品及安装方面的更多信息，请登陆锐捷网络网站 www.ruijie.com.cn

For more information about the product and installation procedures, log in to www.ruijie.com.cn

锐捷网络股份有限公司版权所有，保留一切权利 Copyright @ ruijie networks Co., Ltd.

RUIJIE NETWORKS CO., LTD.

Ruijie Science and Technology Park, Juyuanzhou, No. 618, Jinshan Road, Fuzhou

Technical Support: http://bbs.ruijiery.com Technical Support Hotline: +86-400-100-0078(China)

Website: http://www.ruijiery.com http://www.ruijie.com.cn

锐捷网络股份有限公司

福州市金山大道 618 号橘园洲工业园区星网锐捷科技园

技术支持：http://bbs.ruijiery.com 远程技术服务中心：+86-400-100-0078(China)

官网：http://www.ruijiery.com http://www.ruijie.com.cn
