Ruijie RG-ES200 Series User manual

Ruijie RG-ES200 Series Switches

Web-Based Configuration Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by anymeans,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products.

Audience

This manual is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Obtaining Technical

Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: service_rj@ruijienetworks.com

Skype: service_rj@ruijienetworks.com

Related Documents

Documents

Description

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Hardware Installation and Reference

Guide

Describes the functional and physical features and provides the device

installation steps, hardware troubleshooting, module technical specifications,

and specifications and usage guidelines for cables and connectors.

Conventions

This manual uses the following conventions:

Convention

Description

boldface font

Commands, command options, and keywords are in boldface.

italic font

Arguments for which you supply values are in italics.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by vertical bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and separated by

vertical bars.

Configuration Guide

Overview

1 Overview

eWeb is a Web-based management system that manages or configures devices. You can access eWeb via browsers such

as Google Chrome.

Web-based management involves the Web server and Web client. The Web server is integrated in a device, and is used to

receive and process requests from the client, and return processing results to the client. The Web client usually refers to a

browser, such as Google Chrome, IE, or Firefox.

1.1Conventions

In this document:

Texts in bold are names of buttons (for example, Save) or other graphical user interface (GUI) elements (for example,

VLAN).

Devices of different models have slightly different functions. This document uses RG-ES218GC-P as an example for

description.

Only RG-ES226GC-P, RG-ES218GC-P, RG-ES209GC-P, RG-ES209C-P, RG-ES205GC-P, and RG-ES205C-P

support the PoE function and configuration.

Only RG-ES226GC-P, RG-ES218GC-P, RG-ES224GC, and RG-ES216GC support the multi-DHCP alarm function.

The device initially adopts an English OS by default. After it is accessed, the device language can be set to the

language used by the current browser. A manually set device language has a higher priority than the language of the

browser.

The cloud status and online upgrade are not supported in the English OS.

2 Configuration Guide

2.1Preparations

Scenario

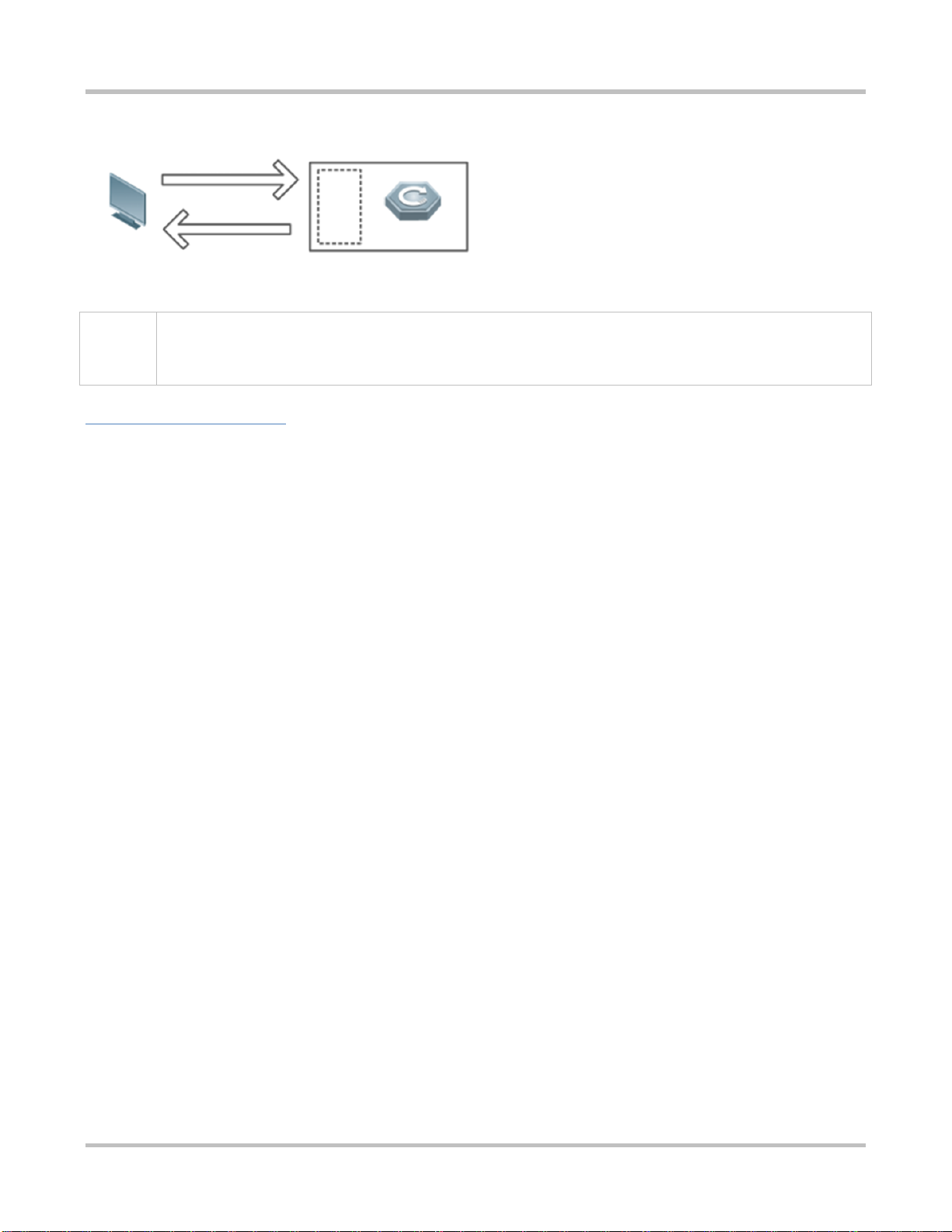

As shown in the figure below, administrators can access the device from a browser and configure the device through the

eWeb management system.

Configuration Guide

Deliver or request

commands

through AJAX.

Administrator Return data

Web

service

Device

Remarks

The eWeb management system combines various device commands and then delivers them to the device

through AJAX requests. The device then returns data based on the commands. AWeb service is available on the

device to process basic HTTP protocol requests.

Deployment

Configuration Environment Requirements

Client requirements:

An administrator can log into the eWeb management system from a Web browser to manage the device. The client

refers to a PC or some other mobile endpoints such as laptops or tablets.

Google Chrome, Firefox, IE9.0 and later versions, and some Chromium-based browsers (such as 360 Extreme

Explorer) are supported. Exceptions such as garble or format error may occur if an unsupported browser is used.

1024 x 768 or a higher resolution is recommended. If other resolutions are used, the page fonts and formats may not be

aligned, the GUI is less artistic, or other exceptions may occur.

Ensure that the client IP address is set to be in the same network segment as the device management address. Then

you can open the browser and enter the device management address to configure the device. When you use the

reserved management address 10.44.77.200 of the device, ensure that the client is directly connected to the switch.

To log into the eWeb management system, open Google Chrome, enter 10.44.77.200 in the address bar, and press Enter,

as shown in the figure below.

Configuration Guide

The device homepage appears by default. In addition, a dialog box is displayed, asking you whether to change the default

password. (The factory settings of the device can be modified only after the password is changed as prompted.)

2.2Default Password Configuration

Under factory default settings, the eWeb management system displays a prompt, asking you whether to change the

password. (You can configure switch functions only after changing the password.)

Click OK. The Web management system automatically redirects to the Account Settings page (or you can choose System

Settings >Account Settings to configure the login password).

Configuration Guide

Enter a new password according to password rules and then click Save. In the displayed dialog box, click OK.

Keep in mind the configured device management password. After password change, the eWeb management system

may need re-authentication and login.

2.3Introduction to the Web GUI

The figure below shows theWeb GUI of RG-ES226GC-P.

Configuration Guide

The Web GUI consists of the left and right portions.

The left portion is the menu bar and provides links to all configuration functions of the device, such as Monitoring and VLAN

Settings.

The right portion is the content area, which is divided into two parts. The upper part displays the port status bar and the

Logout button while the lower part displays the content and configuration area.

Port status bar:

Move the cursor over a port. Basic information about the port (including the port connection status, speed, duplex mode, and

flow control status) is displayed. There are uplink and downlink ports. You can click Collapse to hide the port status bar so

that a larger content area is displayed for viewing configuration details.

Function

menu bar

Switch port status bar

System

information bar

Port details list

and basic function

configuration bar

Configuration Guide

eWeb Configuration

When a port is down, the port icon is grayed out . When a loop occurs on a port, the port icon is displayed in

yellow . When a port works properly, the port icon is displayed in green .

Description of the content area:

Texts in orange indicate a description of a function. Texts in red indicate notes of a function. A question mark (?) against an

orange background indicates an operation prompt, and the prompt pops up when the cursor is moved over the

question mark.

3 eWeb Configuration

3.1Homepage

The homepage displays basic information about the device, interface status, and VLAN Settings.

Enable or disable

the VLAN function.

Move the cursor over the

question mark to pop up a

description of the operation.

Description of

the content area

Supplementary

description for

the field or function
