RS PRO FGA-1577A User manual
rspro.com
User Manual
RS PRO Local/Mobile Air Conditioner
Stock number: 187-5321
EN DE
3
rspro.com
BEFORE USE
These symbols on your device mean:
This appliance is filled with Propane gas R290. Follow strictly the
manufacturer‘s instruction concerning use and repairs!
Before using the machine, read carefully the entire instruction
manual.
Do not install, operate or store the device in a room smaller than
15m2 .
General Cautions
FOR INDOOR USE ONLY.
Do not use in cabinet, closet, boats, caravans or similar locations.
Do not use the unit in swimming pools, washrooms or similar wet
areas.
Leave the unit to stand for 12hours before connecting to the
mains supply after transport or when it has been tilted (ex. During
cleaning).
Only use the unit in the upright position on a flat level surface
(even during transport!) and at least 50cm from any objects.
Do not use the unit in a potentially explosive environment
containing combustible liquids, gases or dusts.
Do not use the appliance in the vicinity of flammable or explosive
substances or fuels. Never use any paint, cleaning sprays, anti-
4
rspro.com
insect sprays or similar near the unit; this could deform the plastic
or cause electrical damage.
Ensure that there is at least 50cm between the sides of the
appliance and any flammable, heating materials.
Do not place objects on the unit or restrict air inlet/outlet.
Do not spill liquid onto the machine.
Closely supervise any children and pets when the unit is in use.
The appliance can be used by persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved this machine is not
suitable to be used by children without supervision of an adult.
CHILDREN SHALL NOT PLAY WITH APPLIANCE.
Cleaning and user maintenance shall not be made by children
without supervision.
Switch off and unplug the unit when not in use.
Never leave a functioning device unsupervised.
Do not pull the unit along by the cord.
Avoid over-twisting, -coiling, -pulling the power cord, never use
nylon or iron wire to tide the power cord.
Make sure that the plug and socket remain visible and accessible
at all the time.
Do not use extension cords.
Never reach to retrieve the unit if it has fallen in water. In such
case, immediately pull the plug. Have the unit checked before
using it again.
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED
BY AN ELECTRICIAN OR SIMILARLY QUALIFIED PERSON,
TO AVOID HAZARD.
THE MAINS SUPPLY MUST CONFORM TO THE
SPECIFICATION SHOWN ON THE RATING PLATE AT THE
BACK OF THE UNIT.
The appliance shall be installed in accordance with national
wiring regulations.
Do not exceed the recommended room size for max. efficiency.
5
rspro.com
Close the doors and windows.
Keep curtains or blinds closed during the sunniest hours of the
day.
Keep filters clean.
Once room has reached the desired conditions, reduce the
setting for temperature and ventilation.
Do not turn on the appliance if you have discovered damage to
the appliance, cord or plug, if the appliance is malfunctioning or if
there are signs of any other defect. Return the complete product
to the vendor or to a certified electrician for inspection and/or
repair. Always ask for original parts. The appliance (incl. cord
and plug) may only be opened and/or repaired by properly
authorised and qualified persons.
Suggest to send the unit for professional maintenance
periodically.
ONLY A LICENSED PROFESSIONAL IS ALLOWED TO
DISMANTLE OR MODIFY THE APPLIANCE.
THE MACHINE IS TO BE USED ONLY FOR ITS PRESCRIBED
PURPOSE. ANY OTHER USE IS DEEMED TO BE A CASE OF
MISUSE. THE USER/OPERATOR, NOT THE MANUFACTUER
WILL BE LIABLE FOR ANY DAMAGE OR INJURIES OF ANY
KIND CAUSED AS A RESULT OF THIS.
Safety relating to refrigerant R290:
Read these warnings carefully.
This appliance contains the refrigerant R290. R290 is a
refrigerant that complies with the relevant European Directives.
Never perforate the refrigerant circuit. R290 is flammable
(GWP3)!
Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
The appliance shall be stored in a room without continuously
operating ignition sources (for example: open flames, an
operating gas appliance or an operating electric heater).
Do not pierce or burn any of the components of the cooling circuit
of the unit. Do not set light to the unit.
6
rspro.com
The appliance shall be stored so as to prevent mechanical
damage from occurring.
Appliance should be installed, operated and stored in a room with
a floor area larger than 15m2.
Be aware that the refrigerants may not contain an odour, which
means you cannot smell leaks..
Compliance with national gas regulations shall be observed.
Keep ventilation openings clear of obstruction.
A warning that the appliance shall be stored in a well-ventilated
area where the room size corresponds to the room area as
specified for operation.
Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorises their
competence to handle refrigerants safely in accordance with an
industry recognised assessment specification.
Servicing shall only be performed on the grounds as
recommended by the equipment manufacturer. Maintenance and
repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the
use of flammable refrigerants.
7
rspro.com

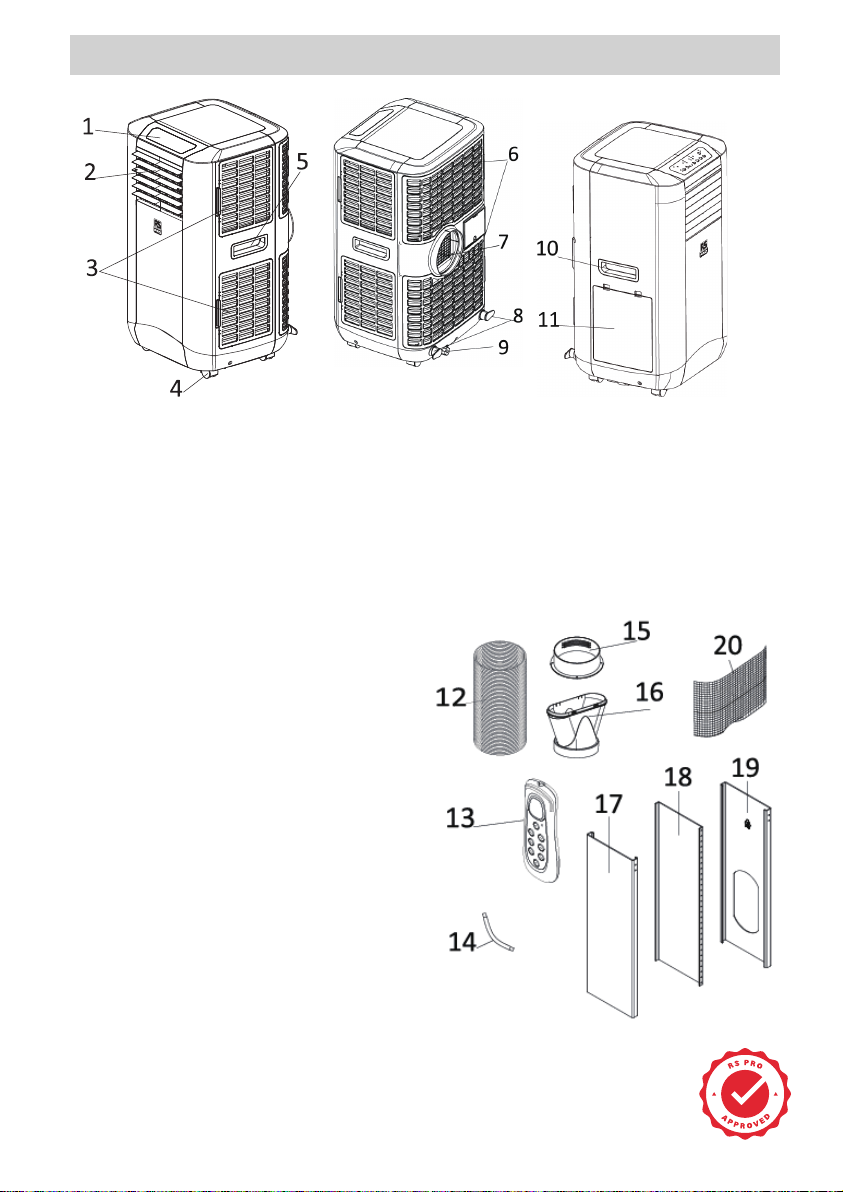

Parts
1. Control Panel
2. Air outlet
3. Side air filter (air inlet)
4. Caster
5. Handle
6. Air filter (air inlet)
7. Exhaust air outlet
8. Cord hanger
9. Drainage knob / drainage point
10. Handle
11. Water bole (for energy efficiency boosng)
Accessories
12. Exhaust hose.
13. Remote control
14. Drain tube for connuous drainage
15. Round Adapter –for connecng
the unit and the exhaust pipe
16. Flat Adaptor – for connecng
the exhaust pipe and the window
spacer
17. Window spacer - for filling the
open window space
18. Window spacer - for filling the
open window space
19. Window spacer - for filling the
open window space and with
hole for connecon to exhaust
hose
20. Acve carbon filter
8
rspro.com
Installation
The unit is a portable air condioner that may be moved from room to room.
1. Using the supplied window spacer
• Offer window spacer to the window gap and adjust the length as you need.
• Feed exhaust hose through the window spacer and slide window across so
that spacer is held securely. This technique may also be used for sash windows.
Note: Take care to maintain protecon against intruders
Extendable slide
Window spacer
9
rspro.com

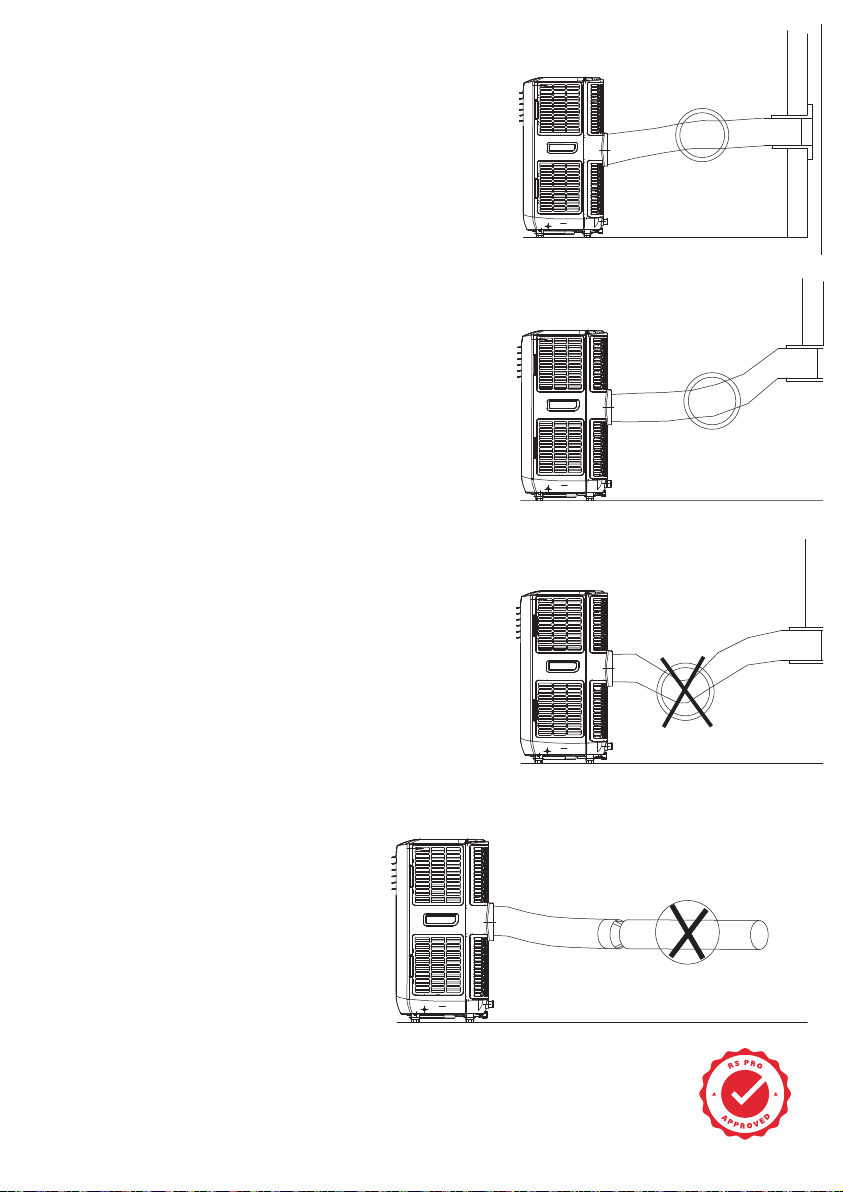

• Use only the hose provided and clip
exhaust hose and unit adaptor to the back
of the air condioner
• Avoid kinks and bends in the exhaust hose
as this will cause expelled moist air to
build up causing the unit to overheat
and shut down.
• The hose may be extended from 300mm
to 1500mm but for maximum efficiency
use the shortest length possible.
WARNING!
The length of the exhaust pipe is
specially designed according to the
specificaon of this product. Do not
replace or prolong it with your own
private hose as this could cause the
unit to mal-funcon.
• Installaon of the carbon filter
This machine is equipped with the acve carbon filter. The acvated carbon is charcoal
that has been treated with oxygen to open up millions of ny pores between the carbon
atoms. It is used to get rid of unwanted odors (smoke, fumes, and animal odor).
Please note, the carbon filter is not washable, its life span is variable and depends on the
ambient condions where the unit is used. The filter should be checked periodically and
replaced if necessary (normally, it’s 6 months), below is the installaon of the acve carbon
filter along with this unit:
1.
Separate the filter frame the unit.
2.
Take out the carbon filter from its
bag.
3.
Apply the carbon filter on the unit.
4.
Fix back the filter frame on the unit.
10
