Rosewill SCM-01B User manual

1

SCM-01B

Thank you for purchasing a Rosewill Case.

Please read the instruction manual before use and retain for future reference.

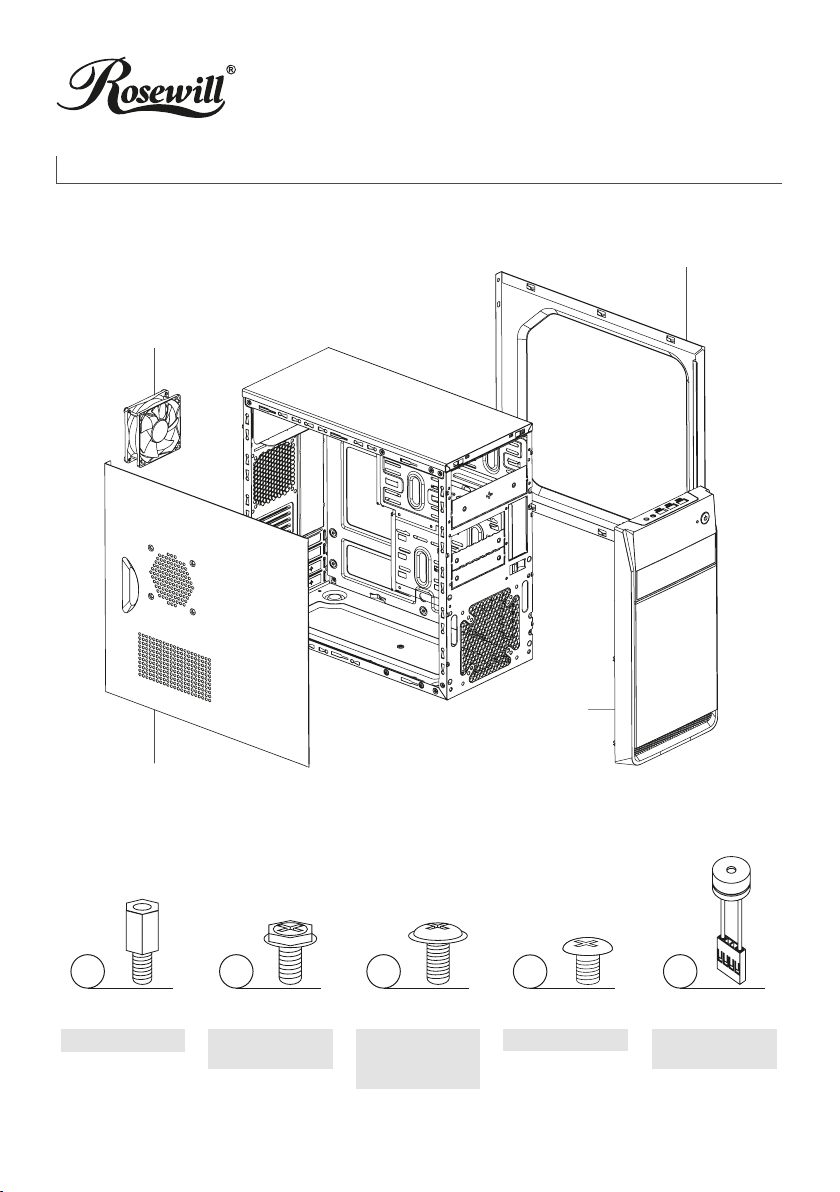

PRODUCT OVERVIEW

Right Side Panel

Left Side Panel

Front Panel

80 mm Fan

x8 x8

x6 x16 x1

M/B Standoff Screw-A Screw-C

Screw-B Buzzer

Motherboard 3.5” HDD

PSU

GPU

Motherboard

5.25"Device

2.5" SSD/HDD

Motherboard

Alarm

Disassembly Chart (components vary by country)

Accessory Kit

2

1

1. Open the Unit

1-1. Remove the thumb screws and slide

out panels R and L (Figure 1).

2. Install the Power Supply

2-1. Set the power supply unit (PSU) on the top-rear of the case and secure with Screw-A

(Figure 2).

2

INSTALLATION GUIDE

3

3. Install the Motherboard

3-1. Line up the standoffs with the screw holes on the motherboard (Figure 3a).

3-2. Screw the motherboard down with Screw-B (Figure 3b).

3b

4. Install the Add-on Card

4-1. Remove the slot cover (Figure 4a).

4a

3a

4

4b

4-2. Install the add-on card and secure with the Screw-A (Figure 4b).

5. Install an External 5.25” Device

5-1. Pull to remove the front panel (Figure 5a).

5a

5

5-2. Insert the 5.25” drive and secure with Screw-B (Figure 5b).

5b

5c

5-3. Remove the slot cover on the front panel and put it back onto the case (Figure 5c).

6

6. Install a 3.5” or 2.5” Drive

6-1. 3.5” Drives: Insert 3.5” drives into the cage and secure with Screw-C (Figure 6a).

6-2. 2.5” Drives: Secure 2.5” SSD/HDD with Screw-B (Figure 6b).

6a

6b

7

7. Care

To prevent damage, it is recommended to keep all panels closed and secured.

7-1. Slide the side panels back into place and secure with thumb screws (Figure 7).

7

USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR

USB2.0USB3.0SPK MIC

I/O PIN-OUT

I/O DIAGRAM

Model

Model Name SCM-01B

Specs

Type Mini Tower

Color Black

Case Material Steel/Plastic

Power Supply Included No

Motherboard Compatibility Mini-ITX, Micro-ATX

Side Panel Window No

Expansion

External 5.25" Drive Bays 1

Internal 3.5" Drive Bays 3

Internal 2.5" Drive Bays 2

Expansion Slots 4

Front Ports

Front Ports

1 x USB 3.0

2 x USB 2.0

Audio In/Out

Cooling System Options

80 mm Fans 1 x Front (optional)

1 x Rear (pre-installed)

120 mm Fans 1 x Front (optional)

Physical Specifications

Dimensions 6.69” x 13.78” x 14.96” (W x H x D)

Weight 6.5 lb

SCM-01B_A

Technical Support Information [email protected] 1-800-575-9885

Please register your product at www.rosewill.com for complete warranty information and support for your product.

SPECIFICATIONS TABLE
