Rose electronics CRV-DLDFMPDVI User manual

CrystalView Pro fiber Rack

WWW.ROSE.COM

Digital fiber KVM extender rack

Rack containing 10 CrystalView Pro fiber

transmitters or receivers

Extends keyboard, video, and mouse signals

up to 33,000 feet away

Supports DVI and VGA video at resolutions

up to 1600 x 1200 (Optional1900 x 1200)

Single, Dual, Serial and Audio models

Easily adapted to your system

Features and Benefits

JExtend 10 KVM stations from 10 CPUs via fiber

cable:

(Multimode) 62.5-micron cable up to 650 feet

(Multimode) 50-micron cable up to 1,300 feet

(Singlemode) 9-micron cable up to 33,000 feet

JSupports:

DVI and VGA video modes

PS/2, SUN, USB keyboards and mice

JFull stereo audio (optional)

JSerial (optional RS232)

JVideo resolutions up to 1600 x 1200

(1900 x 1200 optional)

JFlexible modular architecture

JCompatible with Rose Electronics KVM switches

such as ServeView Pro, UltraView Pro, and

UltraMatrix

JCompatible with Windows, Windows NT, OS/2,

UNIX, Linux, and other operating systems

JUses a microprocessor to emulate the keyboard

and mouse. The keyboard and mouse on the

receiver unit do not have to be connected for the

PC to boot; only the transmitter must be connected

to the PC.

JFully automatic KVM sharing

(Local access models)

JOnly two fibers needed

JDigital OSD setup menu

JRack mount kits available for 4U chassis

in 19”, 23”, or24”

CrystalView™ Pro fiber Rack Advantage

The CrystalView Pro fiber rack is the KVM extender of

choice for businesses that need to extend and operate

several computers, servers, or KVM switches from a

great distance. The CrystalView Pro fiber rack makes

this possible by the use of standard fiber optic cable.

You can fully operate and control 10 computers or

servers from as far away as 33,000 feet using 9-micron

fiber cable.

The CrystalView Pro fiber rack supports both DVI video

as well as analog VGA video. All combinations of DVI

and VGA video cards and monitors are supported. The

OSD features make it easy to adjust all the necessary

device parameters, color, brightness, contrast, and

saturation. Using fiber cable, you can extend the

distance between the transmitter and receiver further

than with conventional CAT5 cable. In addition, fiber

cable is unaffected by electromagnetic interference,

keeping your data safe from interference from lightning

and over voltage transients.

The modular architecture makes the CrystalView Pro

fiber easily adapted to your system. PS/2, SUN, and

USB peripherals are supported. CAT5, Multimode and

Singlemode fiber cabling, serial for Touchscreens and

other supported serial devices, stereo audio, parallel for

printers, and 10BaseT Ethernet are also supported as

options.

Up to 10 transmitters or receivers can be

installed. Each module is totally

independent giving you the flexibility needed

to interface to PCs, serial devices, Sun

systems, Touchscreens, and more from a

central location.

On-screen display

Phone: 281-933-7673 E-mail: [email protected] 

10707 Stancliff Rd. Houston, TX 77099

Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322

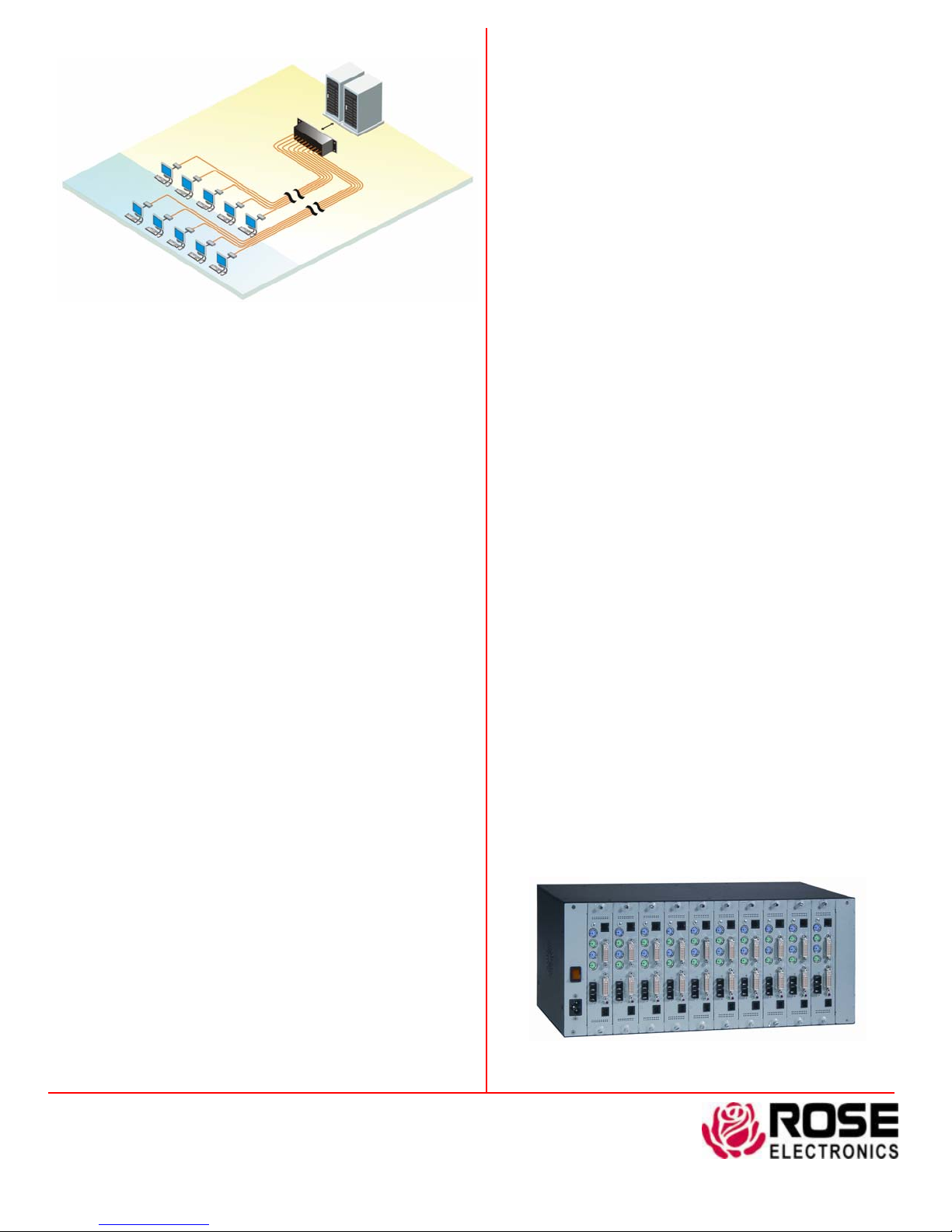

Typical Application

Access computers up to 6 miles away over fiber optic cable

CrystalView Pro fiber basics The CrystalView Pro fiber consists

of a transmitter that connects to a PC, server, or KVM switch and a

receiver that connects to a keyboard, monitor, and mouse, or a KVM

switch. The transmitter and receiver units are connected together with

up to 33,000 feet of standard 9-micron optical fiber cable.

The ideal way to apply the CrystalView Pro fiber is to connect the

transmitter to a Rose Electronics KVM switch. Expanding the switch

allows the receiver to access up to 1,000 computers or servers. The

Rose KVM switch can be connected between the transmitter and

computers, the KVM station and the receiver unit, or both.

Installation Installing the CrystalView Pro fiber unit is as easy as

connecting the KVM station to the receiver, connecting the CPU to the

transmitter, and connecting the transmitter to the receiver with fiber

cable.

Models The CrystalView Pro fiber is available in different models

with PC, SUN, and USB support. The PC model is available in a dual

version allowing for a second KVM station next to the PC’s, providing

operation from the transmitter or the receiver unit.

Keyboard and mouse emulation The CrystalView Pro fiber

uses a microprocessor to emulate the keyboard and mouse. This

means that the keyboard and mouse on the receiver do not have to be

connected for the PC to boot. Only the Transmitter must be connected

to the PC.

Rack Assembly The CrystalView Pro fiber Rack is designed to

easily mount in a standard 19” rack.

Part Numbers

Single rack cards

CRV-DLDFMPDVI-xRK Local-PC-Dual-Multimode

CRV-SRDFMPDVI-xRK Remote-PC-Multimode

CRV-DLDFSPDVI-xRK Local-PC-Dual-Singlemode

CRV-SRDFSPDVI-xRK Remote-PC-Singlemode

CRV-SLDFMUDVI-xRK Local-USB-Multimode

CRV-SRDFMUDVI-xRK Remote-USB-Multimode

CRV-SLDFSUDVI-xRK Local-USB-Singlemode

CRV-SRDFSUDVI-xRK Remote-USB-Singlemode

x = I - Internal PSU / E - External PSU

Rack units populated with 10 cards

CRV-CH10/DVI 10 slot empty chassis

CRV-DLDFMPDVI-RK10L Local-PC-Dual-Multimode

CRV-SRDFMPDVI-RK10R Remote-PC-Dual-Multimode

CRV-DLDFSPDVI-RK10L Local-PC-Dual-Singlemode

CRV-SRDFSPDVI-RK10R Remote-PC-Singlemode

CRV-SLDFMUDVI-RK10L Local-USB-Multimode

CRV-SRDFMUDVI-RK10R Remote-USB-Multimode

CRV-SLDFSUDVI-RK10L Local-USB-Singlemode

CRV-SRDFSUDVI-RK10R Remote-USB-Singlemode

ACC-DVIMVFVGA to DVI converter

RM-UM16nn Rackmount kit nn=19,23,24

/AUD part number suffix = Audio and serial option

Specifications

Dimensions 16.7 W x 7.0 D x 7.0 H

Weight Chassis – 15.5 lbs

Fully populated chassis approx. 30 lbs

(Depending on model)

Operating Temp 10°C – 45°C / 50°F – 113°F

Humidity 80% max, non-condensing

Resolution Up to 1900 x 1200

Connectors Video – DVI

PC -Keyboard/Mouse – MiniDin6

USB – Keyboard/Mouse – Type A/B

Power – 4-Pin square

Program – RJ22

Serial – DB9M

Audio – 3.5mm stereo jack (2)

Wavelength (Multimode) – 850nm

(Singlemode) – 1300nm

Power (Multimode) – 70-400µw

(Singlemode) – 180-2000µw

Approvals: CE

Rearview - 10 module rack

TRANSMITTERS

RECEIVERS

UP TO 33,000’

This manual suits for next models
