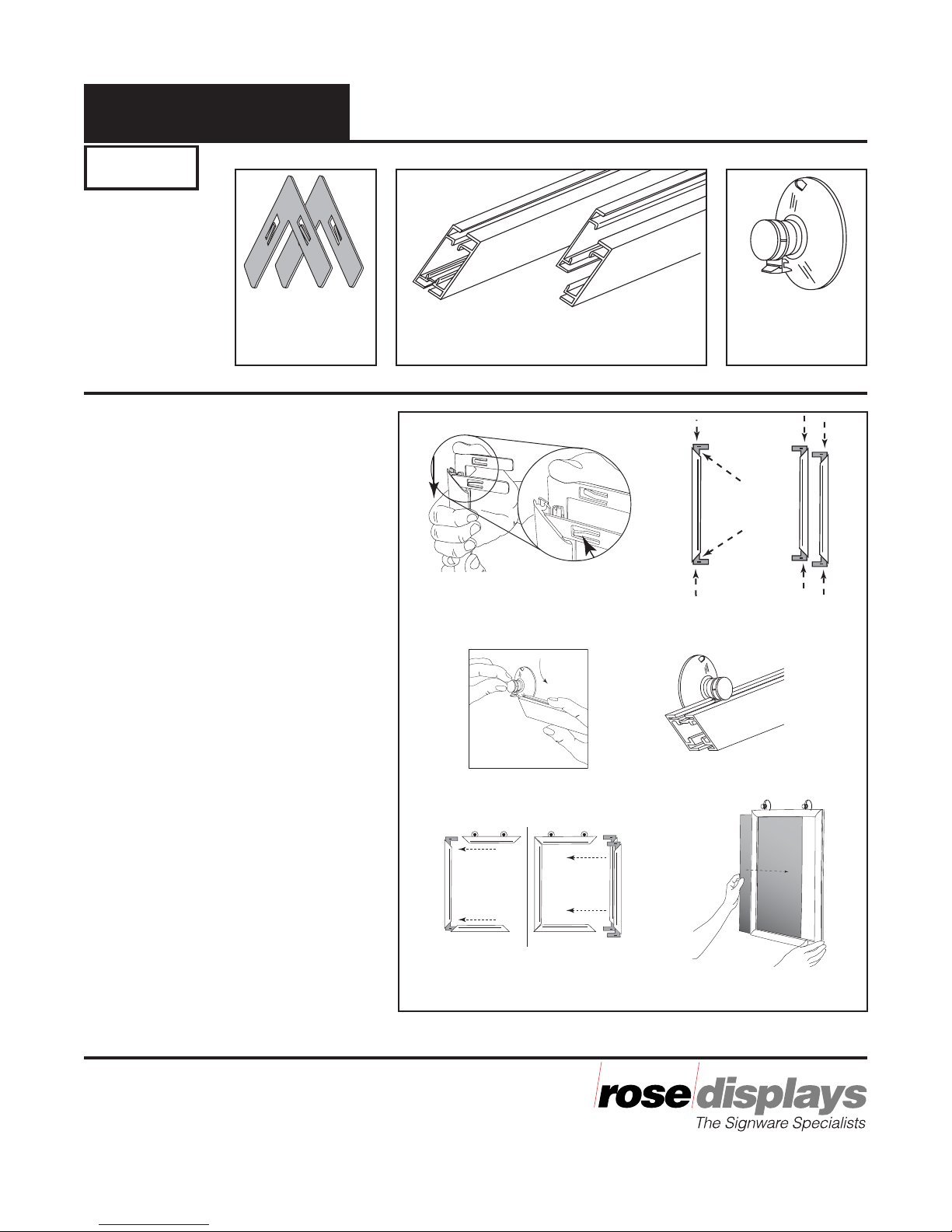

ROSE DISPLAYS ANOFRAME SQUARE WITH WINDOW MOUNTS User manual

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

Figure 4

split rails

AnoFrame

Instructions for assembly

Incept-8.15.02

Figure 1

The AnoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoFrameWindowMounts

Corner

brackets

AnoFrame rails

12AF-100

AnoFrame

split rails

Square Profile Instruction Sheet

Window Mounts

20-0038

Figure 5

Figure 3

split rails

solid rail

Figure 2

Step 1

Locate the two split rails and the

solid rail that is the same length as

the split rails.

Insert corner brackets into side

AnoFrame rails. Insert two corner

brackets into each end of the solid

side Ano rail. Insert one corner

bracket into each end of each split

side Ano rail. Fig. 1 & Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame.

Step 2

Slide the Window Mounts

into the top rail of the AnoFrame

rail. Fig. 3

Step 3

Finish assembling frame following the

sequence in Fig. 4.

Step 4

Insert poster. Fig 5

Note: For best performance when

first applied and occasionally

thereafter, press the middle of the

cup (on the cap) to “burp” extra

air out.

AnoFrame

Instructions for assembly

Incept-8.15.02

Figure 1

The AnoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoFrameWindowMounts

Corner

brackets

AnoFrame rails

12AF-100

AnoFrame

split rails

Square Profile Instruction Sheet

Window Mounts

20-0038

Figure 5

Figure 3

Parts

split rails

solid rail

Figure 2

Figure 4

split rails

Step 1

Locate the two split rails and the

solid rail that is the same length as

the split rails.

Insert corner brackets into side

AnoFrame rails. Insert two corner

brackets into each end of the solid

side Ano rail. Insert one corner

bracket into each end of each split

side Ano rail. Fig. 1 & Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame.

Step 2

Slide the Wally Window Mounts

into the top rail of the AnoFrame

rail. Fig. 3

Step 3

Finish assembling frame following the

sequence in Fig. 4.

Step 4

Insert poster. Fig 5

Note: For best performance when

first applied and occasionally

thereafter, press the middle of the

cup (on the cap) to “burp” extra

air out.
