Rollplay W488AC Assembly instructions
Owner’s Manual and Assembly Instructions
Model W488AC W488AC-PW
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
6V Mercedes-Benz
Introduction
Thank you for purchasing this vehicle from Rollplay. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: 1-888-982-9309
Email: customerservice@rollplay.com
Web: www.rollplay.com
Specifications:
BATTERY 6V 7AH
MOTOR 6V 15W
AGE 3 Years and Up
MAX WEIGHT 77 lbs. (35 kg)
PRODUCT SIZE 41.34 x 23.23 x 20.87 in. (1050x590x530 mm)
SPEED 2.5 MPH
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V0.7A
IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
This page is intentionally left blank.
5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Left Rear Wheel...............11
Assemble the Right Rear Wheel ............12
Attach the Steering Wheel......................13
Attach the Mirrors ...................................14
Attach the Seat ........................................15
Battery Removal ......................................16
Operating Instructions ............................17
Maintenance ............................................18
General Care ............................................19
Troubleshooting Guide............................20
FCC Information ......................................23
Service and Repairs ...............................24
Warranty ...................................................25
Product Registration ...............................27
6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 77 lbs.
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
• Riders must always wear a tted helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
• Do not operate near water, swimming pools or other uids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand or ne gravel.
• Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes
ALWAYS sit on the seat
RISK OF FIRE. Do not bypass.
7
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.
8Parts
1. Manual
2. Battery
3. Battery Charger
4. Car Body
5. Windshield*
6. Mirrors (2)
7. Front Light*
8. Front Light Cover*
9. Dashboard*
10. Steering Wheel
11. Door
12. Seat
13. Back Empennage*
14. Rear Decoration*
15. Tail Light*
16. Front Wheel
17. Rear Wheel
18. Thick Washer
19. Flat Washer
20. Snap Pins (4)
21. Rim
22. Hub Cap
23. MP3 Jack
• Phillips screwdriver
• Pliers
• 2 AA Batteries
Not Included:
1
2 3
4
5
6
9
6
7
7
8
10
11
11
15
16
18
19
20
20
21
21
22
22
23
19
17
14
12
13
*Parts denoted with an asterik are pre-assembled on the vehicle
9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the car is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 16.
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
Bracket
Car Seat Slot
B
A
D
C
A

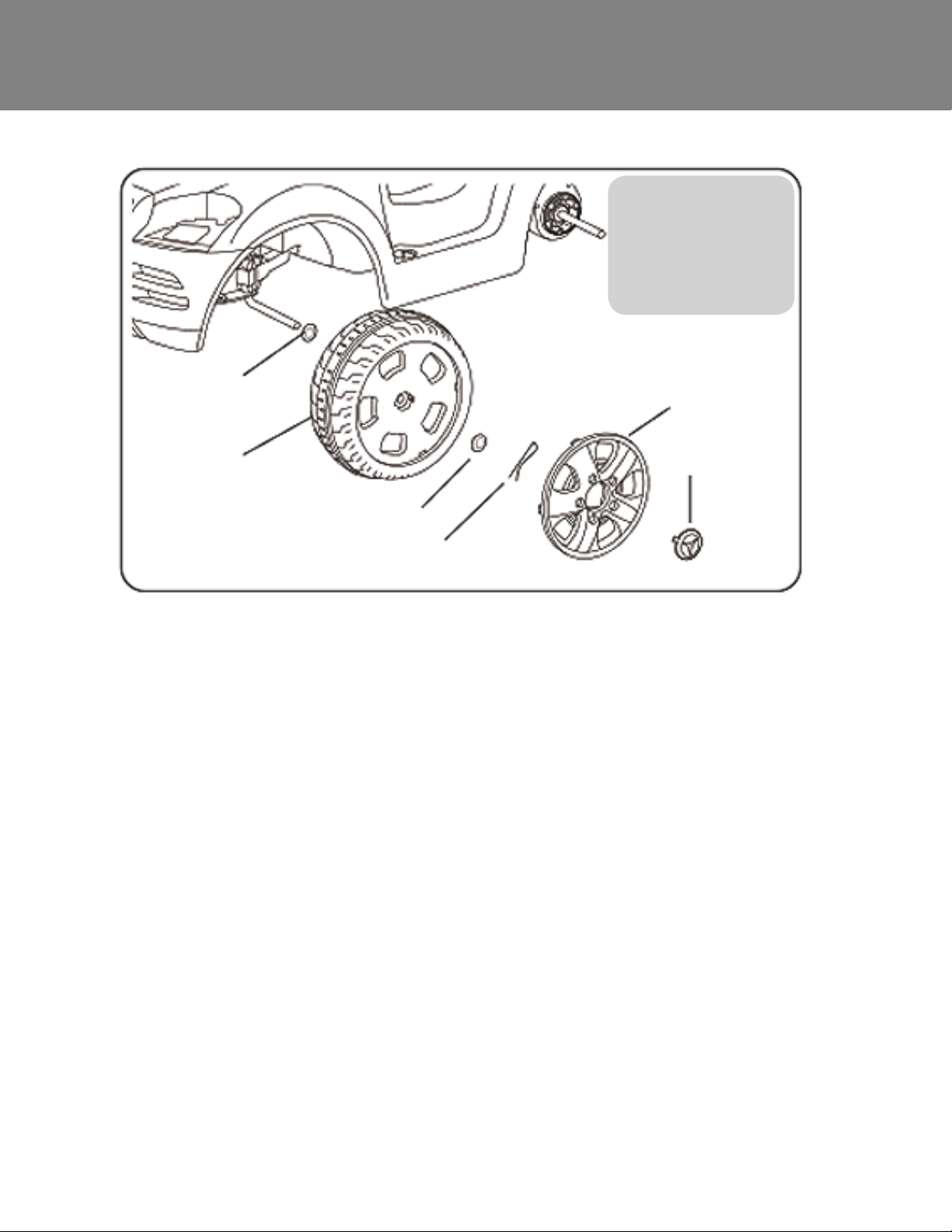

10 Assemble the Front Wheels
1. Slide the front thick washer (18) onto the front axle.
2. Slide the front wheel (16) onto the front axle.
3. Slide the front at washer (19) onto the front axle.
4. Slide the snap pin (20) into the hole on the front axle until rmly
attached. Tip: Pliers may be helpful when removing the snap
pin.
5. Snap the rim (21) onto the wheel.
6. Snap the hub cap (22) onto the completed wheel assembly.
7. Repeat steps 1-6 for the remaining front wheel.
18
16
19
20
21
22
Helpful Tip:
1. Using pliers will
make it easier to
remove the snap pin
from the wheel axle
