Rollplay W441 Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understands the instructions.

Made in China.

Styles and colors may vary. Do not return to store. Email [email protected] for

assistance and replacement parts.

IMPORTANT:

Save this manual with your sales receipt.

Owner’s Manual and Assembly Instructions

Model #: W441, W441AC-A01, W441AC-A02, W441AC-A03



Introduction

Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys

it for miles to come. Please read this instruction guide carefully before

assembling and operating the vehicle.

Keep your sales receipt or register your product at www.rollplay.com.

Please contact Rollplay Customer Service with any questions. Have your

model number and serial number ready before calling. Please have proof

of purchase.

Hours: 9 AM - 5 PM (CST), Monday - Friday

Phone: 1-888-982-9309

Email: customerservice@rollplay.com

Web: www.rollplay.com

Speciﬁcations:

BATTERY 6V 7AH

MOTOR 6V 15W

AGE 3 and up

MAX WEIGHT 35 kg (77 lbs)

PRODUCT SIZE 118.0 x 62.0 x 51.5 cm (46.3 x 24.4 x 21.0 in)

SPEED 4 km/h (2.5 mph)

RECHARGE TIME 8-12 Hours

TYPICAL RUN TIME 1-2 Hours

CHARGER OUTPUT DC 7.0V

IMPORTANT!

YOU MUST CHARGE THE BATTERY

FOR 24 HOURS BEFORE FIRST USE!

Charge the battery after each use.

Charge the battery at least once a month, even if the vehicle is not in use.

E-mail Customer Service if you need assistance or replacement parts. Please

have your model number and serial number ready before calling. Please

have proof of purchase. Keep your sales receipt or register your product at

www.rollplay.com as we may require proof of purchase.

[email protected]

Read this entire manual to ensure

proper assembly and safe operation

of the vehicle.

BEFORE RETURNING YOUR PRODUCT TO THE

STORE, CONTACT ROLLPLAY WITH QUESTIONS.

4Table of Contents

Safety......................................................... 5

Parts ......................................................... 7

Charging Instructions.............................. 8

Assemble the Front Wheels.................... 9

Assemble the Left Rear Wheel............... 10

Assemble the Right Rear Wheel............. 11

Assemble the Windshield

.......................

Attach the Steering Wheel

......................

Product Features..................................... 17

Attach the Mirrors ................................... 14

Battery Maintenance............................... 18

Assemble the Seat

Open the Door

.................................. 15

........................................ 16

General Care ............................................ 19

Troubleshooting Guide............................ 20

FCC Information ...................................... 22

Service and Repairs ............................... 23

Warranty ................................................... 24

Product Registration ............................... 25

Safety

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines, or serious injury or death may

occur to the user.

• Always use common sense and safe practices when using the vehicle. The user

must be at least 3 years old and weigh no more than 35 kg (77 lbs).

• This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material

and plastic bags before assembly.

•

Product Safety Commission (CPSC) Standard 16 CFR 1203.

• Only sit on the seat in the vehicle.

• Do not allow more than one rider.

• Do not overload the vehicle. Do not remove the weight restriction decals.

• Do not pull the vehicle with another vehicle or similar device.

• Keep body parts such as hands, legs, hair and clothing away from moving parts.

Moving parts can cause serious injury.

• Always wear shoes in the vehicle.

• Do not operate near streets or motor vehicles.

• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on

relatively level ground.

•

• Do not operate in dangerous weather conditions such as rain or snow.

•

• Always use the vehicle in a safe, secure environment with adult supervision.

PREVENT INJURIES AND DEATHS:

NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in

vehicle. Direct adult supervision is REQUIRED.

NEVER use in roadways, near cars, on or near steep inclines or steps, swimming

pools or other bodies of water.

ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.

Remove batteries if product is to be left unused for a long time; Always replace the

whole set of batteries at one time, taking care not to mix old and new ones, or

batteries of different types.

6Safety

(Continued)

WARNING: BATTERY SAFETY

• Battery posts, terminals and related accessories contain lead and lead components.

DO NOT open the battery.

• Contact exposure to battery leakage (lead acid) may cause serious injury.

Immediately contact your doctor if exposure occurs. If the chemical is on the skin,

immediately give the person water or milk. Do not give water or milk if the person

is vomiting or has decreased alertness. Do not induce vomiting.

•

explosion. It could permanently damage the system. Keep the charger housing

closed to prevent exposed wiring, which may cause electric shock.

IMPORTANT:

charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION

REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety

issues.

• It is the responsibility of the adult to educate the child and to determine if the child

is capable of understanding the vehicle controls.

• An adult must ALWAYS directly supervise the use of this vehicle.

• NEVER leave a child unsupervised in the vehicle.

Parts 7

1. Manual

2. Battery (Located in the

seat compartment)

3. Charger

4. Side Mirrors (L and R)

5. Steering Wheel Screw

6. Steering Wheel

7. Steering Wheel Nut

8. Seat

9. Windshield

10. Car Body

11. Large Washers (4)

12. Inner Wheel Spacer

13. Rear Wheels (2)

14. Snap pins (6)

15. Wheel Covers (4)

16. Small Washers (5)

17. Front Wheels (2)

18. MP3 Cable

19. Blister Pack

4 6 8

910

2 3

Helpful Tips:

1. Parts 5,7,11,12,14,16 and 18

are located in the blister pack

2. Spare parts: 2 screws

3. The washers are located on

the axles.

8Charging Instructions

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

To Charge the Battery:

1. Ensure the car is stopped and the

power switch is turned off.

2. Using a coin or screwdriver turn the

seat lock to unlock and remove the

seat.

3. Unplug the red battery connector

(A) from the red engine connector (B).

4. Connect the red battery connector

(A) to the red battery charger

connector (C) and plug (D) into a

120 V outlet.

To Reconnect the Battery:

1. Unplug the battery charger (D)

from the outlet.

2. Unplug the red battery connector (A).

3. Reconnect the red battery

connector (A) to the red engine

connector (B).

4. Replace the seat and tighten lock.

Note: It is not necessary to remove

the battery for charging. However, if

the battery does not reach the outlet,

it can be removed for charging.

To remove the battery, unscrew the

black battery clamp, disconnect the

battery, and remove the battery.

YOU MUST CHARGE THE BATTERY FOR 24

HOURS BEFORE THE FIRST USE!

Seat

Assemble the Front Wheels

1. Slide one small washer onto the front axle.

2. Slide the front wheel onto the front axle.

3. Slide the other small washer onto the front axle.

4. Insert the straight end of the snap pin through the hole at the end

of the axle to keep the wheel in place.

5. Snap the wheel cover on the wheel to complete the assembly.

6. Repeat steps 1-5 for the other front wheel.

Correct Snap

Pin Installation

Wheel cover

Snap pin

Front wheel

Small washer

Front Wheels:

Helpful Tips:

1. The side of the wheel with

rectangular tabs should

face outward and the side

marked “Front Wheel”

faces inwards.

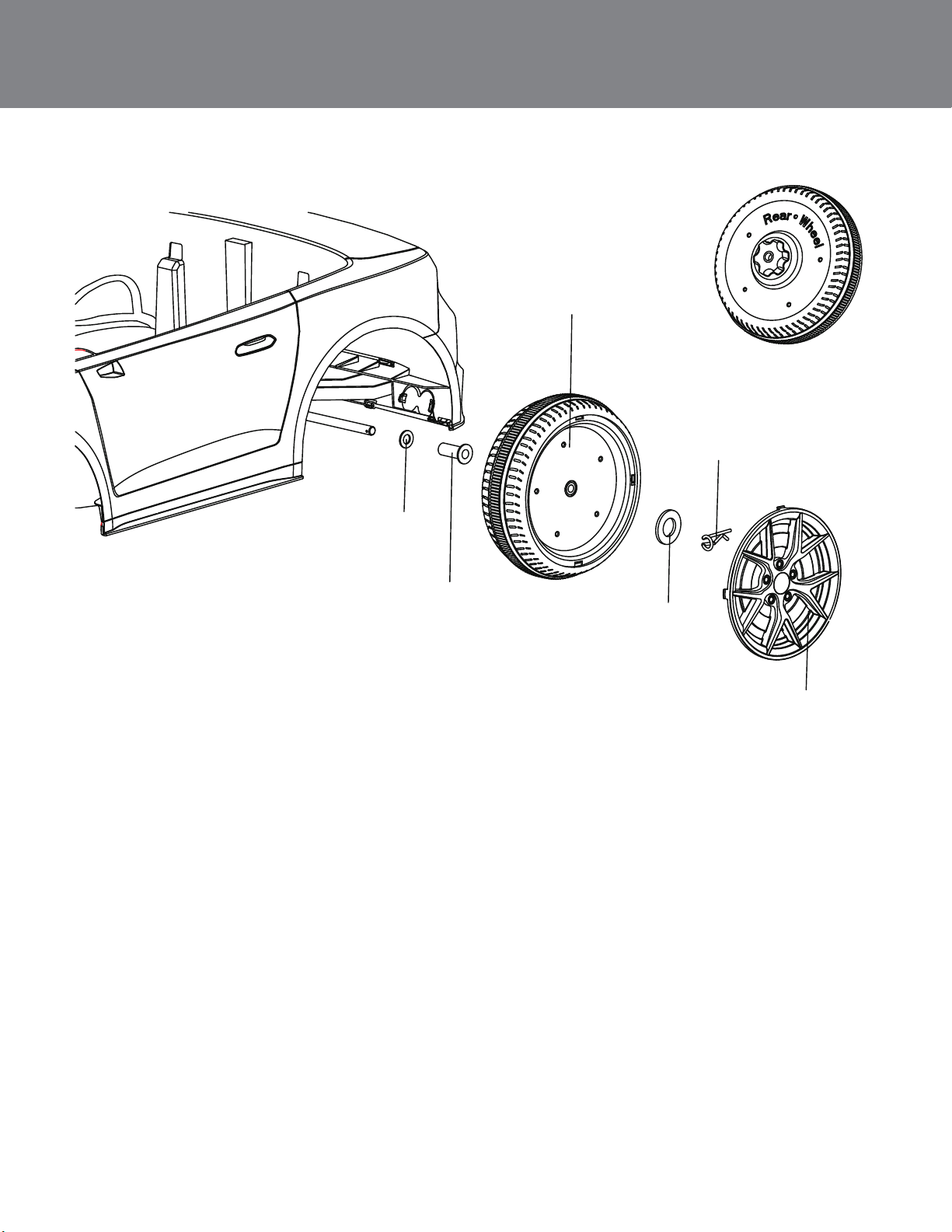

10 Assemble the Left Rear Wheel

Left Rear Wheel:

Slide the large washer onto the rear axle.

Slide the inner wheel spacer onto the axle.

3. Slide the left rear wheel onto the left rear axle. The side with the

gear teeth faces inward.

4. Slide the large washer onto the rear axle.

5. Insert the straight side of the snap pin through the hole at the end of

the axle to keep the wheel in place.

6. Finally snap the wheel cover onto the wheel to complete the

assembly.

Rear wheel

Large washer

Inner wheel spacer

Large washer

Snap pin

Wheel cover
