Rollplay W442 Assembly instructions

Owner’s Manual and Assembly Instructions

Model #: W442

12V Powersport ATV

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understands the instructions.

Made in China.

Styles and colours may vary. Call 1-800-224-094 for assistance and replacement parts.

IMPORTANT:

Save this manual with your sales receipt.

Introduction

Speciﬁcations:

BATTERY 12V 7AH

MOTOR 6V 20W ( x2 )

AGE 3 and up

MAX WEIGHT 35 kg (77 lbs)

PRODUCT SIZE 99 x 61 x 60 cm (39.0 x 24.0 x 23.6 in)

SPEED 4-4.8 km/h

RECHARGE TIME 8-12 Hours

TYPICAL RUN TIME 1-2 Hours

CHARGER OUTPUT DC 14.8V

Thank you for purchasing this RollPlay vehicle. We hope

the rider enjoys it for miles to come. Please read this instruction guide

carefully before assembling and operating the vehicle. Please contact

Hunter Products Pty Ltd at www.electricrideon.com.au or Call

at 1800 224 094 with any enquiries or questions.

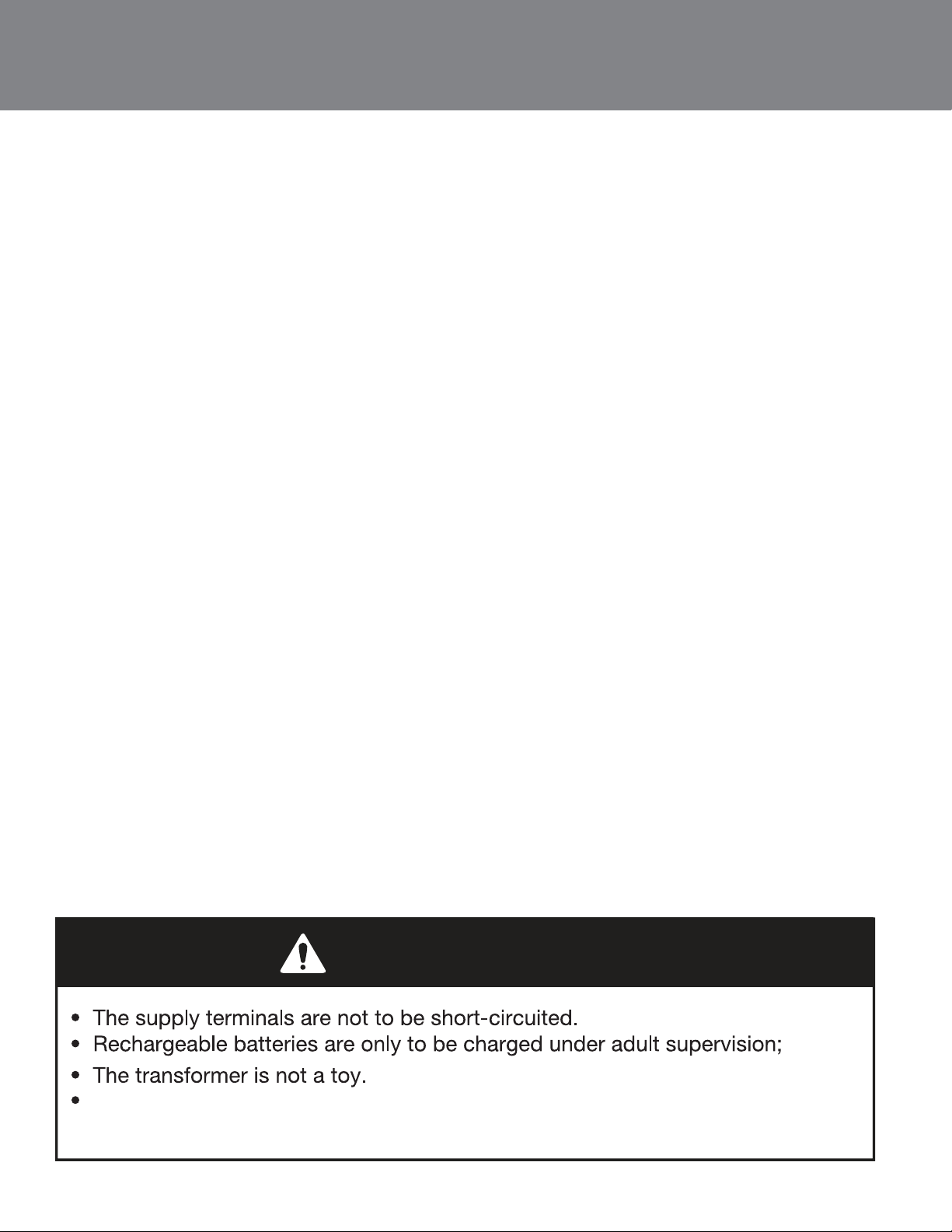

WARNING!

Always disconnect unit from the tranformer if contact with any liquids is

possible. Avoid using liquids to clean this toy.

Table of Contents

Safety......................................................... 4

Parts ......................................................... 6

Charging Instructions.............................. 7

Assemble the Front Wheels.................... 8

Assemble the Rear Wheels..................... 9

Assemble the Steering Rod.................... 10

Assemble the Front Bumper

...................

Attach the Handlebar

..............................

Operating Instructions ............................ 14

Attach the Seat ........................................ 13

Battery Maintenance............................... 15

General Care ............................................ 16

Troubleshooting Guide............................ 17

................................. 19Service and Repairs

.................................................... 20Warranty

4Safety

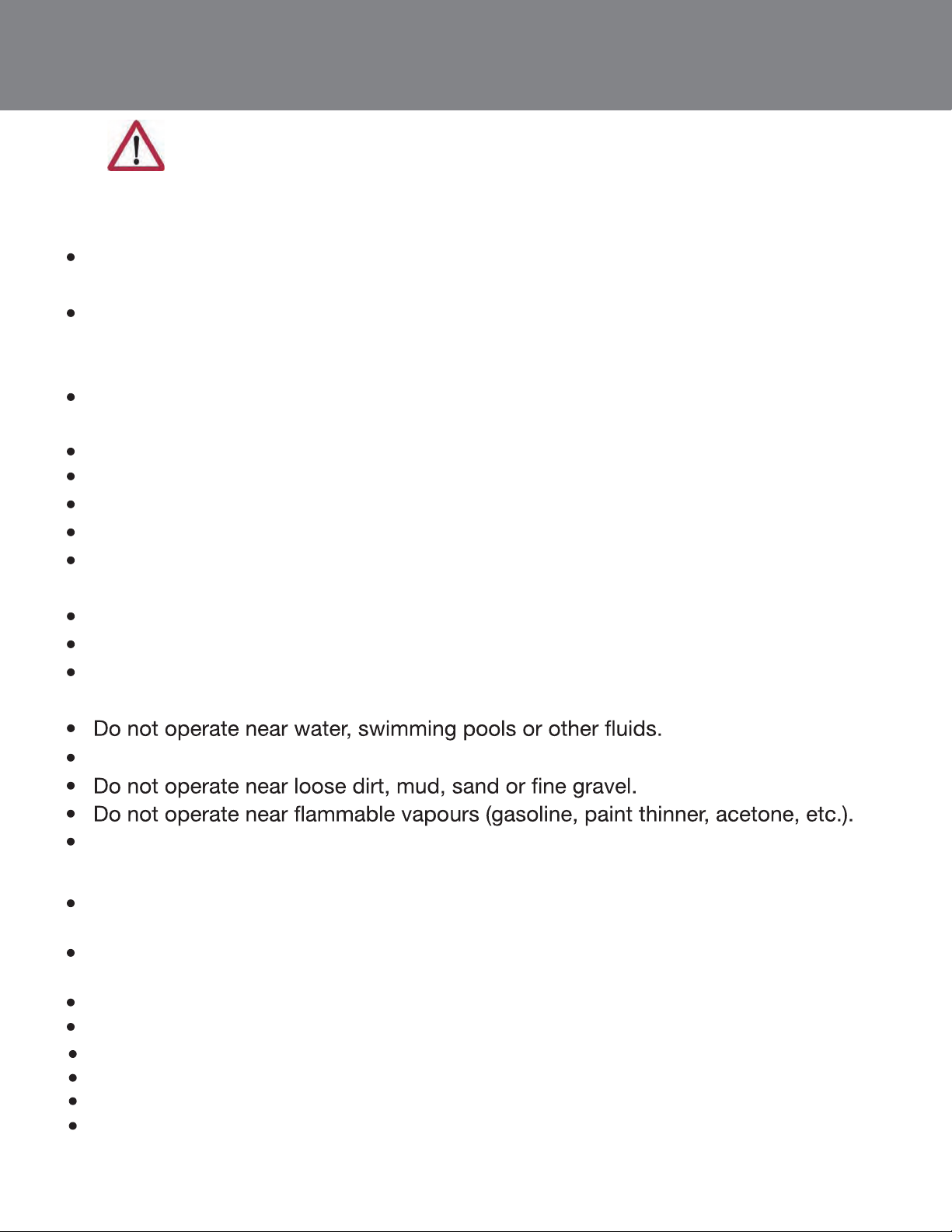

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines, or serious injury or death may

occur to the user.

Always use common sense and safe practices when using the vehicle. The user

must be at least 3 years old and weigh no more than 35kg.

This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material

and plastic bags before assembly.

Only sit on the seat area on the vehicle.

Do not allow more than one rider.

Do not overload the vehicle. Do not remove the weight restriction decals.

Do not pull the vehicle with another vehicle or similar device.

Keep body parts such as hands, legs, hair and clothing away from moving parts.

Moving parts can cause serious injury.

Always wear shoes whilst riding the vehicle.

Do not operate near moving motor vehicles or in areas where there is road traffic.

Do not operate near potential hazards such as steps, steep inclines or hills.

Operate on relatively level ground.

Do not operate in dangerous weather conditions such as rain or snow.

Always use the vehicle in a safe, secure environment with adult supervision.

PREVENT INJURIES AND DEATHS:

NEVER LEAVE CHILD UNATTENDED. ALWAYS

keep child in view when child

is in vehicle. Direct adult supervision is REQUIRED.

NEVER use in roadways, near cars, on or near steep inclines or steps, swimming

pools or other bodies of water.

ALWAYS wear shoes.

ALWAYS sit on the seat.

Different type of batteries or new and old batteries are not to be mixed.

This toy is not suitable for children under 3 years due to its maximum speed.

Not to be used in traffic.

Battery charger, electric wire plug enclosure and other parts should be periodically

checked for damage, if damaged, please seek repair before use.

Riding the vehicle without a helmet is not recommended. Riders must always wear

a fitted helmet that complies with Australian Standard AS/NZS 2063:2008.

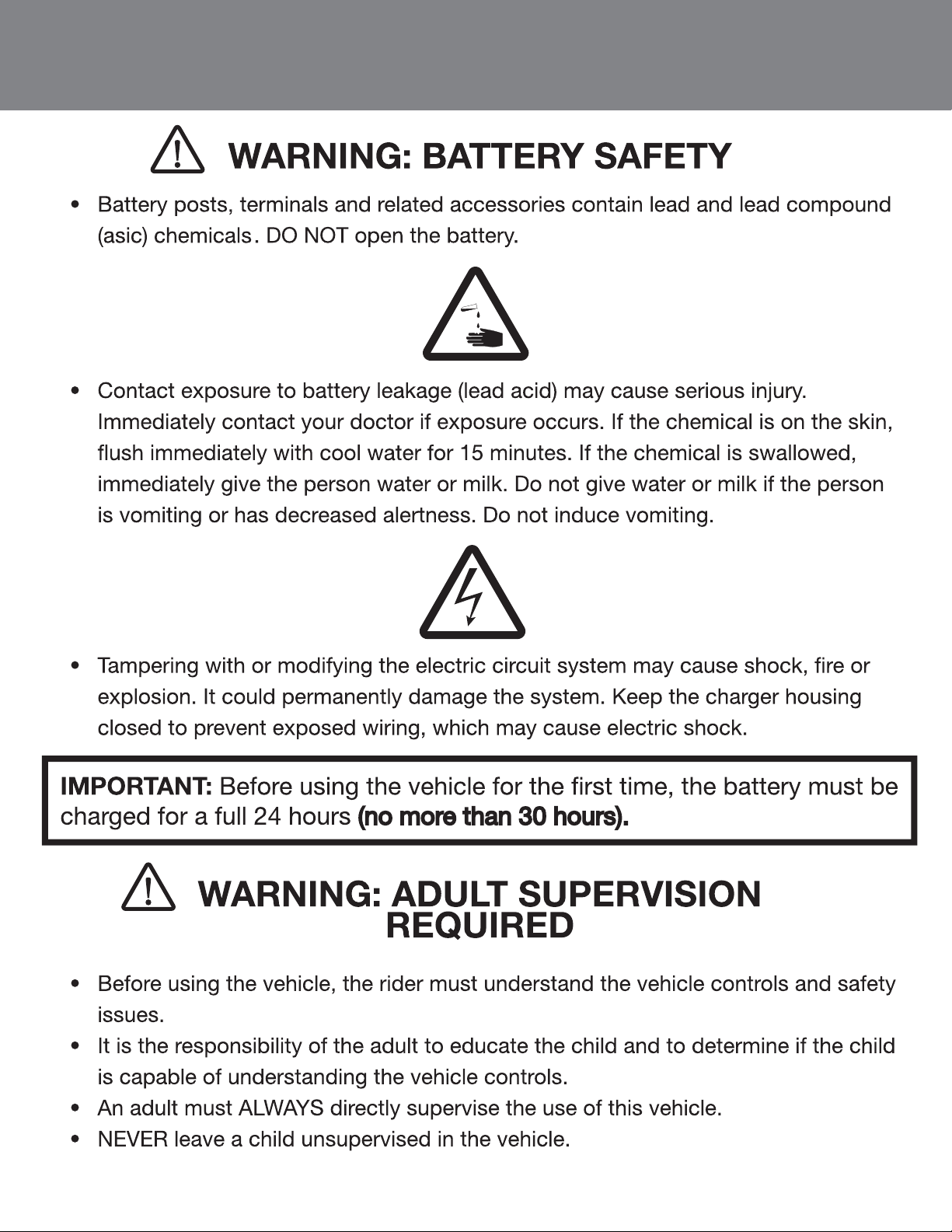

Safety

(Continued)

Parts

1. Manual

2. Seat

3. Handlebar

4. Vehicle Body

5. Steering Rod

6. Front Bumper

7. Rear Wheel (X2)

8. Front Wheel (X2)

9. Wheel Cover (X4)

10. Handlebar Screw

11. Front Bumper Screw

12. Washer (X6)

13. Handlebar Nut

14. Snap Pins (X4)

15. Battery (Located in the

seat compartment)

16. Charger

17. Blister Pack

NOTE: There may be extra hardware included for your convenience.

Helpful Tip:

1. Parts 10-14 are located

in the blister pack

2. Spare parts:

Washer 2

Snap Pin 2

Charging Instructions

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

YOU MUST CHARGE THE BATTERY FOR 24

HOURS BEFORE THE FIRST USE!

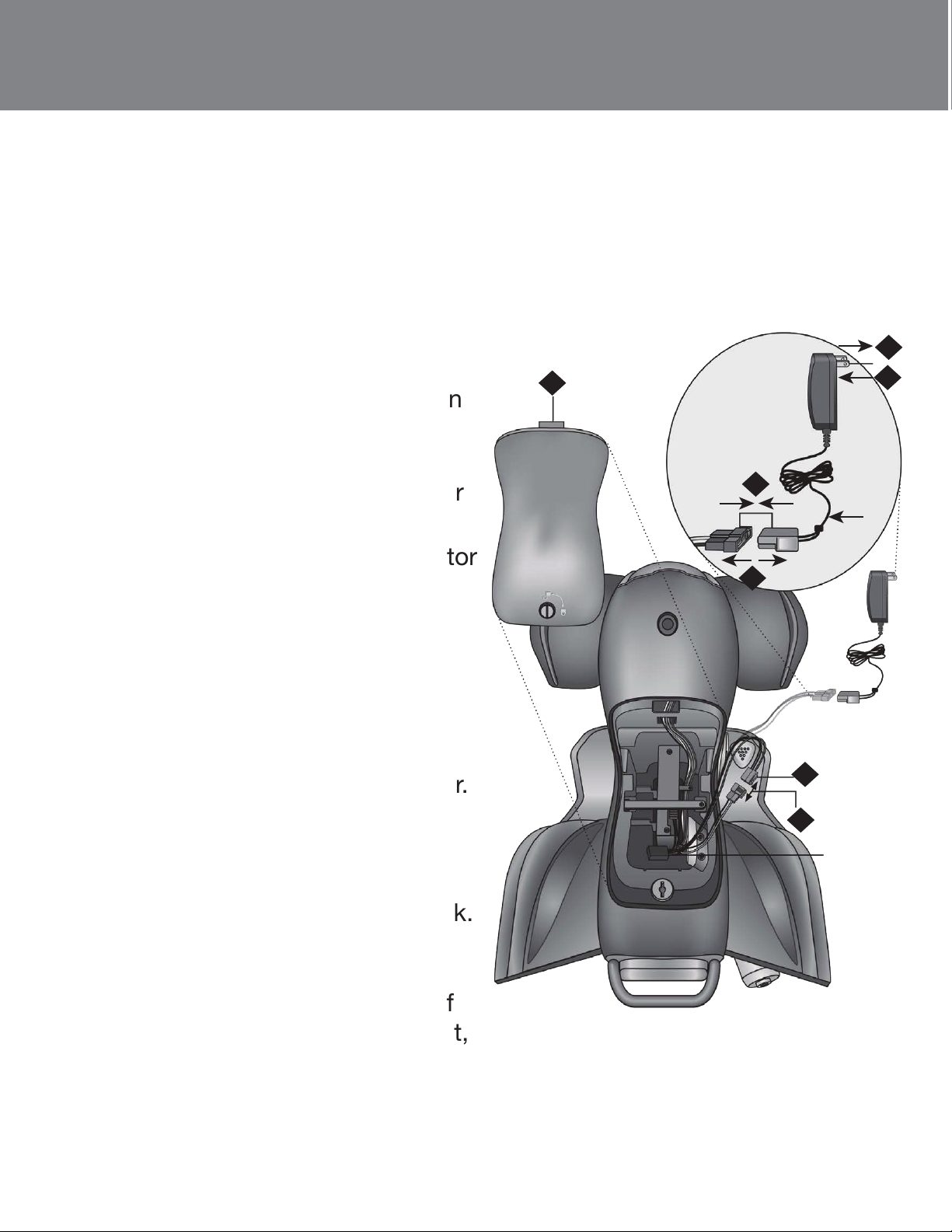

To Charge the Battery:

1. Ensure the ATV is stopped and

turned off.

2. Unlock the seat lock using a coin

or screwdriver and remove the

seat.

3. Unplug the red battery connector

from the red engine connector.

4. Connect the red battery connector

to the red battery charger

connector. (g. 1)

5. Plug into a 240 V outlet.

To Reconnect the Battery:

6. Unplug the battery charger from

the outlet.

7. Unplug the red battery connector.

8. Reconnect the red battery

connector to the red engine

connector.(g. 2)

9. Replace the seat and tighten lock.

Note: It is not necessary to remove

the battery for charging. However, if

the battery does not reach the outlet,

it can be removed for charging.

Fig. 1

Fig. 2

8Assemble the Front Wheels

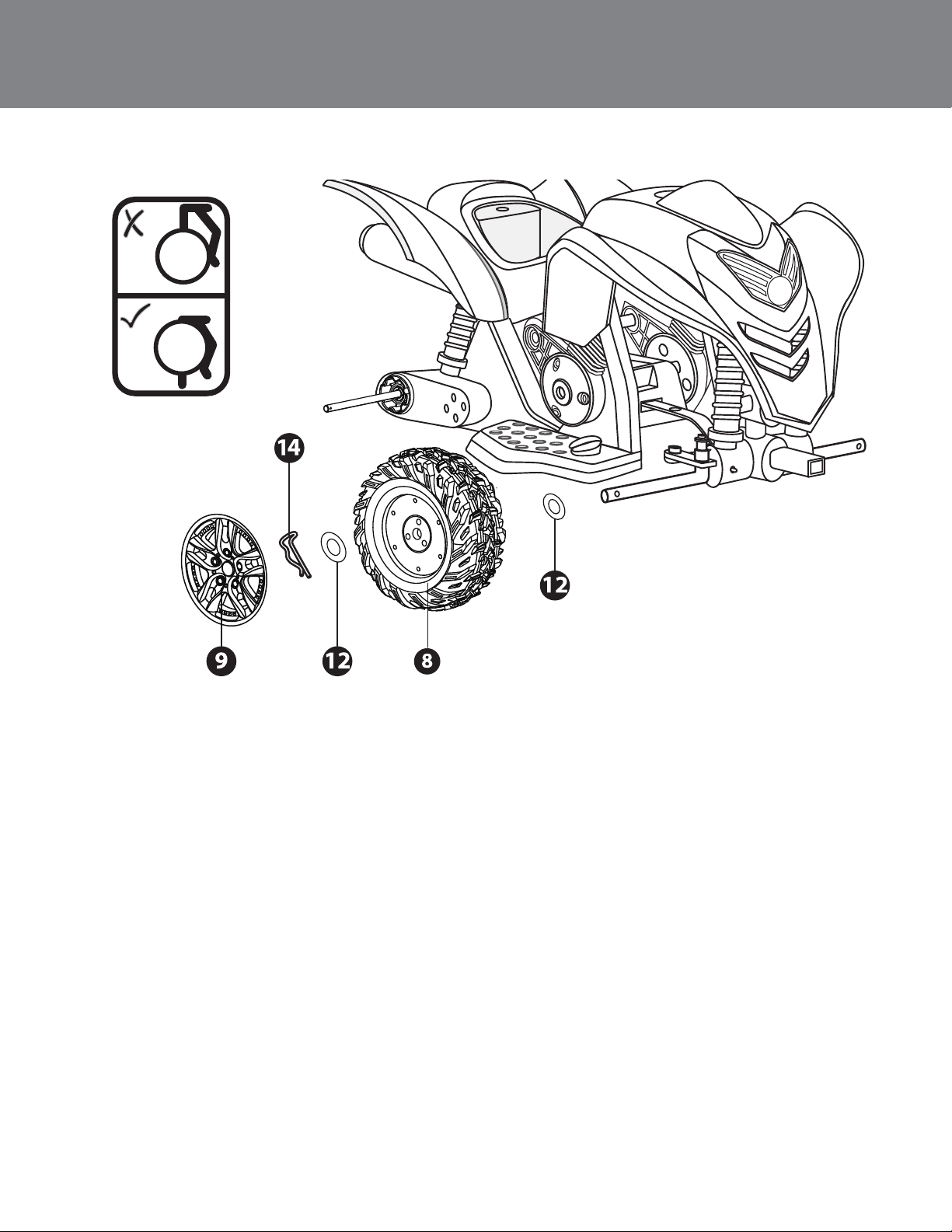

1. Locate the washers and snap pins from the blister box.

2. Slide a washer on the axle.

3. Slide the front wheel on the axle, make sure the gear teeth are

facing in towards the vehicle. Then, slide another washer on the axle.

4. Slide a snap pin into the hole on the axle.

5. Snap a wheel cover onto the wheels, make sure the tabs and slots

align. Note: If the wheel cover falls off, it may not have been snapped

in all the way.

6. Repeat steps 1-4 for the remaining front wheel.

Snap Pin Assembly

Assemble the Rear Wheels

Gear teeth should

face inward

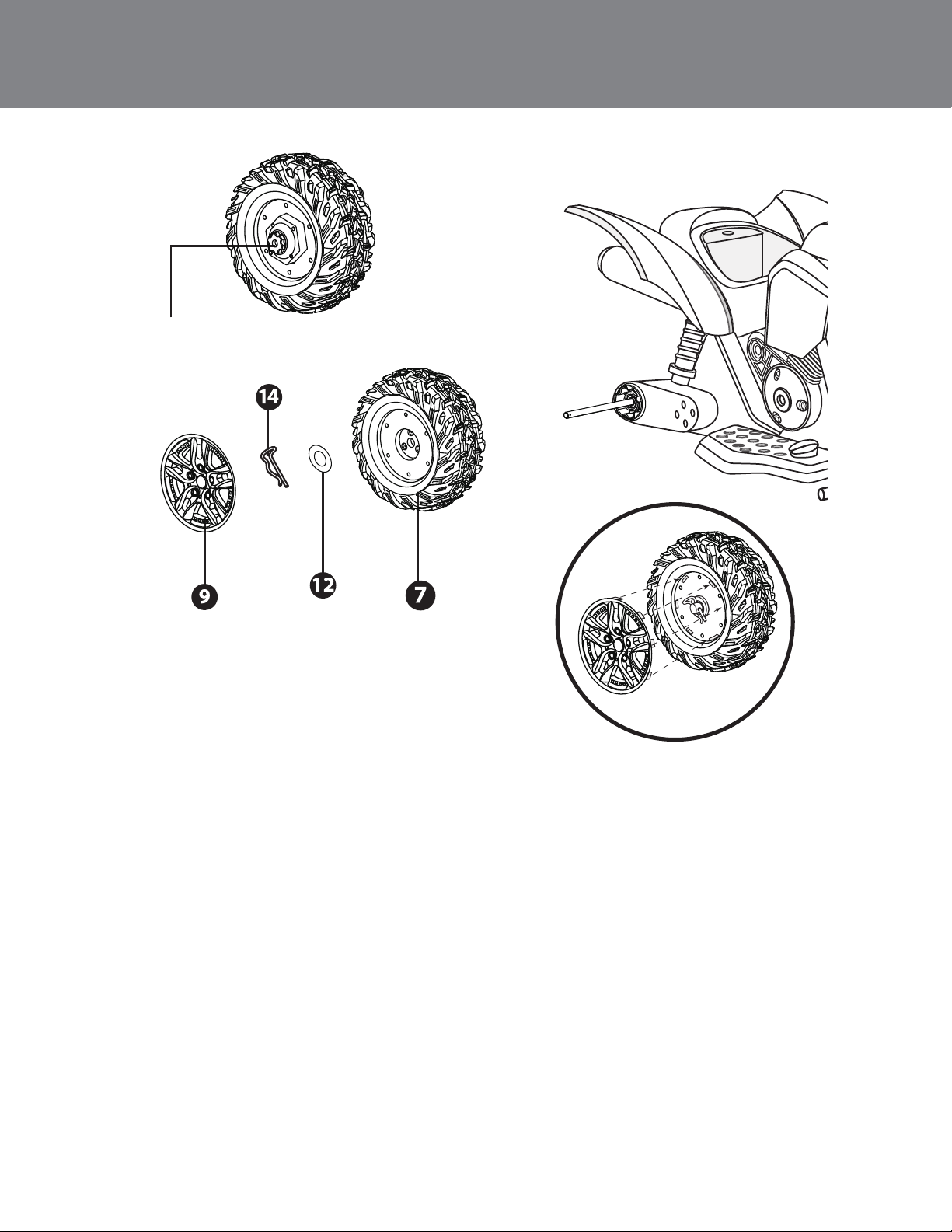

1. Locate the washers and snap pins from the blister box.

2. Slide the rear wheel on the axle with the gear teeth facing in.

3. For the left rear wheel, align the gear teeth on the wheel with the

gear box on the axle.

4. Slide a washer on the axle.

5. Slide the snap pin through the holes on the axle.

6. Snap the wheel cover onto the wheel, make sure all four tabs and

slots align.

7. Repeat for the other wheel.

10 Assemble the Steering Rod

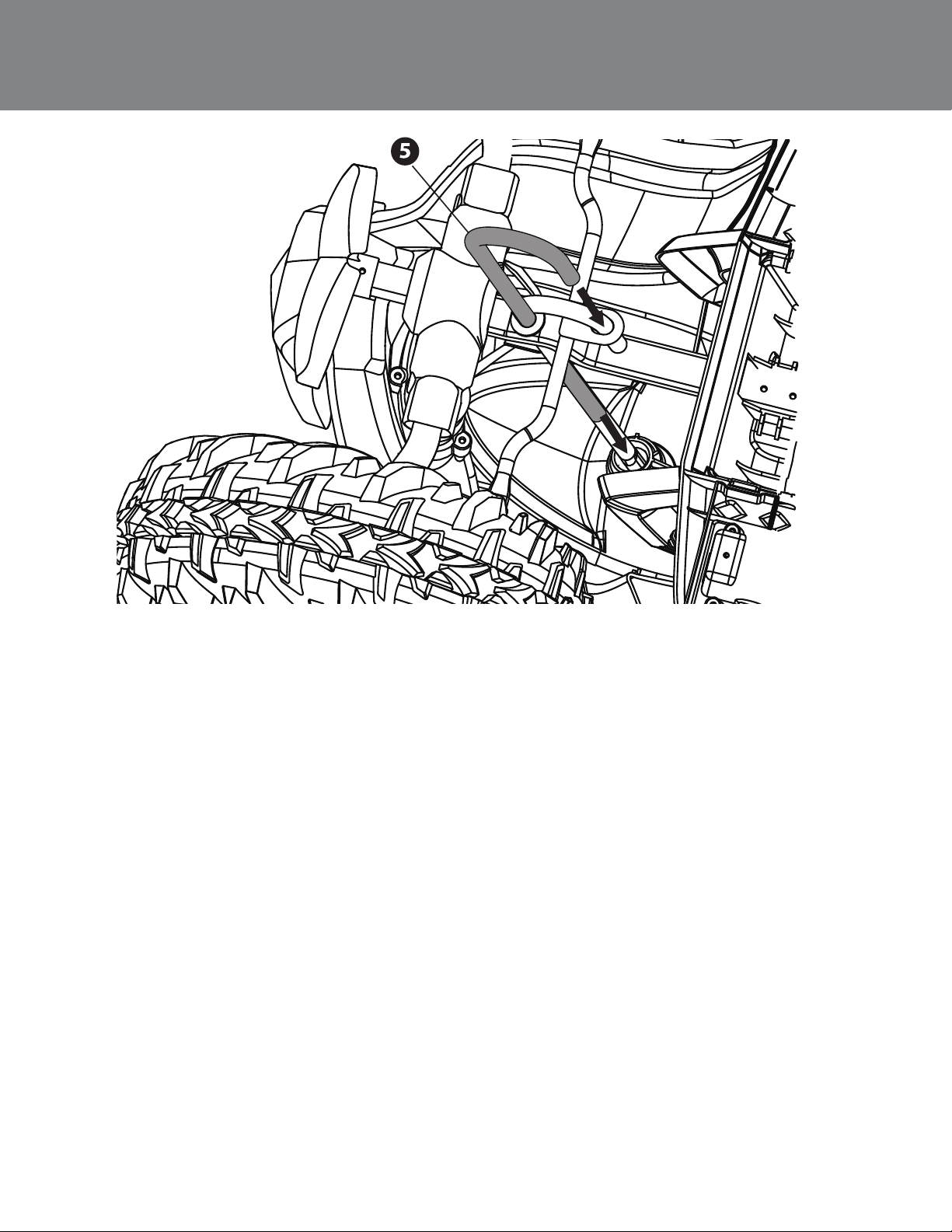

1. Gently ip the vehicle upside down.

2. Insert the straight end of the steering rod through the hole in the

reinforcement bar and the hole in the vehicle body.

3. Insert the curved end of the steering rod into the metal tab of the

reinforcement bar.

Table of contents
