Rollei RCP-8427XW User manual

EN-1

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital

devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.This

equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of

the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified

in the manual. If such changes or modifications should be made, you could be required

to stop operation of the equipment.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail),

restart the application or disconnect and connect the communication cable (USB, etc.)

again.

EN-2

READ THIS FIRST

Trademark Information



Microsoft

and Windows

are U.S. registered trademarks of Microsoft Corporation.

Pentium®is a registered trademark of Intel Corporation.

Macintosh is a trademark of Apple Inc.

SD™ is a trademark.

Other names and products may be trademarks or registered trademarks of their

respective owners.

Product Information

Product design and specifications are subject to change without notice. This

includes primary product specifications, software, software drivers, and user’s

manual. This User Manual is a general reference guide for the product.

The product and accessories that come with your camera may be different from

those described in this manual. This is due to the fact that different retailers often

specify slightly different product inclusions and accessories to suit their market

requirements, customer demographics, and geographical preferences. Products

very often vary between retailers especially with accessories such as batteries,

chargers, AC adapters, memory cards, cables, pouches, and language support.

Occasionally a retailer will specify a unique product color, appearance, and internal

memory capacity. Contact your dealer for precise product definition and included

accessories.

The illustrations in this manual are for the purpose of explanation and may differ

from the actual design of your camera.

The manufacturer assumes no liability for any errors or discrepancies in this user

manual.

EN-3

SAFETY INSTRUCTIONS

Read and understand all Warnings and Cautions before using this product.

Warnings

If foreign objects or water have entered the camera, turn the power off

and remove the battery.

Continued use might cause fire or electric shock. Consult the store of

purchase.

If the camera has fallen or its case has been damaged, turn the power

off and remove the battery.

Continued use might cause fire or electric shock. Consult the store of

purchase.

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask

the store of purchase.

Use the supplied AC adapter only with the indicated power supply

voltage.

Use with any other power supply voltage might cause fire or electric shock.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow,

on the beach, or near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing damage.

Keep the battery out of the reach of children.

Swallowing the battery might cause poisoning. If the battery is accidentally

swallowed, immediately consult a physician.

Do not use the camera while you are walking, driving or riding a

motorcycle.

This might cause you to fall over or result in traffic accident.

EN-4

Cautions

Insert the battery paying careful attention to the polarity (+ or –) of the

terminals.

Inserting the battery with its polarities inverted might cause fire and injury, or

damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone’s eyes.

This might cause damage to the person’s eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak.

If the internal fluid enters your eyes or comes into contact with your body or

clothes, rinse with fresh water. If the internal fluid has entered your eyes,

consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use

excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the battery immediately after long period of continuous

use.

The battery becomes hot during use. Touching a hot battery might cause

burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use

the camera in a well-ventilated place.

Do not leave the camera in places where the temperature may rise

significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric

shock.

During the course of a thunderstorm, please do not operate the camera

or use its AC adaptor.

EN-5

Notes on Battery Usage

When you use the battery, carefully read and strictly observe the Safety Instructions

and the notes described below:

Use only the specified battery (3.7V).

Avoid extremely cold environments as low temperatures can shorten the battery life

and reduce camera performance.

When you are using a new rechargeable battery or a rechargeable battery that has

not been used for an extended period of time (the battery that passed the expiry

date is an exception), it may affect the number of images that can be captured.

Therefore, to maximize its performance and lifetime, we recommend that you fully

charge the battery and discharge it for at least one complete cycle before use.

The battery may feel warm after a long period of continuous use of the camera or the

flash. This is normal and not a malfunction.

The camera may feel warm after a long period of continuous use. This is normal and

not a malfunction.

If the battery is not to be used for a long period of time, remove it from the camera to

prevent leakage or corrosion and store it after no battery power is left. Stored for a

long time in a fully charged condition, its performance may be impaired.

Always keep the battery terminals clean.

There is a risk of explosion if the battery is replaced by an incorrect type.

Dispose of used battery according to the recycle instructions.

Charge the rechargeable battery fully before using for the first time.

To prevent short-circuiting or fire, keep the battery away from other metal objects

when carrying or storing.

CONTENTS

EN-6

7 INTRODUCTION

7Overview

7 Package Contents

8 GETTING TO KNOW YOUR

CAMERA

8 Front View

9 Rear View

10 LCD Monitor Display

12 GETTING STARTED

12 Preparation

13 Charging the Battery

14 Initial Settings

16 CAPTURE MODE

16 Capturing Images

17 Recording a Subject onto an Existing

Background Image

18 Combining Shots of Two People into

a Single Image

19 Setting the Panorama Mode

20 Recording Shots using Face

Detection Technology

21 Recording Voice Memos

22 VIDEO MODE

22 Recording Video Clips

22 Playing Back Video Clips

23 PLAYBACK MODE

23 Playing Back Still Images

24 Thumbnail Display

24 Removing Red-eye

25 Attaching Voice Memos

25 Changing the Camera Start Logo


26 Protecting Images

27 DPOF Settings

28 Erasing Images

30 MENU OPTIONS

30 Capture Menu

33 Video Menu

34 Playback Menu

35 Setup Menu

36 TRANSFERRING FILES TO

YOUR COMPUTER

36 Downloading Your Files

37 USING THE CAMERA AS A PC

CAMERA

38 EDITING SOFTWARE

INSTALLATION

39 SPECIFICATIONS

40 APPENDIX

40 Possible Number of Shots

41 Troubleshooting

42 Connecting to a PictBridge Compliant

Printer

EN-7

INTRODUCTION

Overview

Congratulations on your purchase of the new digital camera.

Capturing high-quality digital images is fast and easy with this state-of-the-art smart

camera. Equipped with a 8.0-megapixel CCD, this camera is capable of capturing

images with a resolution of up to 3264 x 2448 pixels.

Package Contents

Carefully unpack your camera and ensure that you have the following items:

Common Product Components:

Digital Camera

User’s manual

Software CD-ROM

USB cable

AV cable

Camera strap

AC power adapter

Rechargeable lithium-ion battery

Common (Optional) Accessories:

SD/SDHC memory card

Accessories and components may vary by retailer.

EN-8

GETTING TO KNOW YOUR CAMERA

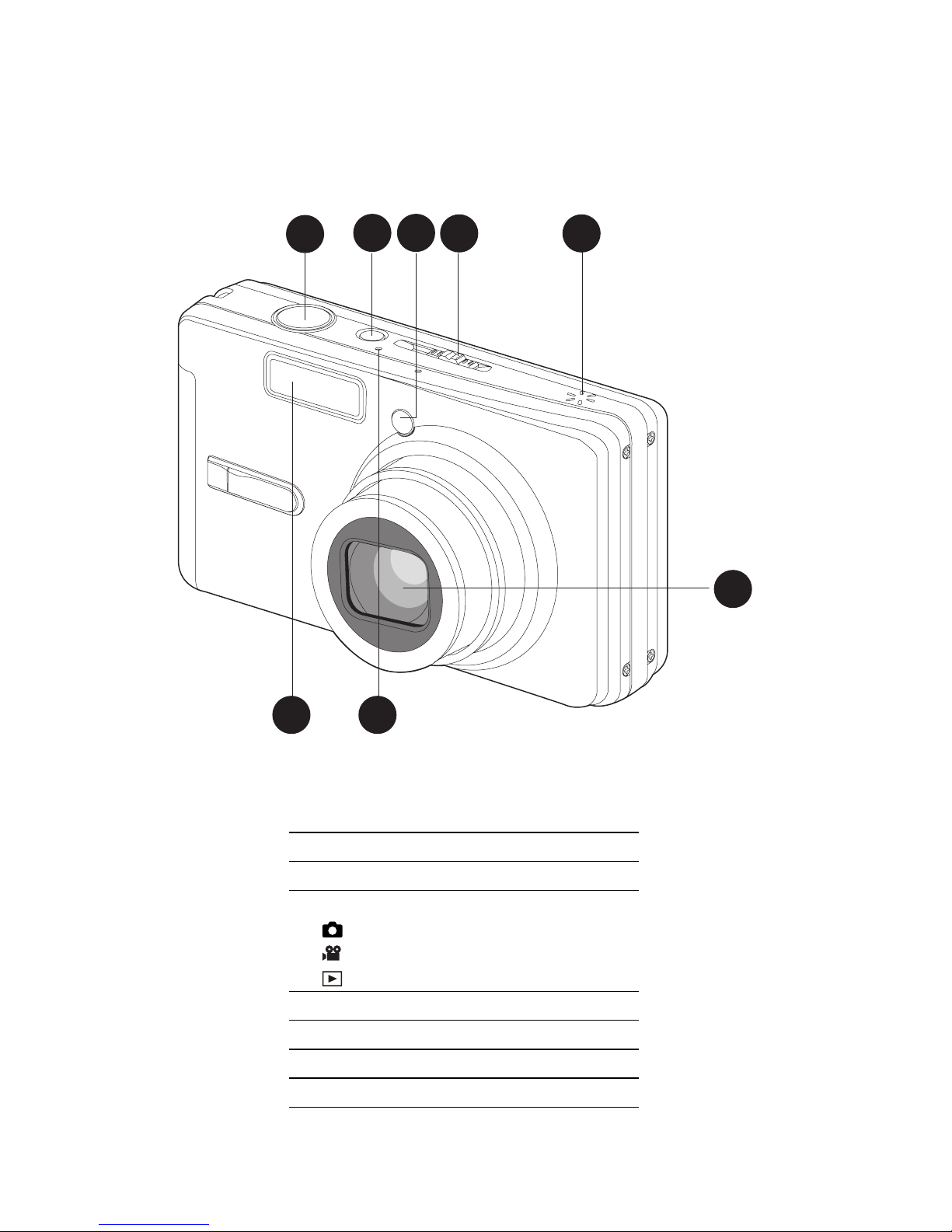

Front View

1. Shutter button

2. ON/OFF button

3. Self-timer LED

4. Mode switch

Capture mode

Video mode

Playback mode

5. Speaker

6. Lens

7. Microphone

8. Flash

124

8 7

EN-9

Rear View

124

101112

1. LCD monitor

2. Delete button

3. DISP Display button

4. MENU Menu button

5. Zoom in button

Zoom out button

6. Strap holder

7. DC IN 5V terminal

8. USB or AV OUT terminal

9. Battery / Memory card cover

10. SET / Direction button

Sbutton

Focus button

Xbutton

Flash button

Tbutton

Self-timer button

Wbutton

Backlight/Exposure

compensation button

SET Set button

11. Status LED

12. Tripod socket

EN-10

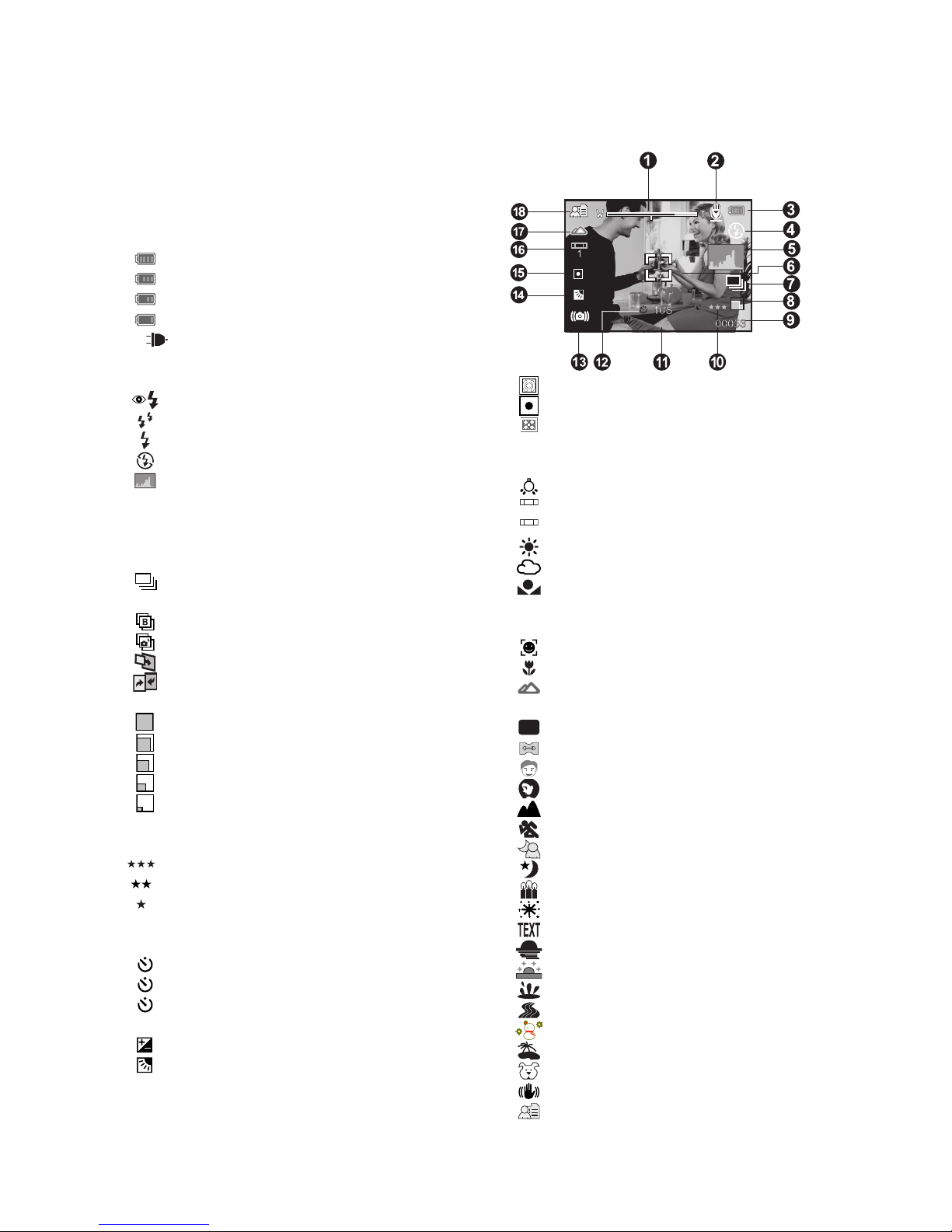

LCD Monitor Display

Capture mode

1. Zoom status

2. Voice memo

3. Battery condition

[ ] Full battery power

[ ] Medium battery power

[ ] Low battery power

[ ] No battery power

* [ ] AC adapter icon (if used)

4. Flash mode

[ Blank] Auto Flash

[ ] Red-eye Reduction

[ ] Pre-flash

[ ] Forced Flash

[ ] Flash Off

5. [ ] Histogram

6. Main focus area (When the shutter

button is pressed halfway)

7. Capture mode icon

[Blank] Single

[ ] Continuous

[AEB] Auto Exposure Bracketing

[] Burst

[ ] Series + flash

[ ] Pre-Shot

[ ] Coupling Shot

8. Image size resolution

[ ] 3264 x 2448

[ ] 2816 x 2112

[ ] 2272 x 1704

[ ] 1600 x 1200

[ ] 640 x 480

9. Available number of shots

10. Image quality

[ ] Fine

[ ] Standard

[ ] Economy

11. Date and time

12. Self-timer icon

[ 10S] 10 sec.

[ 2S ] 2 sec.

[ 10+2 ]10+2 sec.

13. Slow shutter warning

14. [ ] Exposure compensation

[ ] Backlight correction

(Adjust exposure value with the

buttons)

15. Metering

[ ] Center

[ ] Spot

[]Multi

16. White balance

[Blank] Auto

[ ] Incandescent

[ ] Fluorescent 1

[ ] Fluorescent 2

[ ] Daylight

[ ] Cloudy

[ ] Manual

17. Focus setting

[Blank] Auto focus

[ ] Face detection

[]Macro

[ ] Infinity

18. Scene mode

[ ] Program AE

[ ] Panorama

[ ] Portrait Man

[ ] Portrait Lady

[ ] Landscape

[ ] Sports

[ ] Night Portrait

[ ] Night Scene

[ ] Candlelight

[]Fireworks

[]Text

[ ] Sunset

[]Sunrise

[ ] Splash Water

[ ] Flow Water

[]Snow

[]Beach

[]Pets

[ ] Anti Shake

[ ] User Setting

01/01/2008 08:03

Table of contents

Other Rollei Digital Camera manuals

Rollei

Rollei 360 Degree Camera User manual

Rollei

Rollei RCP-8325X User manual

Rollei

Rollei Compactline 150 User manual

Rollei

Rollei X-8 Sports User manual

Rollei

Rollei RCP-S8 EDITION - User manual

Rollei

Rollei Rolleiflex F Series User manual

Rollei

Rollei Compactline 10x User manual

Rollei

Rollei COMPACTLINE 50 - User manual

Rollei

Rollei COMPACTLINE 50 - User manual

Rollei

Rollei Sportsline 60 Plus User manual

Rollei

Rollei Powerflex 240 HD User manual

Rollei

Rollei XS-10 - annexe 1 User manual

Rollei

Rollei COMPACTLINE 81 User manual

Rollei

Rollei action one User manual

Rollei

Rollei COMPACTLINE 80 - User manual

Rollei

Rollei Sportsline 64 Selfie User manual

Rollei

Rollei dr4 Safety guide

Rollei

Rollei X-8 Sports User manual

Rollei

Rollei dcx310 User manual

Rollei

Rollei Rolleiflex MiniDigi User manual

Rollei

Rollei 90 User manual

Rollei

Rollei QZ35 User manual

Rollei

Rollei Compactline 52 User manual

Rollei

Rollei Sportsline 60 Plus User manual

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
