Rocket Fish RF-NBAC User manual

Rocketfish Netbook AC Power

Adapter

RF-NBAC/RF-NBAC-CAM

User Guide

Before using your new product, please read these instructions to prevent any damage.

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 1 Wednesday, May 15, 2013 7:16 AM

Rocketfish RF-NBAC/

RF-NBAC-CAM Netbook AC

Power Adapter

Contents

Introduction............................................................................2

Safety information................................................................3

Features ....................................................................................4

Using the AC power adapter.............................................4

FAQ for Rocketfish Adapters .............................................6

Specifications .........................................................................8

Legal notices...........................................................................9

Three-year limited warranty........................................... 13

Introduction

Thank you for purchasing a Rocketfish universal netbook power

adapter. This adapter plugs into any AC power outlet anywhere

in the world, and provides a reliable power source to run your

netbook computer and charge its internal battery. Rocketfish

adapters are made using the highest quality components and

feature all of the necessary voltage and heat protection circuits

to ensure maximum levels of safety and efficiency.

NOTE: A physical adapter plug may be necessary to plug into

some AC power outlets outside of the United States, but no

voltage converter is needed anywhere in the world.

This adapter comes with a variety of numbered tips which

connect to the output cable of the adapter and control the

output voltage. To ensure that the proper voltage is delivered to

your netbook, you must always make sure that you are using

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 2 Wednesday, May 15, 2013 7:16 AM

RF-NBAC/RF-NBAC-CAM

the correct tip for your specific netbook model. Read the

following instructions and refer to the Tip Compatibility Guide

included with this adapter, or go to

www.rocketfishproducts.com and go to RF-NBAC to find the Tip

Wizard. to make sure you select the correct tip for your netbook.

CAUTION: This AC power adapter is not compatible with Mac

computers.

Safety information

• Do not expose the power adapter to rain, moisture, or

excessive dust. It may cause shock hazards.

• Do not operate the adapter in direct sunlight.

• Operate the adapter in a well ventilated area. Maximum

ambient temperature around the power adapter must not

exceed 105° Fahrenheit (40° Celsius).

• Do not open the power adapter under any circumstances.

The power adapter is not intended to be repaired in case of

failure or component defect. There are no internal

serviceable parts.

• Discontinue use and contact our toll free help line for

assistance (800) 620-2790 if any of the following should

occur:

• The adapter shuts down when it is plugged into the

device (LED turns off).

• The adapter's LED light blinks when the adapter is

plugged into an AC power outlet.

• A cord or plug is damaged or frayed.

• Do not use with netbooks that require more than 40 watts

of power.

• Make sure to use the correct tip for your netbook listed in

the Tip Compatibility Guide. Do not use a tip that is not

listed for your netbook

• Keep away from children.

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 3 Wednesday, May 15, 2013 7:16 AM

Features

Package contents

• 40 Watt universal netbook power adapter

•4tips

•ACcord

• Tip Compatibility Guide

•UserGuide

Using the AC power adapter

DC input jack

Tip

Output

cable

AC adapter

AC cord

To AC

power

outlet

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 4 Wednesday, May 15, 2013 7:16 AM

RF-NBAC/RF-NBAC-CAM

To use the AC power adapter:

1Select your netbook manufacturer and model from the “Tip

Compatibility Guide” (separate booklet), or go to

www.rocketfishproducts.com and go to RF-NBAC to find the

Tip Wizard. This will let you determine the correct tip

number for your netbook.

CAUTION: The use of an incorrect tip may damage your

netbook. Do not use this product if you cannot locate your

netbook model in the Tip Compatibility Guide included with

this AC adapter or by using the Tip Wizard at

www.rocketfishproducts.com. If you still have questions,

contact our toll-free help line for assistance (800) 620-2790.

This AC power adapter is not compatible with Mac computers.

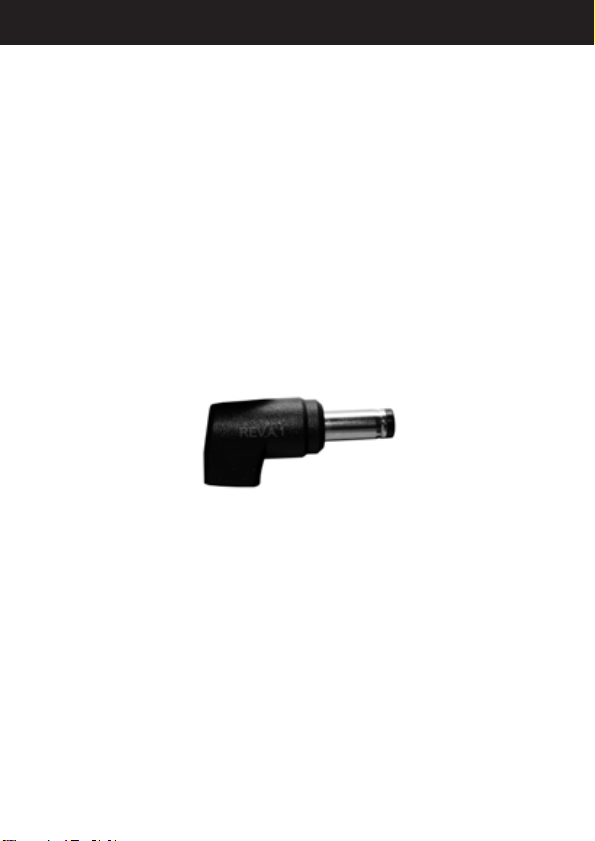

2Locate the specified tip from the tip bundle provided. Each

tip is clearly numbered.

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 5 Wednesday, May 15, 2013 7:16 AM

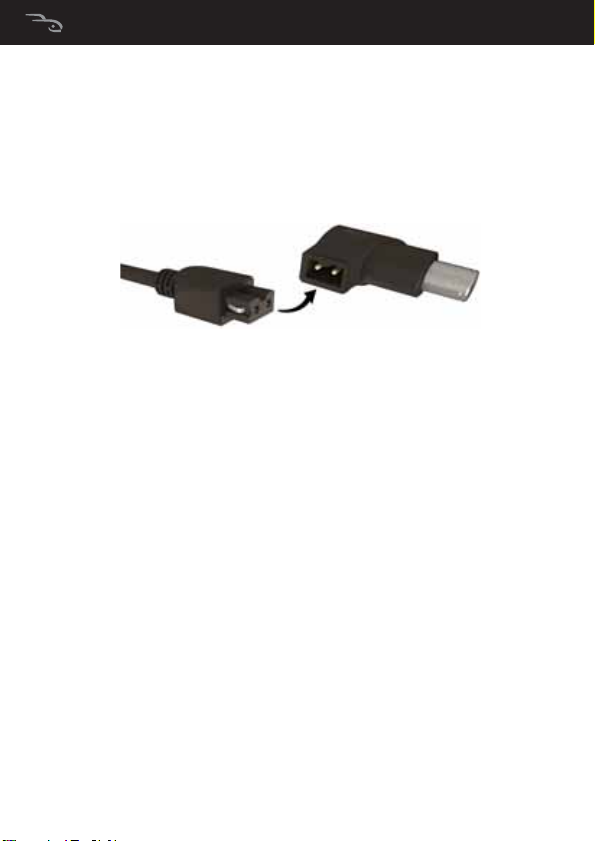

3Connect the selected tip to the end of the output cable,

making sure that the pins on the tip are aligned with the

holes in the cable. The ridge on the inside of the tip should

align with the groove in the output cable connector. Also

make sure that the tip is pushed all the way into the output

cable's connector.

4Connect the AC cord to the socket on the AC adapter.

5Plug the AC cord into an AC power outlet. The LED on the

adapter turns blue indicating that the adapter is powered

and ready.

IMPORTANT: If the adapter's LED does not turn on, or if it

blinks, discontinue use and contact our toll free help line for

assistance (800) 620-2790.

6Plug the tip connected to the output cable into the

matching DC input jack on the side or back of your netbook.

The adapter powers the netbook and charges its battery.

FAQ for Rocketfish Adapters

What tip should I use for my netbook?

You can determine the correct tip for your netbook by

referencing the Tip Compatibility Guide included with the

adapter or by visiting the Tip Wizard at

www.rocketfishproducts.com. Locate your netbook

manufacturer and model and the correct tip will be listed.

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 6 Wednesday, May 15, 2013 7:16 AM

RF-NBAC/RF-NBAC-CAM

If you cannot find your specific netbook model please contact

Rocketfish customer service at (800) 620-2790 for additional

assistance.

How do I connect the tip to the adapter cable?

Once you have selected the correct tip for your netbook,

connect the tip to the output cable, making sure that the ridge

on the inside of the tip aligns properly with the groove in the

output cable connector. Additionally, the pins on the inside of

the tip should be in line with the holes in the output cable. The

tip should be pushed firmly onto the cable until the tip and

cable meet and there is no gap.

What other netbooks can I use this adapter for?

The Rocketfish Universal Power Adapter is compatible with

thousands of netbook models. A complete list of compatible

netbooks can be viewed through the Tip Wizard at

www.rocketfishproducts.com.

Why doesn't the tip fit into my netbook?

If the tip does not appear to fit into your netbook you may have

selected the incorrect tip for your device. The tip should fit

snugly inside the DC input jack on the side or back of your

netbook. If the tip will not fit into the jack do not force the tip.

Confirm you have selected the correct tip for your netbook by

referencing the included Tip Compatibility Guide or visiting the

Tip Wizard at www.rocketfishproducts.com. If you need

additional assistance please contact Rocketfish customer

service at (800) 620-2790.

Will using an incorrect tip damage my netbook?

The tips are designed to be used with specific netbooks and so

you should only use the tip that is designated specifically for

your netbook. The correct tip can be identified by using the

online Tip Wizard at www.rocketfishproducts.com or by locating

your specific netbook in the included Tip Compatibility Guide.

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 7 Wednesday, May 15, 2013 7:16 AM

The use of an incorrect tip may cause performance issues,

including the inability to charge the internal battery or power

the netbook, or the display of an error message on the netbook

screen. It is also possible that the use of an incorrect tip could

damage your netbook. For these reasons, it is necessary to use

the tip designed specifically for your device.

My netbook is more than 40 watts (for example

75 watts, 90 watts). Will this adapter damage my

netbook?

This is a 40 watt adapter and it should NOT be used with

netbooks that require more than 40 watts of power.

I notice that the adapter is warm when I use it. Is this a

problem?

During standard operation the adapter body may feel warm,

and this is normal. The adapter should always be placed in a

ventilated area in order to prevent over-heating.

If I leave the adapter plugged in when I'm not using it

does it waste energy?

This Rocketfish adapter meets EnergyStar and CEC IV energy

requirements which means it is an energy-efficient product

designed to conserve power. When the adapter is plugged in

and not being used it draws less than 0.5 watts of power.

Specifications

Input voltage 100 to 240 volts AC

Output power (DC) 40 watts continuous power

Output voltage 12 V/19 V (auto switching)

AC power cord length 71” (180 cm)

Output cable length 47” (120 cm)

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 8 Wednesday, May 15, 2013 7:16 AM

RF-NBAC/RF-NBAC-CAM

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of

this product is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply within the

limits for a class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

Dimensions (HxWxD) 1.5 x 3.7 x 1.1 inches

(38.1 x 93.9 x 27.9 mm)

Weight 0.33 lbs. (0.15 kg)

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 9 Wednesday, May 15, 2013 7:16 AM

FCC warning

Changes or modifications not expressly approved by the party

responsible for compliance with the FCC Rules could void the

user’s authority to operate this equipment.

trademarks of BBY Solutions, Inc. Other brands and product

names are trademarks or registered trademarks of their

respective holders. Specifications and features are subject to

change without notice or obligation.

For service and support call (800) 620-2790.

Avis juridiques

Déclaration NMB-003 du Canada

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

1. Under Industry Canada regulations, this radio transmitter

may only operate using an antenna of a type and maximum (or

lesser) gain approved for the transmitter by Industry Canada. To

reduce potential radio interference to other users, the antenna

type and its gain should be so chosen that the equivalent

isotropic ally radiated power (e.i.r.p.) is not more than that

necessary for successful communication.

RF-NBAC-RF-NBAC-CAM 13-0460_MAN_V5_ENG.fm Page 10 Wednesday, May 15, 2013 7:16 AM

Other manuals for RF-NBAC

This manual suits for next models

Table of contents

Other Rocket Fish Adapter manuals

Rocket Fish

Rocket Fish RF-RBCARD Quick start guide

Rocket Fish

Rocket Fish RF-GWII008 User manual

Rocket Fish

Rocket Fish RF-MRBTAD User manual

Rocket Fish

Rocket Fish RF-BPRAC3 User manual

Rocket Fish

Rocket Fish RF-MBT30 User manual

Rocket Fish

Rocket Fish RF-BPRAC2 User manual

Rocket Fish

Rocket Fish RF-BCDM4 User manual

Rocket Fish

Rocket Fish RF-UNISR1 User manual

Rocket Fish

Rocket Fish RF-G1132 Use and maintenance manual

Rocket Fish

Rocket Fish RF-BPRAC3 User manual

Rocket Fish

Rocket Fish RF-AC9023 User manual

Rocket Fish

Rocket Fish RF-BTAPDT User manual

Rocket Fish

Rocket Fish RF-G1171 User manual

Rocket Fish

Rocket Fish RF-PRAC User manual

Rocket Fish

Rocket Fish RF-AC7540-C User manual

Rocket Fish

Rocket Fish RF-G4100 User manual

Rocket Fish

Rocket Fish RF-WHD100 User manual

Rocket Fish

Rocket Fish RF-G1175 Parts list manual

Rocket Fish

Rocket Fish RF-BPRACDC2 User manual

Rocket Fish

Rocket Fish RF-BCDM4 User manual

Rocket Fish

Rocket Fish RF-BTAPDT RF-BTDGLE Quick start guide

Rocket Fish

Rocket Fish RF-ACU12002 User manual

Rocket Fish

Rocket Fish RF-GDS010A User manual

Rocket Fish

Rocket Fish RF-BTAPDT RF-BTDGLE User manual

Popular Adapter manuals by other brands

PCB Piezotronics

PCB Piezotronics 090B274 Installation and operating manual

Auvidea

Auvidea J20 Technical reference manual

Gossen MetraWatt

Gossen MetraWatt AT3-III E operating instructions

Akribis

Akribis ITF-21-BISS-MIT user manual

Tenda

Tenda W54U user guide

ROHO

ROHO AGILITY Operation manual

PROLiNK

PROLiNK WN2001 Quick installation guide

Hawking

Hawking HUF2 Specifications

Airlink101

Airlink101 AWLC4030 user manual

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter user manual

Philips

Philips SWA4554S/10 user manual

JVC

JVC TS-C9D2B Assembly and installation instructions

NETGEAR

NETGEAR A6100 quick start

D-Link

D-Link DWA-121 Quick install guide

Philips

Philips SWA2037 Specifications

Basalte

Basalte 0610-20 installation manual

Yealink

Yealink EHS40 user guide

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A installation guide
