Robustel GoRugged R3000 Lite Quick Guide
Chapter 1. Interface Introduction
1.1 LED Indicators
After inserting the SIM card into the router and power on, the LED indicators’status should be as follow when work
normally:
Note
：
Please refer to Robustel GoRugged R3000 Lite User Guide to get more details about the LED indicators.
1.2 PIN assignment
DB9 Female Connector
PIN
Debug
RS232
RS485
(2-wire)
Direction
1
Data+ (A)
-
2
RXD
R3000 Lite Device
3
TXD
Device R3000 Lite
4
DRXS
Device R3000 Lite
5
GND
GND
-
6
Data- (B)
-
7
RTS
Device R3000 Lite
8
CTS
R3000 Lite Device
9
DTXD
R3000 Lite Device
1.3 USB interface
Name
Color
Status
RUN
Green
Blinking
PPP
Green
PPP connection is up: On
PPP connection is down: Off
RSSI
Green
At least 2 bars
PIN
Power
10
Positive
11
Negative
12
GND
Robustel GoRugged M1000 Lite Quick Guide
RT_QG_R3000 Lite_v.1.0.0 25.01.2014 2/8
USB interface is used for batch firmware upgrade, cannot used to
send or receive data from slave devices which with USB interface.
Users can insert an USB storage device, such as U disk or hard disk,
into the router’s USB interface, if there is configuration file or
firmware of R3000 Lite inside the USB storage devices, R3000 Lite
will automatically update the configuration file or firmware.
1.4 Reset Button
1.5 Ethernet port
Indicator
Color
Status
Description
Speed Indicator
Green
Off
10 Mbps mode.
On
100 Mbps mode.
Link Indicator
Yellow
Off
Connection is down.
On
Connection is up.
Blink
Data is being transmitted
Function
Operation
Reboot
Push the button for 5 seconds under working status.
Restore to factory
default setting
Push the button for 60 seconds once you power on the
router until all the three LEDs at the left side (RUN,
PPP, USR) blink at the same time for 5 times.
USB
Ethernet port
Reset Button
Robustel GoRugged M1000 Lite Quick Guide
RT_QG_R3000 Lite_v.1.0.0 25.01.2014 3/8
Chapter 2. Hardware Installation
2.1 Insert SIM Card
SIM card is used for connecting to cellular network, you need buy SIM card from local operators.
1. Unscrew the screw and remove the cover.
2. Insert SIM card into one of the SIM card slot
(When SIM card is correctly inserted you will hear “a cracking sound”).
3. Screw the cover.
Note:
1. Don’t forget screw the cover for again-theft.
2. Don’t touch the metal surface of the SIM card in case information in the card is lost or destroyed.
3. Don’t bend or scratch your SIM card. Keep the card away from electricity and magnetism.
4. Make sure to disconnect the power source from your router before inserting and removing your SIM card.
2.2 Connect Antenna
Connect router to an external antenna with SMA male connector. Make sure the antenna is for the correct frequency
as your GSM/3G/4G operator with impedance of 50ohm, and also connector is screwed tightly.
Robustel GoRugged M1000 Lite Quick Guide
RT_QG_R3000 Lite_v.1.0.0 25.01.2014 4/8
2.3 Power On and Connect with PC
Robustel GoRugged M1000 Lite Quick Guide
RT_QG_R3000 Lite_v.1.0.0 25.01.2014 5/8
Chapter 3. Initial Configuration
The router can be configured through your web browser. A web browser is included as a standard application in the
following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc. The product provides an
easy and user-friendly interface for configuration.
There are various ways to connect the router, either through an external repeater/hub or connect directly to your PC.
However, make sure that your PC has an Ethernet interface properly installed prior to connecting the router.
You must configure your PC to obtain an IP address through a DHCP server or a fixed IP address that must be in the
same subnet as the router. The best and easiest way is to configure the PC to get an IP address automatically from
the router using DHCP. If you encounter any problems accessing the router web interface it is advisable to uninstall
your firewall program on your PC, as these tend to cause problems accessing the IP address of the router.
3.1 Configuring PC in Windows
1. Go to Control Panel\Network and Internet\Network Connections. In the Control Panel, double-click Network
Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status window, click Properties.
Robustel GoRugged M1000 Lite Quick Guide
RT_QG_R3000 Lite_v.1.0.0 25.01.2014 6/8

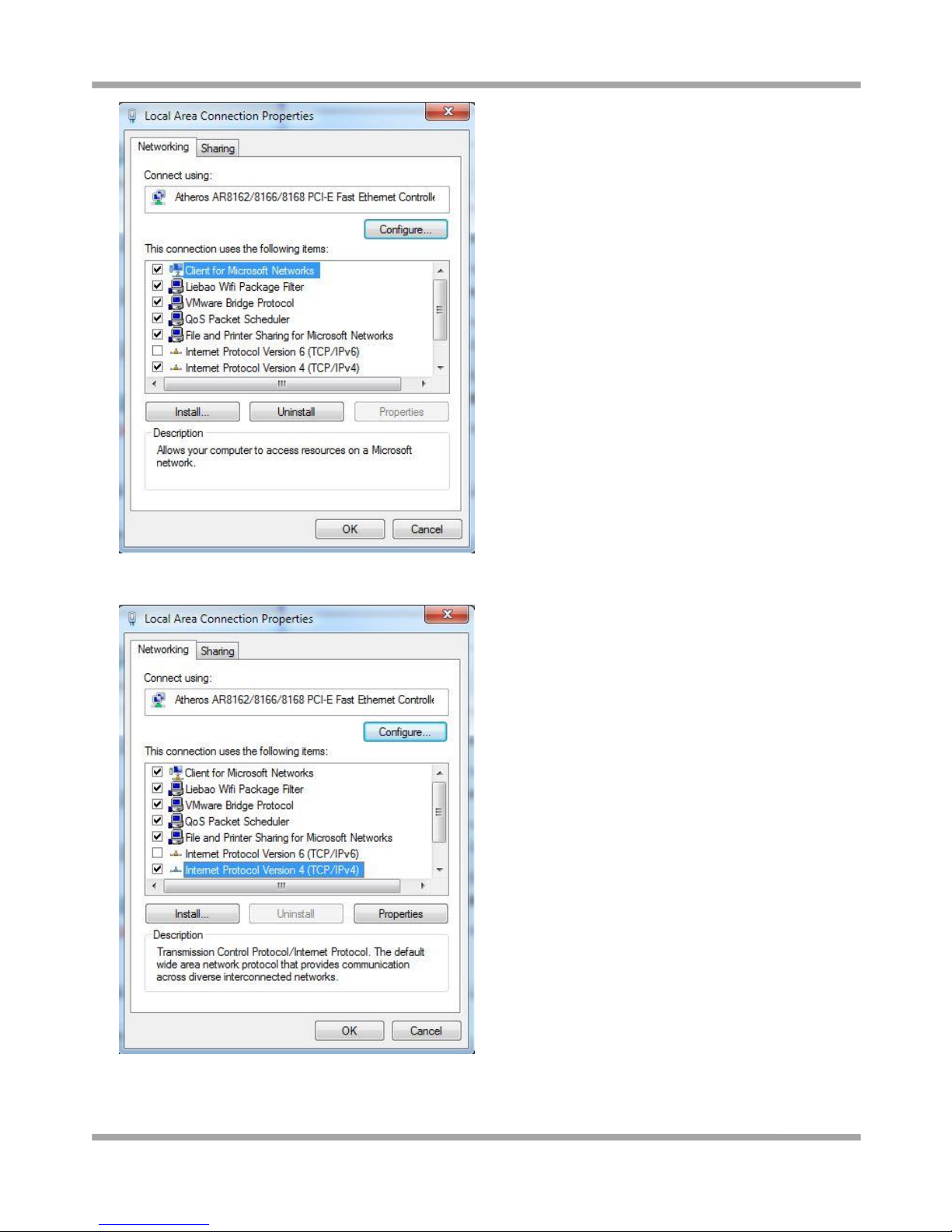

4. Select Internet Protocol (TCP/IPv4) and click Properties.
Robustel GoRugged M1000 Lite Quick Guide
RT_QG_R3000 Lite_v.1.0.0 25.01.2014 7/8
5. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons.
6. Click OK to finish the configuration.
3.2 Connect Router with Internet
1. Open IE browser, input the default IP address http://192.168.0.1 -> Username: admin; Password: admin -> Click
“login”.
Note: Before configuring your router, you need to know the following default settings.
Item
Description
Username
admin
Password
admin
Ethernet
192.168.0.1/255.255.255.0, LAN mode
DHCP Server
Enabled.
2. After succeed to login, go to tab “Cellular WAN” --> enter relevant correct ISP settings, such as APN, Username,
Robustel GoRugged M1000 Lite Quick Guide
RT_QG_R3000 Lite_v.1.0.0 25.01.2014 8/8
Password, Dialup No. (you can check these information from local ISP ) --> click “Apply”-> click “Save”and
“Reboot”.
Note: After configure R3000 Lite with new settings, you need to click “Apply”-> “Save”-> “Reboot”.
3. After above correct configuration, R3000 Lite should succeed to establish PPP connection. You can go to tab
“Configuration”-> “Status”-> “System”to check whether “PPP”indicator is “ON”(ON means PPP connection
established).
4. R3000 Lite can connect to Internet now.
