Robertshaw 9615 User manual
Important Safety Information Warning:
•Always turn off power at the main power source by unscrewing
fuse or switching circuit breaker to the off position before installing,
removing, cleaning or servicing thermostat.
•Read all of the information in this manual before installing or
programming this thermostat.
•This is a 24V AC low-voltage thermostat. Do not install on voltages
higher than 30V AC.
•All wiring must conform to local and national building and electrical
codes and ordinances.
•Do not short (jumper) across terminals on the gas valve or at the
system control to test installation. This will damage the thermostat
and void the warranty.
1
110-737
W
A
R
R
A
N
T
Y
INTEGRATED COMFORT SOLUTIONS
™
DIGITAL
PROGRAMMABLE
THERMOSTAT
9615
®
7 Day Programmable
2 Heat / 2 Cool
User’s Manual
Quick Start
Installation and
Programming
ELECTRIC
E
GAS
G
©1999 Maple Chase Company
As an Energy Star partner, Maple Chase has
determined that this thermostat product meets
the Energy Star guidelines for energy efficiency.
Features
• Four pre-programmed Energy Star setpoints for each day of the week
• Quickset™ programming for quickly programming all days of the
week simultaneously
• Energy Efficient Recovery (EER™)
• Residual cooling for added air-conditioning efficiency
• Two “AA” ENERGIZER brand batteries retain program memory, even
during power outages
• Low battery indicator
• LED indicator for auxiliary system operation
• Zone compatible as master thermostat
• Fahrenheit/Celsius display option
• Programmable from 45°F (7°C) to 90°F (32°C)
• Accuracy within ±1 degrees
• Adjustable 1st and 2nd stage differential: 1-3 degrees,
1st stage: 2-6 degrees, 2nd stage
• Maintains summer and winter programming
Replacing Existing Thermostat
1. Turn off power to heating and cooling system.
2. Remove cover of old thermostat to expose wires. Do not
disconnect wires. (Fig. 1)
3. Label wires per Table 1.
TABLE 1
Old Label New Label Description
R, V-VR or VR-R R 24 VAC
Y, Y1 or M Y1 1st Stage Cooling Circuit
O or R O Reversing Valve (Cooling Mode)
B B Reversing Valve (Heating Mode)
G or F G Fan Contactor Circuit
Y2 Y2 2nd Stage Cooling Circuit
W2 or W-U W2 2nd Stage Heating Circuit
W1 W1 1st Stage Heating Circuit
C, X or B C 24 VAC, Transformer Common Side
NOTE: THIS THERMOSTAT REQUIRES A 24V AC COMMON WIRE FOR PROPER OPERATION.
4. After labeling wires, remove wires from terminals.
5. Remove existing thermostat base from wall.
6. Refer to the following section for instructions on how to
install thermostat.
2
FIGURE 1
Installing Item 9615 Thermostat
NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON INSIDE WALL, 4-5 FEET ABOVE THE FLOOR. DO NOT INSTALL
BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY HEAT OR STEAM GENERATING FIX-
TURES. INSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERATION.
IMPORTANT: THIS THERMOSTAT IS COMPATIBLE WITH 100% LOCKOUT SYSTEMS. TO RESET THE SYSTEM, TURN
THERMOSTAT TO OFF POSITION FOR AT LEAST 60 SECONDS.
1. Turn power off to the heating and cooling systems.
2. Place COOL-OFF-HEAT switch in OFF position.
3. Place AUTO-ON switch
into AUTO position.
4. Remove the cover using a coin
or screwdriver.
FIGURE 2
5. Place thermostat against the wall at desired location. Make sure
wires will feed through opening on base of thermostat.

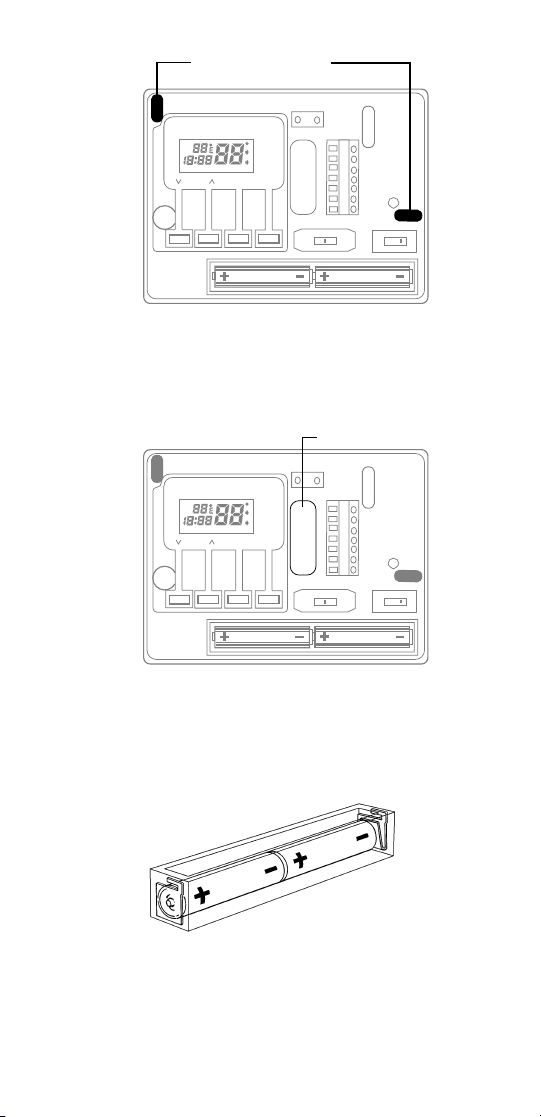

6. Mark placement of mounting holes. See Fig. 3. Set base aside.
3
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
AUTO - ON
COOL-OFF-HEAT
FIGURE 3
7. Drill the marked holes using a 3/16" drill bit. NOTE: Enclosed plastic
anchors do not require a drilled hole for drywall.
8. Tap plastic anchors into the holes.
9. Align base with plastic anchors and feed wires through opening.
See Fig 4. FIGURE 4
10. Secure base to wall with supplied screws.
11. Connect wires to terminal strip. Refer to wiring diagrams on other
side of this sheet. Make sure wire connections are secure.
12. Install two "AA" ENERGIZER brand batteries or equivalent into bat-
tery compartment. Be sure to match positive (+) ends of batteries
with positive (+) battery terminals in the battery compartment.
13. Replace cover onto thermostat by snapping into place.
14. Turn on power to system. Test thermostat as described in the
following section.
4
PROG
MAN
Y2
Y1W1
G
W2
FAN AUTO ON
COOL OFF HEAT
CHANGE SET PROG/MAN
AM
PM
MORN DAY EVE NITE EER
O
B
C R
MOUNTING HOLES
PROG
MAN
Y2
Y1W1
G
W2
FAN AUTO ON
COOL OFF HEAT
CHANGE SET PROG/MAN
AM
PM
MORN DAY EVE NITE EER
O
B
C R
OPENING
Programming Guide
Set Time of Day, Day of Week,
Temperature Differential,
Residual Cooling
1. Press SET & PROG/MAN.
Release simultaneously.
Press or to change
Time of Day.
2. Press Press
To Change
Day of Week
3. Press Press
To change 1st Stage
Temperature Differential
NOTE: THE TEMPERATURE DIFFERENTIAL IS FACTORY PRESET AT 1°. THIS MEANS
THAT WHENEVER THE ROOM TEMPERATURE CHANGES BY ONE FULL DEGREE FROM
THE TEMPERATURE SETTING, THE SYSTEM WILL TURN ON. IF THE SYSTEM TURNS
ON TOO OFTEN, INCREASE THE TEMPERATURE DIFFERENTIAL.
4. Press Press
To change 2nd Stage
Temperature Differential
NOTE: SECOND STAGE DIFFERENTIAL IS FACTORY PRESET AT 2°.
5
>
>
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
SET PROG/MAN
SET P
>
>
1=MO
2=TU
3=WE
4=TH
5=FR
6=SA
7=SU
SET P
>
>
SET
P
>
>
>
>
5. Press Press
To change
Residual Cooling
NOTE: THE RESIDUAL COOL FEATURE WILL KEEP THE SYSTEM FAN ON FOR AN
ADDITIONAL 30, 60 OR 90 SECONDS AFTER THE COMPRESSOR CYCLES OFF.
THE RESIDUAL COOL FEATURE CAN ONLY BE SET IN THE COOL MODE.
Changing Fahrenheit (F) to Celsius (C)
Press and Hold SET Press
Release both simultaneously.
QuickSet™ Programming Mode
1. Place COOL-OFF-HEAT
in COOL or HEAT position.
2. Press & Hold SET. Press the button.
Release simultaneously.
3. The MORN indicator should be blinking. Program the Time-of-Day and
the temperature as outlined in the Setting Daily Program section.
NOTE: QuickSet™ will program all 7 days of the week with the same program.
Setting Daily Programming
1. Place COOL-OFF-HEAT
in COOL position.
2. Press SET button. The display will
show a number from 1 to 7. This
number represents the day of the
week to be programmed. If pro-
gramming individual days, press
either or button to adjust
the day of the week to program.
3. Press SET. Press or to change
MORN time 6
>
>
SET P
>
>
SET
P
>
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
COOL-OFF-HEAT
SET PR
>
>
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
SET P
>
>
COOL-OFF-HEAT
>
>
4. Press SET.
5. Press or to change
MORN temperature.
6. Repeat Steps 2-5 for DAY, EVE, and NITE.
7. Repeat steps 2–6 above to program
any other day of the week.
8. Shift COOL-OFF-HEAT to
HEAT position.
9. Repeat steps 2-6 to program HEAT
(winter) settings.

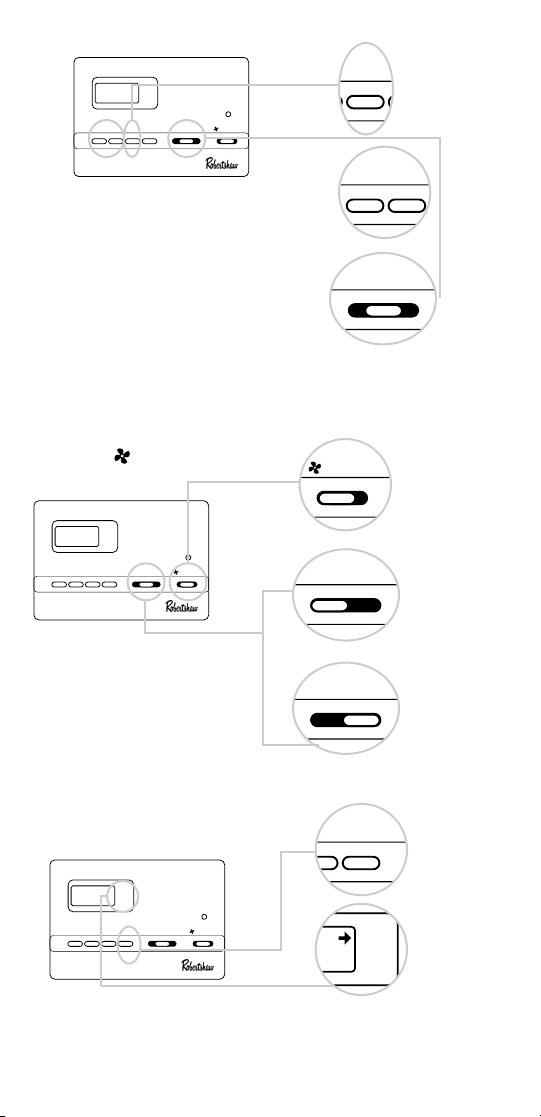

Begin Programmed Operation
1. Place AUTO/ON
into AUTO.
2. Place COOL-OFF-HEAT
into COOL or HEAT
Depending upon the season.
3. Press PROG/MAN button
until indicator is in
PROG position.
7
>
>
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
SET PR
>
>
COOL-OFF-HEAT
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
AUTO - ON
COOL-OFF-HEAT
COOL-OFF-HEAT
SUMMER
WINTER
ET PROG/MAN C
PROG
MAN
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
NOTE: W
HILE IN THE
C
OOL MODE ONCE THE THERMOSTAT TURNS THE SYSTEM OFF
,
A BUILT
-
IN DELAY KEEPS THE
COMPRESSOR FROM TURNING ON FOR ABOUT
5
MINUTES
. T
HIS PROTECTS THE COMPRESSOR
. N
O ADDITIONAL TIME
DELAY RELAY
(
DELAY ON BREAK
)
IS NECESSARY
. T
O OVERRIDE THE
5-
MINUTE DELAY FOR INSTALLATION
,
PRESS
RESET. T
HIS WILL ERASE THE DELAY AS WELL AS ALL PROGRAMMING
.
Energy Efficient Recovery EER™
EER™ allows your system to operate at peak efficiency for optimal energy
savings. EER™ looks up to 2 hours prior to the end of a set-back period to
begin monitoring system performance and determine the most efficient
time to turn on your system. During this period, the auxiliary stages of
heating or cooling will be locked out. Only the most efficient stages will be
utilized. At 20 minutes prior to the upcoming setpoint time, the auxiliary
stages will be available to achieve temperature setpoint if required.
Temporary Program Override
To temporarily increase or decrease temperature
Press or
The Thermostat will automatically return
to the program at the next scheduled
setting change or after 4 hours.
Manual Operation
1. Press PROG/MAN until indicator is in MAN position.
2. Press or to adjust
temperature settings.
Reset
To Reset the thermostat to factory pre-programmed
conditions, press the reset button located directly
to the right of the display.
8
>
>
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
PROG
MAN
SET PROG/MAN COOL-OFF-HEAT
AUX
AUTO - ON
>
>
>
>
T PROG/MAN
PROG
MAN
>
>
PROG
MAN
Y2
Y1
G
W2
W1
FAN AUTO ON
COOL OFF HEAT
CHANGE SET PROG/MAN
AM
PM
MORN DAY EVE NITE EER
O
B
C L R
RESET BUTTON
>
>
To Test Thermostat
WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYSTEM CONTROL
TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID YOUR WARRANTY.
CAUTION: DO NOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW 50°F (10°C). THIS CAN DAMAGE
THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY.
1. Place the COOL-OFF-HEAT
switch into the COOL position.
2. Press the button until the temperature
setting is at least 3 degrees below the room temperature. The air
conditioning system should turn on within a few seconds.
NOTE: W
HILE IN THE
C
OOL MODE ONCE THE THERMOSTAT TURNS THE SYSTEM OFF
,
A BUILT
-
IN DELAY KEEPS THE COMPRESSOR
FROM TURNING ON FOR ABOUT
5
MINUTES
. T
HIS PROTECTS THE COMPRESSOR
. N
O ADDITIONAL TIME DELAY RELAY
(
DELAY ON BREAK
)
IS NECESSARY
. T
O OVERRIDE THE
5-
MINUTE DELAY FOR INSTALLATION
,
PRESS
RESET. T
HIS WILL ERASE THE DELAY AS WELL AS ALL
PROGRAMMING
.
3. Put the COOL-OFF-HEAT switch into
the OFF position. The air conditioning
system should turn off. The fan may
continue to run for a short period of time.
4. Put the COOL-OFF-HEAT switch
into the HEAT position.
5. Press the button until the temperature setting is at least
3 degrees above room temperature. The heating system should turn
on. The fan may not turn on immediately, depending upon the fan
delay built into the furnace.
6. Put the COOL-OFF-HEAT switch
into the OFF position. The heating
system should turn off. Once again,
the fan may have a delay.
7. Put the AUTO-ON switch
to the ON position. The blower
fan should turn on.
8. Put the AUTO-ON switch
to the AUTO position. The blower
fan should turn off.
LED Indicator
The LED indicator illuminates during a call for second stage heating or
cooling. The auxiliary stages are used to maintain comfort during
extremes in weather conditions. If the LED is illuminated too frequently
during periods of moderate temperature, check the differential settings
(page 5). 9
COOL-OFF-HEAT
COOL-OFF-HEAT
COOL-OFF-HEAT
COOL-OFF-HEAT
AUTO - ON
AUTO - ON
>
>
Troubleshooting
SYMPTOM REMEDY
10
Thermostat does not turn
on system. Check Wiring.
(See “INSTALLATION.”)
Check fuse. Replace with 3 amp
fuse if fuse has opened. Five
minute compressor short cycle
protection may be in effect. Press
RESET to override. NOTE: This will
erase programming.
Thermostat turns on and off too
frequently. Increase Temperature Differential
(See “PROGRAMMING.”)
Display is blank, flashing or
constant "LO BAT". Replace batteries.
System fan does not operate
properly. Move fan option switch to either
gas or electric, to match system.
(See “INSTALLATION.”)
Time shown on display is not the
current time of day. Change time of day setting.
(See “PROGRAMMING.”)
Thermostat does not follow
program. Thermostat in MANUAL mode. (See
“PROGRAMMING.”)
Thermostat may not have been pro-
grammed in HEAT or COOL position.
Verify program.
Check AM/PM indicators at time of
day and programmed time changes.
(See “PROGRAMMING.”)
Verify program and day of week
are correct. (See “PROGRAMMING.”)
Thermostat does not advance day
of week.
To view or change day of week,
use method on page 5.
If problems with thermostats cannot be solved, call:
Technical Support: (800) 445-8299
Monday-Friday 7:30-5:30 CST
For warranty returns, send thermostat, shipping prepaid to:
Uni-Line North America
Warranty Claims Department
515 S. Promenade
Corona, CA 91719
Other manuals for 9615
2
Table of contents
Other Robertshaw Thermostat manuals
Robertshaw
Robertshaw 9515 User manual
Robertshaw
Robertshaw 8625 User manual
Robertshaw
Robertshaw 9405 User manual
Robertshaw
Robertshaw 9801i2 User manual
Robertshaw
Robertshaw 9550 User manual
Robertshaw
Robertshaw 200-403 User manual
Robertshaw
Robertshaw 7610 User manual
Robertshaw
Robertshaw 9701i2 User manual
Robertshaw
Robertshaw DSL-520P Manual
Robertshaw
Robertshaw 8400 User manual
Robertshaw
Robertshaw 9725i2 Installation and operating instructions
Robertshaw
Robertshaw 8601 User manual
Robertshaw
Robertshaw 9500 User manual
Robertshaw
Robertshaw RS456-WIFI User manual
Robertshaw
Robertshaw 9701i User manual
Robertshaw
Robertshaw 9851i User manual
Robertshaw
Robertshaw 300 series User manual
Robertshaw
Robertshaw 9901i User manual
Robertshaw
Robertshaw RS321P User manual
Robertshaw
Robertshaw 9801i2 User manual
Popular Thermostat manuals by other brands
Saswell
Saswell SAS920XWHB-7-S-RF User manual and warranty card
Aircalo
Aircalo TFP1-ET85P2 operating manual
Honeywell
Honeywell CM721 user manual
Carrier
Carrier DEBONAIR 33CS Installation and operating instructions
Lennox
Lennox iHarmony Zone Thermostat Installation and setup guide
Gemtech
Gemtech GT7000 Operation
