Robertshaw 9415 User manual

9415

Features and Benefits

Larger Back Lit Display

Makes viewing and setting the temperature

easy and accurate.

Winter and Summer Permanent Setpoint Memory

Allows you to save both heating and cooling

temperature settings.

Automatic Compressor Short Cycle Protection

A system safeguard. Reduces wear and

tear of HVAC equipment.

Worry-Free Memory Storage

Even during power outages, the thermostat maintains

setpoint and programmed parameters.

Adjustable 1st and 2nd Stage Temperature Differential

Maintains optimal customer comfort.

O & B Terminals

Greater system flexibility, zoning compatible.

Zone System Compatible

In zoning applications where temperature is

precisely controlled, the thermostat acts as a sensor

within the system.

Quick Wire Terminal Block

Fast and easy installation. Uses sturdy wire clamps –

no wrap-around of screws.

Toll-Free Assistance

Toll-Free Technical Service number printed right on

the thermostat provides immediate assistance.

2 Heat / 2 Cool

Incredible Digital

When it comes to non-programmable temperature control,

we listened to the experts–YOU! Our 9415 takes comfort to a

new level. The LCD display is clearly one of the largest in the

industry, up to 80% larger than competitive models. Plus, the

display is back lit, making it even easier to read in a dark room.

This model is loaded with enhanced features. The 9415 comes

with permanent winter and summer setpoint memory, allowing

you to save both heating and cooling temperature settings. This

eliminates temperature adjustments when switching systems for

seasonal requirements. And our fully adjustable differential

provides increased comfort control. The 9415 is compatible with

all standard 24 Volt AC multi-stage systems, up to two stage

heat and two stage cool.

When you select a Robertshaw thermostat, you’ve made the

choice of an industry partner that’s been making quality

products for 100 years. Come home to affordable comfort.

Come home to RobertshawSM.

Technical service available:

1-800-445-8299

M-F 7:00 a.m. - 5:30 p.m. CST

24 VAC POWERED

GAS

ELECTRIC

OIL

DIGITAL

NON-PROGRAMMABLE

THERMOSTAT

new series!

2 Heat / 2 Cool

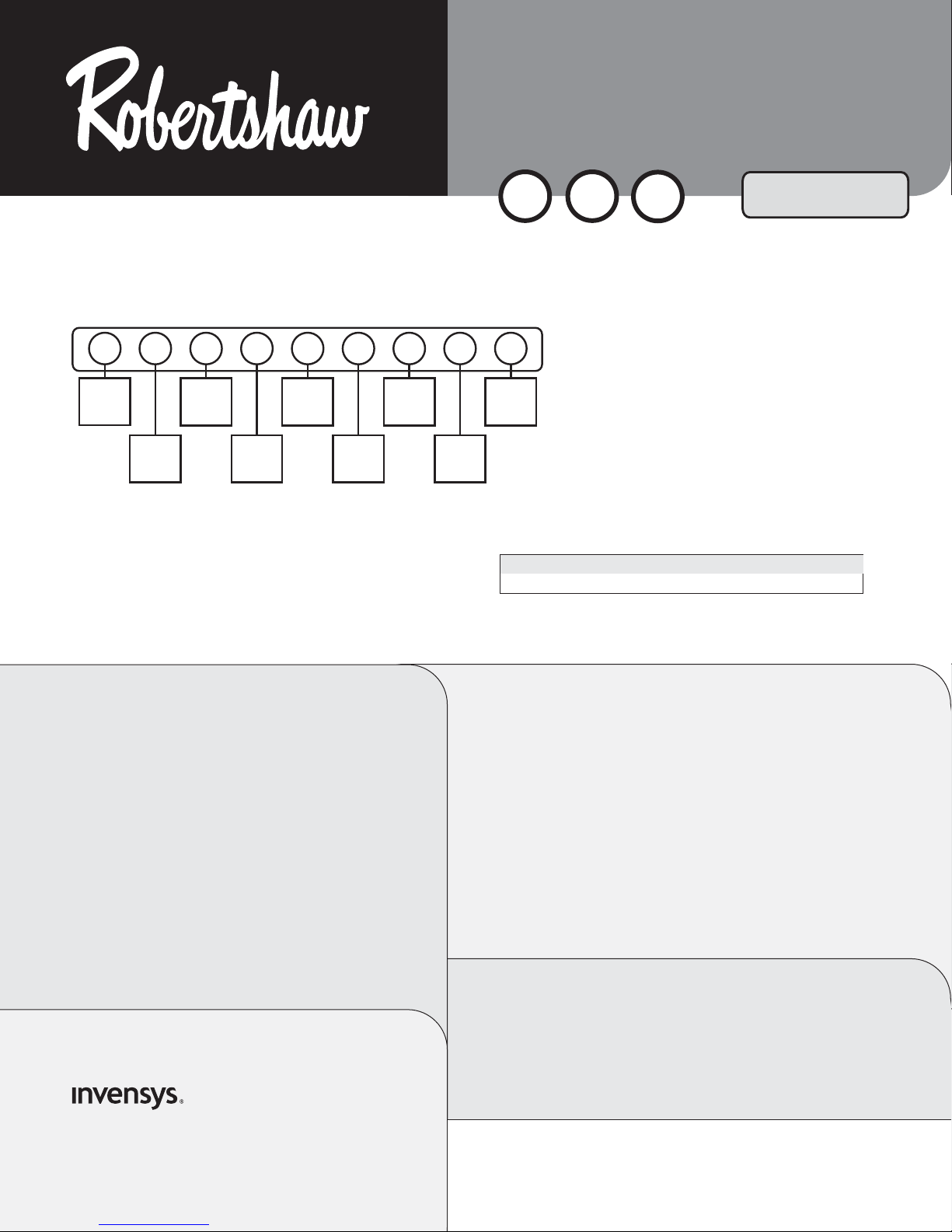

Terminal Designations

THE ROBERTSHAW 9415 REPLACES:

Shipping Information

Indiv. Ctn. Dim.: 6.75" x 4.375" x 1.625"

Master Ctn. Qty.: 6

Master Ctn. Dim.: 9.25" x 5.625" x 7.625"

Master Ctn. Cu. Ft.: .23

Master Ctn. Wt.: 4.0 lbs.

Max. Pallet Qty.: 1170

Max. Pallet Dim.: 40" x 48" x 48"

Max. Pallet Cu. Ft.: 53.33

Max. Pallet Wt.: 835 lbs.

Other Multi-Stage

Heat / Cool Thermostats

9615: Programmable, 7 Day

9715i: Deluxe Programmable, 7 Day

24 VAC

Common

24 VAC

Transformer

Cooling

Relay

(Stage 2)

Cooling

Relay

(Stage 1)

Heat

Relay

(Stage 1)

Auxiliary

Heat Relay

(Stage 2)

Cool Active

Accessory

Terminal

Heat Active

Accessory

Terminal

Fan

Relay

Specifications

Electrical rating: 24 Volt AC (18-30 VAC)

1 amp maximum load per terminal

3 amp total maximum load

(all terminals combined)

Temperature control range: 45˚- 90˚F (7˚- 32˚C)

Power: 24 VAC

Accuracy: +/-1˚F (+/-.5˚C)

System configurations: Multi-stage gas, oil, or

electric heating/cooling systems

(up to two stage heat, two stage cool)

Terminations: C, R, Y2, Y1, W1, G, W2, O, B

GAS ELECTRIC

Distributed by:

9415

OIL

Robertshaw 9515

White-Rodgers Company* 1F83-211

* Verify specific application requirements before substitution.

DIGITAL

NON-PROGRAMMABLE

THERMOSTAT

new series!

Controls Americas

515 South Promenade Avenue

Corona California 92879-1736 USA

Telephone +1 800 951 5526 Facsimile +1 630 260 7299

[email protected]

www.icca.invensys.com
