RIOTEC LS6007 User manual

Laser Barcode

Scanner

Model no. LS6007

FS5027

User’s Manual

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user‘s authority to operate the equipment.

Limited Warranty

No warranty of any kind is made in regard to this material, including, but not limited to,

implied warranties of merchantability or fitness for any particular purpose. We are not liable

for any errors contained herein or for incidental or consequential damages in connection with

furnishing, performance or use of this material. We shall be under no liability in respect of

any defect arising from fair wear and tear, willful damage, negligence, abnormal working

conditions, failure to follow the instructions and warnings, or misuse or alteration or repair of

the products without written approval.

Table of Contents

1. INTRODUCTION……………………………………………………………………………… ..…2~3

2. INSTALLATION………………………………………………………………………………..…...4~7

3. SET UP FROM BAR CODE LABEL………………………………………………………….……..8

Multi-i terface Fu ctio s……….………………………………………………………9~11

I terface-Serial……..……………………………………………………………………12~13

1D Symbologies O /Off……………………………………………………………….14~15

2D Symbologies O /Off…………………………………………………………………….16

Symbologies Set Up…………………………………………………………………….17~21

Termi atio Stri g Setup Bar Codes…………………………………………………..22

Introduction

RIOTEC LS6007 FS5027 2D Laser barcode scanner, using Intermec engine, combines the

best scanning performance and value. The device provides an accurate, easy, and fast method

of data entry and data storage for computerized information systems. It is easy to install

drivers to operate.

RIOTEC LS6007 FS5027 2D laser barcode scanner can compatible several interfaces

(RS232-USB, RS-232,) and numerous configurations, is a powerful and reliable handheld

scanner without compromise.

All the operating parameters are programmed by bar code programming menu and stored in

non-volatile RAM which can retain the settings after power is turned off.

When a barcode is successful decoded, the blue LED light of the scanner will turn on and off.

The scanner will beep once.

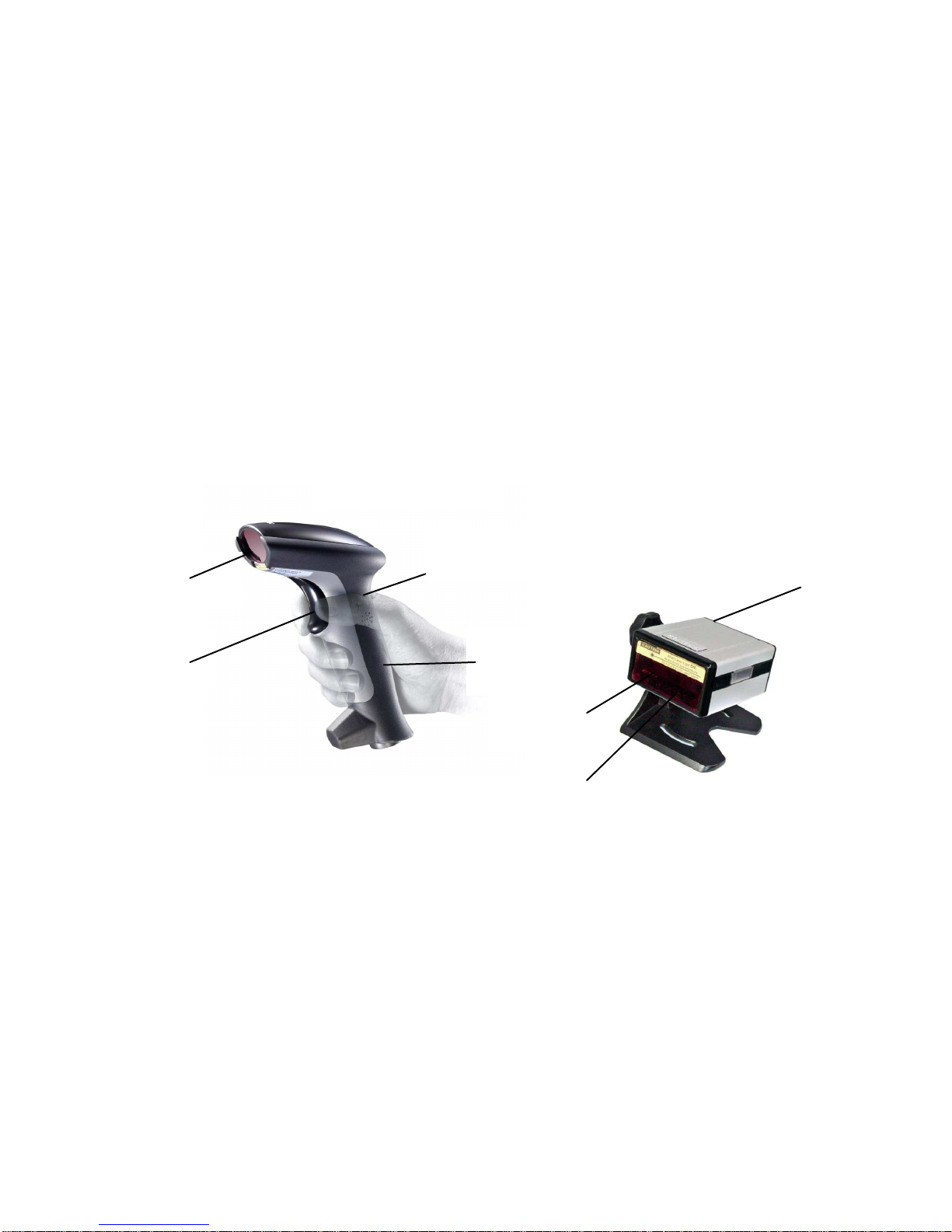

LED (blue/red)

Exit Window

Trigger

Buzzer

Handle

Buzzer

Exit Window

LED

Installation

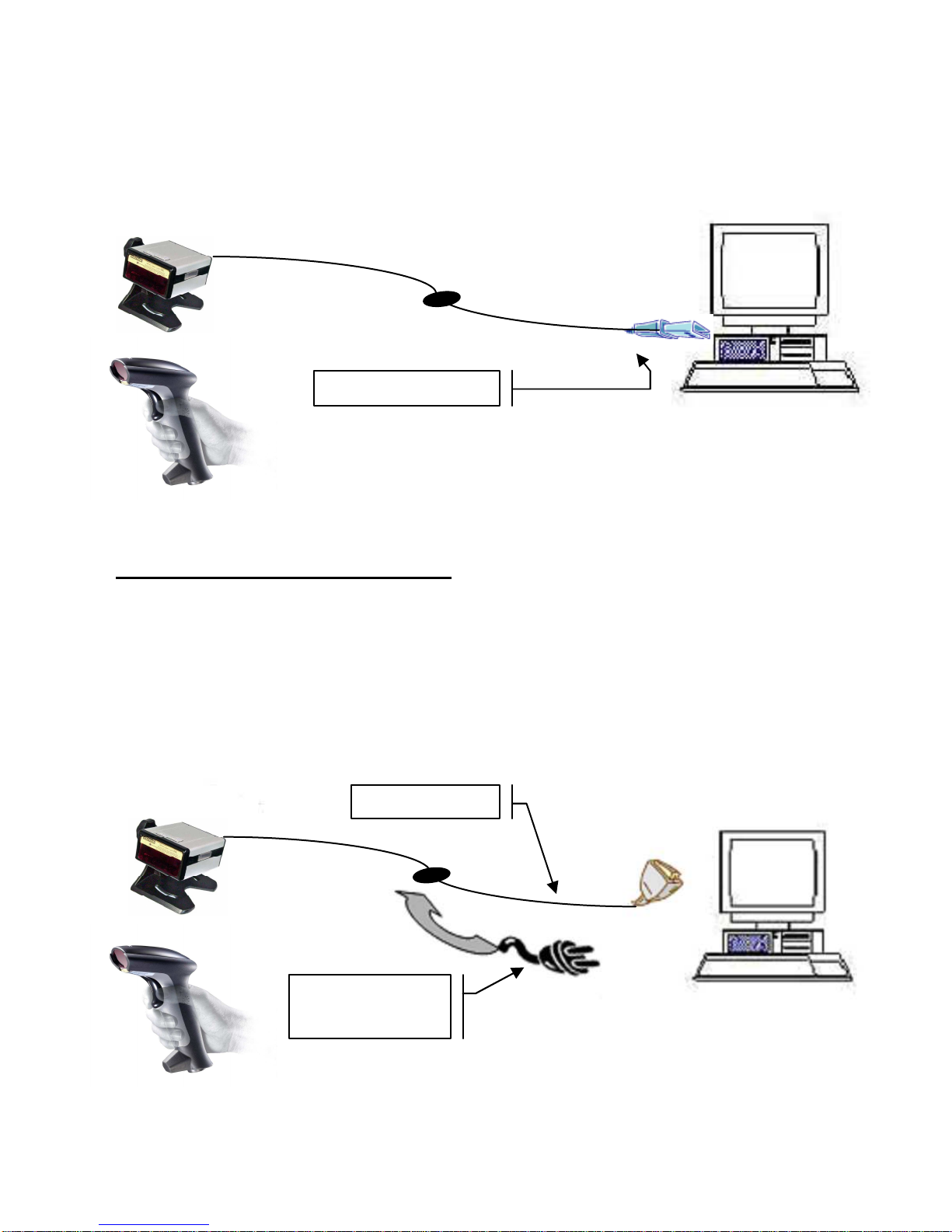

Insert the plug on the free end of the Communications Cable into the appropriate connector on

the host as below described:

1. USB cable Connection:

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect codes,

please scan the “Reset Configuration to Defaults” barcode below . This will reset the

scanner to its factory defaults settings in USB interface.

2. RS232 cable Connection:

Connect with host

connect with host

Require 5V adapter

for power supply

NOTE: for Serial port (RS232 cable), please plug the power connector of 5V power

adapter to RS232 cable.

1. Be sure that Host computer is turned OFF

2. Connect scanner cable to the USB port(COM port) on the host system.

3. .Ensure that all connections are secure. Turn on your host.

4. And please operate the scanner under the right software application.

5. Install the software “PL-2303 Driver Installer.exe” to the host system..

6. Go to My Computer One click right button of mouse Administrate 

Device Administrator Connect Port (COM and LPT).

7. Choose Prolific USB-to-Serial Com Port, and see identify COM number, ex.

COM 5.

8. Go to START Programs Accessories Communications 



Hyper

Terminal.

9. Run Hyper Terminal and make the right setting: 9600, 8-data bits, NONE-parity,

1-stop bit, NONE-flow control.

10. Aim the scanner at a barcode, ensure that the scanner is in trigger mode (default),

and press the trigger.

11. On successful decode, the blue LED light will turn on and off. The scanner will

beep once. And will show the bar code data on the screen.

Detail set up on the Hyper Terminal, please see at the Figure 1 to Figure 3.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect codes,

please scan the “Reset Configuration to Defaults” barcode. This will reset the scanner to

its factory defaults settings.

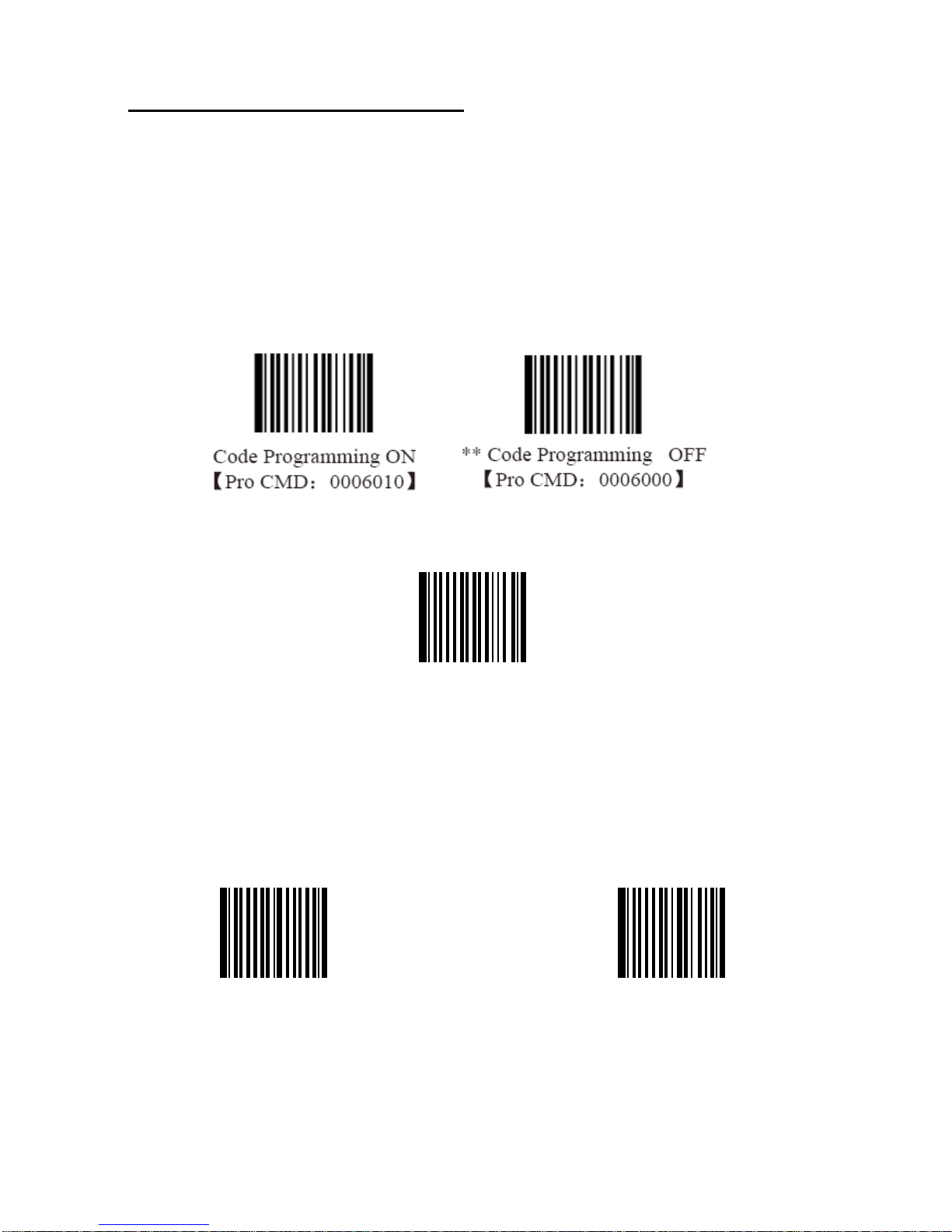

Please read following 2 barcode to reset to defaults.

Load All Factory Default

【

【【

【Pro CMD：

：：

：0001000】

】】

】

Save as User Default

【

【【

【Pro CMD：

：：

：0001150】

】】

】

Load User Default

【

【【

【Pro CMD：

：：

：0001160】

】】

】

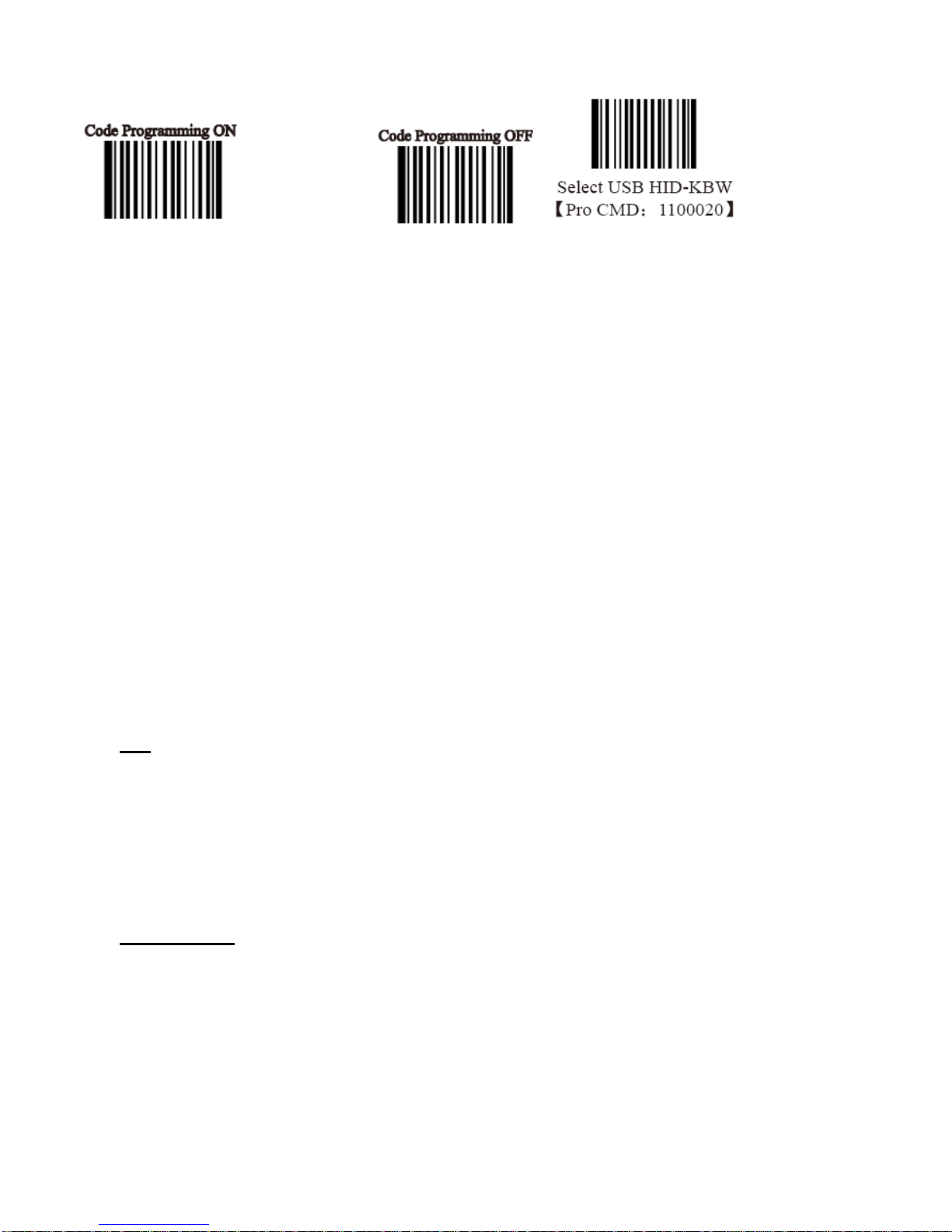

If USB(HID) VERSION,PLEASE SET THE OUT PUT MODE AS USB(HID)

Operation

12. Be sure that Host computer is turned OFF.

13. Ensure that all connections are secure.

14. Turn on your host. And please operate the scanner under the right software

application, such as Notepad or Word(RS232 interface should be under

Hyper Terminal” and make the right setting).

15. Aim the scanner at a barcode, ensure that the scanner is in trigger mode (default),

and press the trigger.

16. On successful decode, the blue LED light will turn on and off. The scanner will

beep once.

Tip

Do not hold the scanner directly over a barcode at 90˚. Scanning light bounces directly

back into the scanner from the barcode label is known as specular reflection which will

create a "dead zone" where decoding is difficult. Practice a few times to find what range

of angles works best.

Maintenance

Cleaning the scan window is the only maintenance required. A dirty window may

affect scanning accuracy.

Wipe the scanner window gently with a lens tissue or other material suitable for cleaning

optical material.

Do not spray water or other cleaning liquids directly onto the window.

Setup from Bar Code Label
