Replace the Printer Platform on a Rimage 2000i or Standalone 480i Printer
Use this procedure to replace the printer platform on a Rimage 2000i™ or Standalone 480i™ Printer.
Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are
used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.
Note: Your system may not look exactly like the system pictured.
Before you begin
1. Stop or pause all jobs.
2. If the printer is on an autoloader, power off the
autoloader.
3. Disconnect the power cord from the power outlet.
#Required tools:
•Torx T10 screwdriver
Remove the Printer Platform

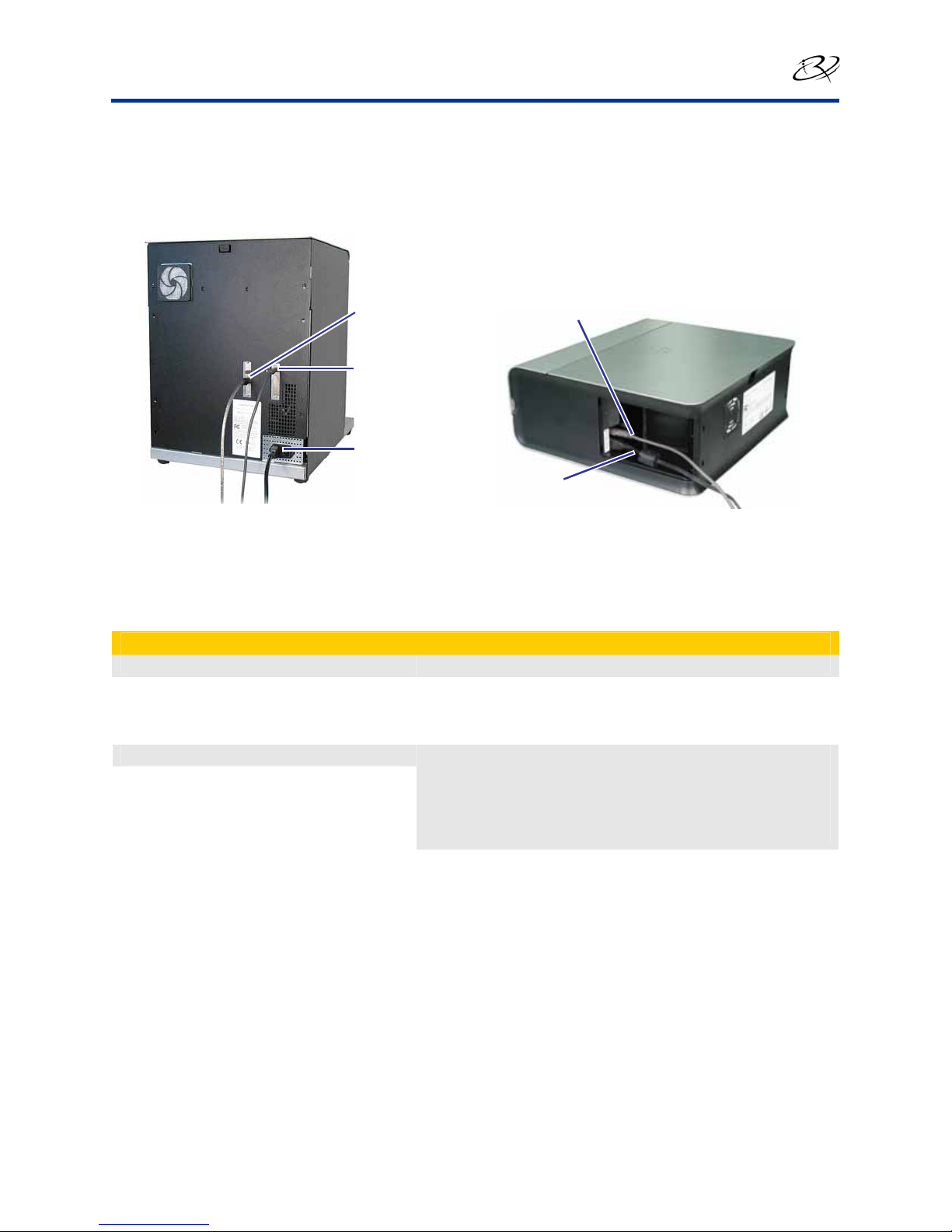

1. Disconnect the cables.
nCaution! Some cables in this system are latched. Equipment damage may occur if cables are not
disconnected appropriately.
ble (if present, 2000i only)•FireWire ca
•USB cable
•Power cord
2000i
Standalone 480i Printer
USB Cable
Printer
Service
Door
Printer
Service
Door
USB Cable
2. Open the printer service door.
Tip: Press the tab to free the printer service
door from the frame.

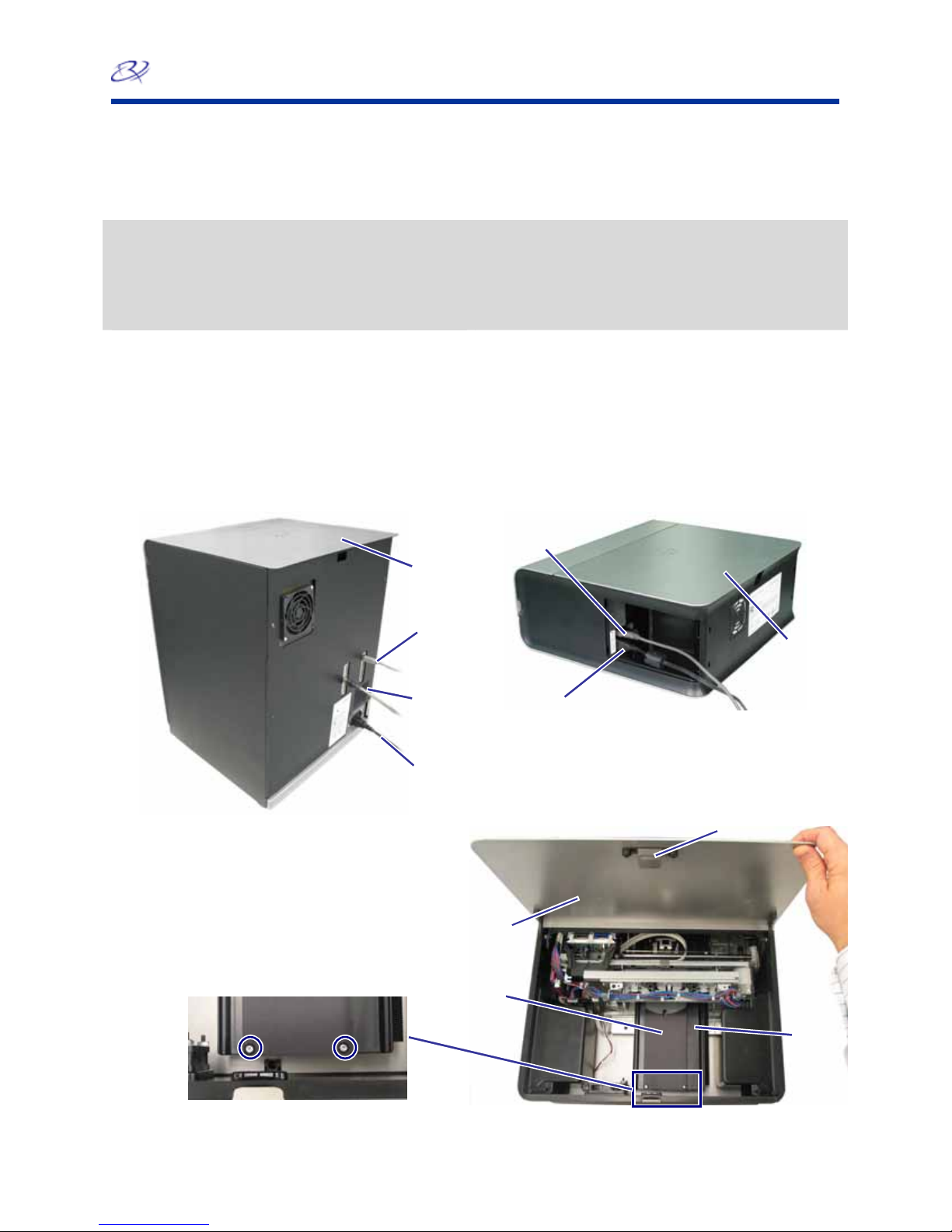

3. Remove the rear Torx T10 screws (Qty. 2) from
the printer platform.
Note: The printer platform is the metal plate
on top of the sliding printer tray.
Printer
e
Servic
Door
Powe
Cord r
FireWire
Cable
(if present) Power
Cord
Tab
Printer
Platform
Printer
Tray
Replace the Printer Platform 2000i™ or Standalone 480i™ Printer
2000558_B © 2007, Rimage Corporation 2

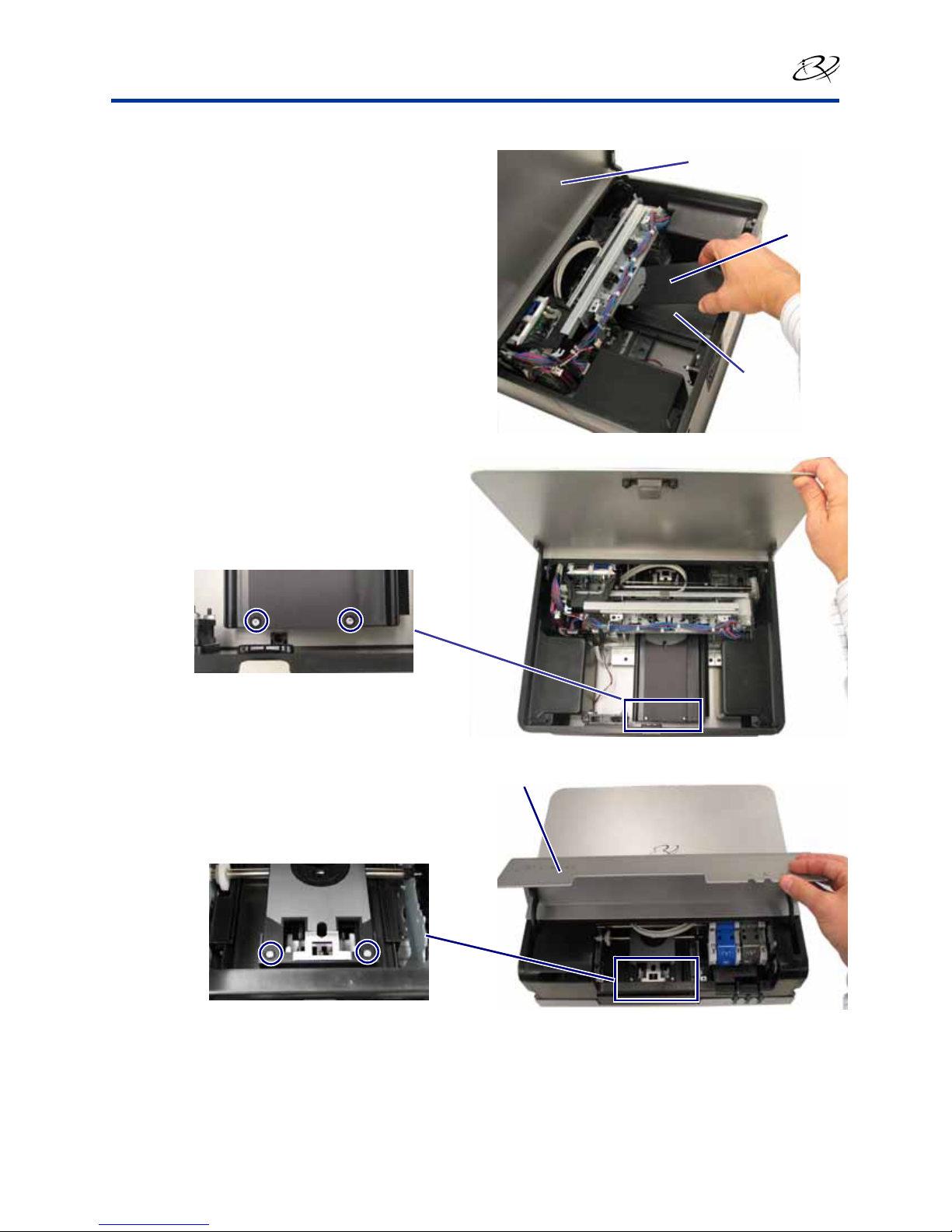

4. At the front of the printer, open the printer access
door.
5. Remove the front Torx T10 screws (Qty. 2) from
the printer platform.
Printer
Access
Door
6. Carefully lift the printer platform out the back of
the printer.
7. Close the printer service door.
Printer Platform
Printer
Service
Door
Printer
Tray
Replace the Printer Platform 2000i™ or Standalone 480i™ Printer
2000558_B © 2007, Rimage Corporation 3
Install the Printer Platform
1. At the back of the printer, open the printer
service door.
Tip: You may need to prop this door open or
have someone hold it for you.

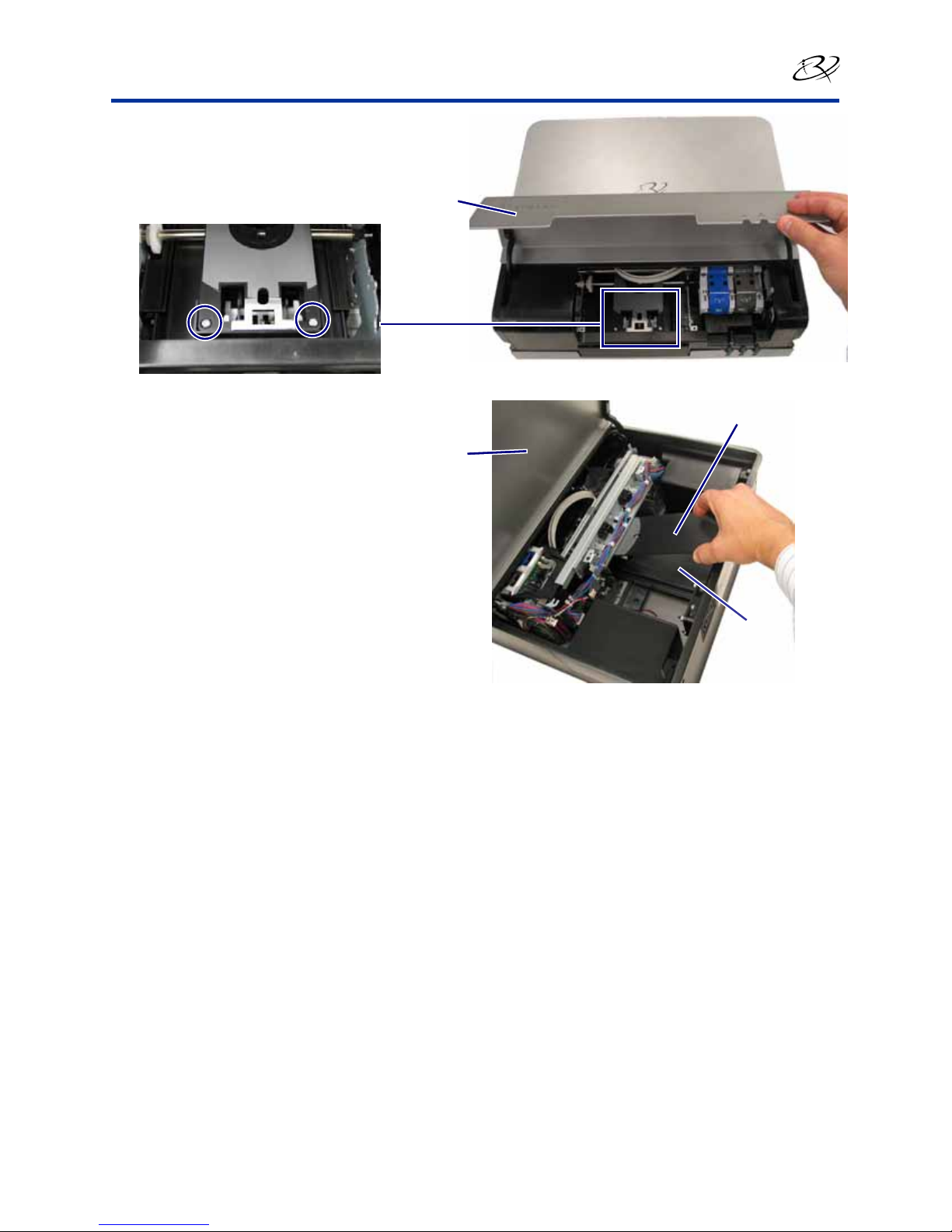

2. Position the replacement printer platform onto
the printer tray so that the screw holes align.
3. Insert and tighten the Torx T10 screws (Qty. 2) to
secure the back of the printer platform.
Printer Service Door
Printer
Platform
Printer
Tray
4. Open the printer access door.
5. Insert and tighten the Torx T10 screws (Qty. 2) to
secure the front of the printer platform.
6. Close the printer access door.
Printer Access
Door
Replace the Printer Platform 2000i™ or Standalone 480i™ Printer
2000558_B © 2007, Rimage Corporation 4
Prepare the System for Use
1. Connect the cables.
•FireWire cable (if present, 2000i only)
•USB cable
•Power cord
2000i
USB Cable
USB Cable
FireWire Cable
(
if
p
resent
)
Power
Cord Power
Cord
Standalone 480i Printer
2. Connect the power cord to the power outlet.
3. Power on the Rimage 2000i.
The system is ready for use.
Support information
Europe When you contact Rimage Services, please provide:
Contact Rimage Services Europe:
www.rimage.com/support.html
Email: [email protected]
Tel: +49-(0) 6074-8521-0
•Unit serial number and software version.
•Functional and technical description of the problem.
•Exact error message received.
US, Asia/Pacific, Mexico/Latin America Rimage Corporation reserves the right to make improvements to the
Contact Rimage Services: equipment and software described in this document at any time without
any prior notice. Rimage Corporation reserves the right to revise this
www.rimage.com/support.html publication and to make changes from time to time in the content hereof
Email: http://www.rimage.com/support_form.cfm without obligation of Rimage Corporation to notify any person or
Tel: North America: 800-553-8312 organization of such revisions or changes.
Asia/Pacific, Mexico/ Latin America: 952-946-0004
